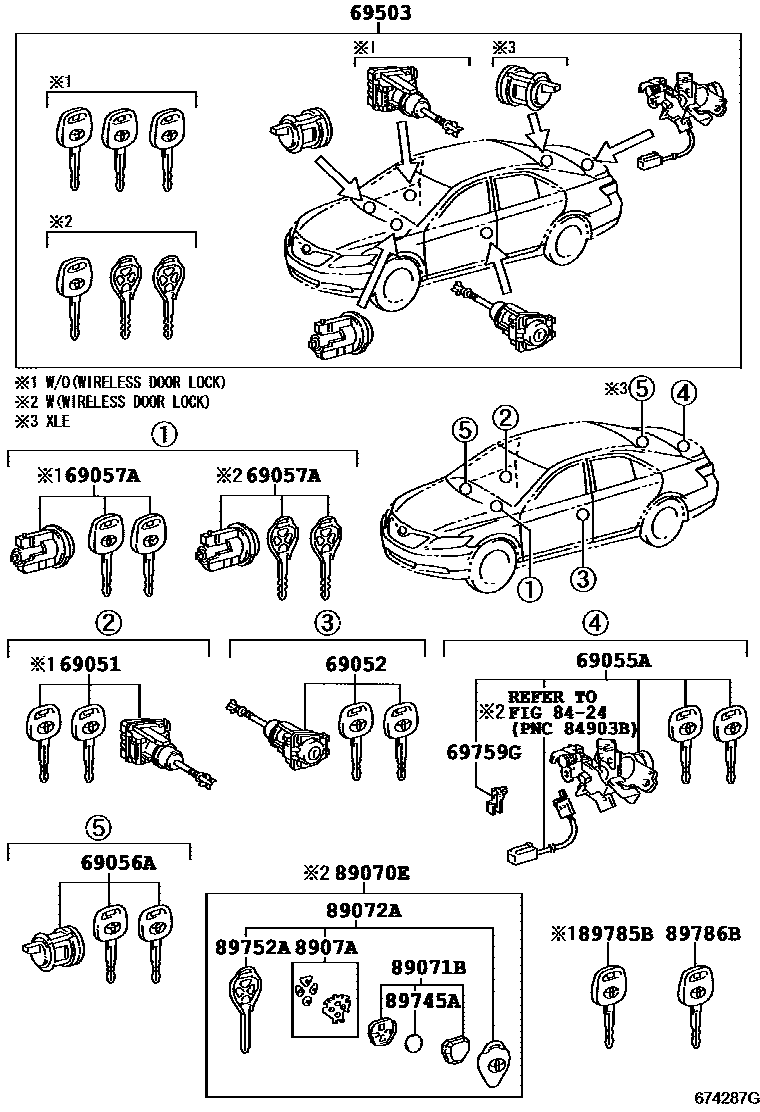

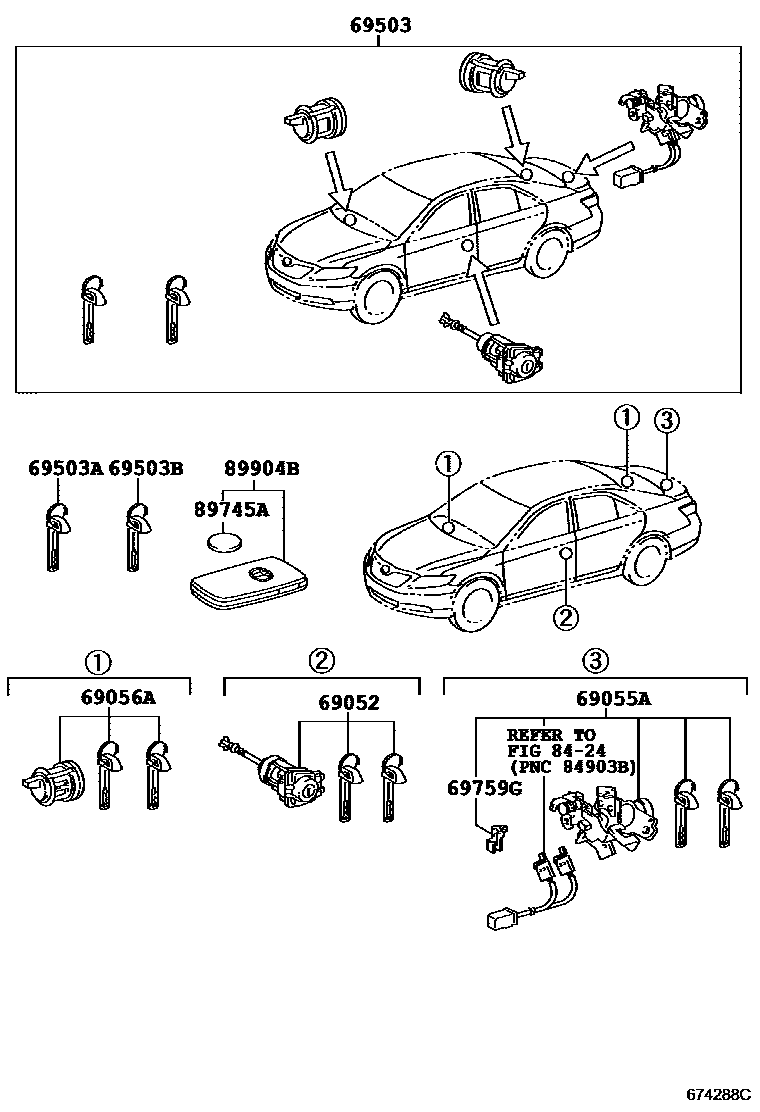

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33270 |
| 69052 | Left door lock cylinder and key assembly | 69052-33270 · 69052-33280 · 69052-33300 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33420 · 69055-33440 · 69055-33450 |
| 69056A | Glove box lock cylinder and key assembly | 69056-33190 · 69056-33200 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12840 · 69057-33340 · 69057-33341 · 69057-52510 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-33A20 · 69005-33A21 · 69005-33A22 · 69005-33A30 · 69005-33A31 · 69005-33A40 · 69005-33A41 · 69005-33A42 · 69005-33A50 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-33880 · 89070-33881 · 89070-33882 · 89070-33B20 · 89070-33C40 · 89070-33D00 · 89070-33D01 · 89070-33D40 |
| 89071B | Remote key sub-assembly module assembly | 89071-33330 · 89071-33331 · 89071-33370 · 89071-33410 |
| 89072A | Remote key shell assembly | 89072-33470 · 89072-33471 · 89072-33600 · 89072-33730 · 89072-33731 · 89072-33740 · 89072-33A30 |
| 8907A | Transmitter switch assembly | 8907A-33010 · 8907A-33040 |
| 89745A | Transmitter battery | 89745-48030 · 89745-52020 · 89745-71010 |
| 89752A | transmitter housing | 89752-12120 · 89752-28070 · 89752-28071 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33180 · 89904-33181 · 89904-33310 · 89904-33370 |
