Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 15 PNC and OE references.

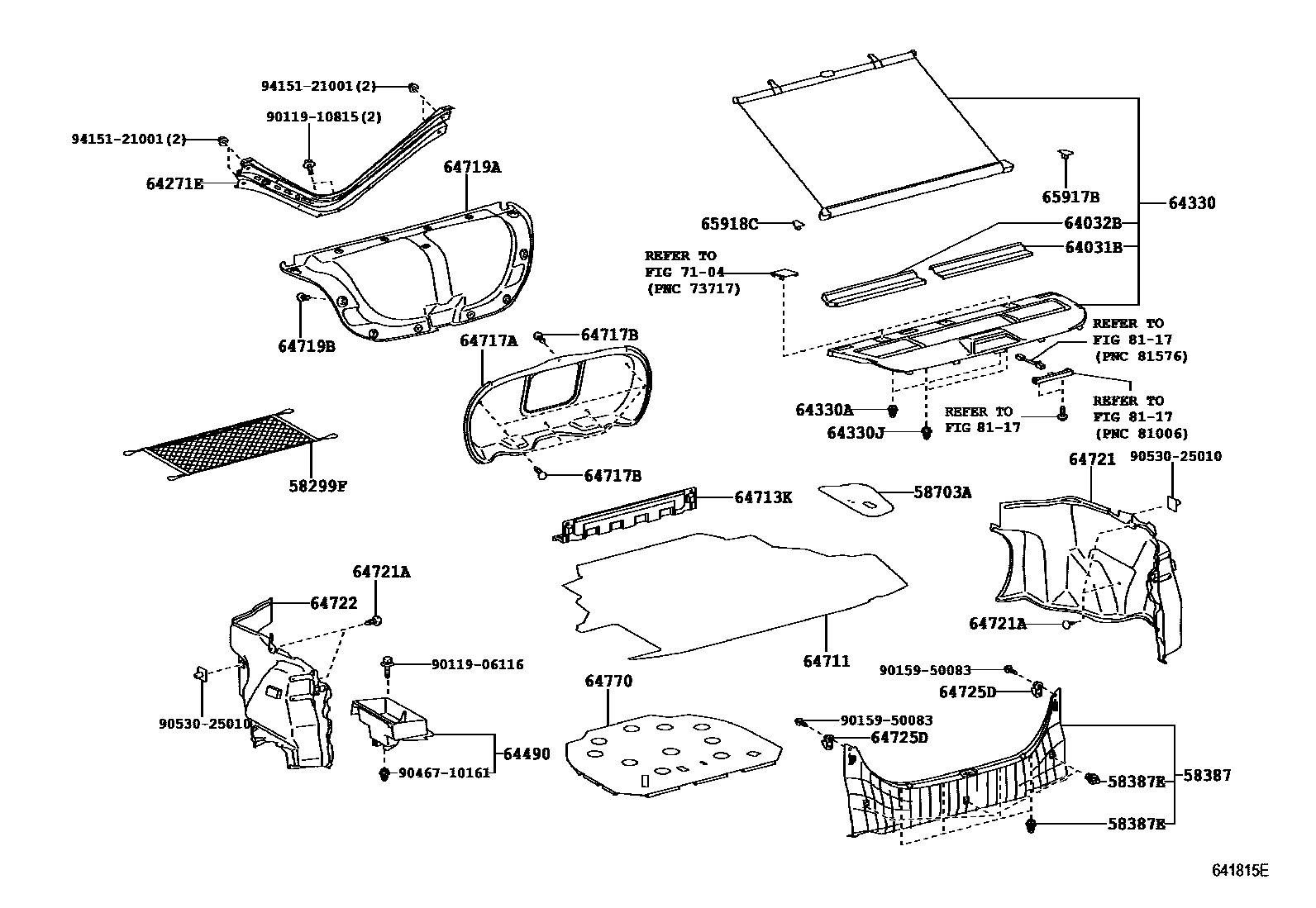

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 641815E
杂物箱板和行李箱垫 — 641815E (200601 – 999999)

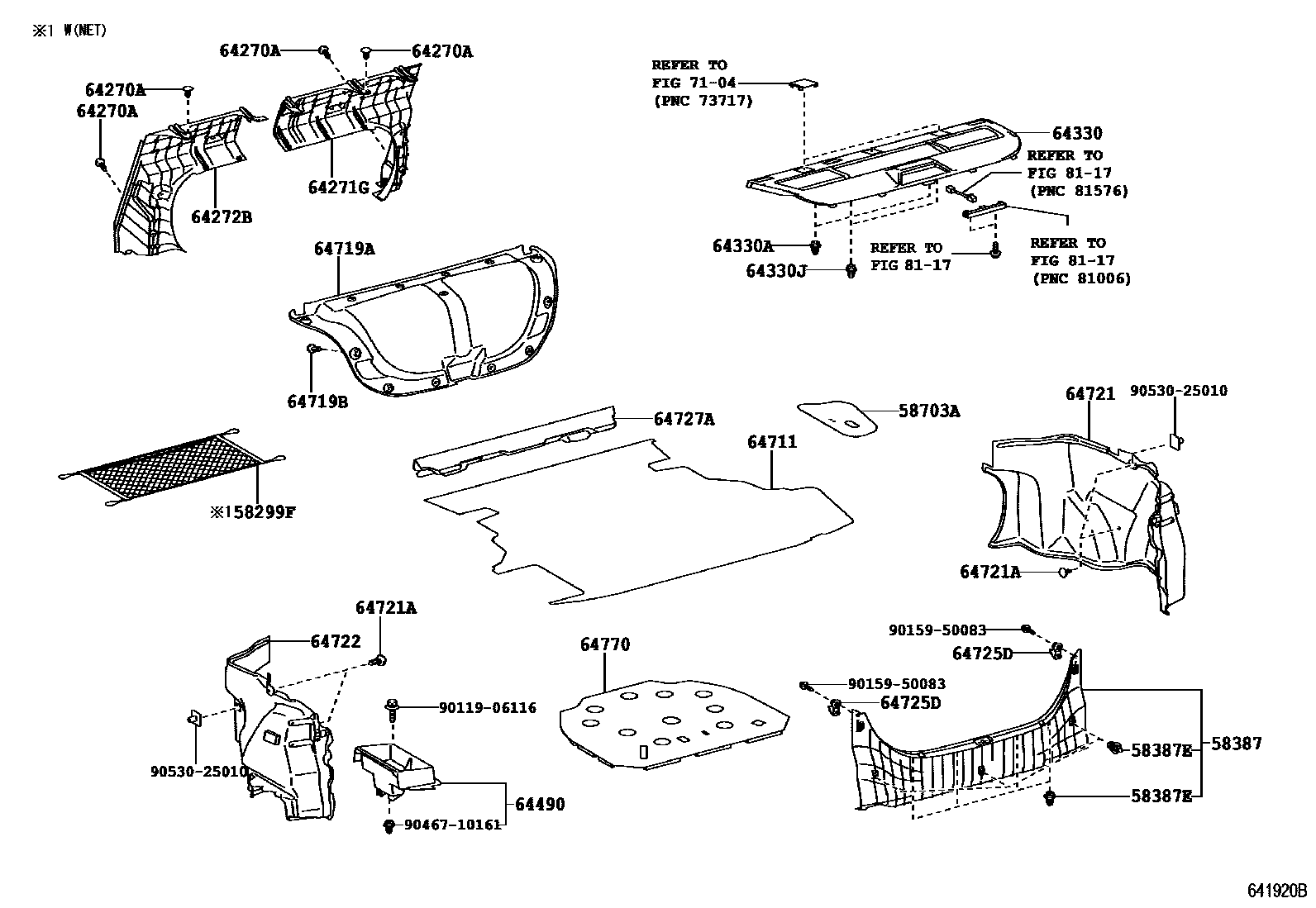

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 641920B
杂物箱板和行李箱垫 — 641920B (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
58299FLuggage rack net58299-AA010
58387Rear floor decorative panel58387-33090
58387EClip (for rear floor trim panel)90467-10161
58703ATrunk door right side decorative cover sub-assembly58703-33050
64271Ecompartment partition64241-33040
64271GRight compartment partition64271-33080
64272BLeft compartment partition64272-33050
64330AClip (for glove box decorative panel)90467-10161
64330JClip (for glove box decorative panel)90467-10167
64490Luggage side bracket assembly64490-33030
64725DLuggage decorative hook No. 164725-33061
64727ALuggage interior decorative mat64727-33040
64770Spare tire cover assembly64770-33090 · 64770-33100
65917BCurtain slide rail right end cap65917-33020
65918CCurtain slide rail left end cap65918-33010
