Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

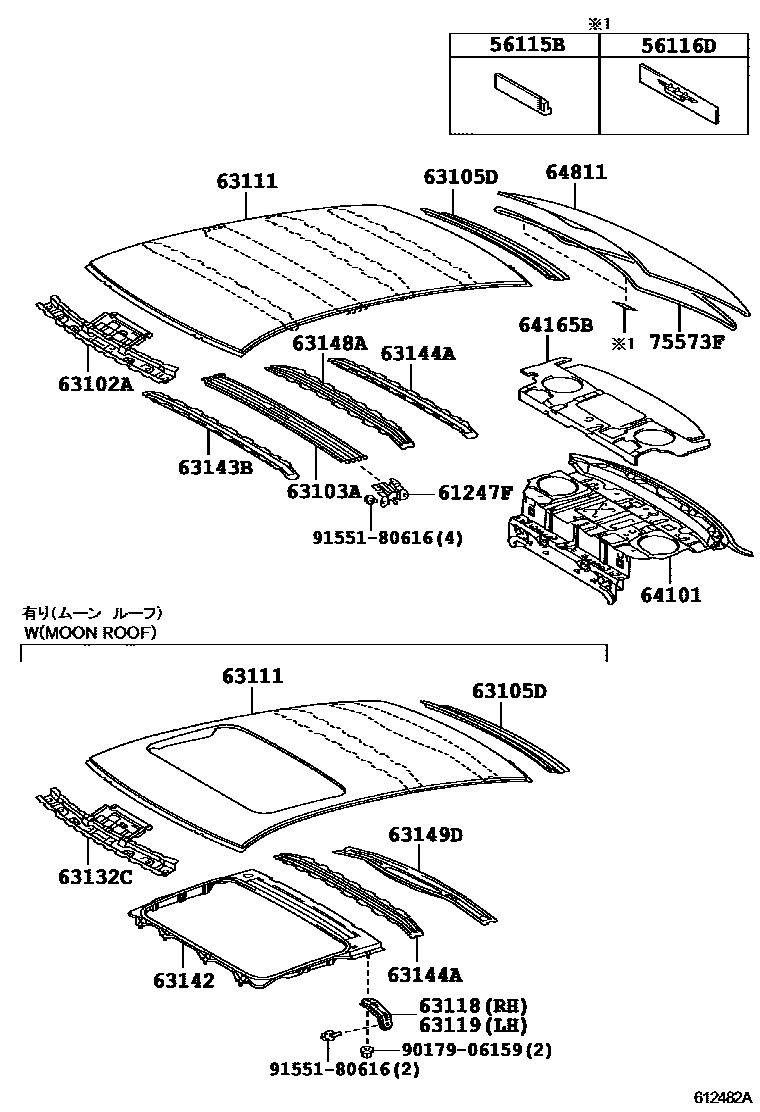

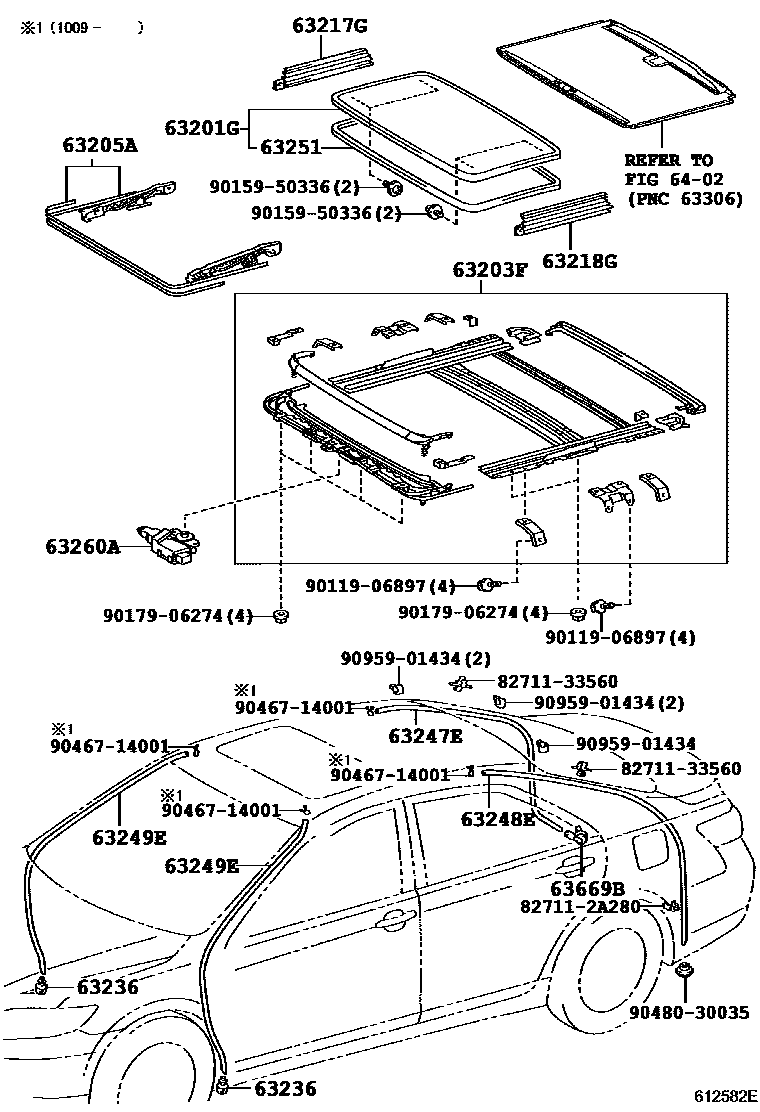

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-33010 |
| 63102A | Windshield roof sub-assembly | 63102-33902 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-33010 |
| 63105D | Rear window upper frame sub-assembly | 63105-33020 |
| 63111 | roof panel | 63111-33230 · 63111-33240 · 63111-33260 · 63111-33270 |
| 63118 | Right roof panel bracket | 63118-33030 |
| 63119 | Left roof panel bracket | 63118-33030 |
| 63132C | Windshield inner roof panel | 63132-33070 |
| 63142 | No. 2 roof panel reinforcement | 63142-33060 |
| 63143B | No. 3 roof panel reinforcement | 63143-33080 |
| 63144A | No. 4 roof panel reinforcement | 63144-33110 · 63144-33120 |
| 63148A | No. 7 roof panel reinforcement | 63148-33030 |
| 63149D | No. 8 roof panel reinforcement | 63149-33020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33100 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33060 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-08010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-33010 · 63247-33011 |
| 63248E | Left rear sliding sunroof drain hose | 63248-33010 · 63248-33011 |
| 63249E | Sliding skylight drain hose | 63249-33120 · 63249-33121 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-30090 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-33100 · 63260-33101 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-33290 |
| 64165B | No. 1 upper back panel hole cover | 64165-33070 |
| 64811 | back window glass | 64811-06160 · 64811-06170 · 64811-33530 · 64811-33540 |
| 75573F | Protective strip for rear window | 75573-33020 |
