Toyota CAMRY 侧梁 — Figure 6101

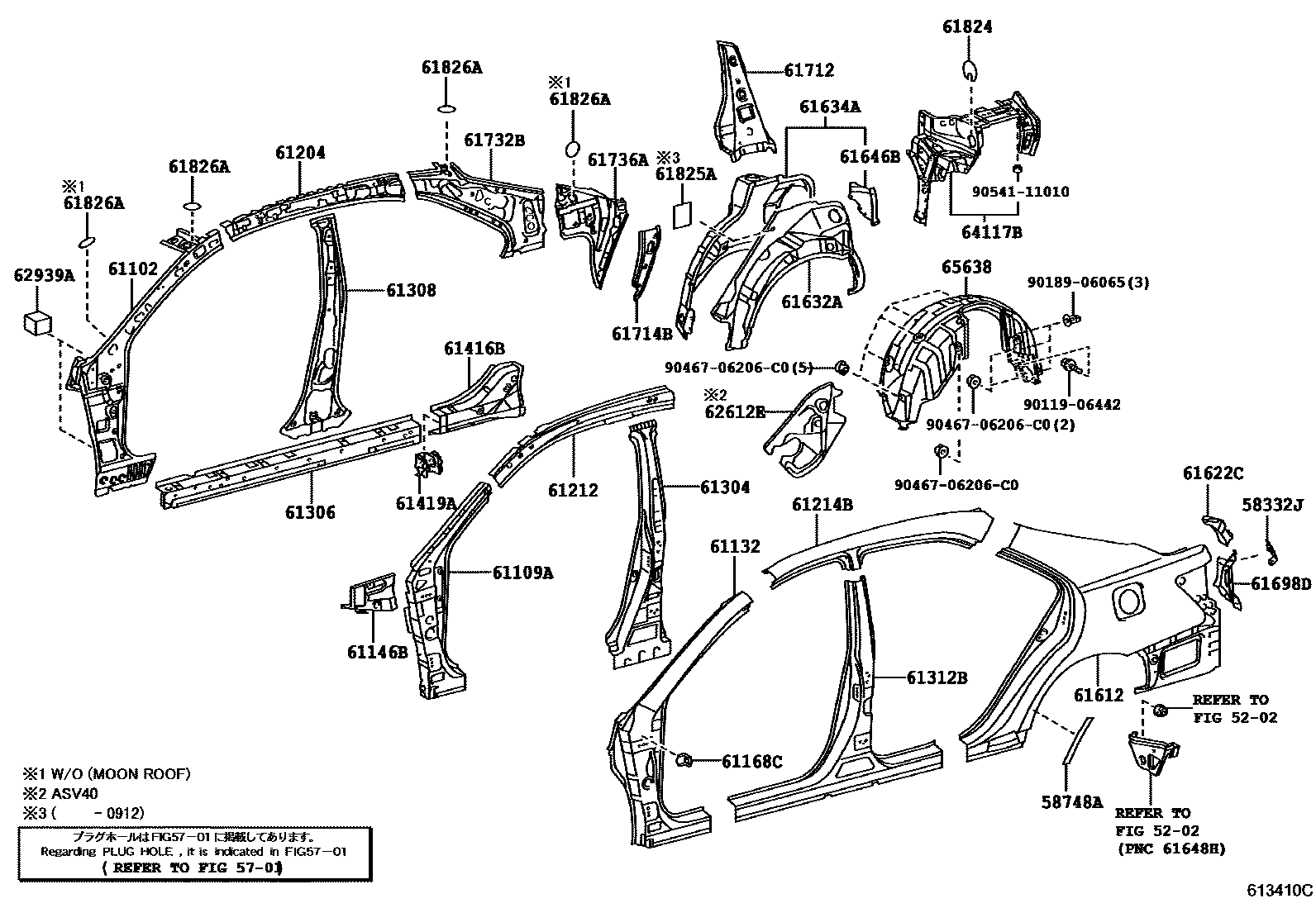

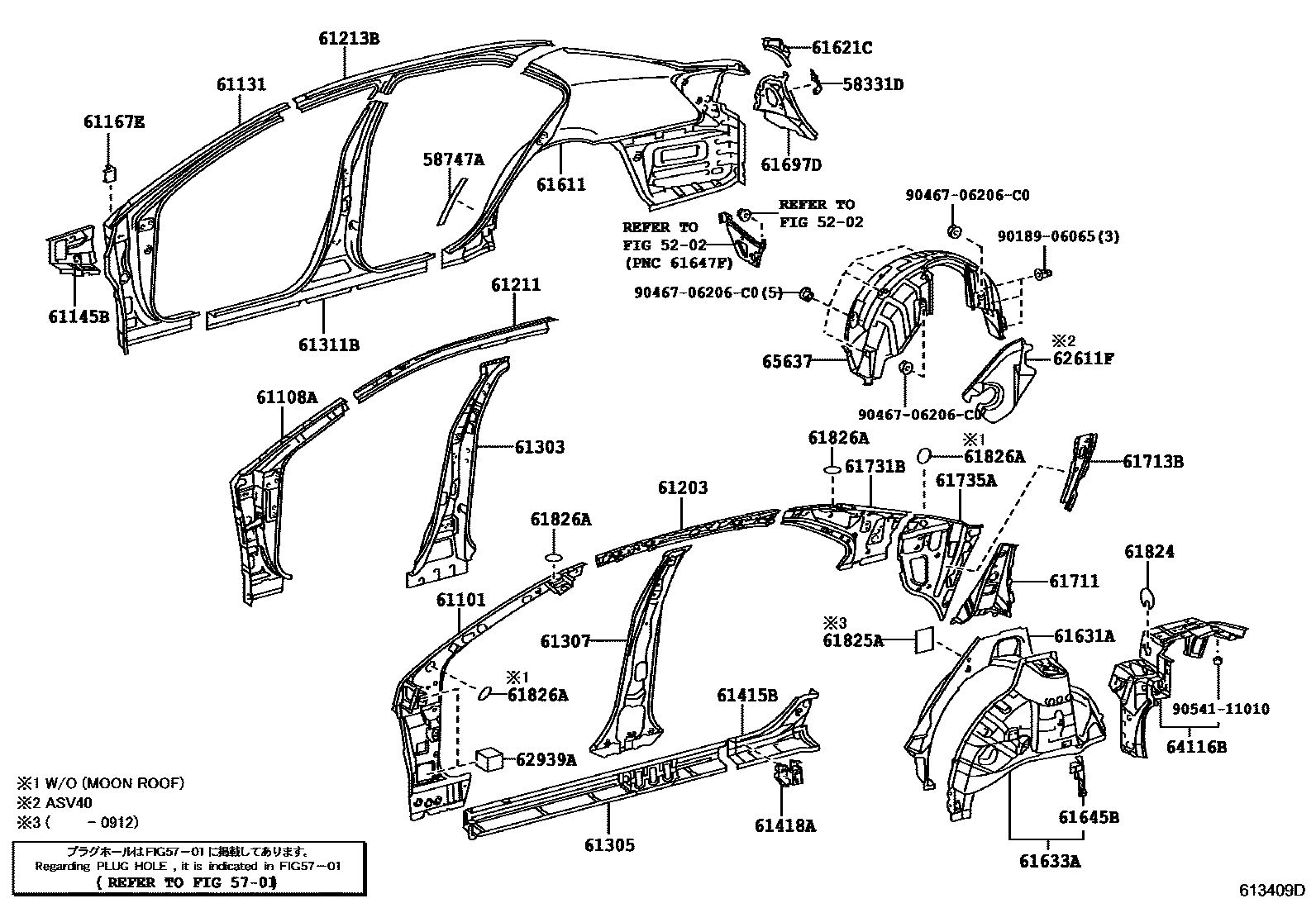

Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331D | No. 1 suitcase decorative panel bracket | 58331-33030 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-33020 |
| 58747A | Right rear side panel protector | 58747-33030 |
| 58748A | Left rear side panel protector | 58748-33030 |
| 61101 | Right front wall side panel sub-assembly | 61101-33120 |
| 61102 | Left front wall side panel sub-assembly | 61102-33120 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-33170 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-33170 |
| 61131 | Right body outer front upper pillar | 61131-33060 |
| 61132 | Left body outer front upper pillar | 61132-33060 |
| 61145B | Right body front pillar lower corner panel | 61145-33050 |
| 61146B | Left body front pillar lower corner panel | 61146-33050 |
| 61167E | No. 6 outer column bracket | 61168-44010 |
| 61168C | No. 6 outer column bracket | 61168-44010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-33040 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-33040 |
| 61211 | Roof right outer longitudinal beam | 61201-33020 |
| 61212 | Roof left outer longitudinal beam | 61202-33020 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-33070 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-33070 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-33907 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-33905 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-33060 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-33060 |
| 61307 | Right body inner center pillar sub-assembly | 61307-33060 |
| 61308 | Left body inner center pillar sub-assembly | 61308-33060 |
| 61311B | Right body outer center pillar | 61311-33060 |
| 61312B | Left body outer center pillar | 61312-33060 |
| 61415B | Right door outer sill extension | 61415-33050 |
| 61416B | Left door outer sill extension | 61416-33050 |
| 61418A | Right side door sill panel reinforcement | 61418-33070 |
| 61419A | Left side rocker panel reinforcement | 61418-33070 |
| 61611 | Right side hoarding | 61601-33300 · 61601-33310 |
| 61612 | left side panel | 61602-33180 · 61602-33190 |
| 61621C | Luggage right opening slot | 61621-33050 |
| 61622C | Luggage trunk left opening slot | 61622-33050 |
| 61631A | Right wheel cover outer panel | 61631-33070 |
| 61632A | Left side wheel cover outer panel | 61632-33070 |
| 61633A | Right wheel housing lining panel | 61633-33901 |
| 61634A | Left side wheel housing lining panel | 61634-33901 |
| 61645B | Right rear side wheel housing corner panel | 61645-33030 |
| 61646B | Left rear side wheel housing corner panel | 61646-33030 |
| 61697D | Right side enclosure end cover | 61697-33070 |
| 61698D | Left side enclosure end cover | 61698-33070 |
| 61711 | Roof right side outer panel | 61711-33070 |
| 61712 | Roof left outer panel | 61712-33070 |
| 61713B | Roof right outer reinforcement | 61713-33020 |
| 61714B | Roof left outer reinforcement | 61714-33020 |
| 61731B | Roof right inner panel | 61731-33110 |
| 61732B | Roof left inner panel | 61732-33100 |
| 61735A | Right rear roof inner panel | 61735-33080 |
| 61736A | Left rear roof inner panel | 61736-33080 |
| 61824 | Noise Control Panel No. 1 | 61824-33020 |
| 61825A | Noise Control Panel No. 2 | 61825-30020 |
| 61826A | Noise Control Panel No. 3 | 61824-12050 |
| 62611F | Right wheel cover vibration isolation pad | 62611-33040 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-33040 |
| 62939A | Side ventilation silencers | 62939-32030 |
| 64116B | Right rear upper reinforcement | 64201-33050 |
| 64117B | Left rear upper reinforcement | 64202-33050 |
| 65637 | Right rear wheel house lining | 65637-33030 |
| 65638 | Left rear wheel house lining | 65638-33030 |
