Toyota CAMRY 中央扶手箱和支架 — Figure 5806

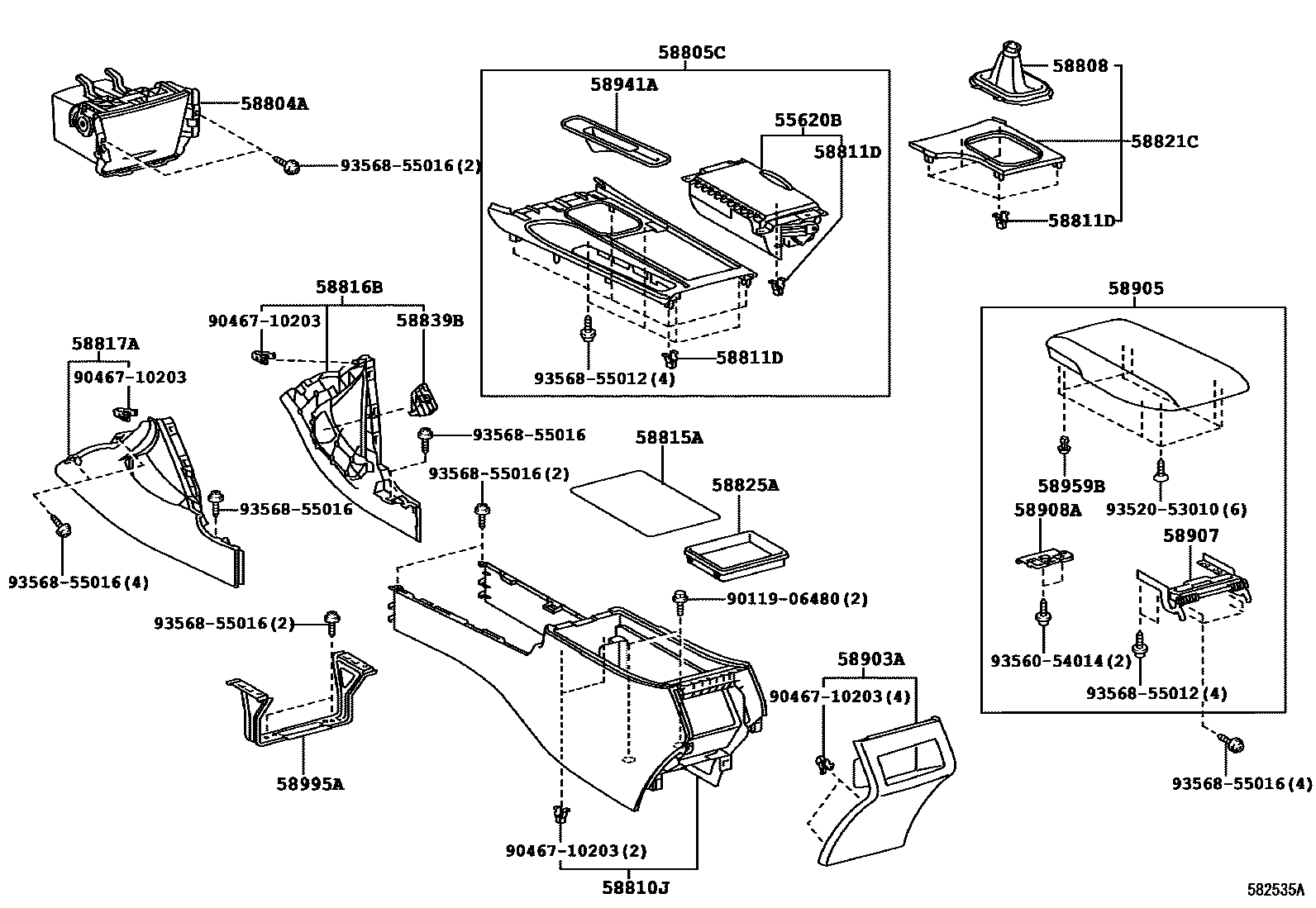

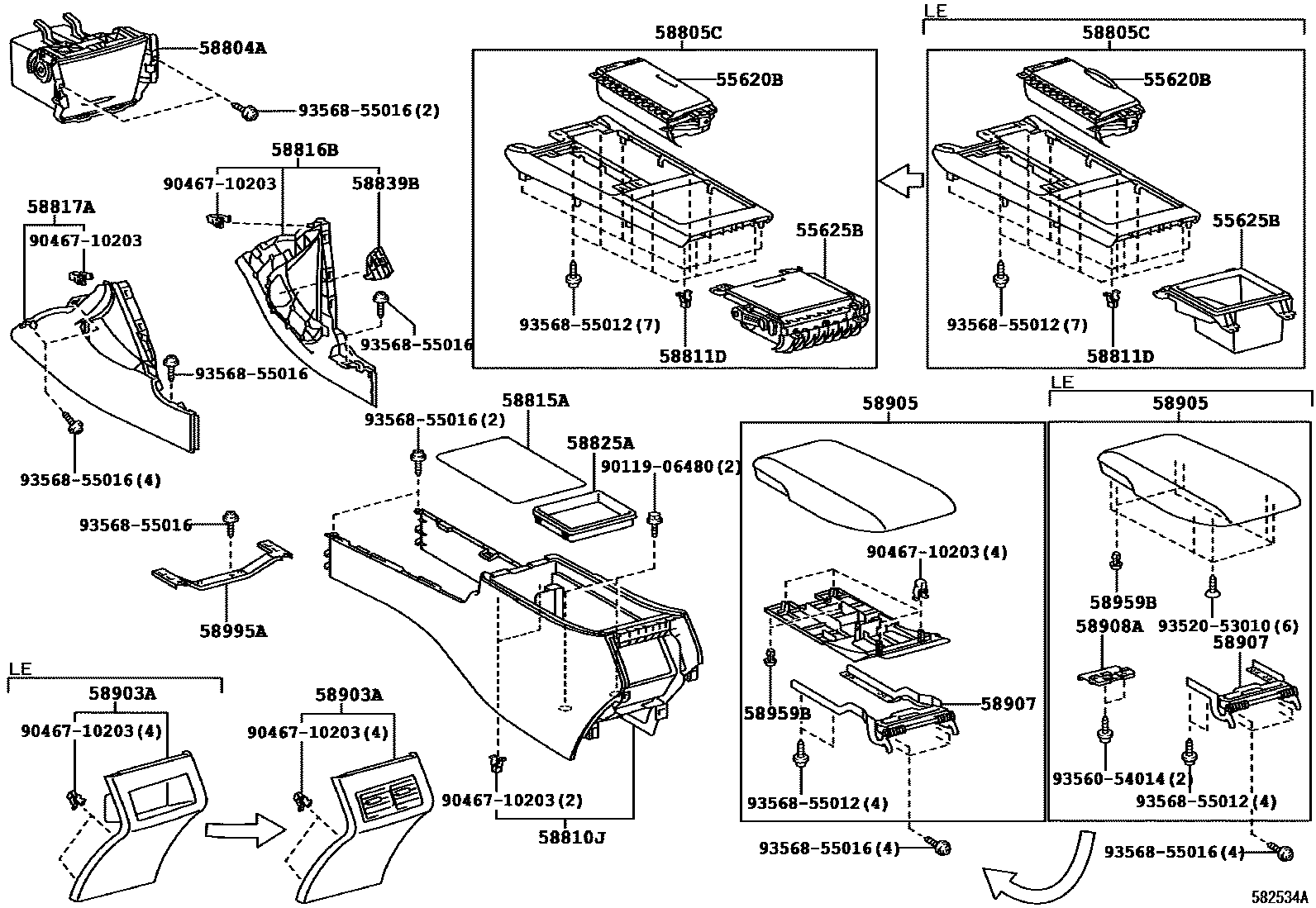

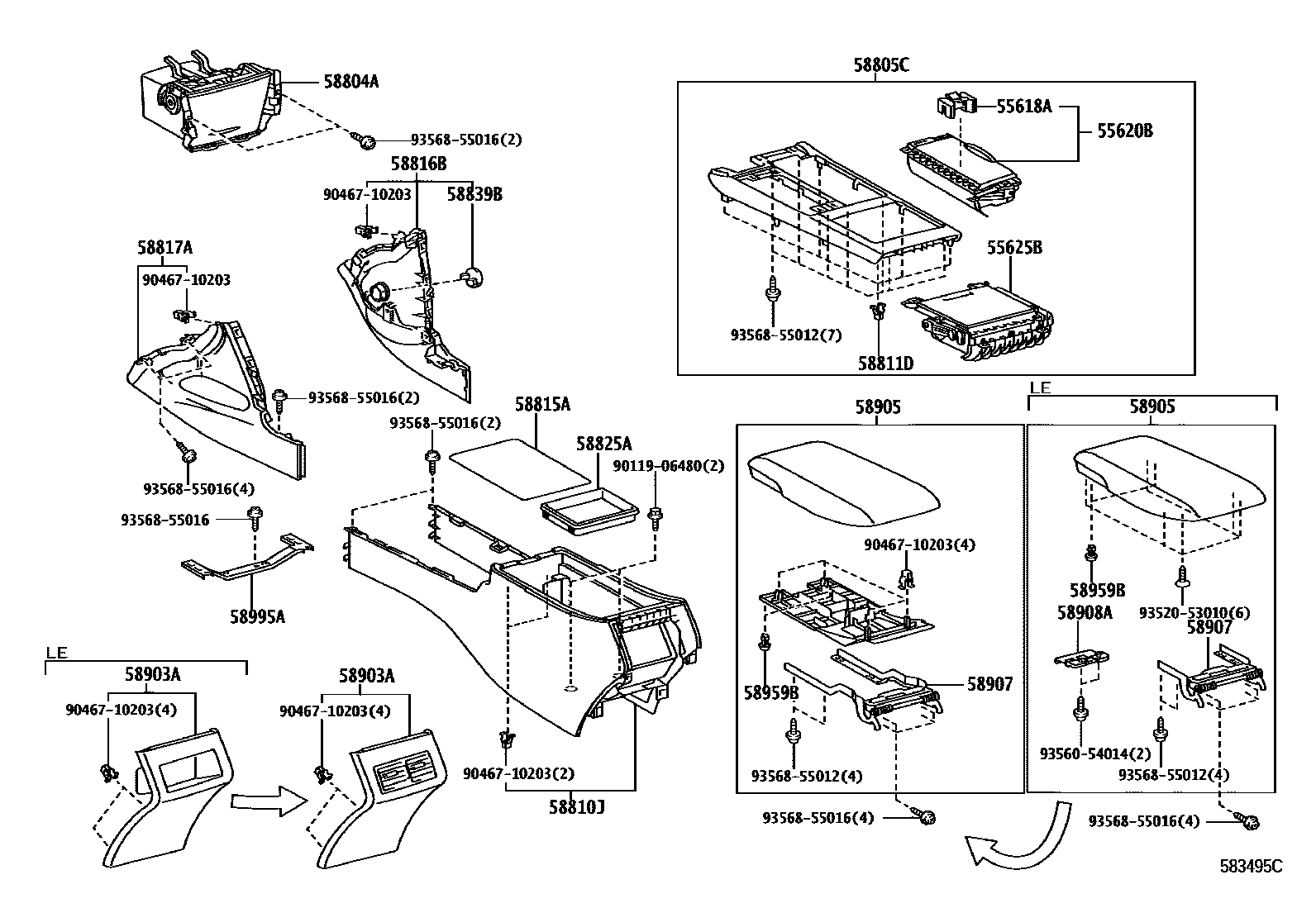

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-33010 |
| 55620B | Dashboard cup holder | 55620-33170 · 55620-33180 · 55620-33190 · 55620-33270 |
| 55625B | Dashboard cup holder tray | 55625-33030 · 55625-33040 · 55625-33070 · 55625-33080 |
| 58804A | Armrest box upper panel sub-assembly | 58804-33670 · 58804-33690 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58815A | Armrest box felt pad | 58815-33090 |
| 58825A | Armrest box groove | 58825-33010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-33090 · 58907-33100 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58941A | Parking brake hole cover | 58941-33080 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-33060 · 58995-33070 · 58995-33071 |
