Toyota CAMRY 制动助力器和真空管 — Figure 4703

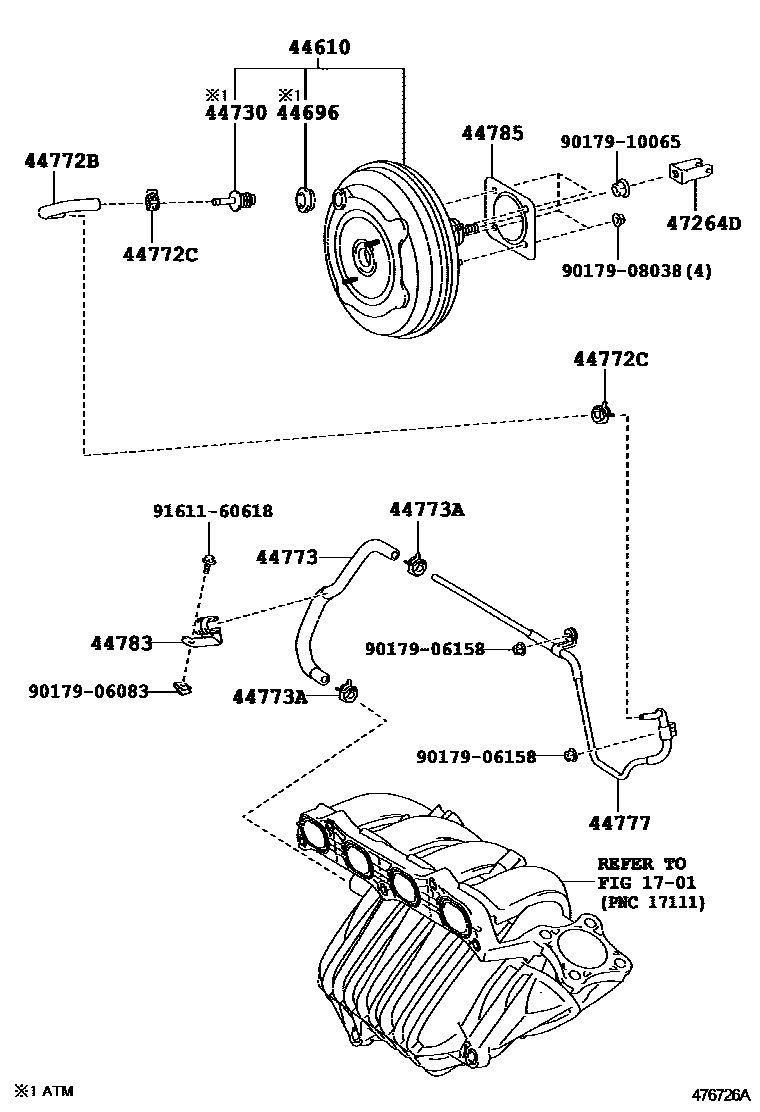

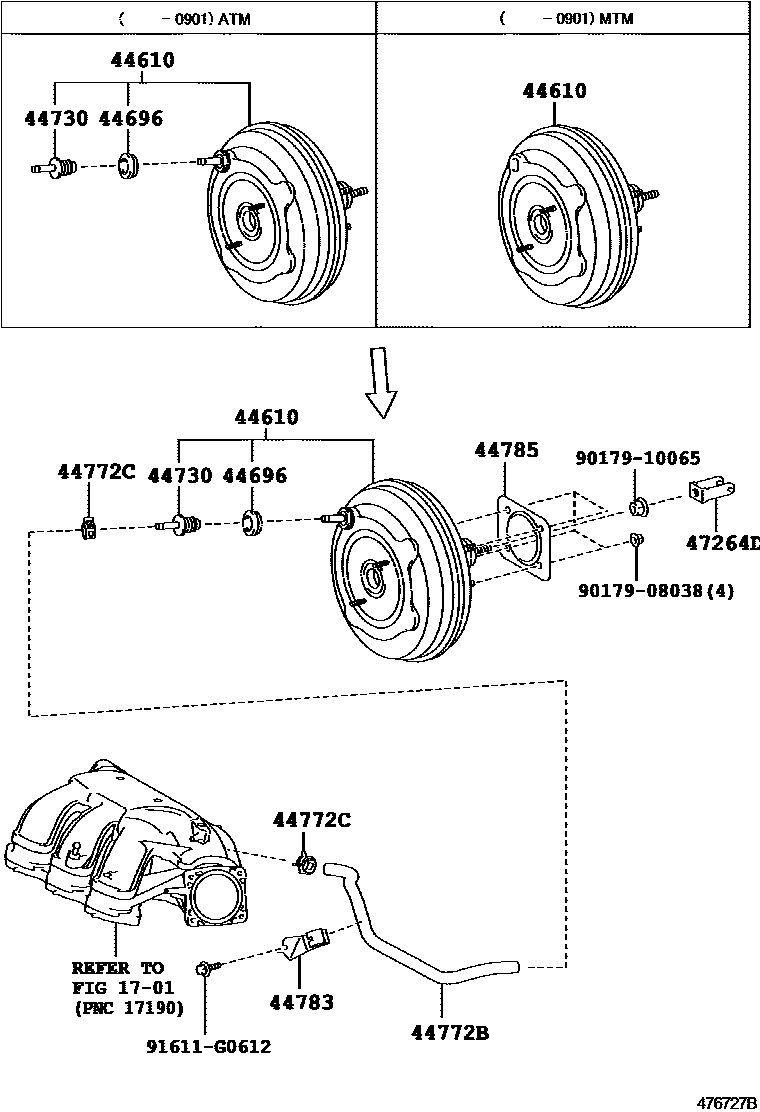

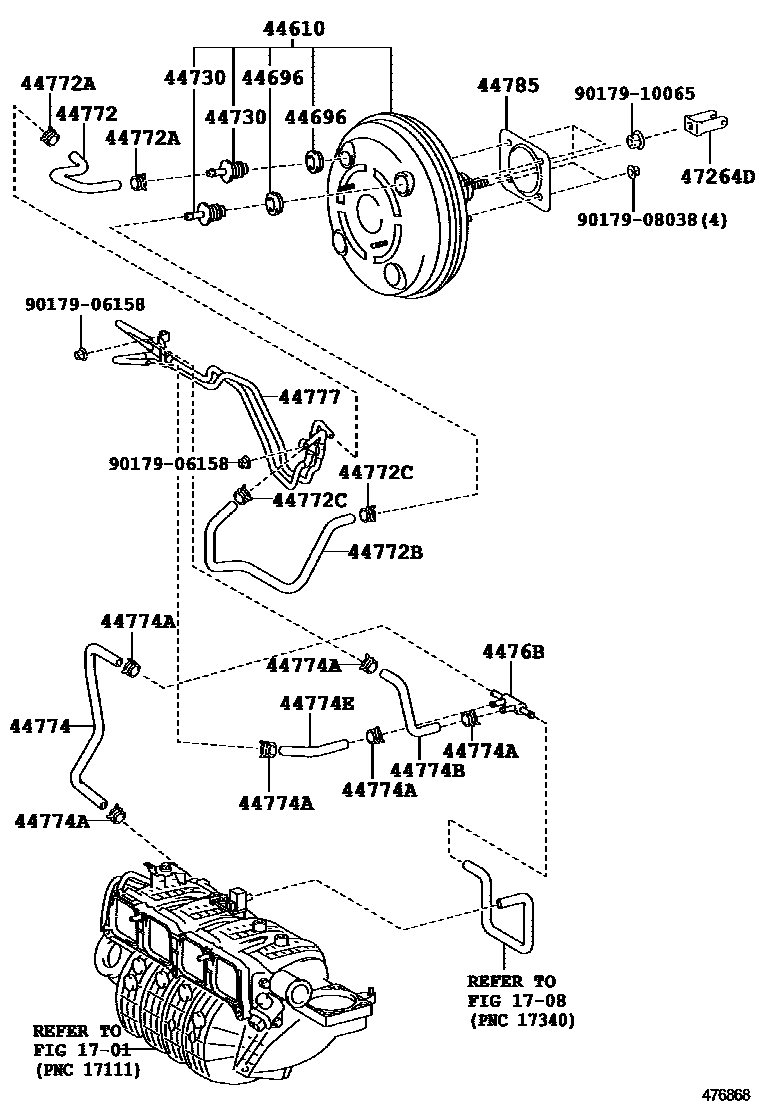

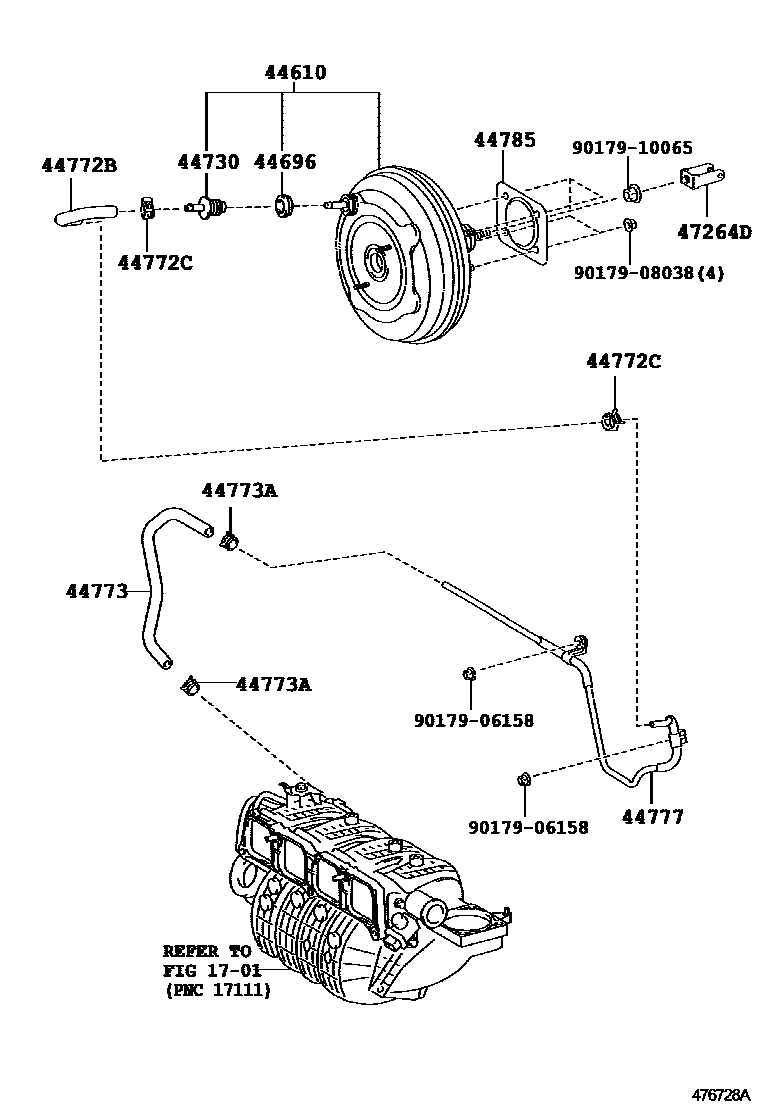

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33670 · 44610-33680 · 44610-33681 · 44610-33780 · 44610-33781 |
| 44696 | One-way valve seal | 90480-24015 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-28030 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44772 | Hoses (check valve to connector tube) | 44772-33190 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44772B | Hoses (check valve to brake booster) | 44772-33150 · 44772-33170 · 44772-33180 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44773 | No. 2 vacuum hose | 44772-33160 · 44772-33200 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-33100 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44774B | Hoses (joints to connector tubes) | 44774-33080 |
| 44774E | Hoses (joints to connector tubes) | 44774-33090 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-33090 · 44770-33141 |
| 44783 | Vacuum hose clamp | 44783-28010 · 44783-33010 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 |
