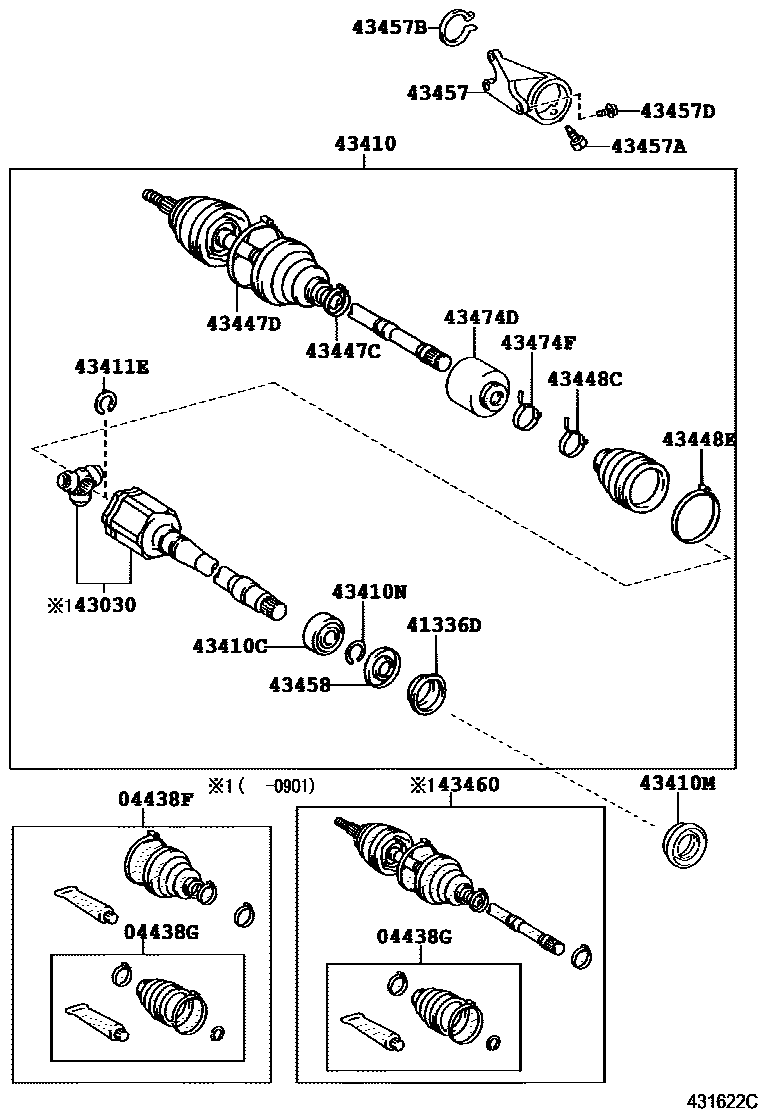

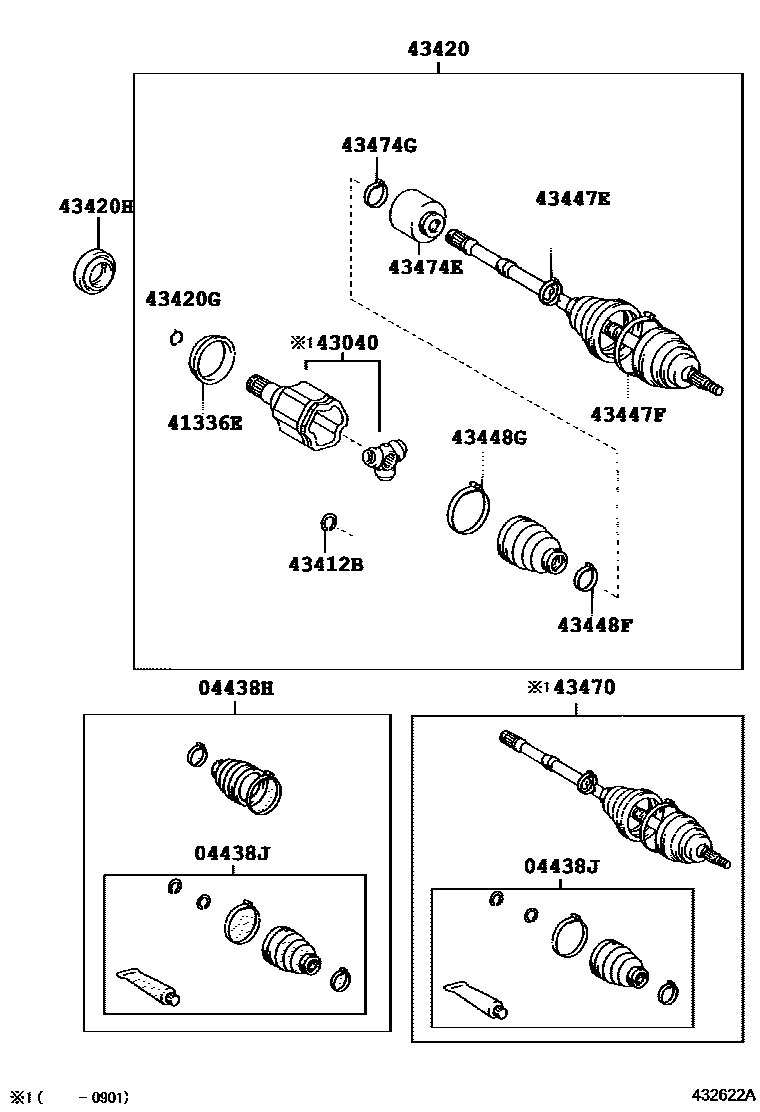

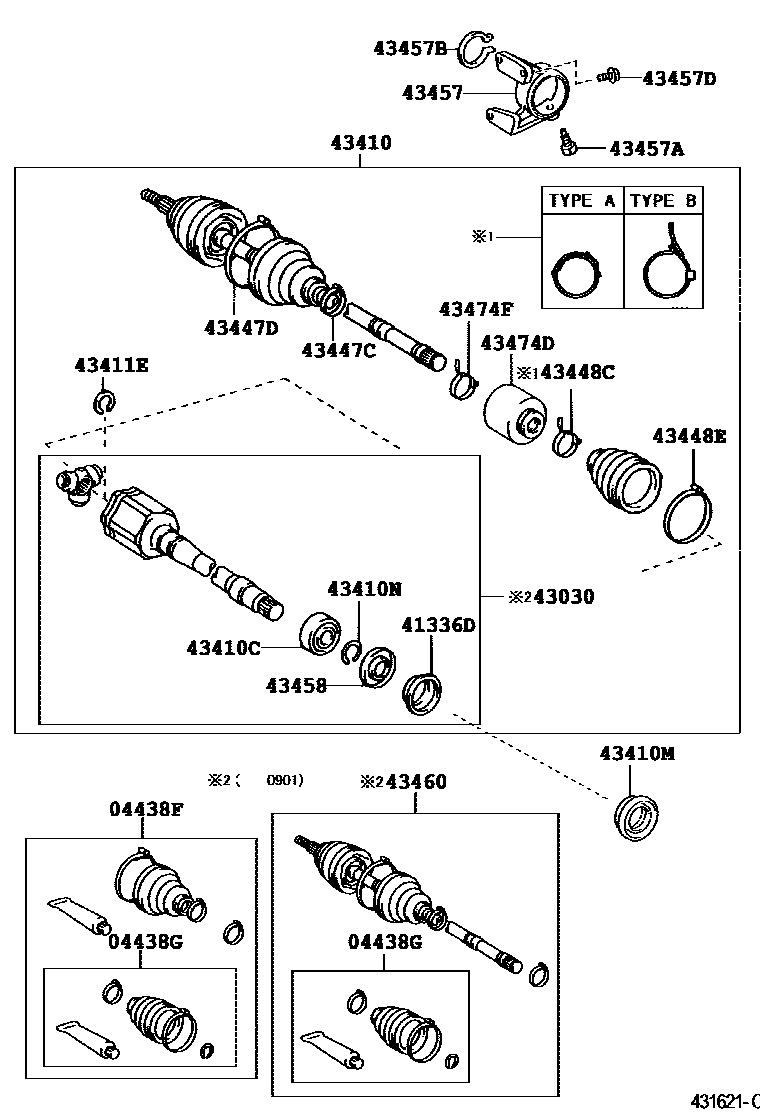

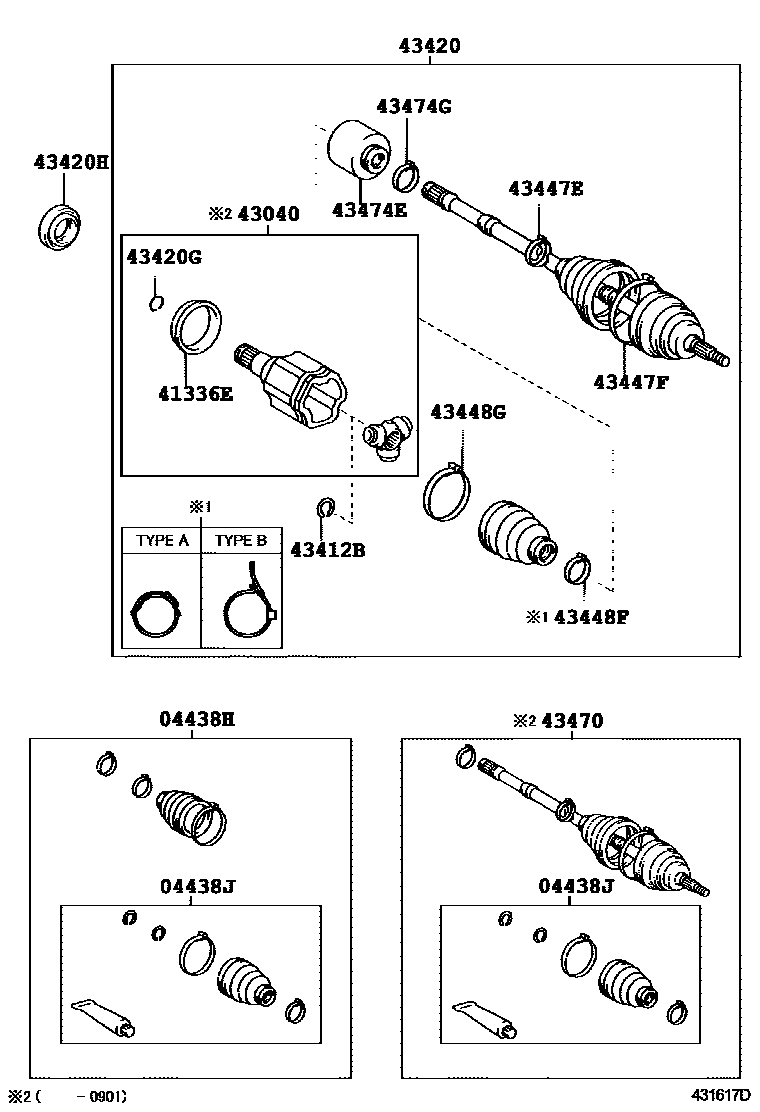

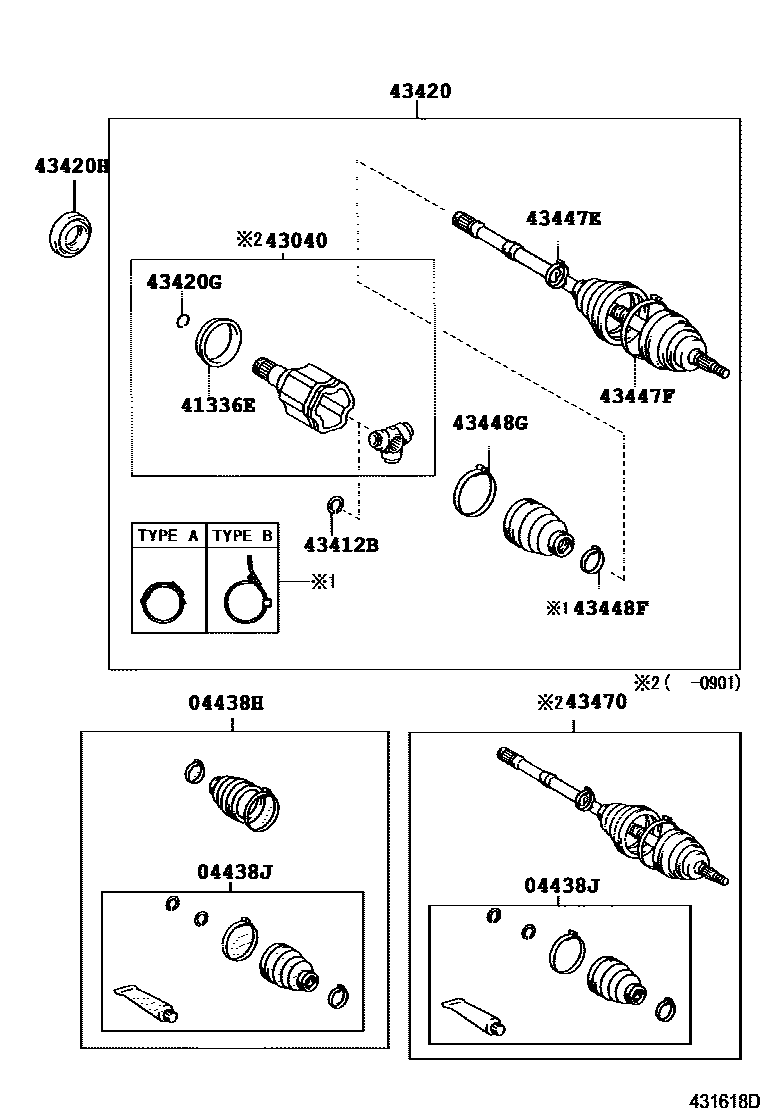

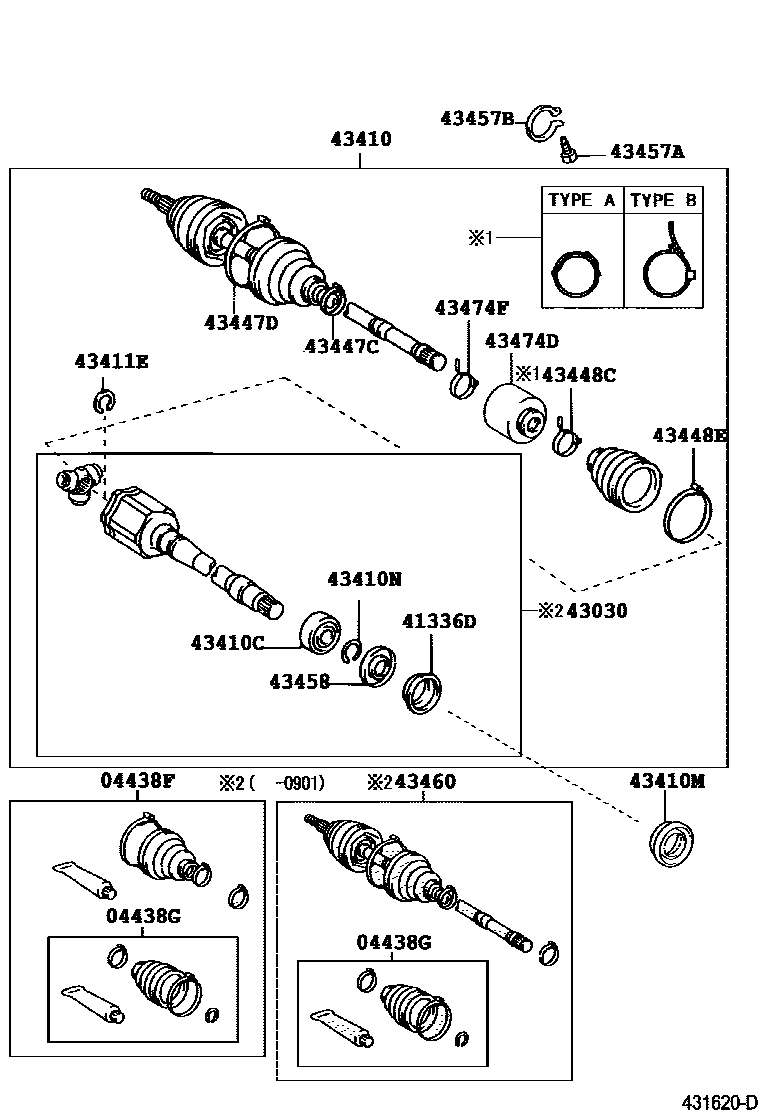

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06300 · 04427-0E030 · 04427-42010 · 04427-44040 · 04428-0E060 · 04428-0W070 · 04428-42070 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06110 · 04438-08130 · 04438-42180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-08080 · 04428-0W030 · 04428-0W070 · 04428-28140 · 04428-33030 · 04428-42070 · 04428-42120 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-08130 · 04438-33120 · 04438-42180 |
| 41336D | Right front driveshaft dust cover | 41336-06020 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-06060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-0W040 · 43030-33051 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0W030 · 43040-28011 |
| 43410 | Right front driveshaft assembly | 43410-06670 · 43410-0W180 · 43410-33290 · 43410-33330 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 · 90363-41003 · 90363-C0001 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40029 · 90311-40030 · 90311-40031 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-08040 · 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-08040 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-0W210 · 43420-33250 · 43420-33280 · 43420-33290 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50033 · 90311-50035 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-04030 · 42345-42100 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06250 · 42345-42090 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-04030 · 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06250 · 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-08070 · 42345-42010 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06240 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-08070 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06240 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-33020 · 43457-33030 · 43457-48010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06020 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09M20 · 43470-39545 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-39545 |
| 43474D | Right front driveshaft shock absorber | 43474-06140 · 43474-0W030 · 43474-48020 |
| 43474E | Left front driveshaft shock absorber | 43474-06090 · 43474-33050 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06100 · 42345-06420 · 42345-14010 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06100 · 42345-14010 |
