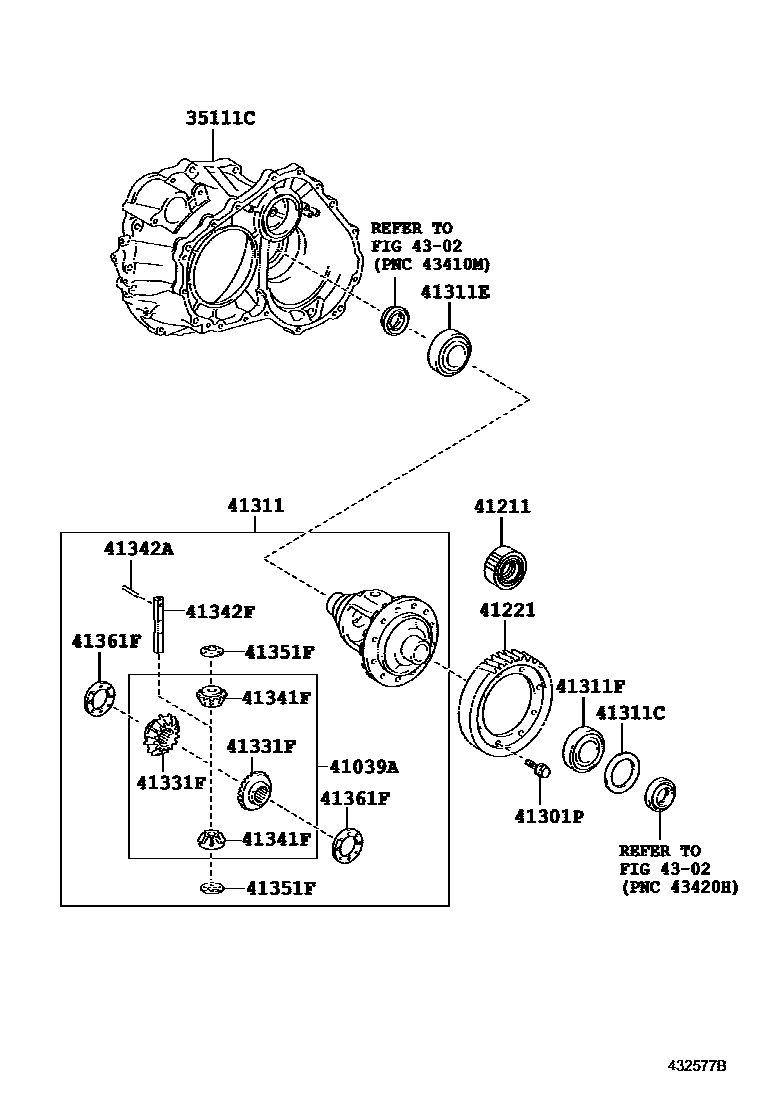

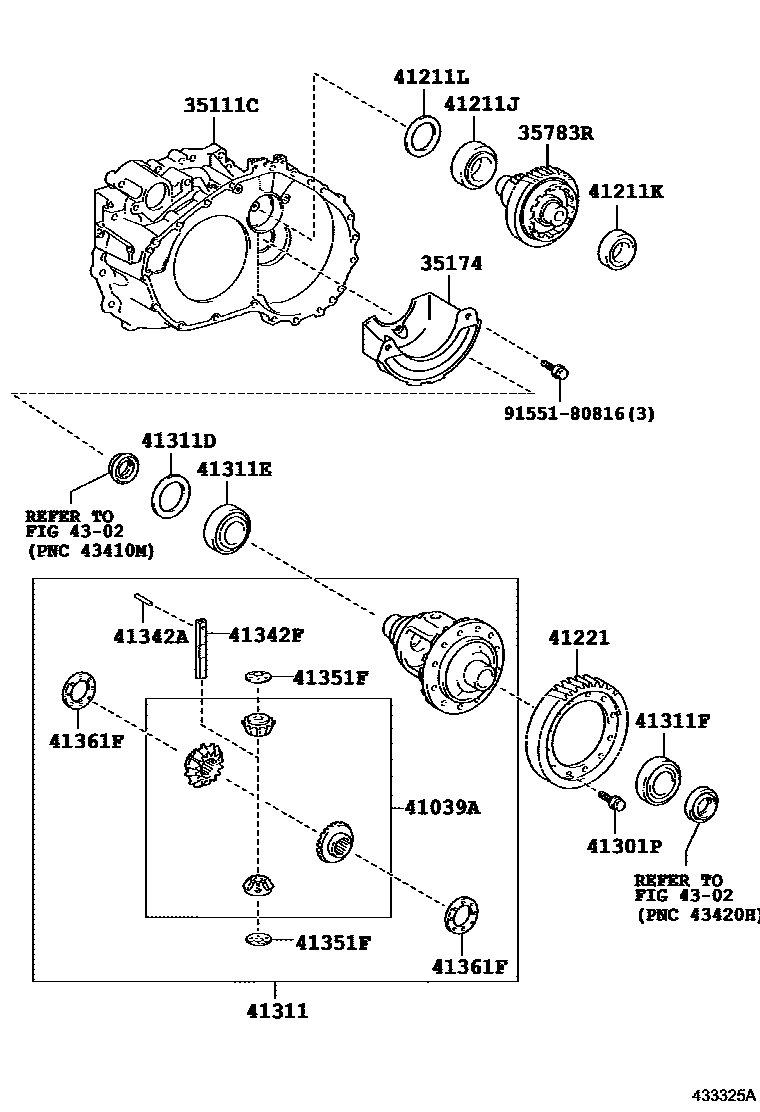

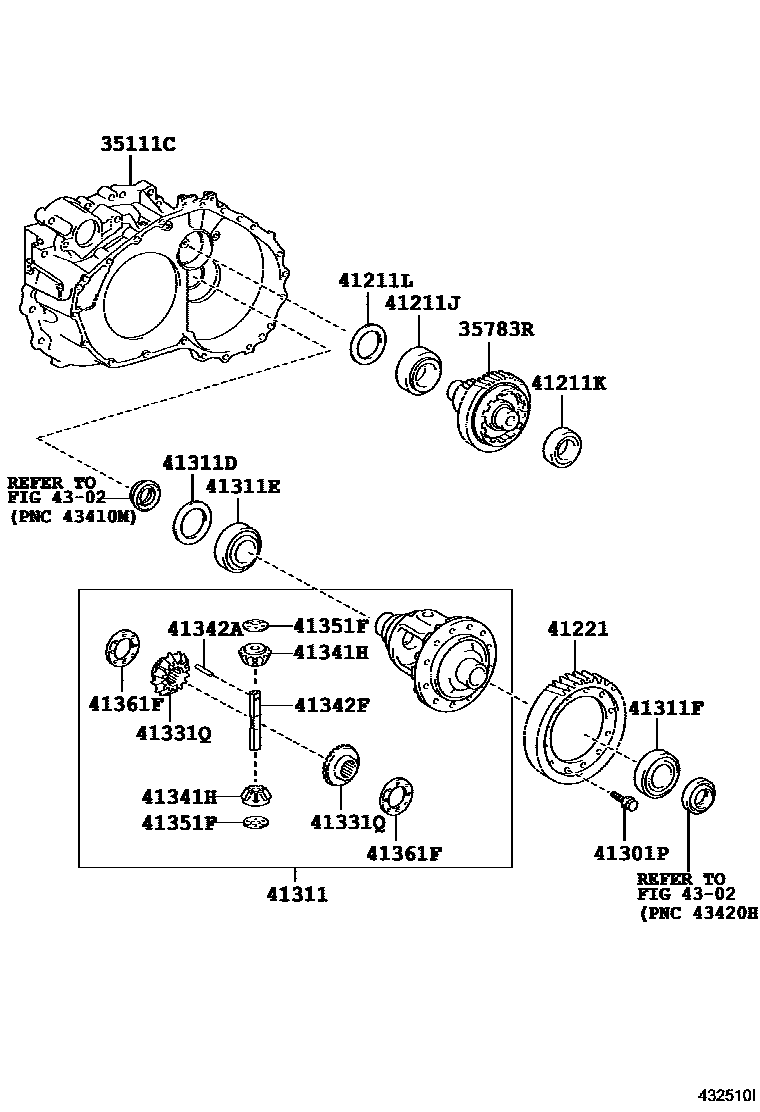

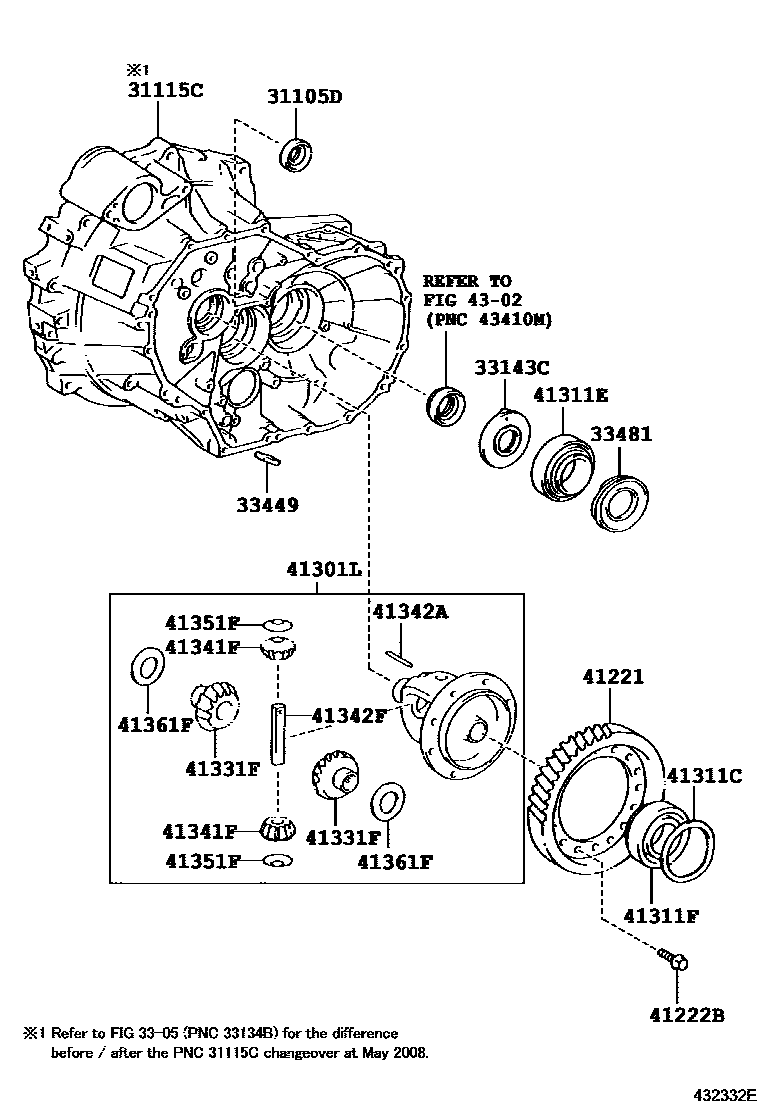

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30017 |
| 31115C | Front transmission axle housing (MTM) | 31115-20071 · 31115-20072 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-28050 |
| 35111C | Transmission axle housing | 35105-33010 · 35105-33011 · 35105-44060 · 35105-44061 · 35105-73030 |
| 35174 | Transmission axle housing oil separator | 35174-73010 |
| 35783R | countershaft driven gear | 35705-33020 · 35705-33030 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41211 | Differential drive pinion | 41211-12220 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-35145 · 90366-35167 · 90366-42006 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-32031 · 90366-32034 · 90366-35142 · 90366-35160 |
| 41211L | Spacer (for differential drive pinion) | 90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062 · 90564-71014 · 90564-71015 · 90564-71016 · 90564-71017 · 90564-71018 · 90564-71019 · 90564-71020 · 90564-71021 · 90564-71022 · 90564-71023 · 90564-71024 · 90564-71025 · 90564-71026 · 90564-71027 · 90564-71028 · 90564-71029 · 90564-71030 · 90564-71031 · 90564-71032 · 90564-71033 · 90564-71034 · 90564-71035 · 90564-71036 · 90564-71037 · 90564-71038 · 90564-71039 · 90564-71040 · 90564-71041 · 90564-71042 · 90564-71043 · 90564-71044 · 90564-71045 · 90564-71046 · 90564-71047 · 90564-71048 · 90564-71049 · 90564-71050 · 90564-71051 · 90564-71052 · 90564-71053 · 90564-71054 |
| 41221 | Front differential ring gear | 41221-20400 · 41221-33140 · 41221-33160 · 41221-33180 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-33110 · 41301-33120 · 41301-73010 |
| 41311C | Rear gasket (for front differential case) | 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311D | Front gasket (for front differential case) | 90564-69001 · 90564-69002 · 90564-69003 · 90564-69004 · 90564-69005 · 90564-69006 · 90564-69007 · 90564-69008 · 90564-69009 · 90564-69010 · 90564-69011 · 90564-69012 · 90564-69013 · 90564-69014 · 90564-69015 · 90564-69016 · 90564-69017 · 90564-69020 · 90564-69021 · 90564-69022 · 90564-69023 · 90564-69024 · 90564-69025 · 90564-69026 · 90564-69027 · 90564-69028 · 90564-69029 · 90564-69030 · 90564-69031 · 90564-69032 · 90564-69033 · 90564-69034 · 90564-69035 · 90564-69036 · 90564-69037 · 90564-69038 · 90564-79054 · 90564-79055 · 90564-79056 · 90564-79057 · 90564-79058 · 90564-79059 · 90564-79060 · 90564-79061 · 90564-79062 · 90564-79063 · 90564-79064 · 90564-79065 · 90564-79066 · 90564-79067 · 90564-79068 · 90564-79069 · 90564-79070 · 90564-79071 · 90564-79072 · 90564-79073 · 90564-79074 · 90564-79075 · 90564-79076 · 90564-79077 · 90564-79078 · 90564-79079 · 90564-79080 · 90564-79081 · 90564-79082 · 90564-79083 · 90564-79084 · 90564-79085 · 90564-79086 · 90564-79087 · 90564-79088 · 90564-79089 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50084 · 90366-50092 · 90366-50118 · 90366-50136 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50072 · 90366-50078 · 90366-55065 · 90366-55071 · 90366-55074 |
| 41331F | Front differential side gear | 41331-12140 · 41331-28020 |
| 41331Q | Differential side gear | 41331-33040 |
| 41341F | Front differential planetary gear | 41341-12090 · 41341-28010 |
| 41341H | differential planetary gear | 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28010 · 41342-33040 · 41342-33050 · 41342-73010 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-30060 · 41351-33030 · 41351-73010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33020 · 41361-33030 · 41361-33040 · 41361-33050 · 41361-33060 · 41361-33070 · 41361-33080 · 41361-33090 · 41361-33100 · 41361-73010 · 41361-73020 · 41361-73030 · 41361-73040 |
