Toyota CAMRY 中央支架和行星太阳齿轮(ATM) — Figure 3508

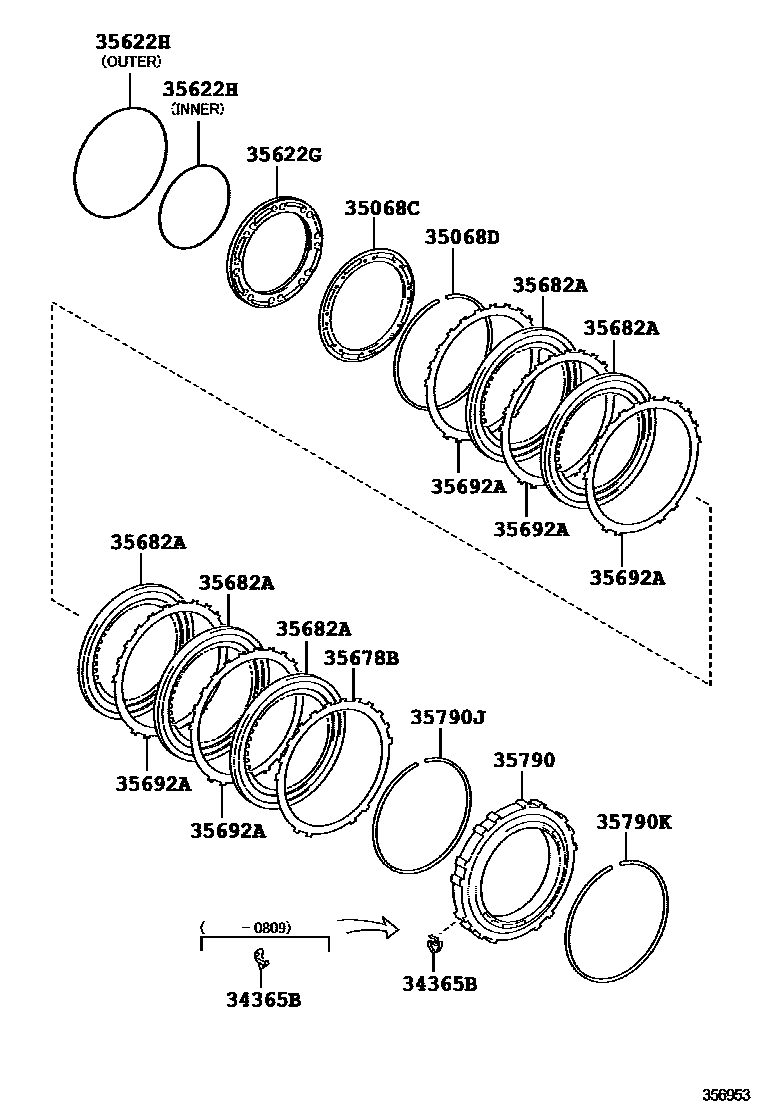

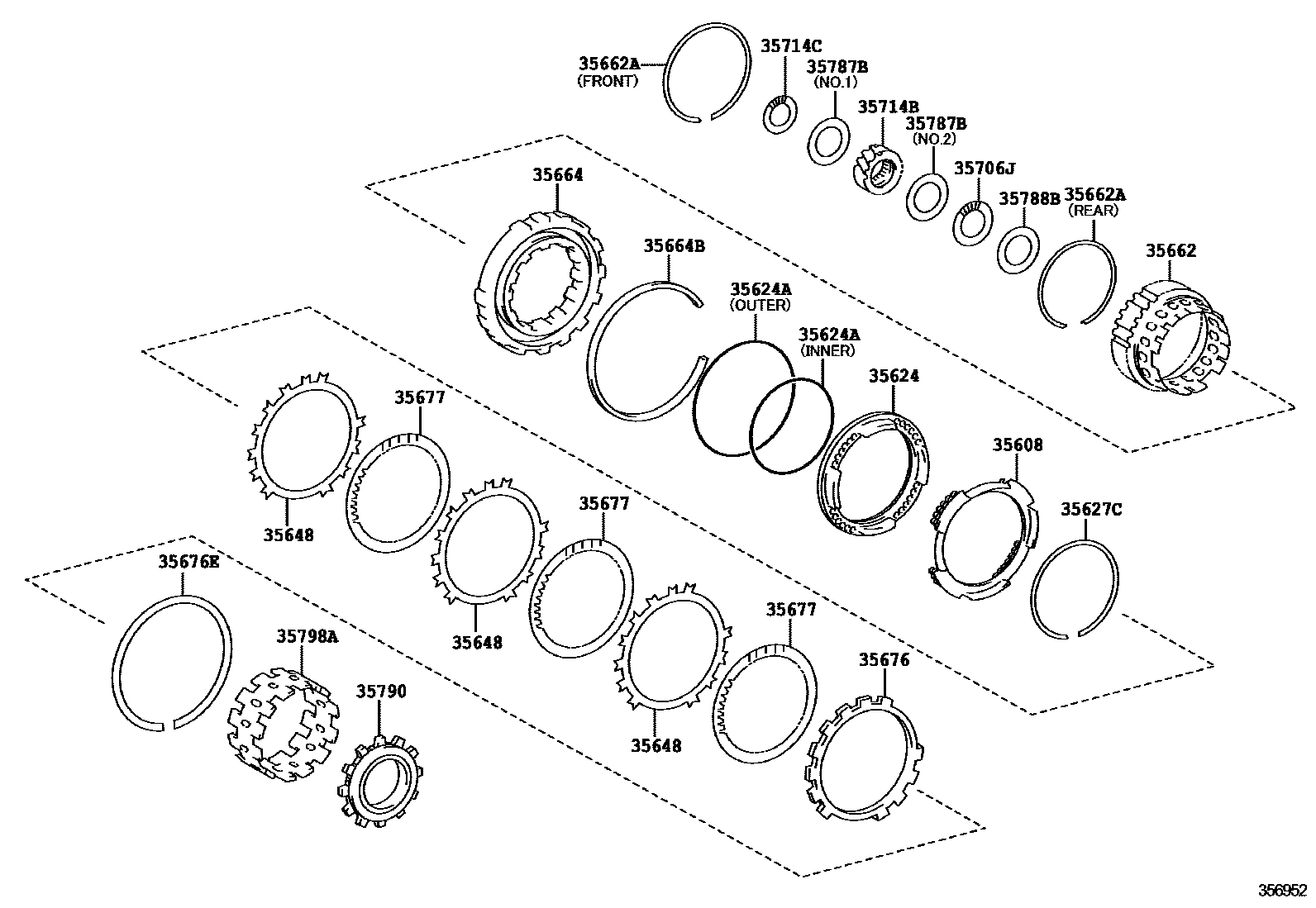

Toyota CAMRY EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34365B | Outer race retainer | 34365-33010 · 34365-33021 |
| 35068C | First and reverse brake return spring sub-assembly | 35068-33030 |
| 35068D | Shaft snap ring (for first and reverse brake return spring) | 90520-99109 |
| 35608 | Second gear brake piston return spring sub-assembly | 35608-21010 |
| 35622G | Brake piston No. 2 | 35622-33010 |
| 35622H | O-ring (for brake piston No. 2) | 90301-99156 · 90301-99157 · 90301-99190 · 90301-99191 |
| 35624 | Second gear brake piston | 35624-33030 |
| 35624A | O-ring (for second gear brake piston) | 90301-99093 · 90301-99095 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-99036 |
| 35648 | Clutch disc (for second gear brake) | 35691-21010 |
| 35662 | brake hub | 35662-21010 |
| 35662A | Snap ring (for brake hub) | 90520-99024 · 90520-99033 |
| 35664 | Second gear brake cylinder | 35664-33010 |
| 35664B | Hole snap ring (for second gear brake cylinder) | 90520-99027 |
| 35676 | Brake flange (for second gear brake) | 35676-21010 · 35676-21020 · 35676-21070 · 35676-21080 · 35676-21090 · 35676-21100 · 35676-21110 · 35676-21120 · 35676-21130 |
| 35676E | Hole snap ring (for second gear brake) | 90520-99026 |
| 35677 | Clutch disc (for second gear brake) | 35681-33010 |
| 35678B | No. 2 brake flange | 35678-33010 · 35678-33020 · 35678-33030 · 35678-33040 · 35678-33050 · 35678-33060 · 35678-33070 · 35678-33080 · 35678-33090 · 35678-33100 · 35678-73010 · 35678-73020 · 35678-73030 · 35678-73040 · 35678-73050 |
| 35682A | Brake disc No. 2 | 35682-33010 · 35682-33020 · 35682-73010 · 35682-73020 |
| 35692A | No. 2 brake pad | 35692-33010 · 35692-33030 · 35692-73010 · 35692-73020 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-38002 |
| 35714B | Input shaft sun gear | 35714-45010 |
| 35714C | Thrust needle roller bearing (for input shaft sun gear) | 90374-32011 |
| 35787B | No. 2 thrust bearing race | 34739-33010 · 35787-21010 |
| 35788B | No. 3 thrust bearing race | 35788-21010 |
| 35790 | One-way clutch assembly | 35790-33020 · 35791-33020 · 35791-73011 |
| 35790J | No. 1 snap ring (for one-way clutch) | 90520-99105 |
| 35790K | No. 2 snap ring (for one-way clutch) | 90520-99106 |
| 35798A | One-way clutch outer sleeve | 35798-21011 |
