Toyota CAMRY 变矩器、前油泵和链条(ATM) — Figure 3502

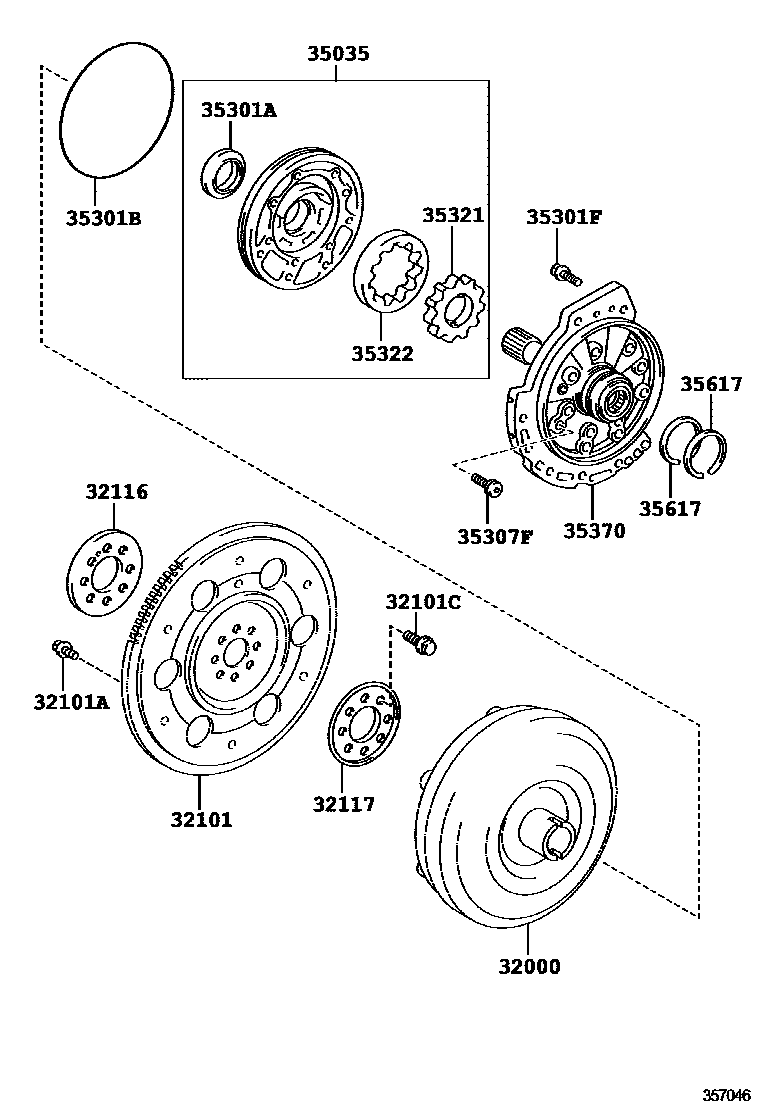

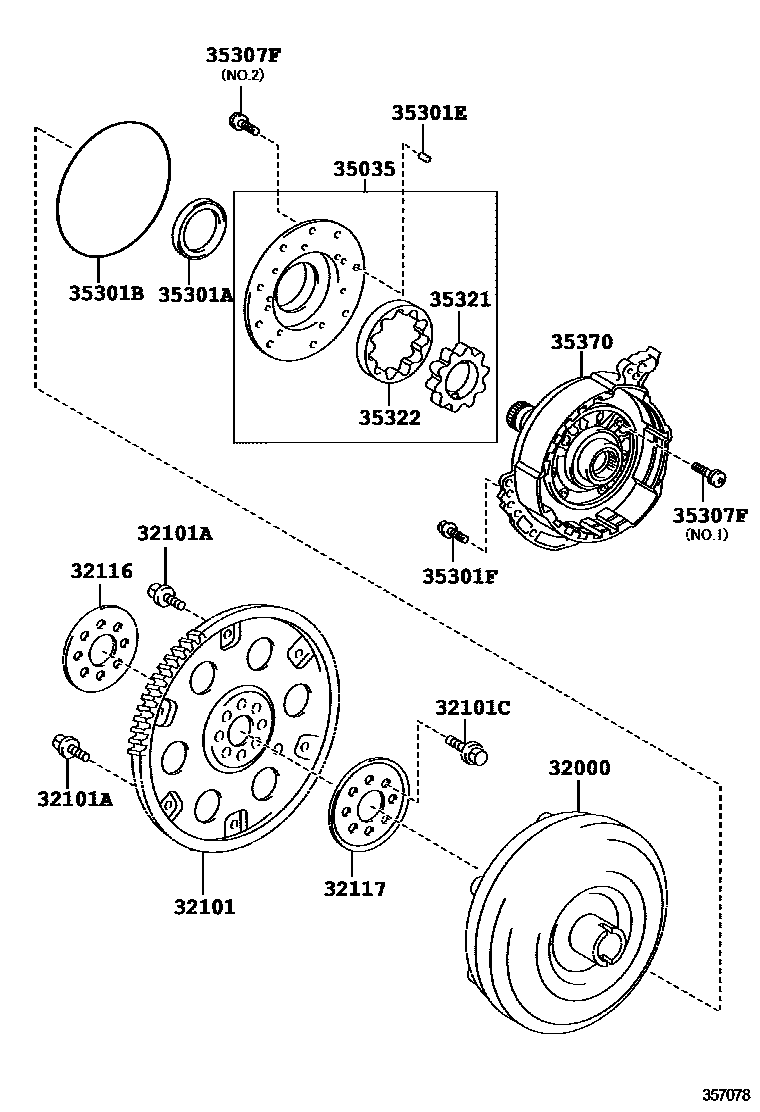

Toyota CAMRY EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-33131 · 32000-33132 · 32000-33133 · 32000-44060 · 32000-73010 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-06030 · 32101-06040 · 32101-28040 · 32101-48010 · 32101-73010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-12184 · 90105-12384 · 90105-A0022 · 90105-A0059 · 90105-A0060 |
| 32116 | Front transmission plate spacer | 32116-20050 · 32116-32020 |
| 32117 | Rear transmission plate spacer | 32117-20060 · 32117-32020 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-33020 · 35035-33030 · 35035-73010 · 35035-73011 · 35035-73012 |
| 35301A | Oil seal (for front oil pump) | 90311-38083 · 90311-43010 |
| 35301B | O-ring (for front oil pump body) | 35697-33010 · 90301-99099 · 90301-99158 |
| 35301E | Direct sales (for front oil pump) | 90250-08040 · 90250-08052 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08050 · 91551-80835 |
| 35307F | Bolt (for stator shaft) | 90148-60027 · 90148-60064 · 90148-60065 · 90148-60067 · 90148-60068 |
| 35321 | Front oil pump driving gear | 35321-33060 · 35321-33070 · 35321-33080 · 35321-33090 · 35321-33100 · 35321-33110 · 35321-33111 · 35321-33120 · 35321-33121 · 35321-33130 · 35321-33131 · 35321-33140 · 35321-33141 · 35321-33150 · 35321-33151 |
| 35322 | Front oil pump driven gear | 35322-33060 · 35322-33070 · 35322-33080 · 35322-33090 · 35322-33100 · 35322-33110 · 35322-33120 · 35322-33130 · 35322-33140 · 35322-33150 |
| 35370 | stator shaft assembly | 35370-28010 · 35370-33031 · 35370-73010 · 35370-73011 · 35370-73012 |
| 35617 | Clutch drum oil ring | 35613-21010 |
