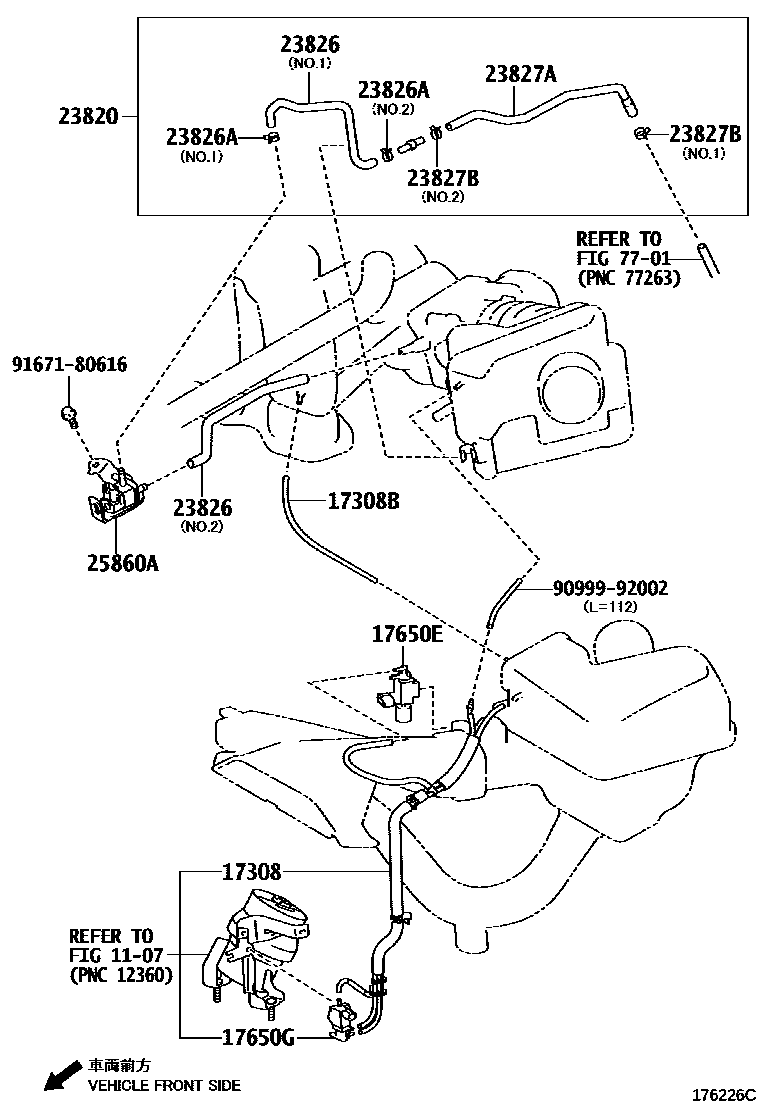

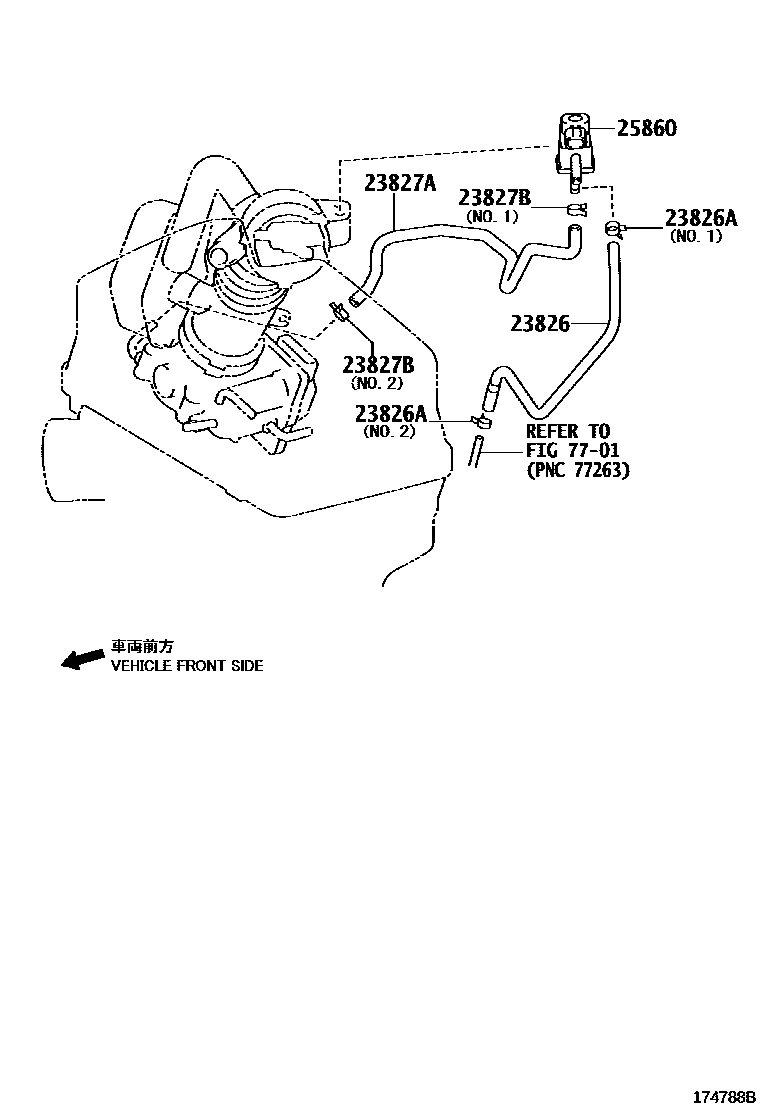

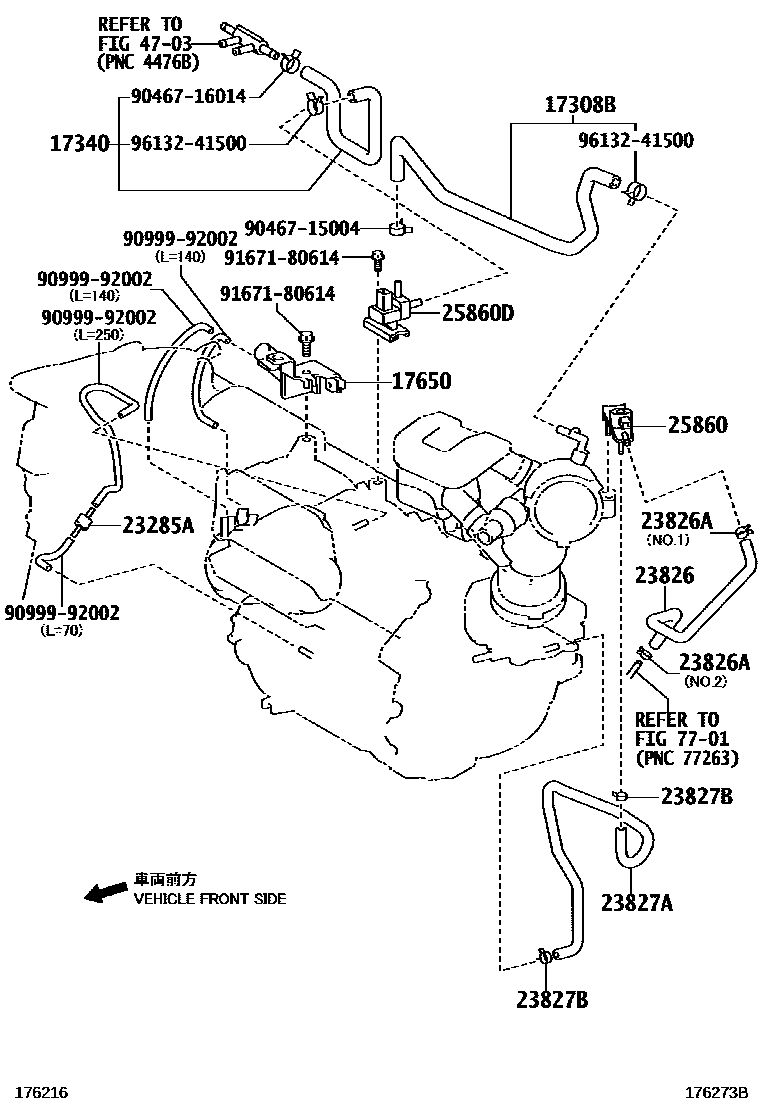

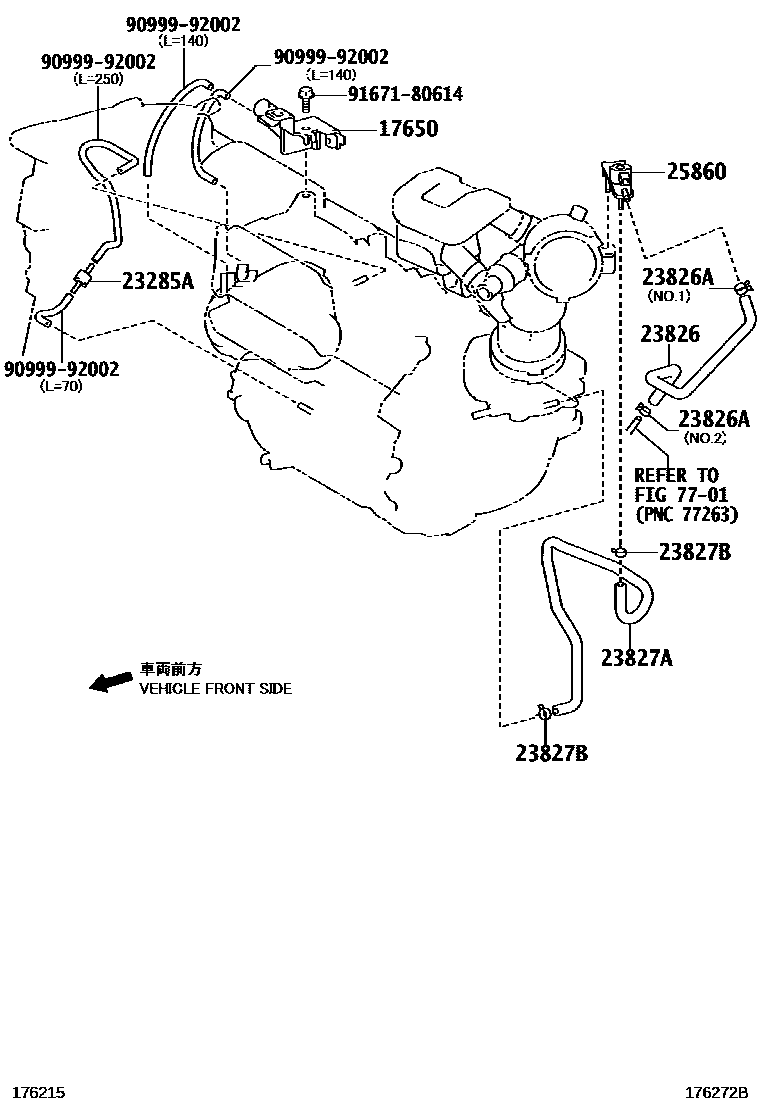

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-31010 |
| 17308B | Vacuum hose sub-assembly | 17308-31030 · 44750-33250 · 90999-92003 |
| 17340 | Vacuum switch valve hose assembly | 44770-33110 |
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 17650E | Vacuum switch valve | 90910-12088 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12204 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23820 | Fuel vapor supply hose assembly | 23820-31050 |
| 23826 | No. 1 fuel vapor supply hose | 23826-28300 · 23826-31060 · 23826-31080 · 23826-36030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23826-28290 · 23827-31090 · 23827-36040 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 90466-13004 · 96132-51000 · 96132-51100 · 96132-51300 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28160 |
| 25860A | No. 1 vacuum switch valve | 25860-31070 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-36020 |
