Toyota CAMRY V-Belt — Figure 1605

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.

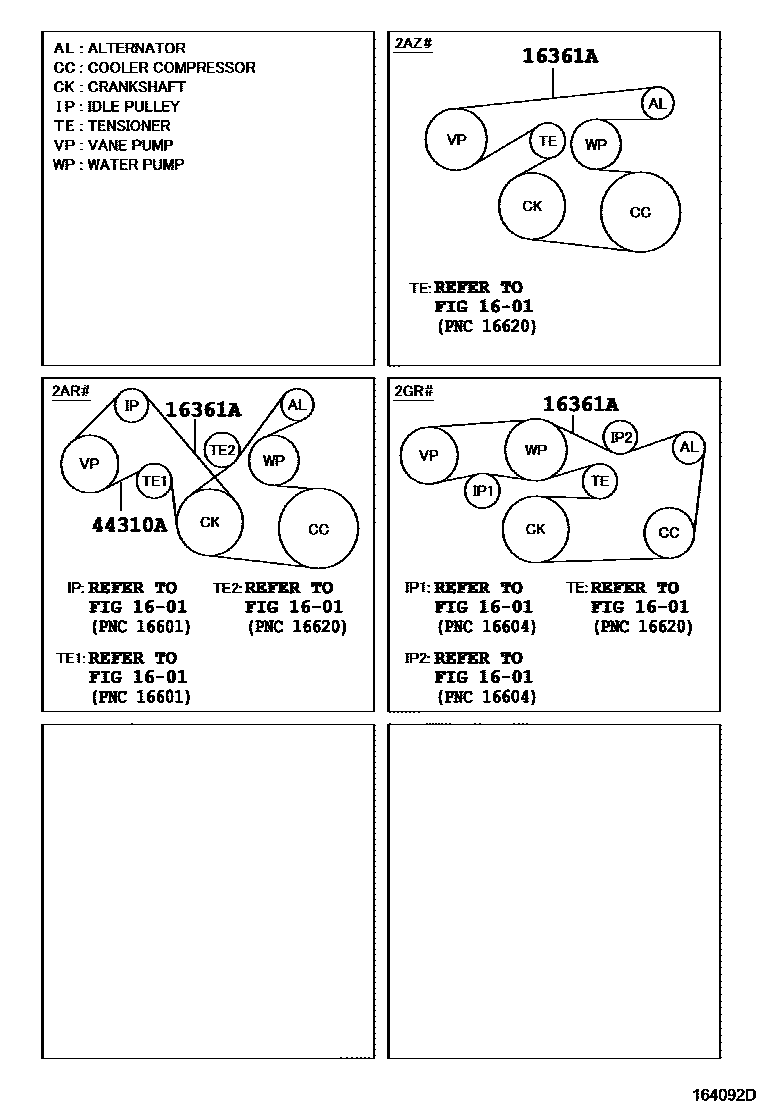

Toyota CAMRY V-Belt EPC diagram — 164092D
V-Belt — 164092D (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02652 · 90916-02671 · 99367-C2090
44310AV-belt (for vane pump)99363-K1200
