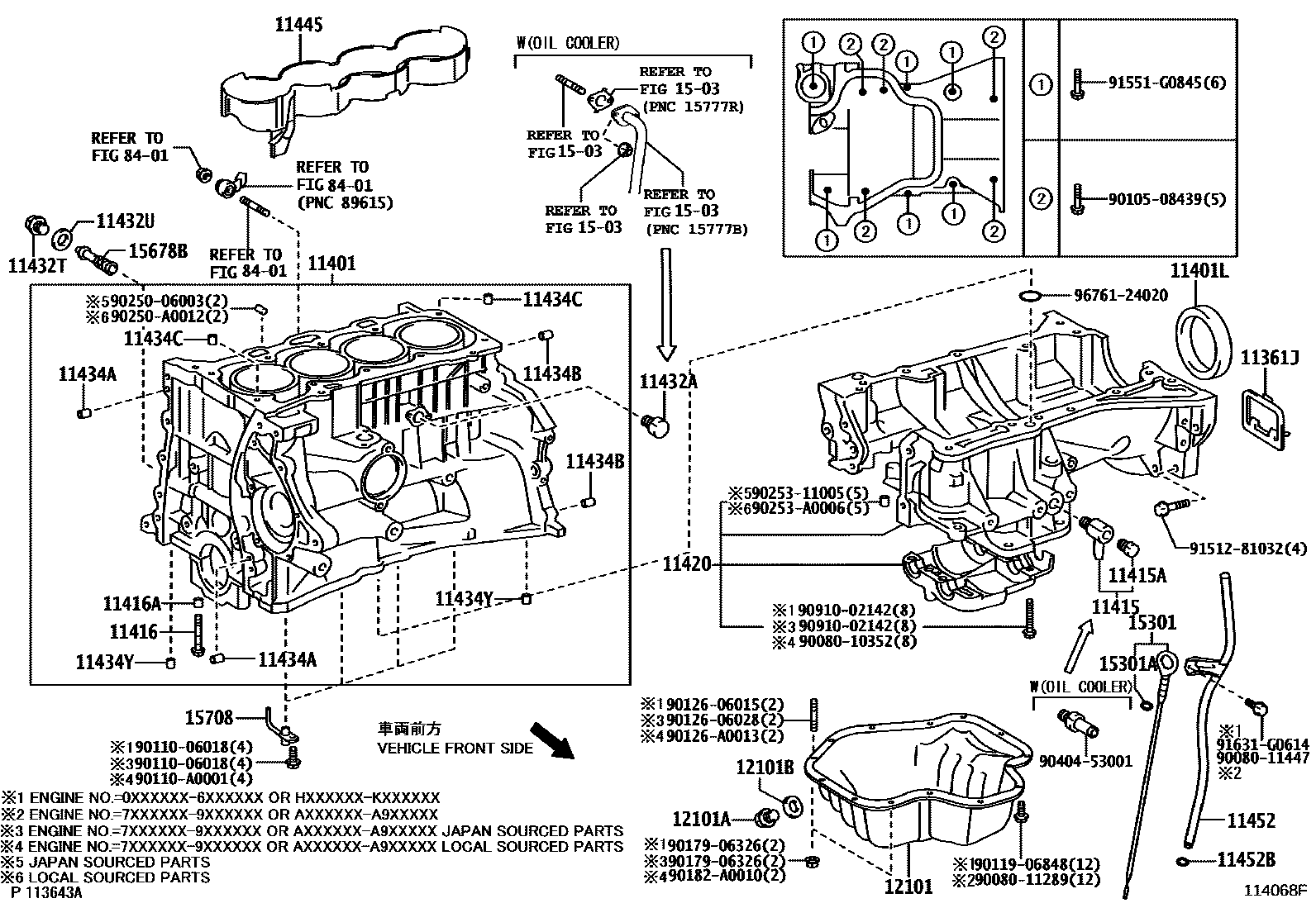

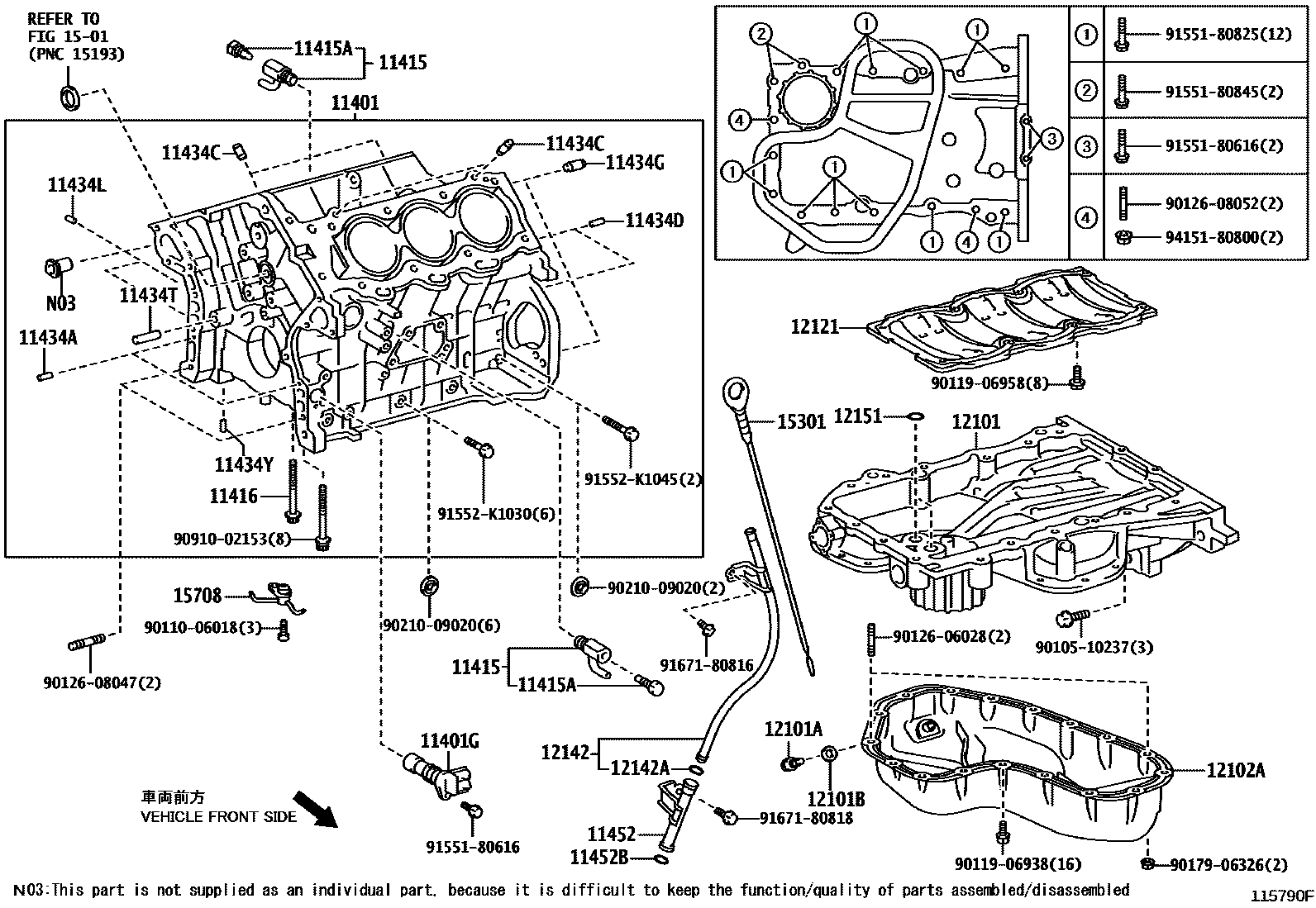

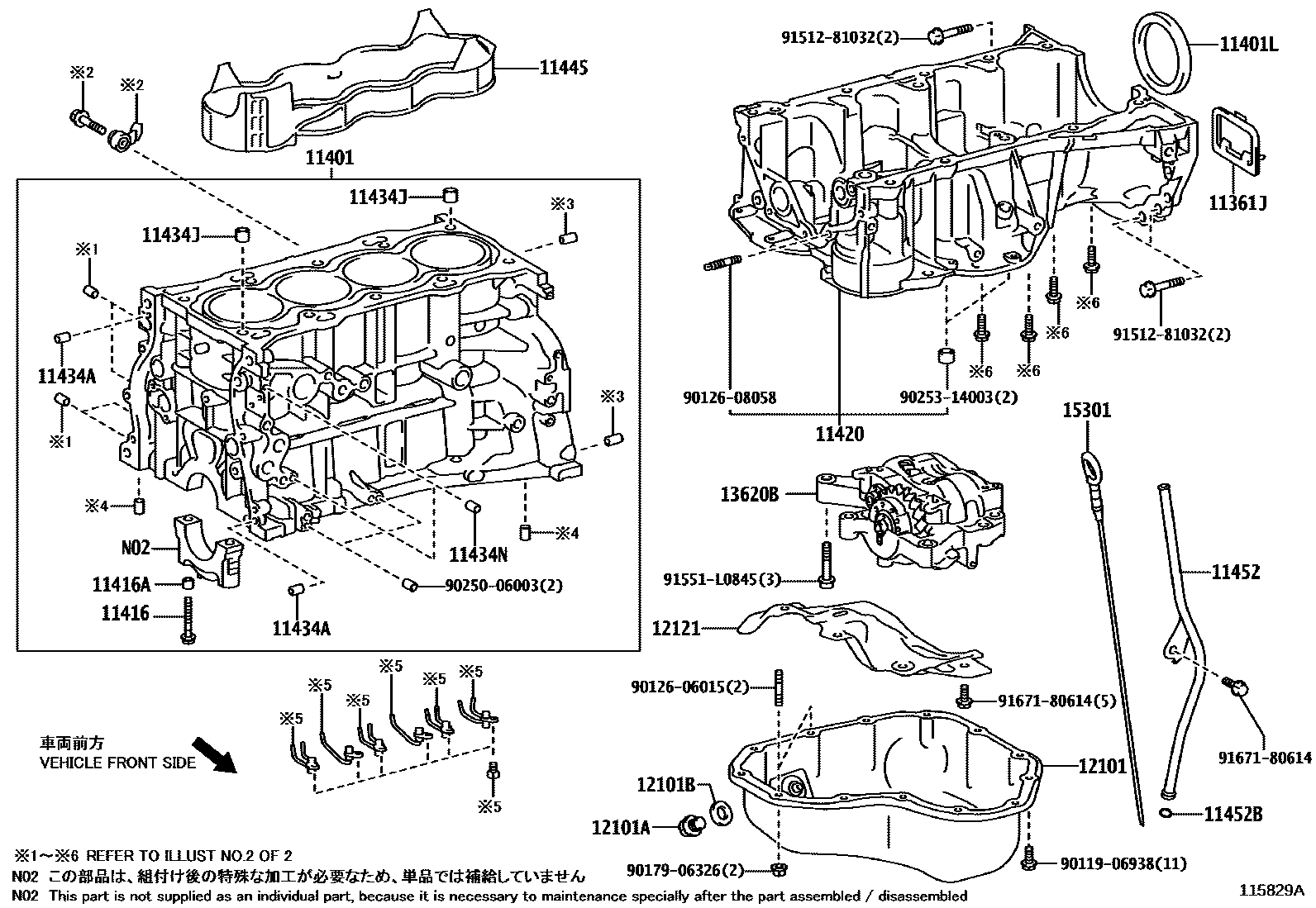

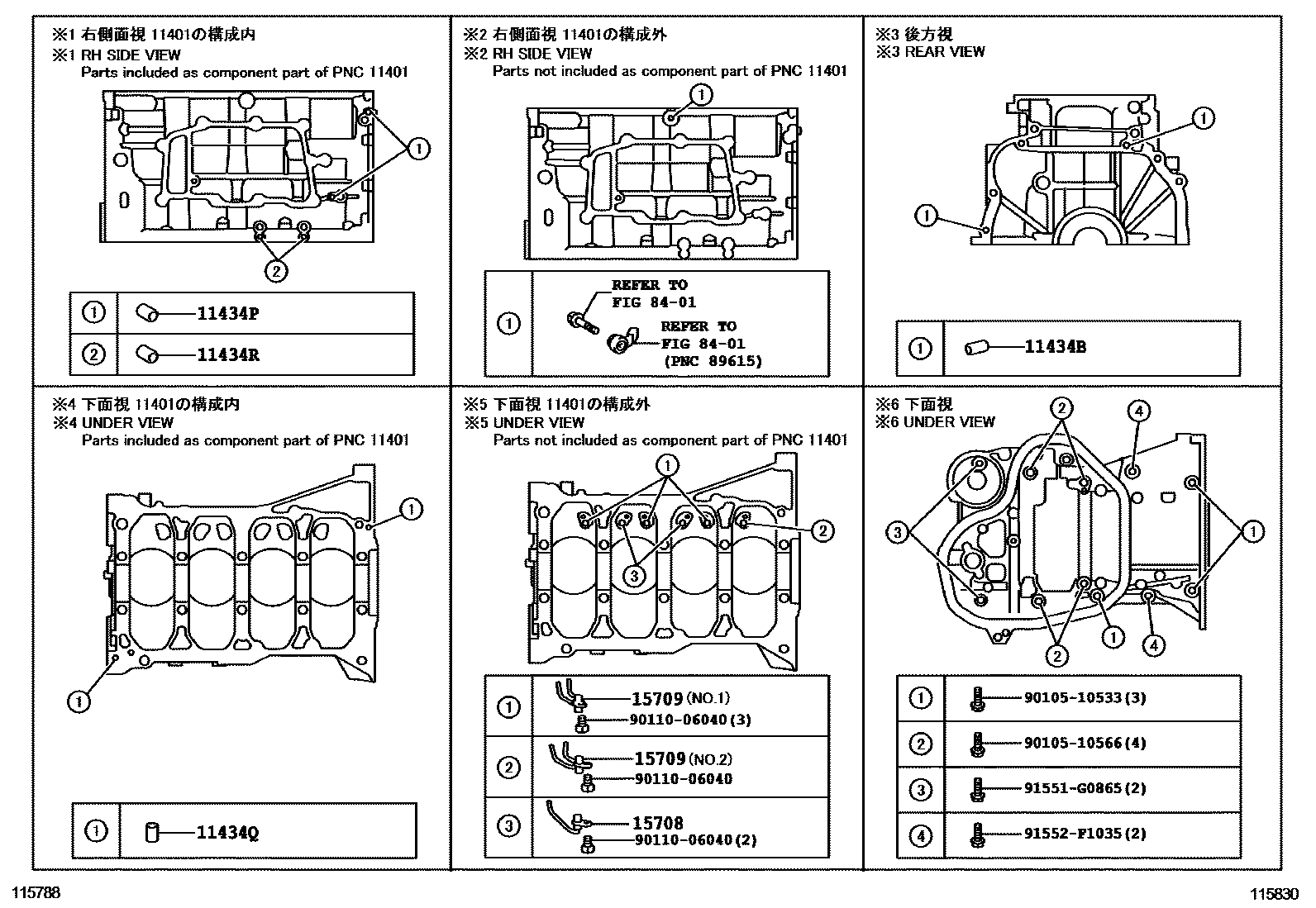

Toyota CAMRY Cylinder Block — Figure 1105
Toyota CAMRY EPC diagram 1105, Cylinder Block, with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-28010 |
| 11401 | Cylinder block sub-assembly | 11401-80718 · 11401-80774 · 11410-09230 · 11410-09270 · 11410-29345 · 11410-39075 |
| 11401G | crankshaft position sensor | 90919-05057 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-89003 · 90311-89005 · 90311-89007 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09120 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02124 · 90910-02154 · 90910-02173 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 · 90253-A0008 |
| 11420 | Reinforce crankcase assembly | 11420-0H030 · 11420-0H050 · 11420-28020 · 11420-36020 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-14013 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-14011 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-06003 · 90250-08120 · 90250-A0016 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-A0018 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-14003 · 90253-A0009 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-04097 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15001 |
| 11434L | Direct sales (for engine mounts) | 90250-04097 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434P | Direct sales (for oil pump components) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90250-08074 · 90250-A0015 |
| 11445 | Cylinder block water jacket spacer | 11445-28020 · 11445-36010 |
| 11452 | Engine oil level gauge guide | 11452-0H050 · 11452-28040 · 11452-31060 · 11452-36020 |
| 11452B | O-ring (for oil level gauge guide) | 90301-12018 · 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-0H050 · 12101-28060 · 12101-31121 · 12101-36040 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-31050 · 12102-31051 |
| 12121 | No. 1 oil pan baffle | 12121-31070 · 12121-36030 |
| 12142 | Engine oil level gauge No. 2 guide tube | 12142-31030 |
| 12142A | O-ring (for engine oil level gauge No. 2 guide) | 96721-19010 |
| 12151 | oil pan gasket | 12151-31010 |
| 13620B | Engine balancer assembly | 13620-36010 · 13620-36011 |
| 15301 | Engine oil level scoring assembly | 15301-0H040 · 15301-28030 · 15301-31100 · 15301-36030 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678B | Oil control valve filter | 15678-28010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-28010 · 15708-28011 · 15708-31030 · 15708-36010 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-36010 · 15709-36020 |
