Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

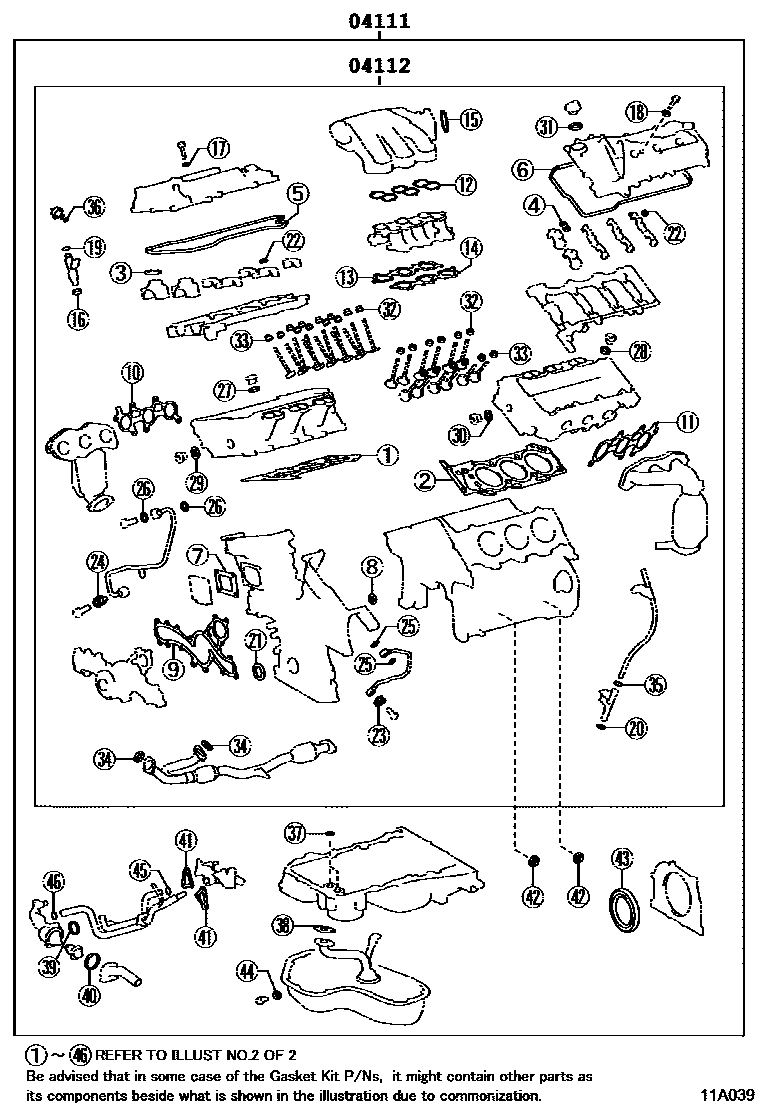

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A039
Engine Overhaul Gasket Kit — 11A039 (200601 – 201108)

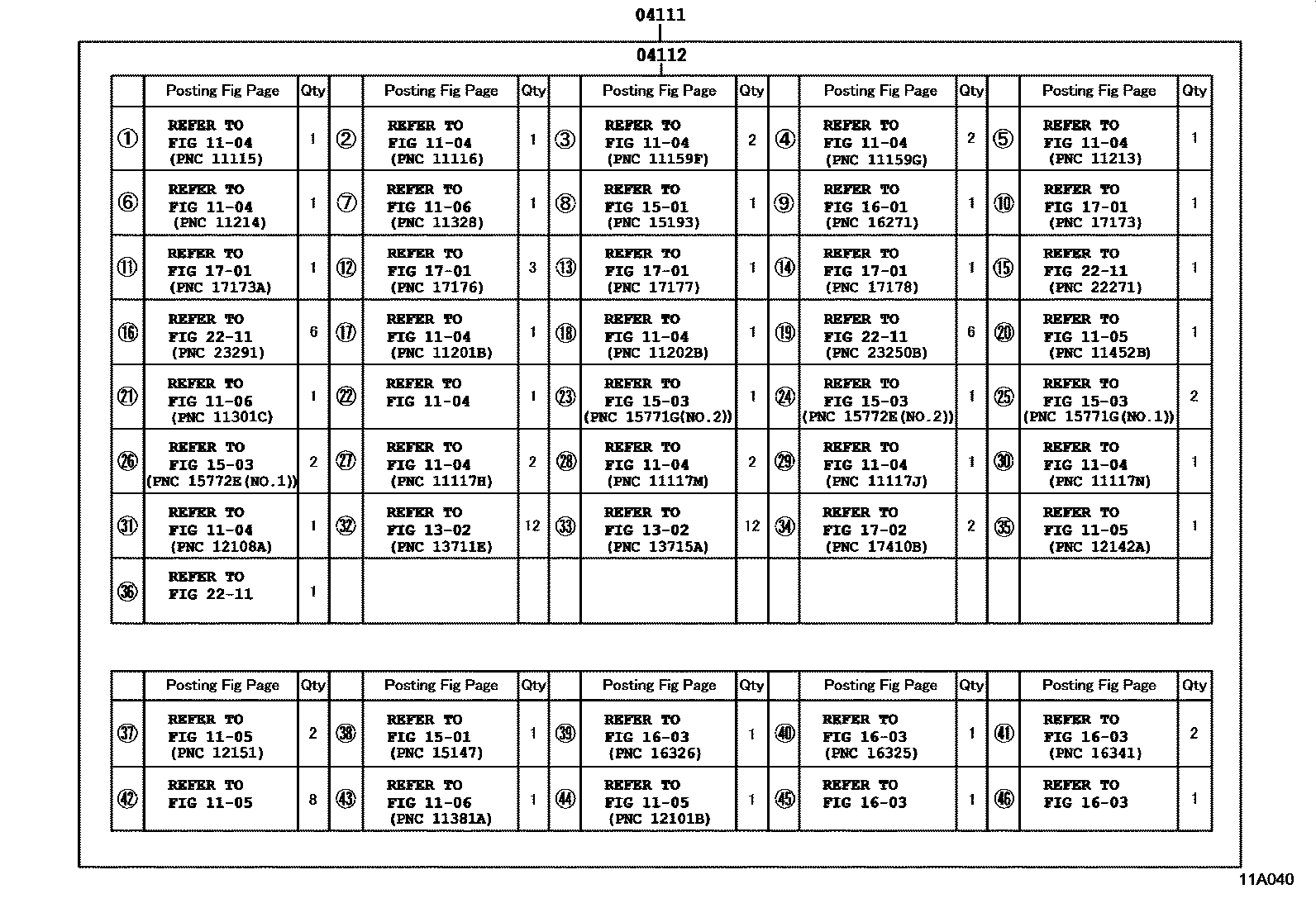

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11A040
Engine Overhaul Gasket Kit — 11A040 (200601 – 201108)

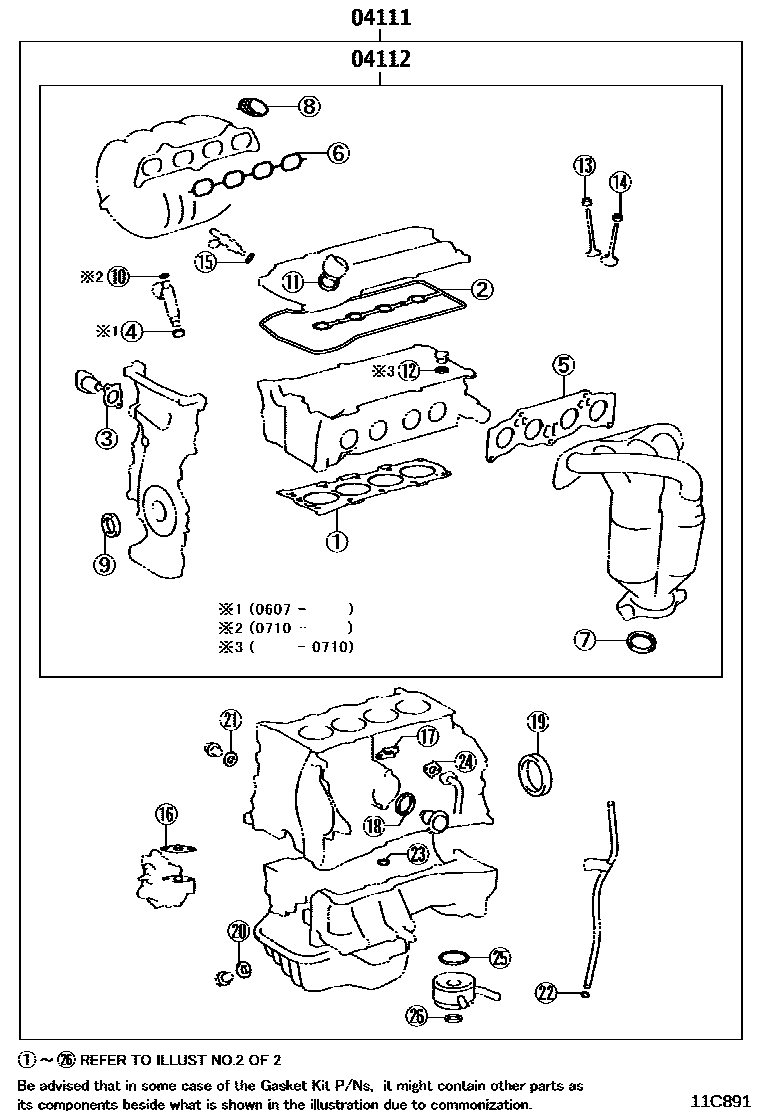

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C891
Engine Overhaul Gasket Kit — 11C891 (200601 – 200901)

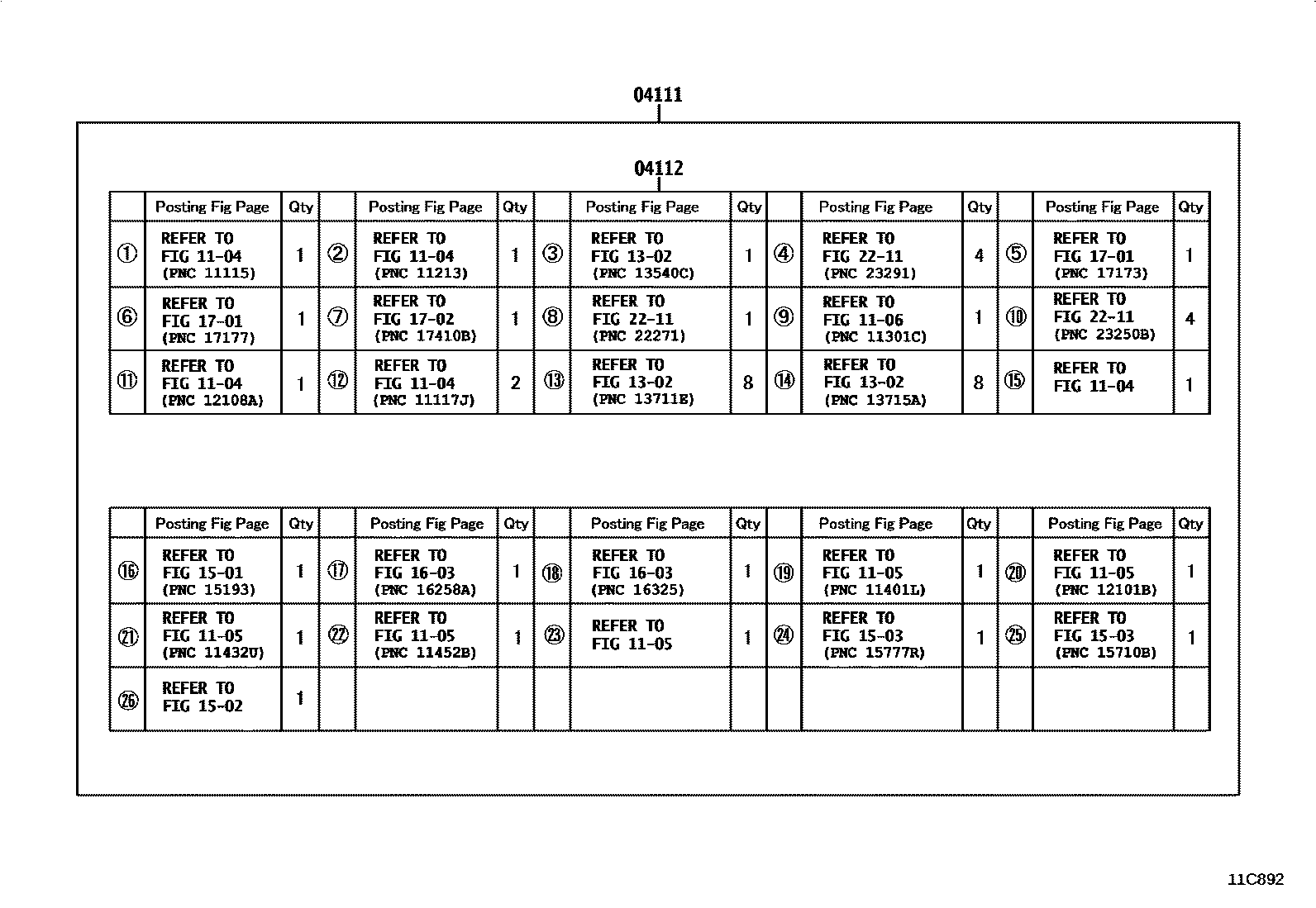

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C892
Engine Overhaul Gasket Kit — 11C892 (200601 – 200901)

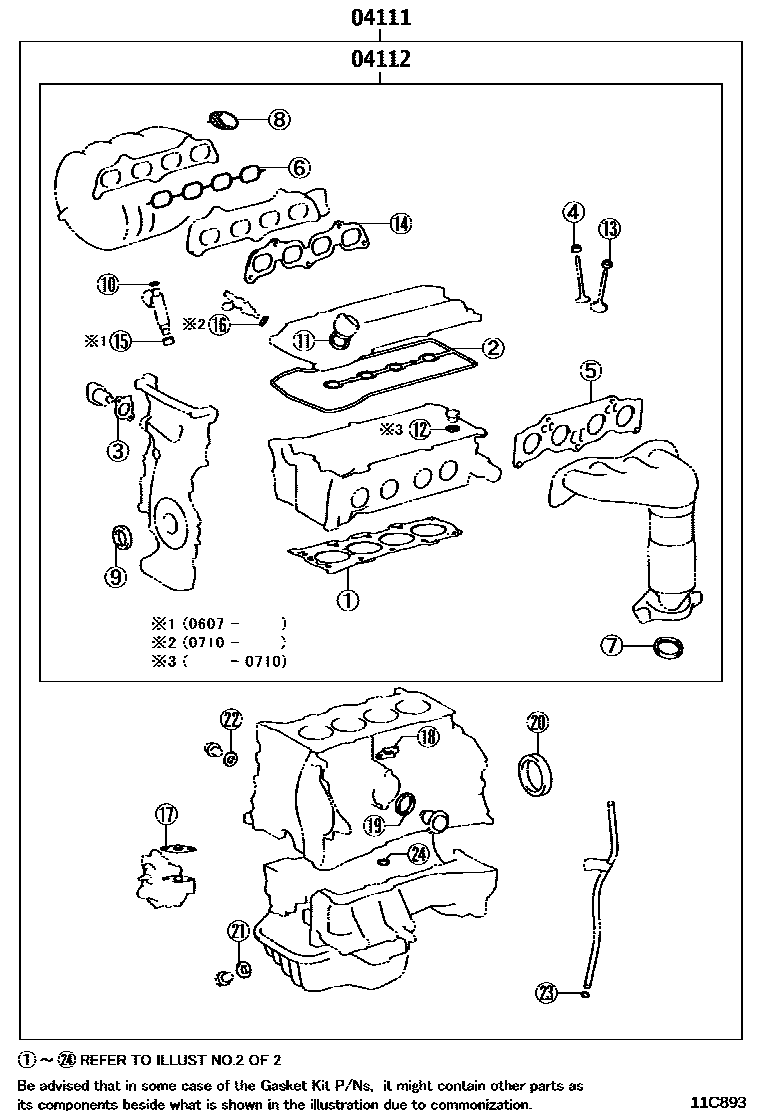

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C893
Engine Overhaul Gasket Kit — 11C893 (200601 – 200901)

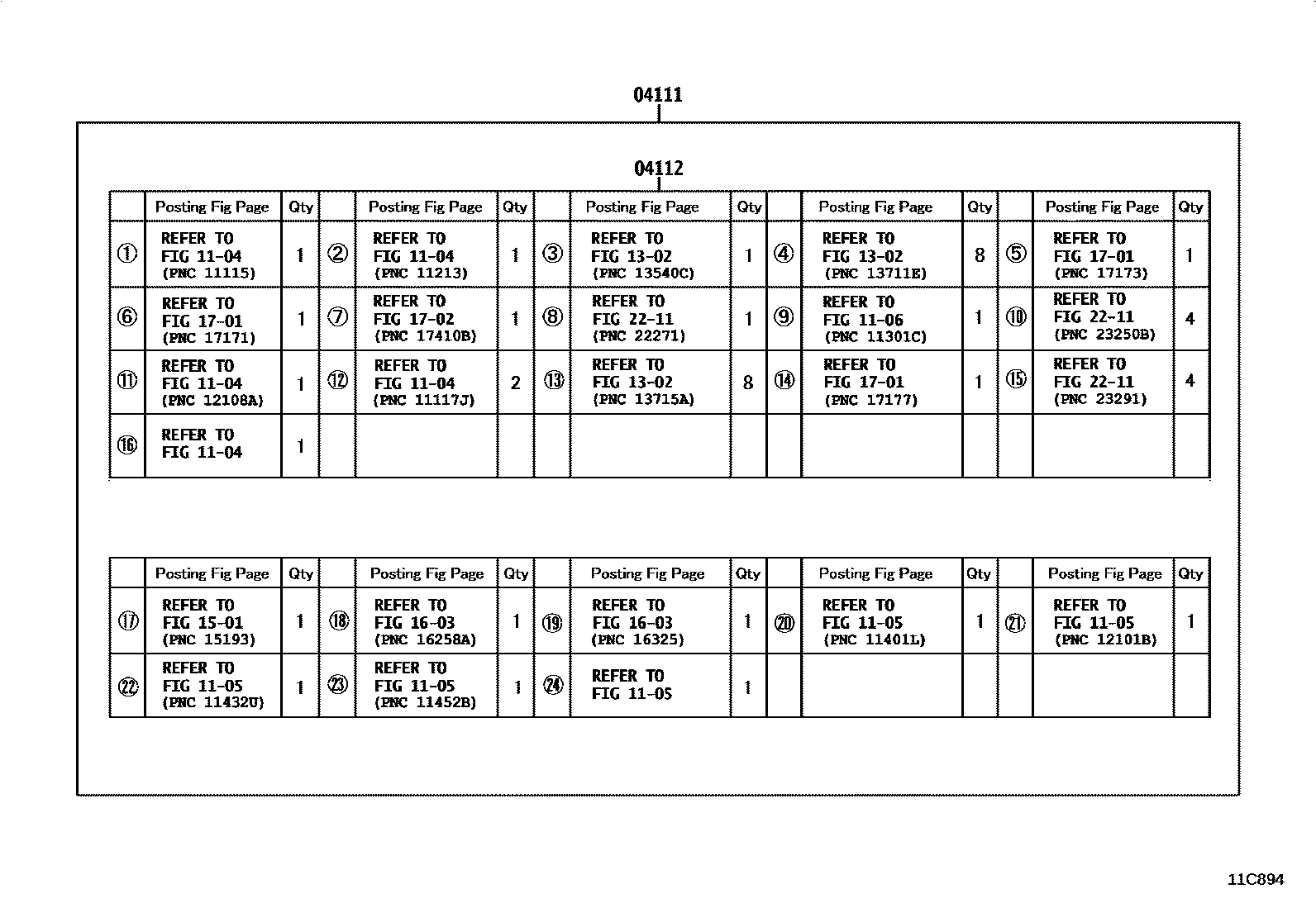

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C894
Engine Overhaul Gasket Kit — 11C894 (200601 – 200901)

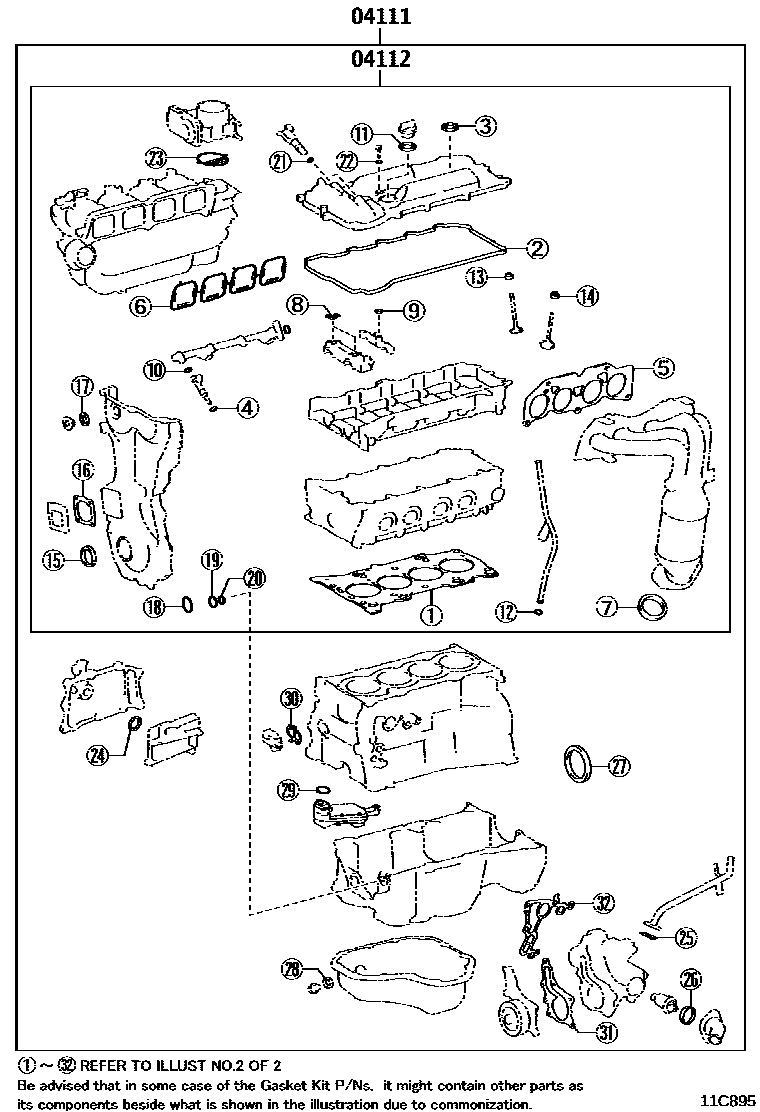

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C895
Engine Overhaul Gasket Kit — 11C895 (200901 – 201108)

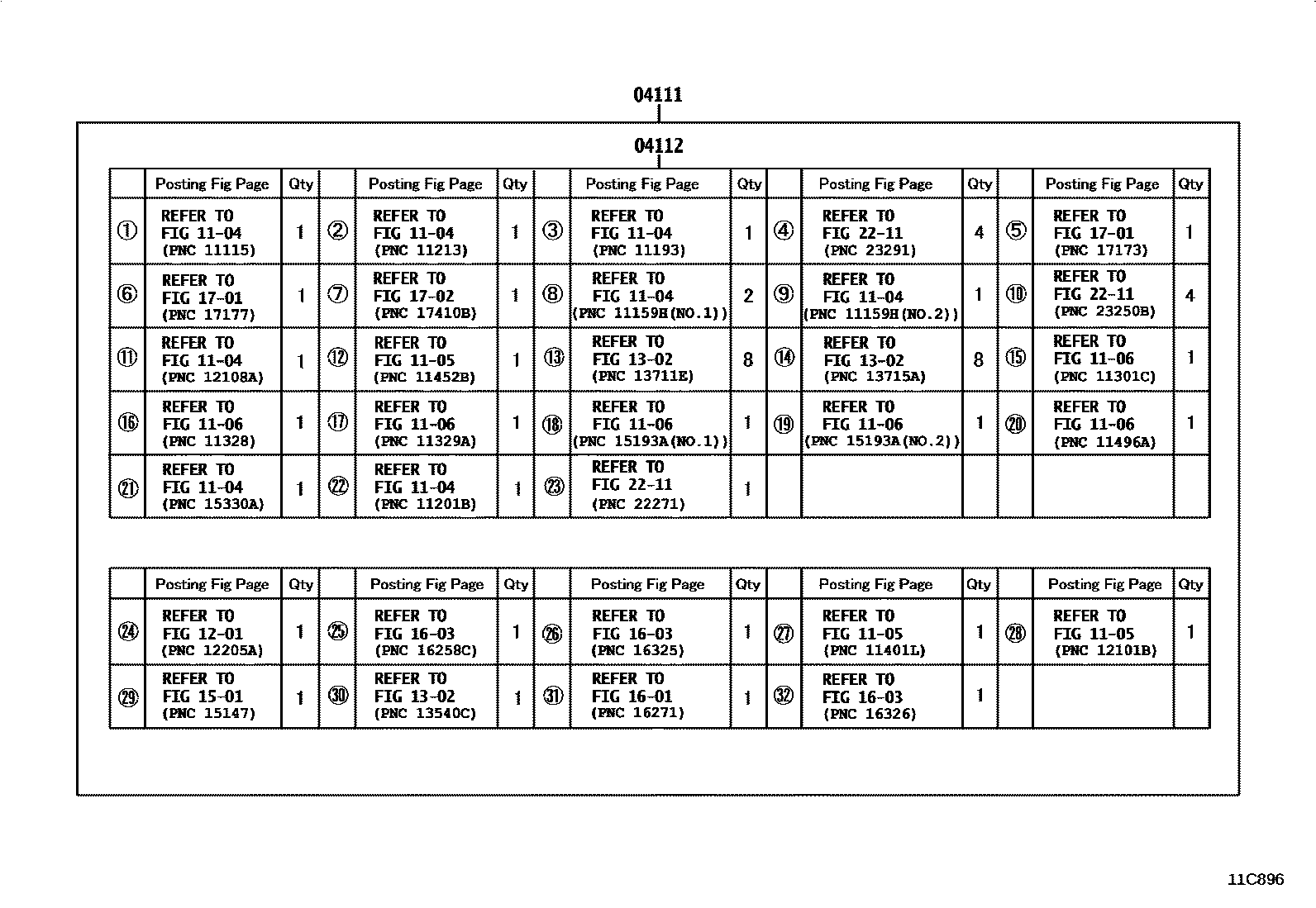

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C896
Engine Overhaul Gasket Kit — 11C896 (200901 – 201108)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-28650 · 04111-28651 · 04111-28652 · 04111-28660 · 04111-28661 · 04111-28822 · 04111-31440 · 04111-31441 · 04111-31442 · 04111-36080
04112Engine valve grinding pad assembly04112-28560 · 04112-28561 · 04112-28562 · 04112-28570 · 04112-28571 · 04112-28572 · 04112-31270 · 04112-31271 · 04112-31272 · 04112-36070
