Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

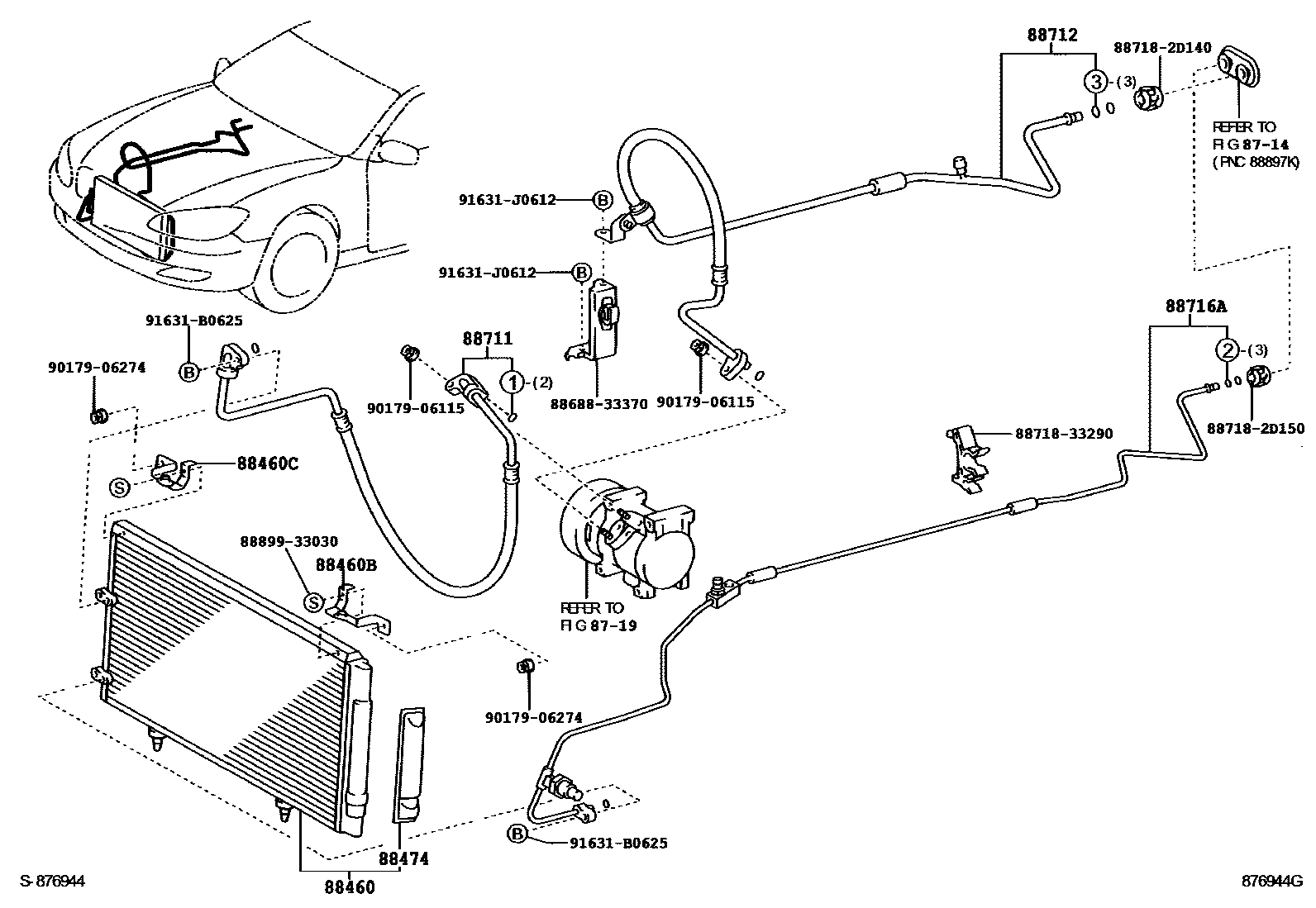

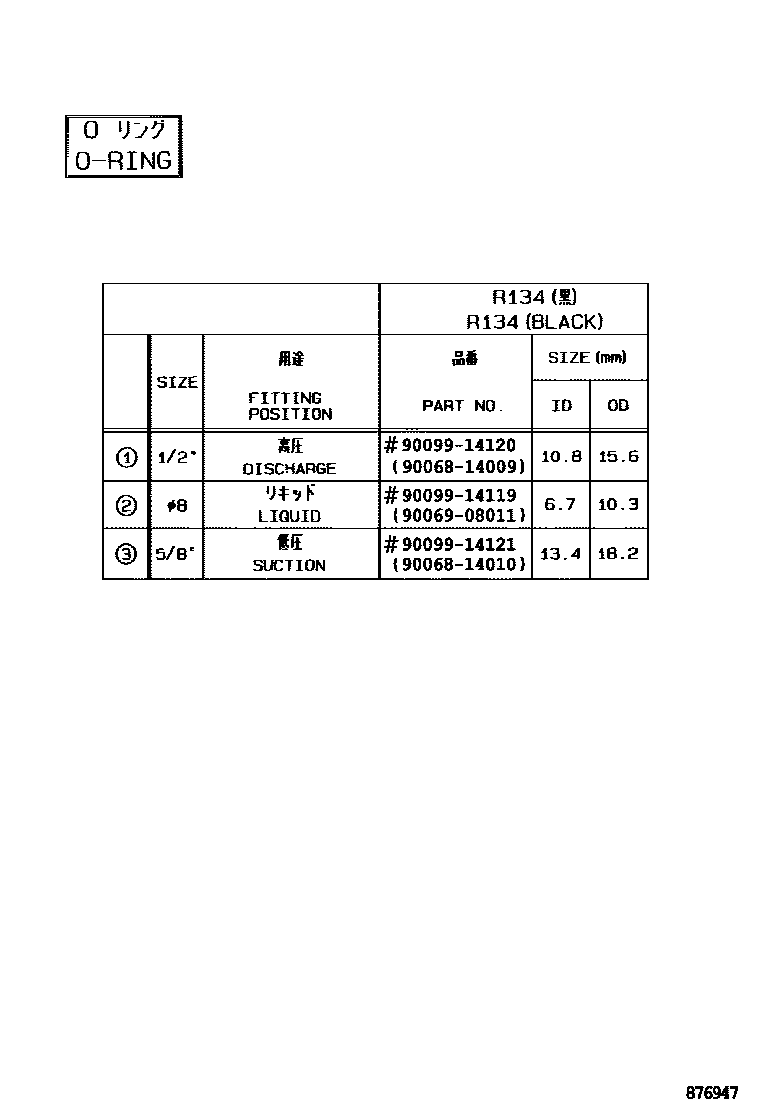

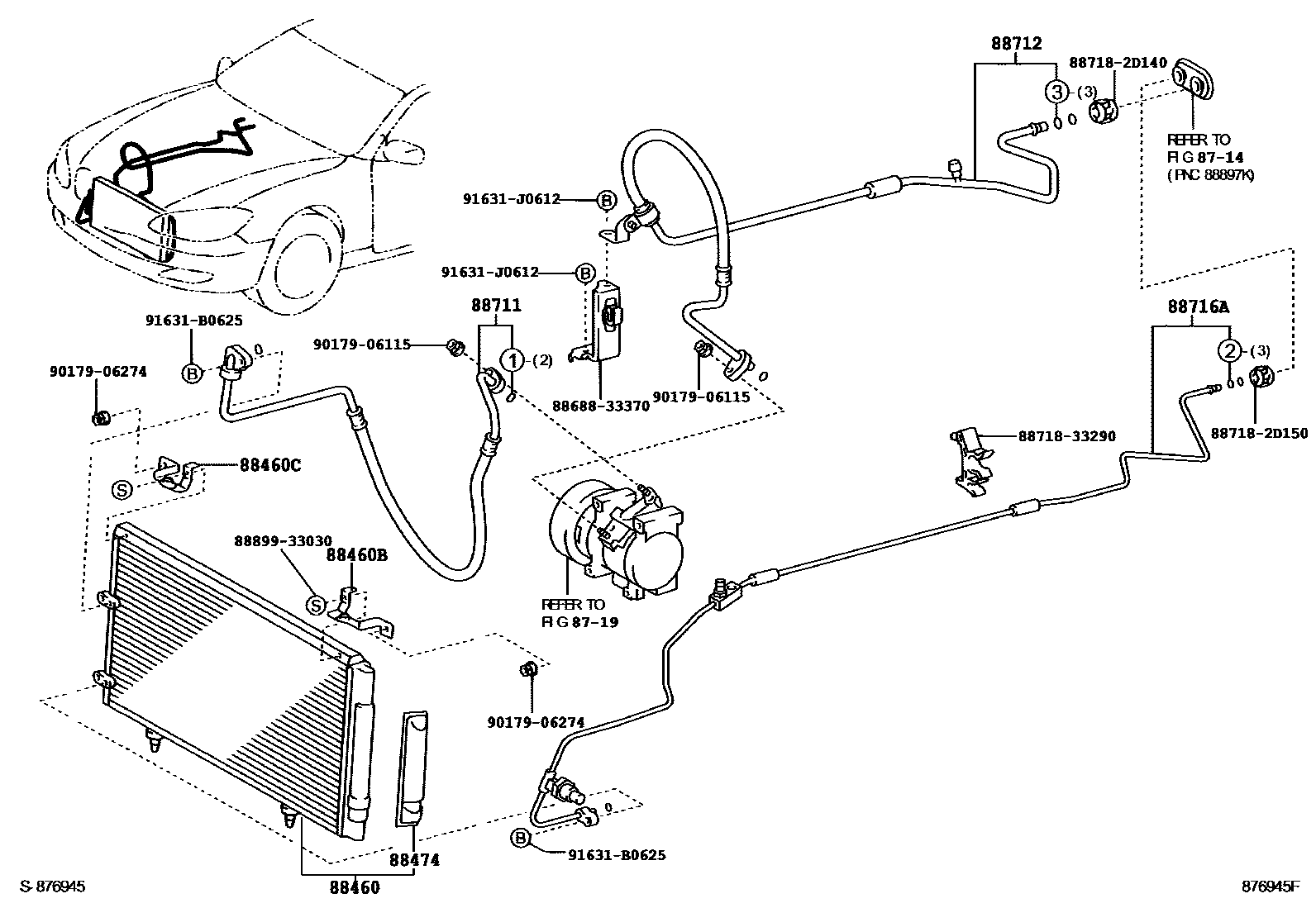

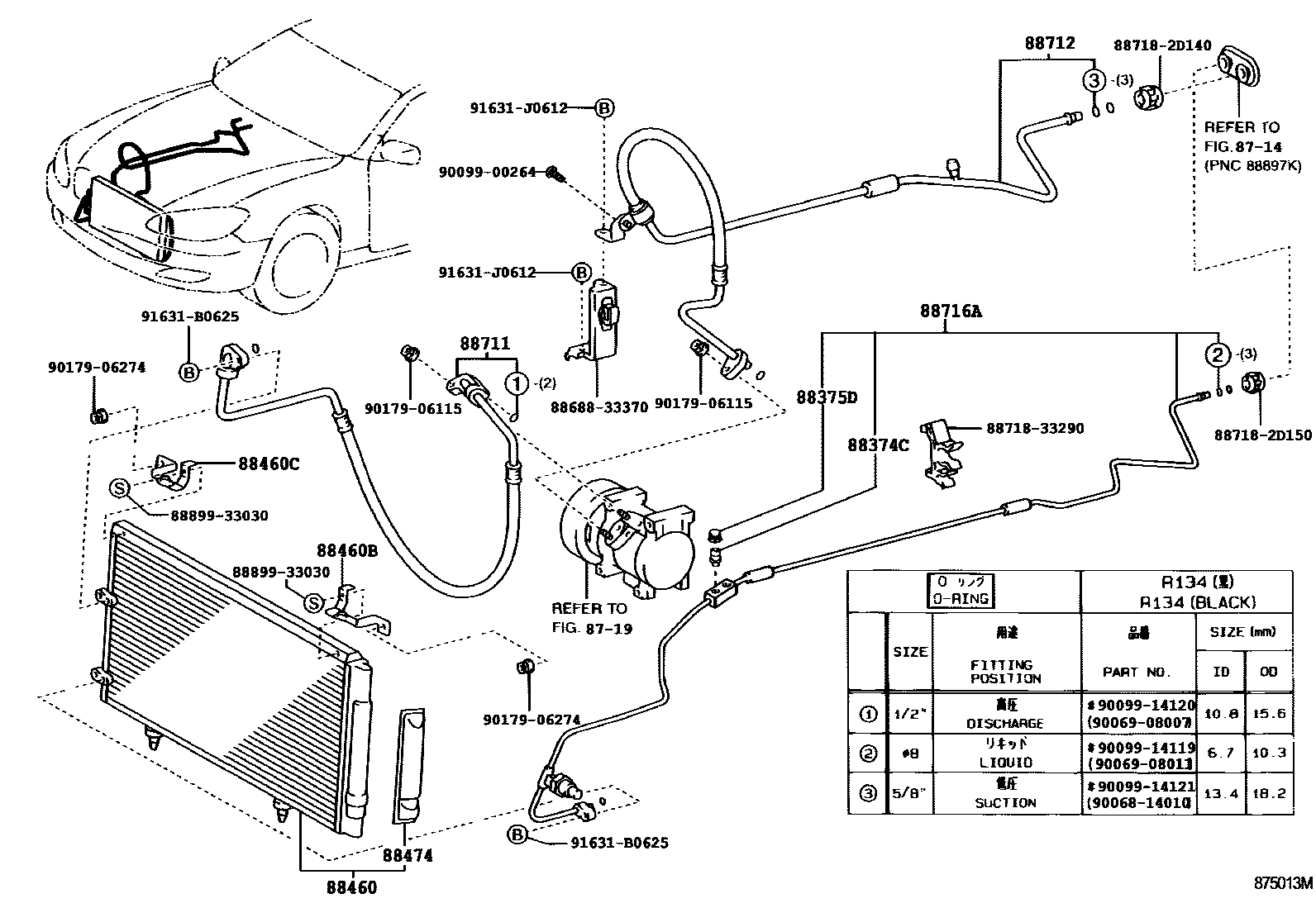

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-06140 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-06120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-06140 |
| 88474 | cooler dryer | 88474-47010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-33160 · 88711-33180 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-33270 · 88704-33290 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-33260 |
