Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

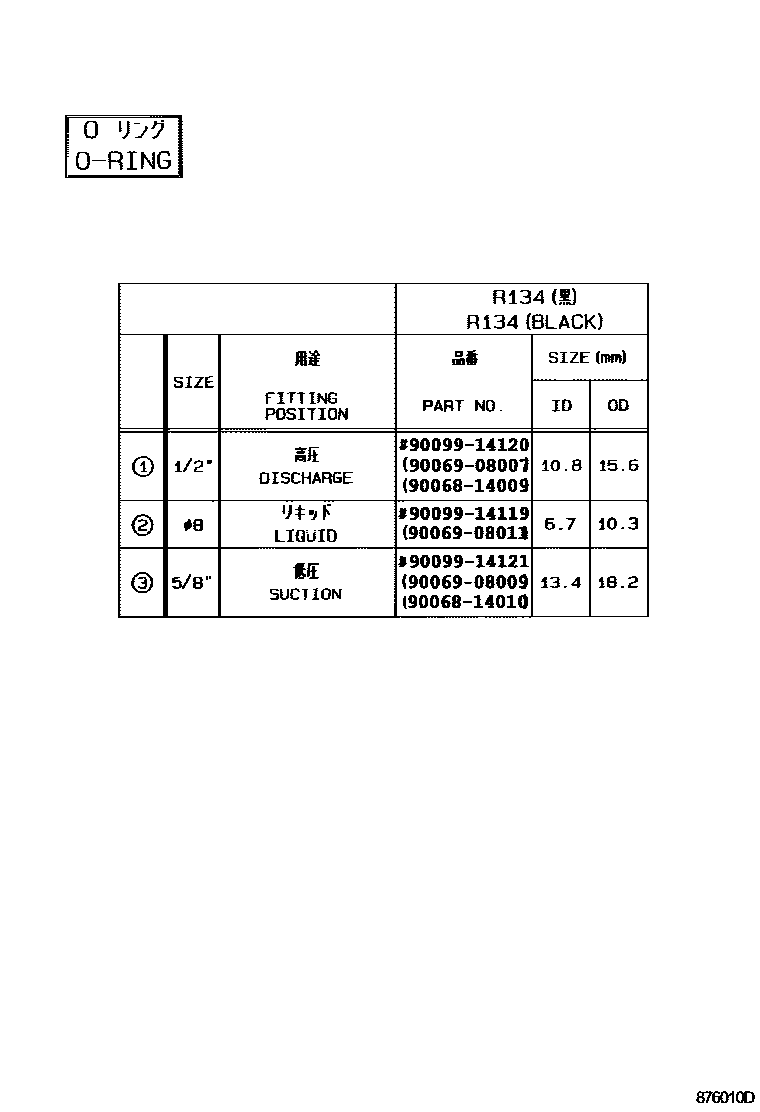

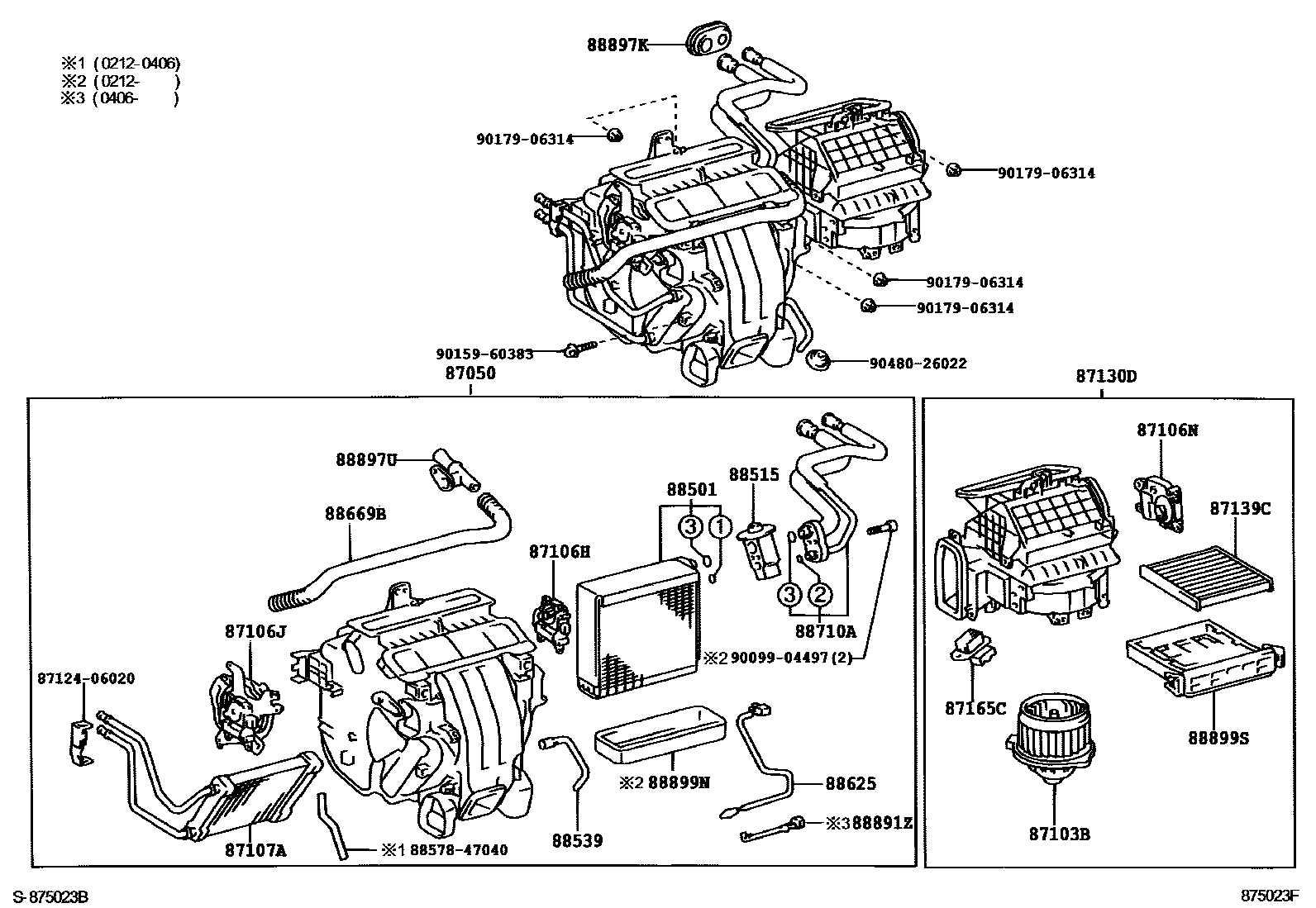

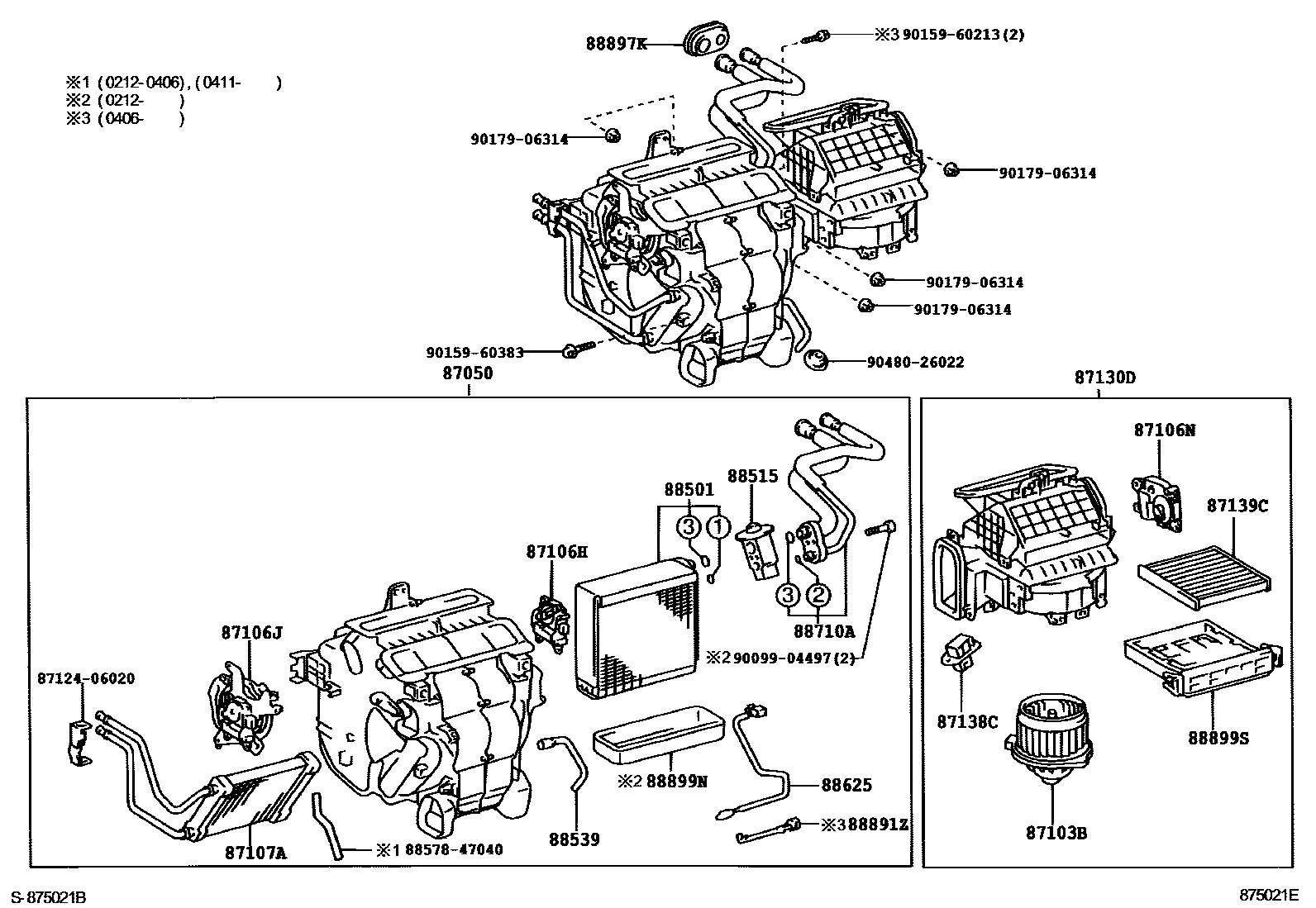

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-06220 · 87050-06221 · 87050-06222 · 87050-06250 · 87050-06251 · 87050-06252 |
| 87103B | Blower motor sub-assembly with fan | 87103-06030 · 87103-06031 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-07080 · 87106-07081 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06130 · 87106-06140 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-06110 · 87106-06120 |
| 87107A | Heater radiator device sub-assembly | 87107-06040 |
| 87130D | Blower assembly | 87130-06080 · 87130-06090 · 87130-06220 · 87130-06230 |
| 87138C | Blower resistor | 87138-41020 |
| 87139C | air purification filter | 87139-06030 · 87139-06040 · 87139-28010 · 87139-32010 |
| 87165C | Blower motor control device | 87165-13010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-07020 |
| 88515 | Cooler expansion valve | 88515-07020 · 88515-07040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-06030 |
| 88625 | Cooler No. 1 Thermistor | 88625-17130 · 88625-33170 |
| 88669B | Cooler air hose | 88669-33060 |
| 88710A | Air conditioning pipe assembly | 88710-07060 |
| 88891Z | Cooler thermistor bracket | 88891-50060 |
| 88897K | Seals (for cooler tubes) | 88897-33020 |
| 88897U | aspirator tube | 88897-12210 |
| 88899N | Cover plate | 88899-41020 |
| 88899S | front cooler frame | 88899-06020 · 88899-41010 |
