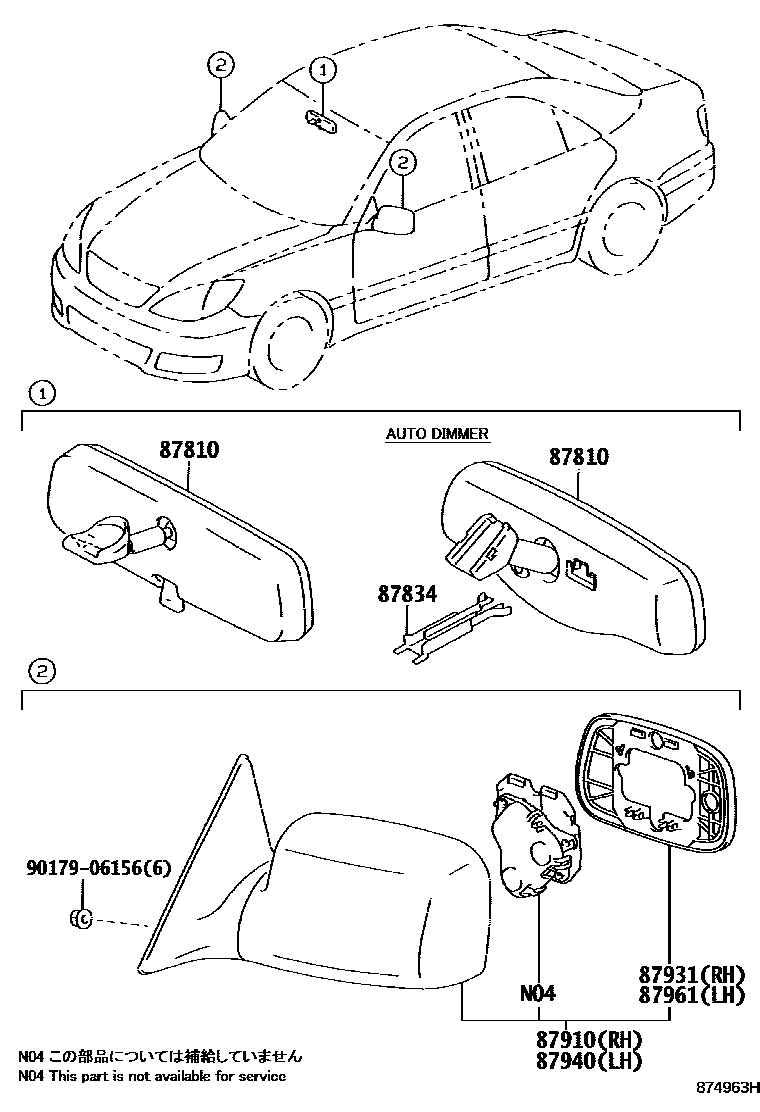

Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-AA011 · 87810-AA020 · 87810-AC090 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-48010 · 87818-AC010 |
| 87910 | Right exterior rearview mirror assembly | 87910-33490 |
| 87931 | Right exterior rearview mirror | 87931-33500 · 87931-33550 |
| 87940 | Left exterior rearview mirror assembly | 87940-33450 |
| 87961 | Left exterior rearview mirror | 87961-33460 · 87961-33510 |
