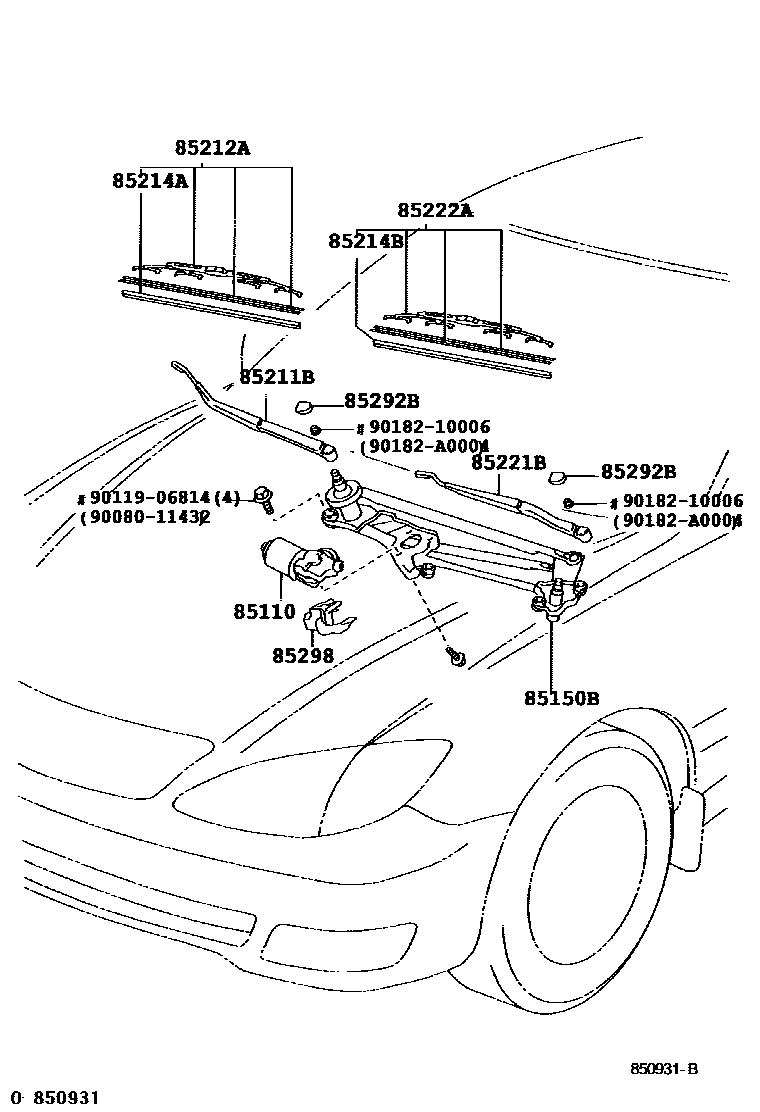

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-33220 |
| 85150B | Wiper connecting rod assembly | 85150-33150 |
| 85211B | Right front wiper arm | 85211-33190 |
| 85212A | Right front wiper blade | 85212-48040 · 85212-53050 |
| 85214A | Right wiper rubber strip | 85214-48020 · 85214-53040 |
| 85214B | Left wiper rubber strip | 85214-50100 · 85214-50120 |
| 85221B | Left front wiper arm | 85221-33180 |
| 85222A | Left front wiper blade | 85222-24080 · 85222-33190 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 85298 | wiper motor cover | 85111-33010 |
