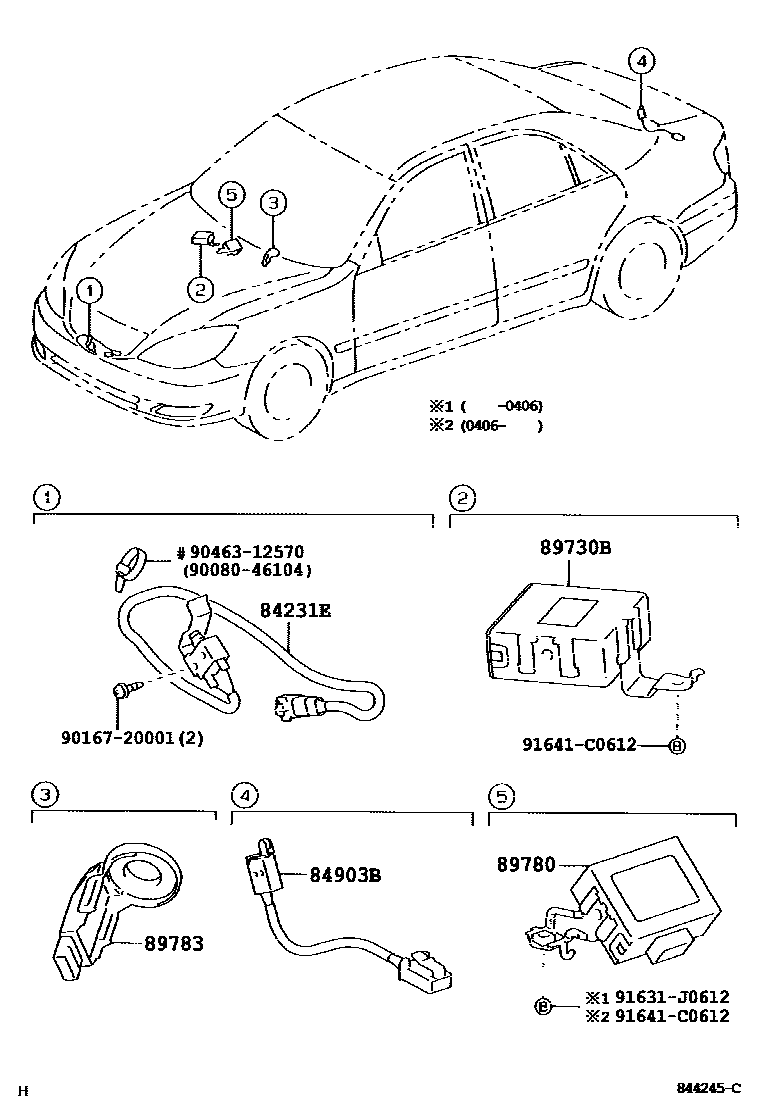

Toyota CAMRY 防盗装置 — Figure 8424
Toyota CAMRY EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84231E | Door control light switch (anti-theft) | 84231-33090 |
| 84903B | Door unlock switch sub-assembly | 84903-33160 |
| 89730B | Anti-theft warning ECU assembly | 89730-AA010 |
| 89780 | Transceiver key ECU assembly | 89780-33100 · 89780-33130 |
| 89783 | transceiver key amplifier | 89783-33070 · 89783-33100 |
