Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 1 images and 14 PNC and OE references.

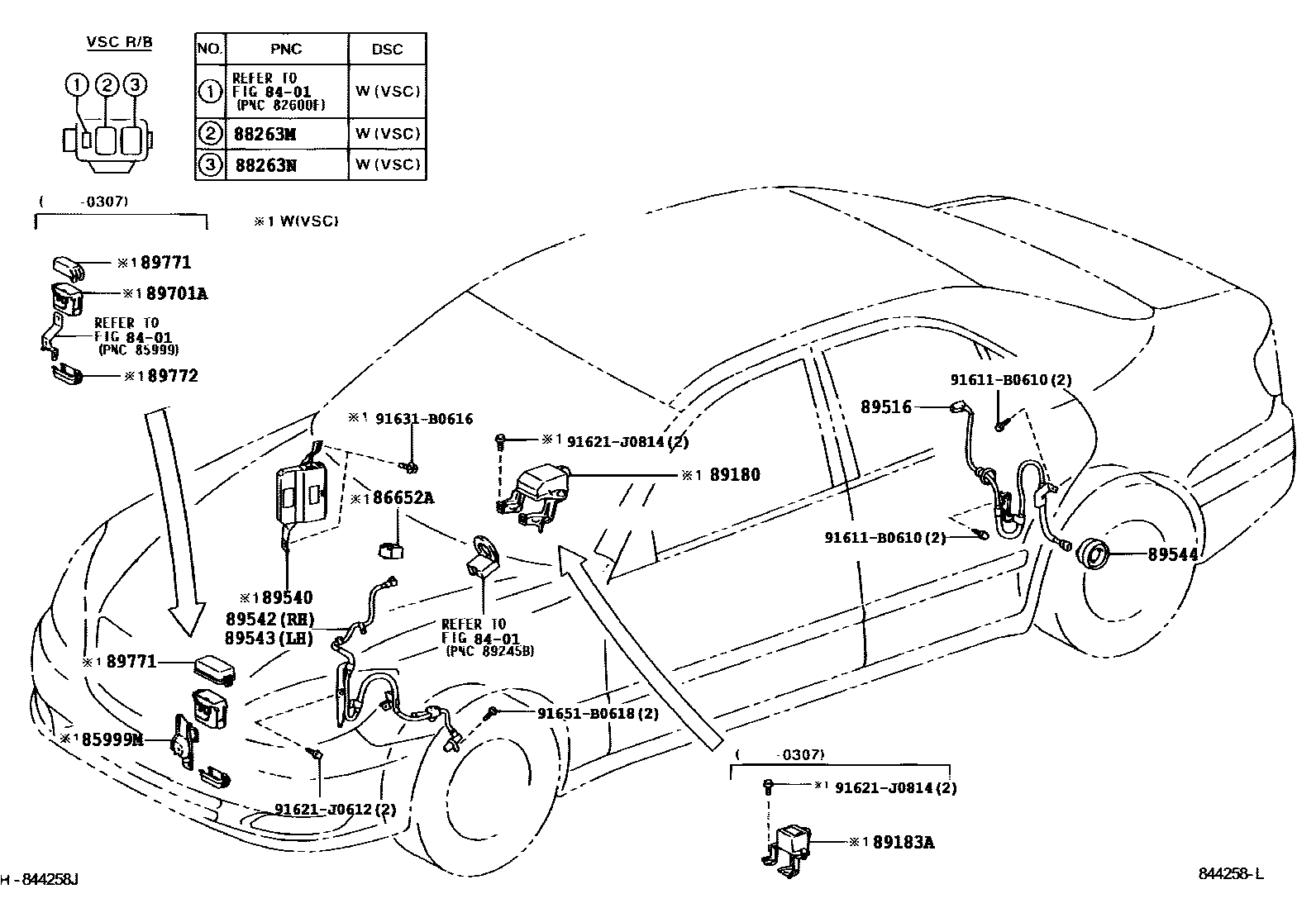

Toyota CAMRY ABS 和 VSC EPC diagram — 844258L
ABS 和 VSC — 844258L (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-33180
86652AAnti-skid control buzzer assembly86652-51010
88263MABS solenoid valve relay88263-32070
88263NABS motor relay88263-21010 · 88263-32070
89180Yaw rate sensor assembly89180-33030
89183AYaw rate sensor89180-33020
89516Anti-skid control sensor wiring harness89516-33010 · 89516-33020
89540Anti-skid control ECU assembly89540-33300 · 89540-33301
89542Right front wheel speed sensor89542-33070
89543Left front wheel speed sensor89543-33070
89544Anti-skid control sensor89544-48010
89701AABS relay box sub-assembly89701-12020
89771ABS relay box upper cover89771-21020 · 89771-33010
89772ABS relay box lower cover89772-12020
