Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 10 images and 81 PNC and OE references.
PNC and OE references

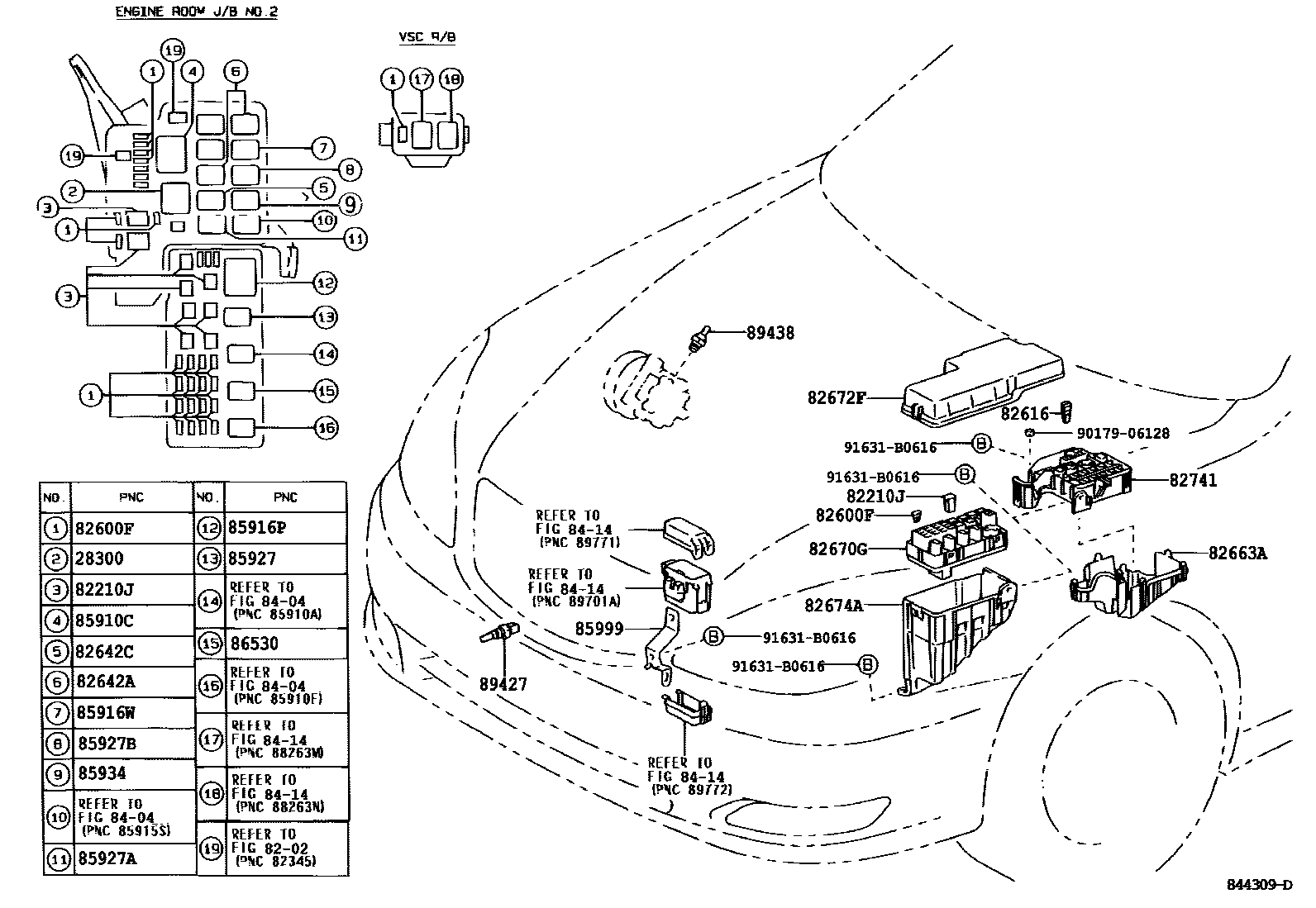

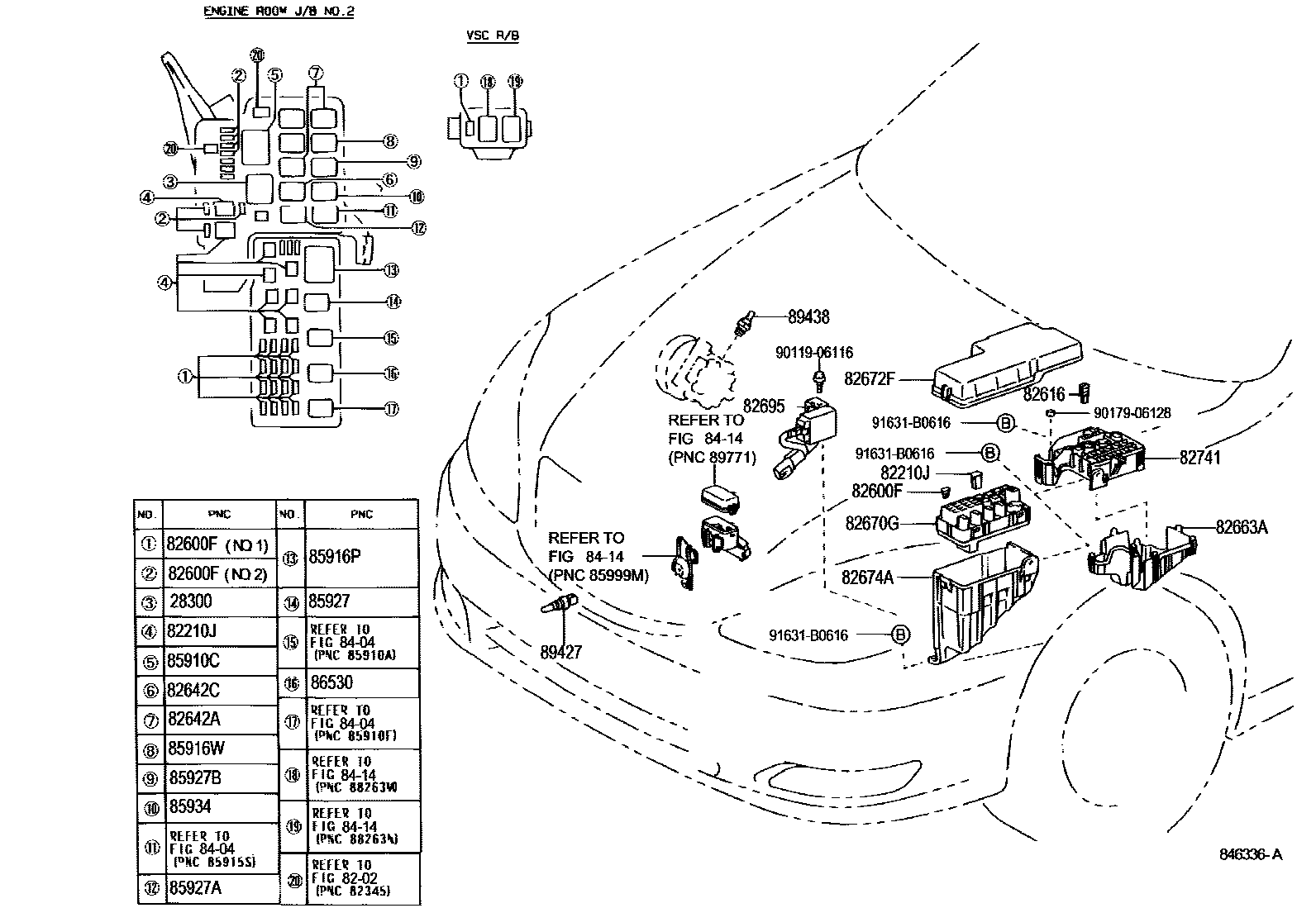

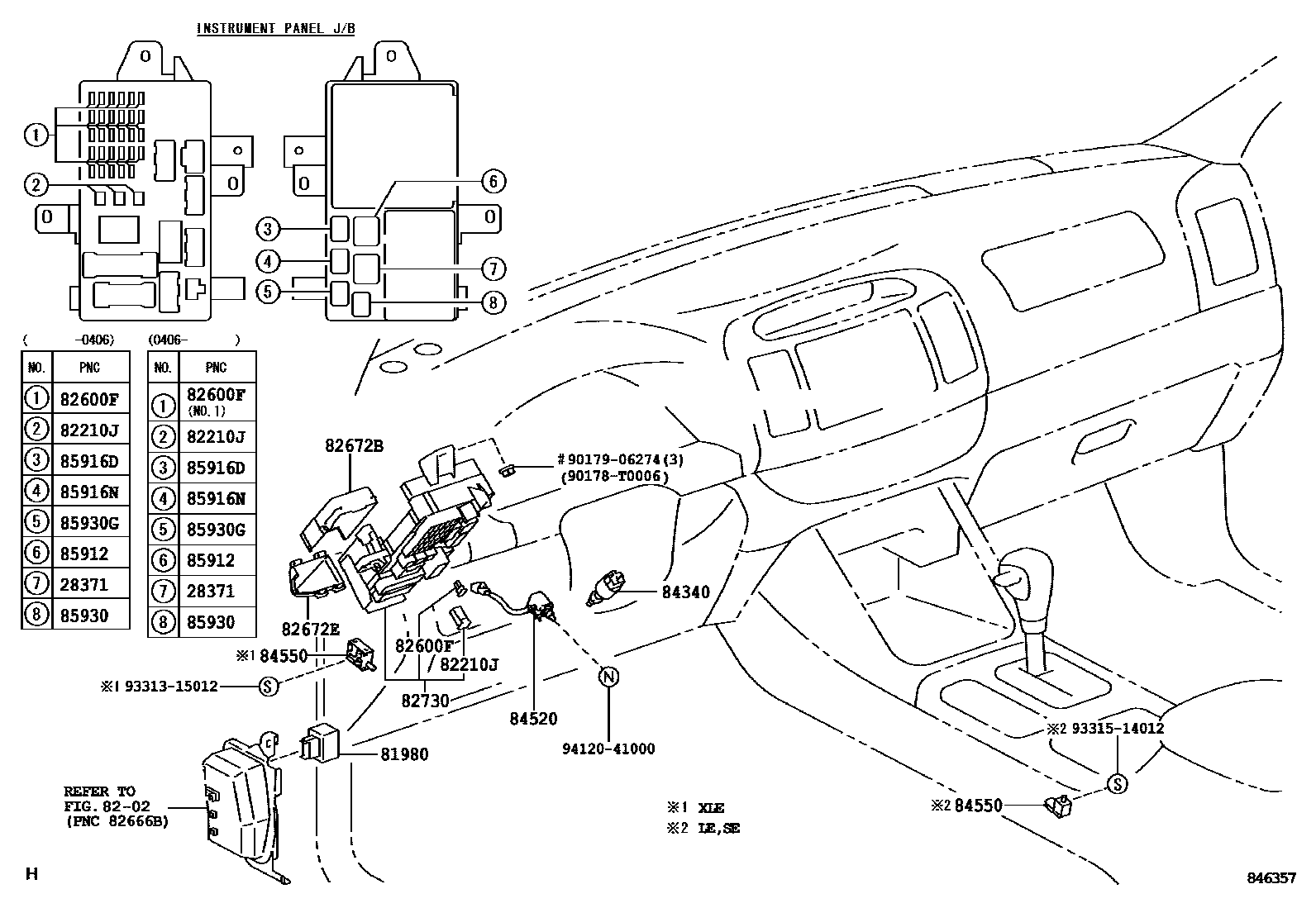

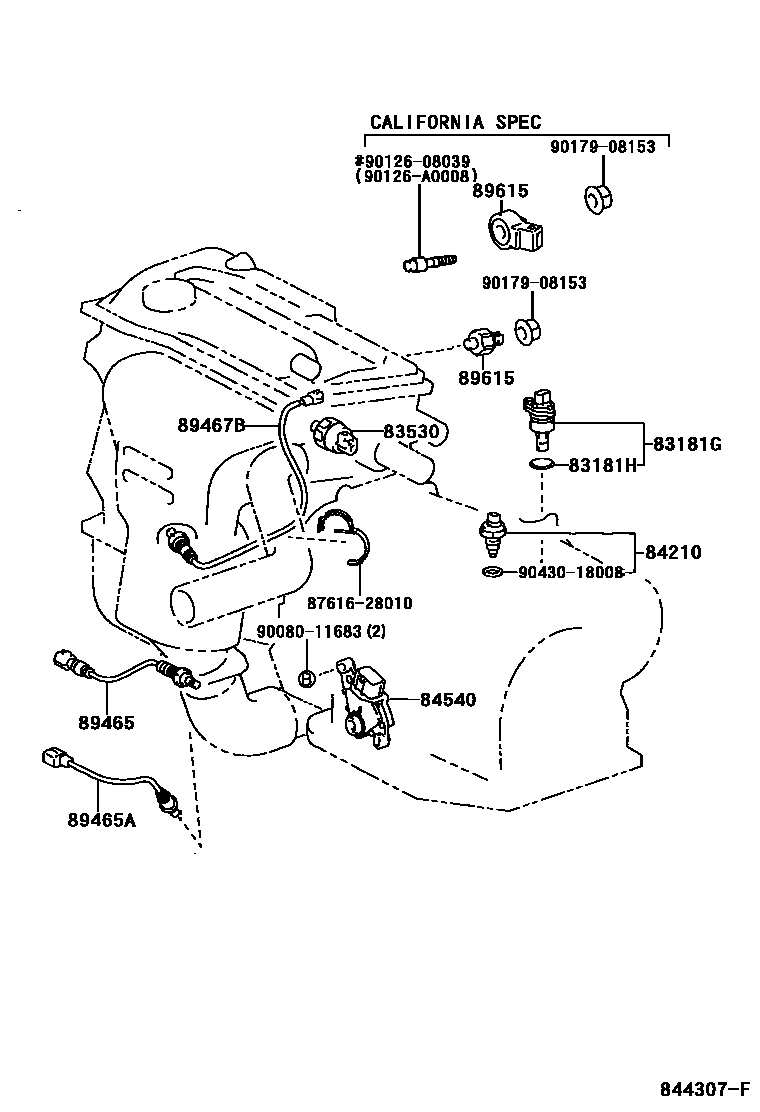

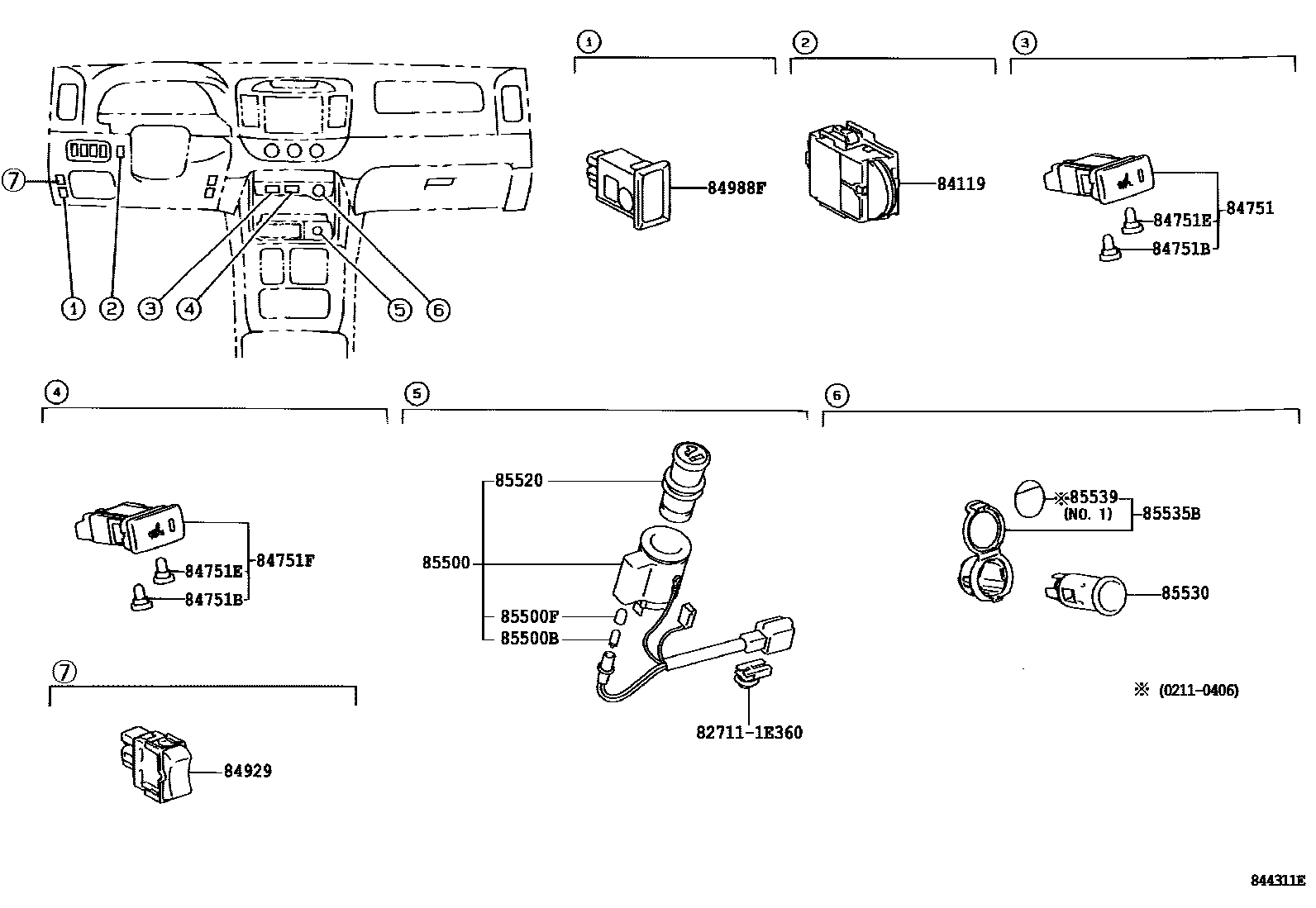

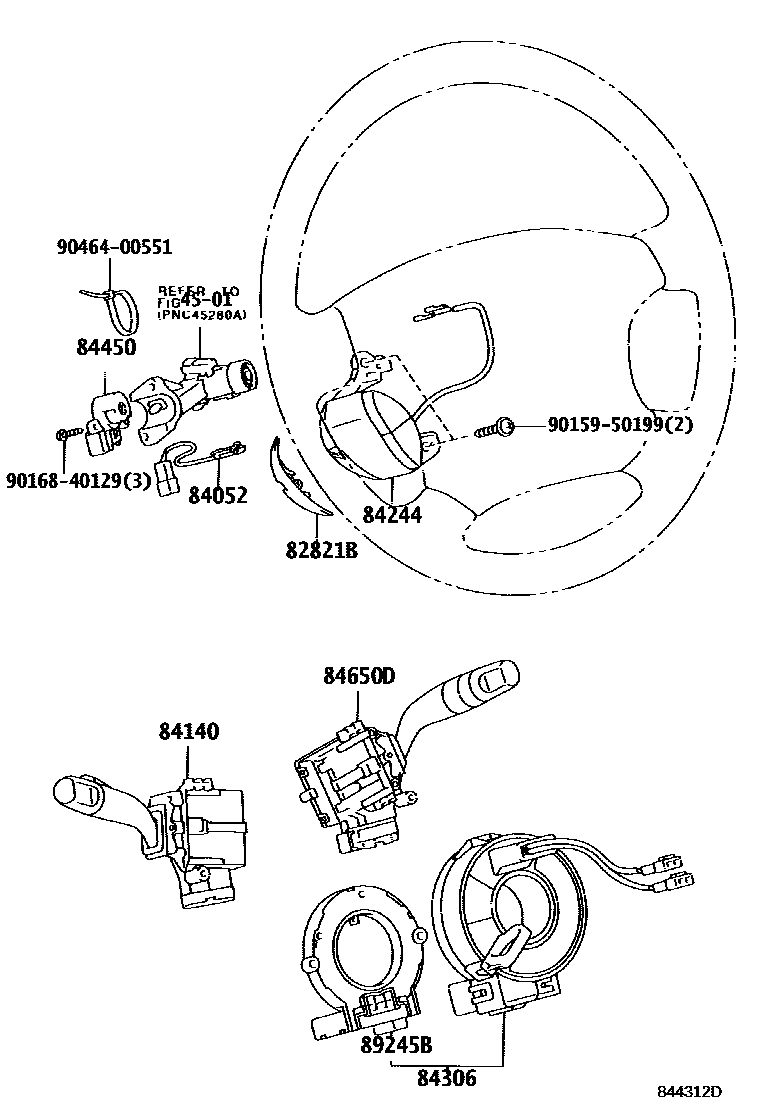

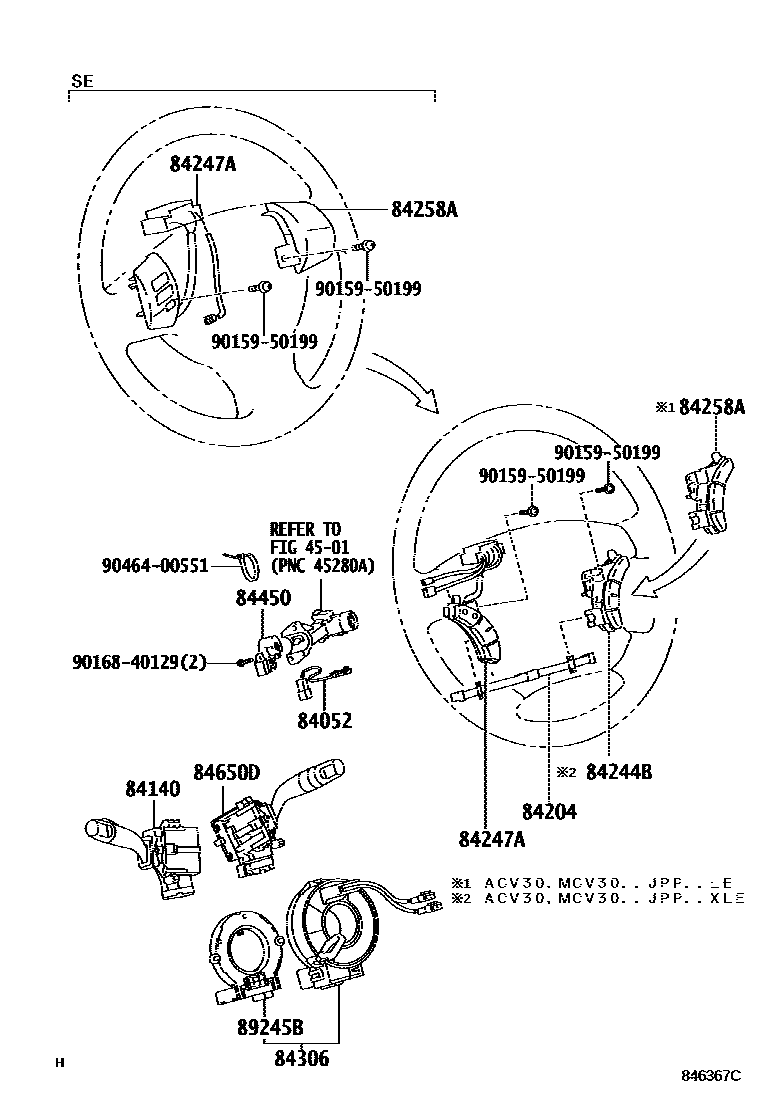

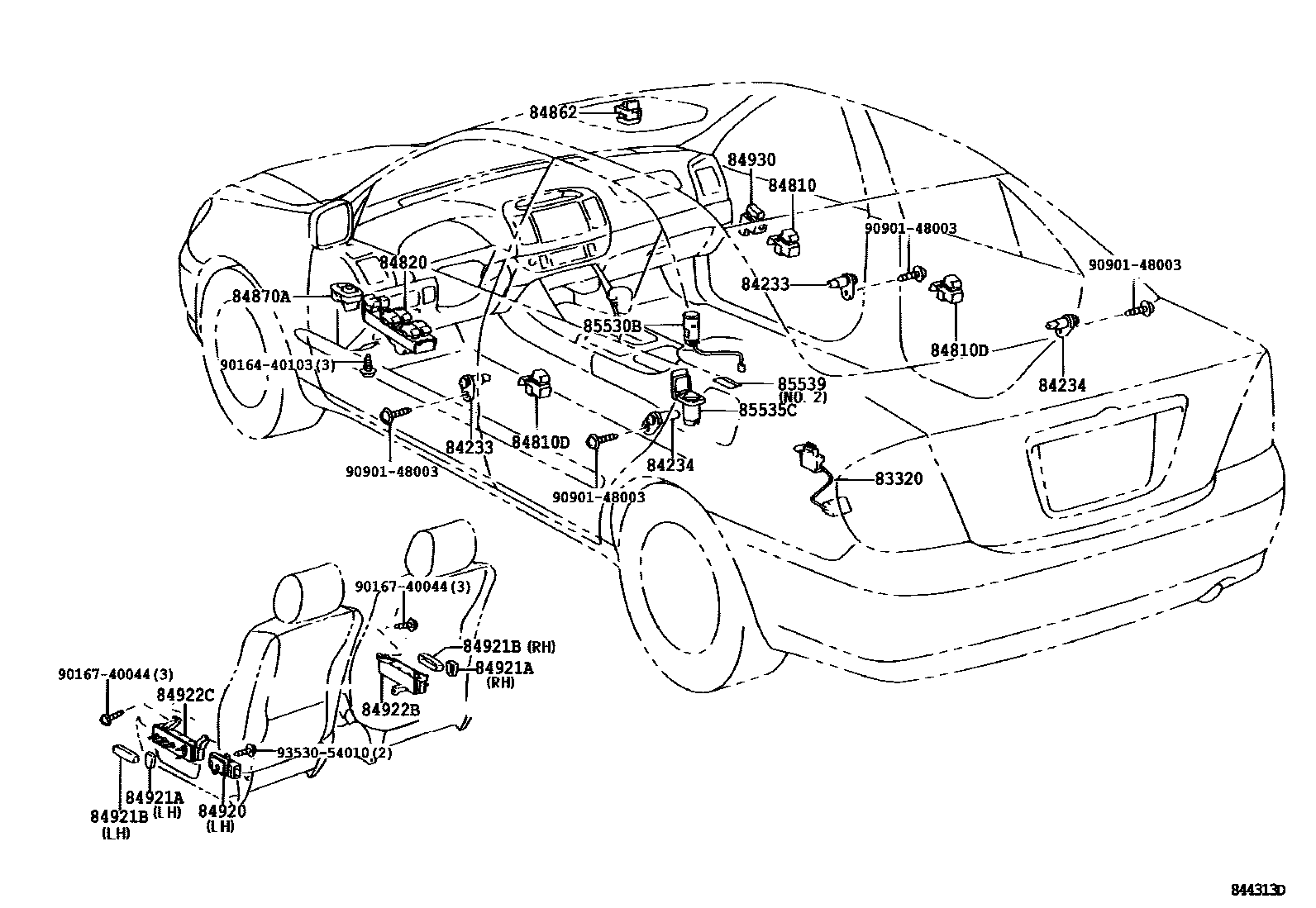

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 · 81980-53020 |
| 82210J | fuse | 90982-08202 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08282 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90080-82033 · 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 |
| 82616 | fuse puller | 82616-20010 |
| 82642A | driving light relay | 90987-02012 · 90987-02027 |
| 82642C | No. 2 daytime running light relay | 90987-04004 |
| 82663A | No. 2 relay box lower cover | 82663-33060 |
| 82670G | Engine room junction box assembly | 82720-06040 · 82720-06041 |
| 82672B | Junction box cover | 82672-33200 |
| 82672E | Junction box cover | 82672-33210 |
| 82672F | Junction box cover | 82672-33220 · 82672-33260 · 82672-33261 |
| 82674A | Junction box lower cover | 82674-33060 |
| 82695 | Daytime running light resistor | 82695-33010 · 82695-33020 |
| 82730 | Instrument panel junction box assembly | 82730-06030 · 82730-33030 · 82730-33120 · 82730-33170 · 82730-33190 · 82730-33280 |
| 82741 | Engine room relay box | 82741-33010 |
| 82821B | Connector cover | 82821-33200 |
| 83181G | speedometer sensor | 83181-12030 · 83181-12040 |
| 83181H | O-ring (for speedometer sensor) | 96711-24018 |
| 83320 | Fuel gauge sensor assembly | 83320-33070 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84119 | Light control rheostat | 84119-33120 · 84119-33160 |
| 84140 | Headlight dimmer switch assembly | 84140-33140 · 84140-33150 · 84140-33170 · 84140-33180 · 84140-33190 · 84140-48020 |
| 84204 | Steering wheel decorative cover switch cable sub-assembly | 84204-58010 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84244 | Steering wheel trim cover switch | 84244-06010 · 84244-33010 |
| 84306 | Spiral cable sub-assembly | 84306-33080 · 84307-33010 · 84307-33020 |
| 84340 | brake light switch assembly | 84340-42020 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-33010 |
| 84540 | Neutral start switch assembly | 84540-06010 · 84540-0E010 · 84540-32110 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-30080 · 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-17120 · 84652-21030 |
| 84751 | Seat heater switch | 84751-48060 |
| 84751B | Seat heater switch light bulb | 84999-10310 |
| 84751E | Seat heater switch bulb (front) | 90010-01061 |
| 84751F | Seat heater switch | 84751-48070 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-33170 · 84820-33180 · 84820-33230 · 84820-33240 |
| 84870A | Exterior rearview mirror switch assembly | 84870-33140 |
| 84922B | Front right electric seat switch | 84922-30210 · 84922-58010 |
| 84922C | Front left electric seat switch | 84922-30230 · 84922-60120 |
| 84929 | Adjustable pedal switch | 84929-33010 |
| 84930 | Door control switch assembly | 84930-33080 · 84930-33100 |
| 84988F | traction control switch | 84988-33030 |
| 85500 | Cigarette lighter assembly | 85500-33040 · 85500-41030 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530B | No. 1 rear power socket assembly | 85530-33050 |
| 85535B | No. 1 power outlet cover | 85535-26050 · 85535-48060 |
| 85535C | Rear power outlet cover | 85535-33020 |
| 85539 | Power socket attention labels | 85539-33010 · 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85912 | defogger relay | 90987-02025 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85916W | Adjustable pedal relay | 90987-02020 · 90987-02027 |
| 85927 | cooling fan relay | 90080-87008 · 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87008 · 90987-02012 · 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02012 · 90987-02027 |
| 85930G | ACC relay | 90987-02012 · 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85999 | Combination relay bracket | 85999-33160 |
| 86530 | Speaker relay assembly | 90987-02012 · 90987-02027 |
| 89245B | steering sensor | 89245-33030 · 89245-33031 · 89245-50030 |
| 89427 | Temperature detection switch | 89428-21010 |
| 89428 | No. 2 temperature detection switch | 89428-41010 |
| 89438 | Power steering oil pressure switch | 89438-33010 |

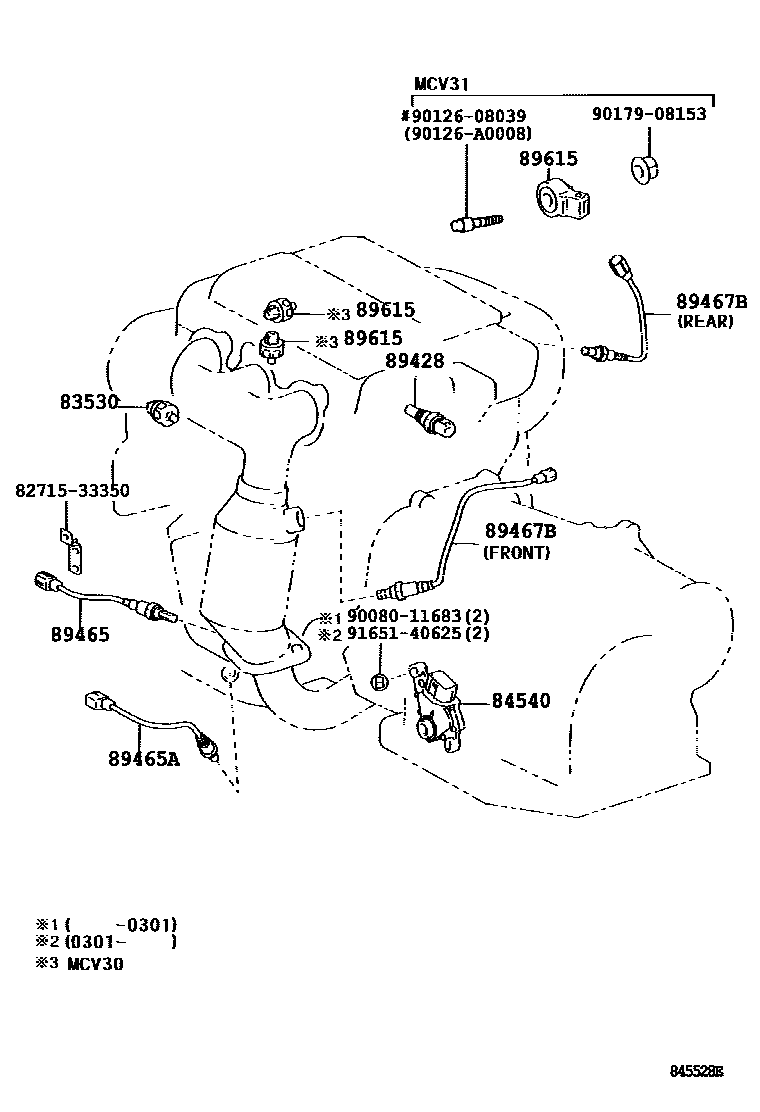

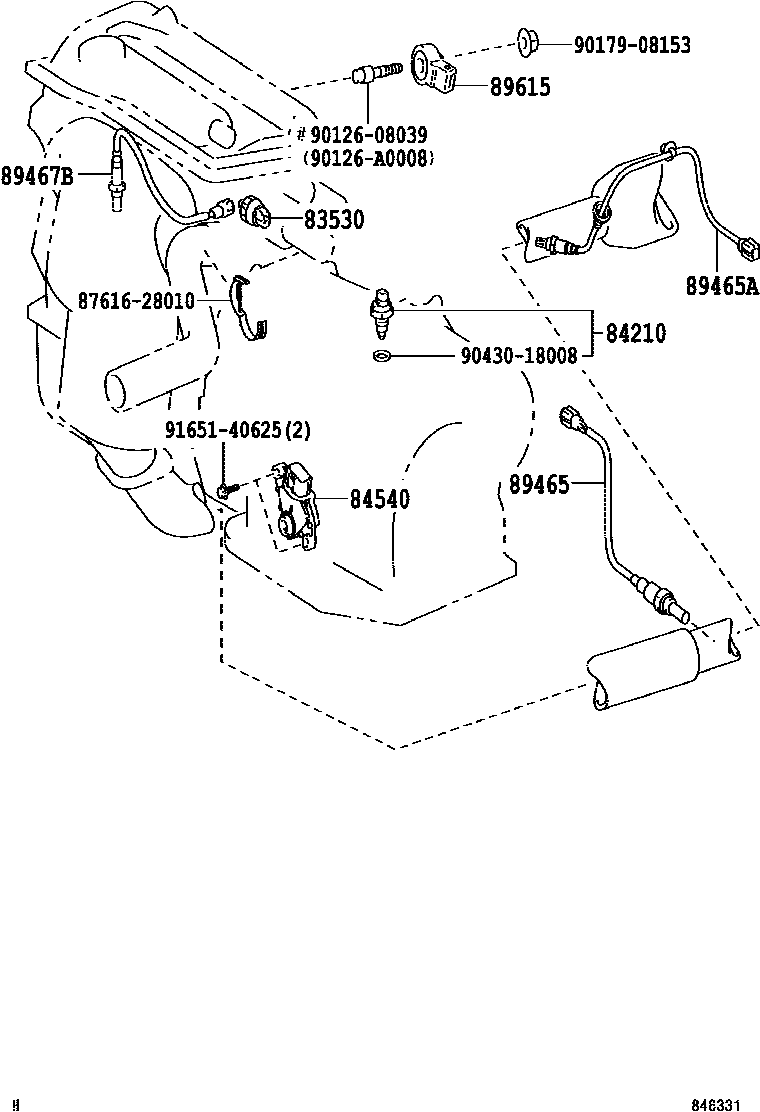

| 89465 | oxygen sensor | 89465-33220 · 89465-33250 · 89465-33320 · 89465-33321 · 89465-33380 · 89465-33410 |
| 89465A | Oxygen sensor No. 2 | 89465-33260 · 89465-33330 · 89465-33331 · 89465-33370 |
| 89467B | air fuel ratio sensor | 89467-33040 · 89467-33050 · 89467-33060 · 89467-33080 · 89467-33100 · 89467-33110 · 89467-33120 |
| 89615 | knock control sensor | 89615-12090 · 89615-20090 · 89615-32030 · 89615-44010 |
