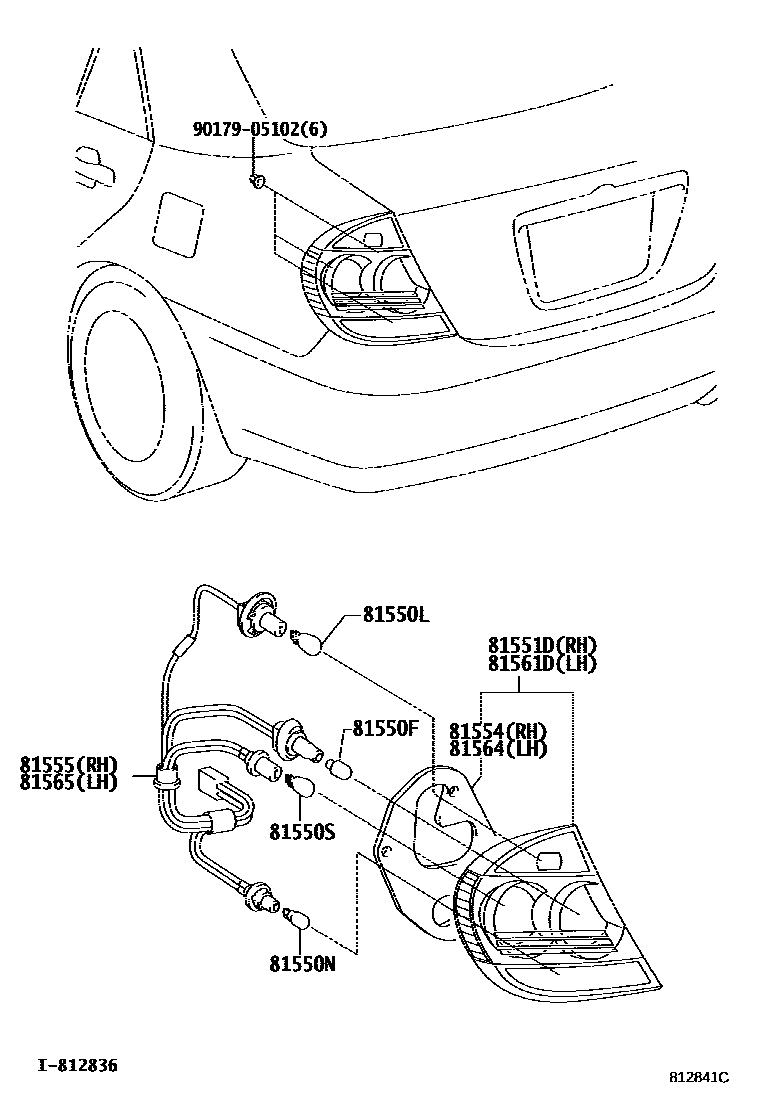

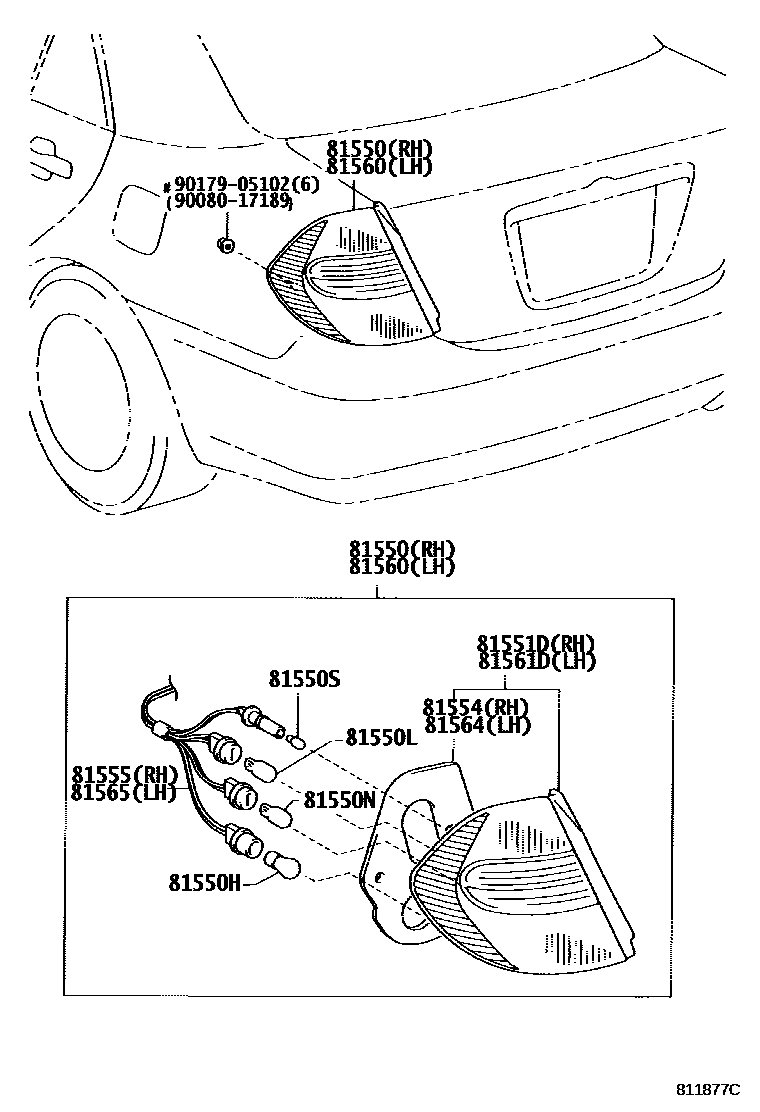

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-AA050 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 90084-81001 |
| 81550L | Rear turn signal light bulb | 90981-11059 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550S | Rear width light bulb | 90080-81073 · 90981-13044 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33410 · 81551-33420 · 81551-AA050 |
| 81554 | Right rear combination lamp body gasket | 81554-33370 · 81554-AA050 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33370 · 81555-AA050 |
| 81560 | Left rear combination light assembly | 81560-AA050 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33380 · 81561-33390 · 81561-AA050 |
| 81564 | Left rear combination lamp body gasket | 81554-AA050 · 81564-33340 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33370 · 81555-AA050 |
