Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47121A | brake pedal pad | 47121-50020 |
| 47148A | Pin (for brake master cylinder pushrod) | 47148-33011 |
| 78010F | Accelerator pedal assembly | 78010-33010 |

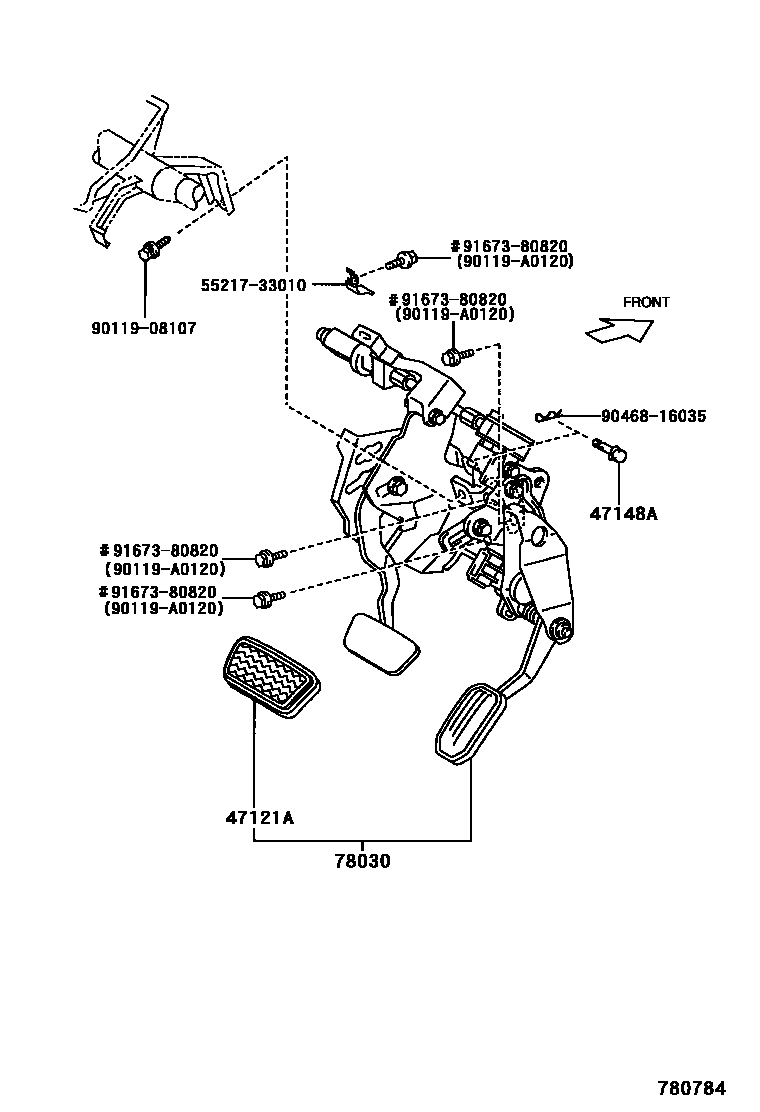

| 78030 | Accelerator pedal and brake pedal assembly | 78030-33020 · 78030-33021 · 78030-33022 |
| 78111 | accelerator pedal | 78111-33010 |
| 78111C | pin (for gas pedal) | 90254-04019 |
