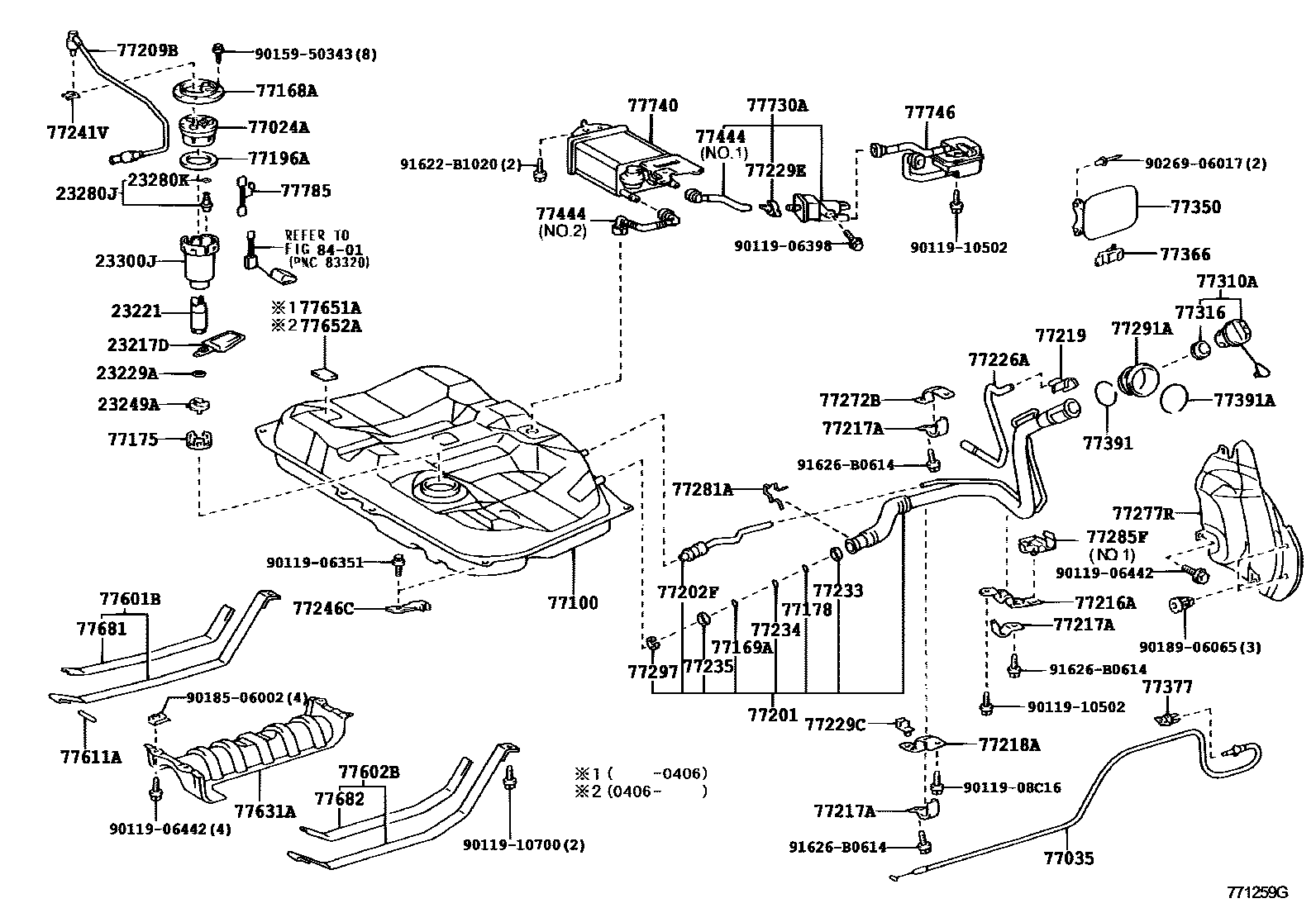

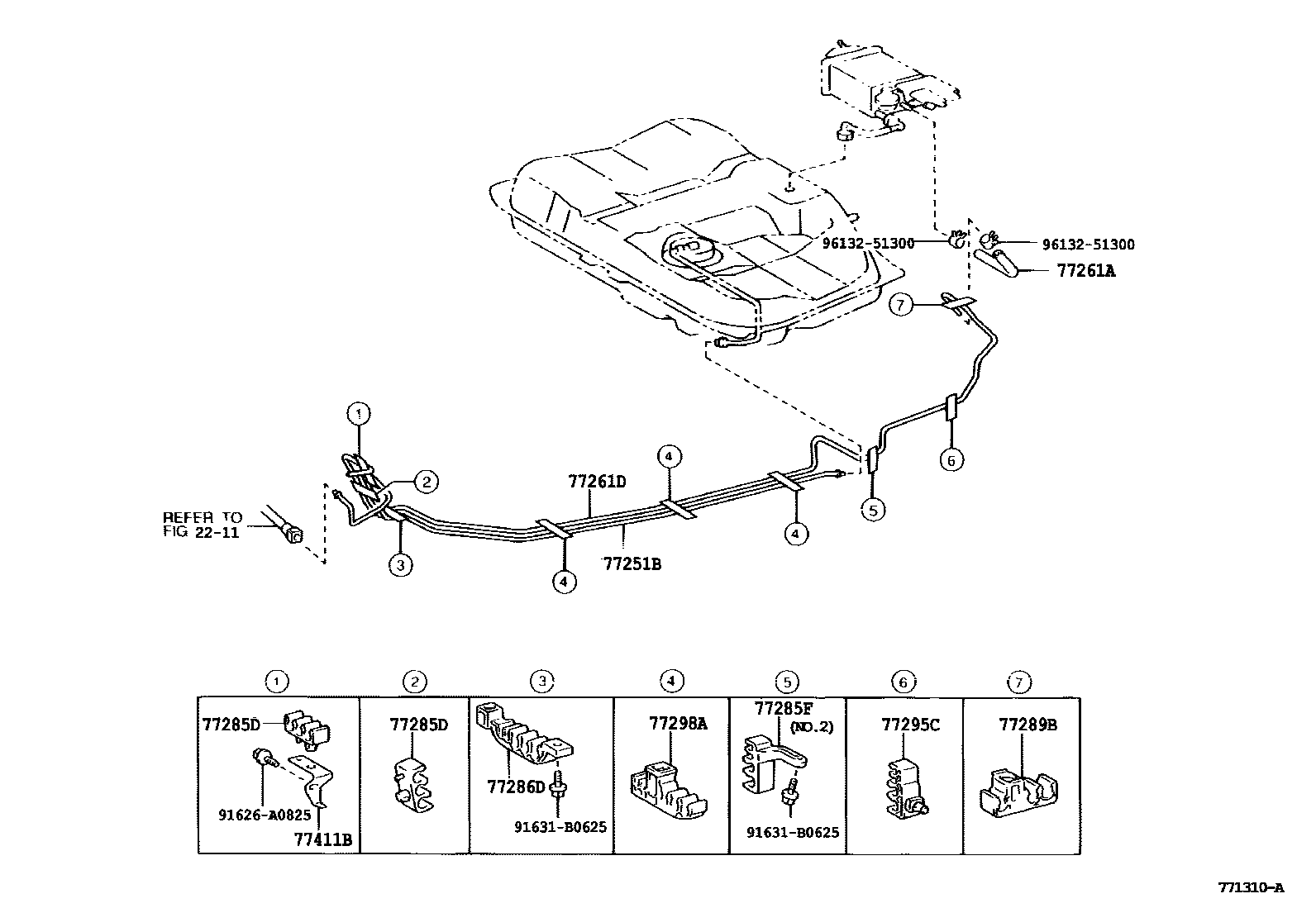

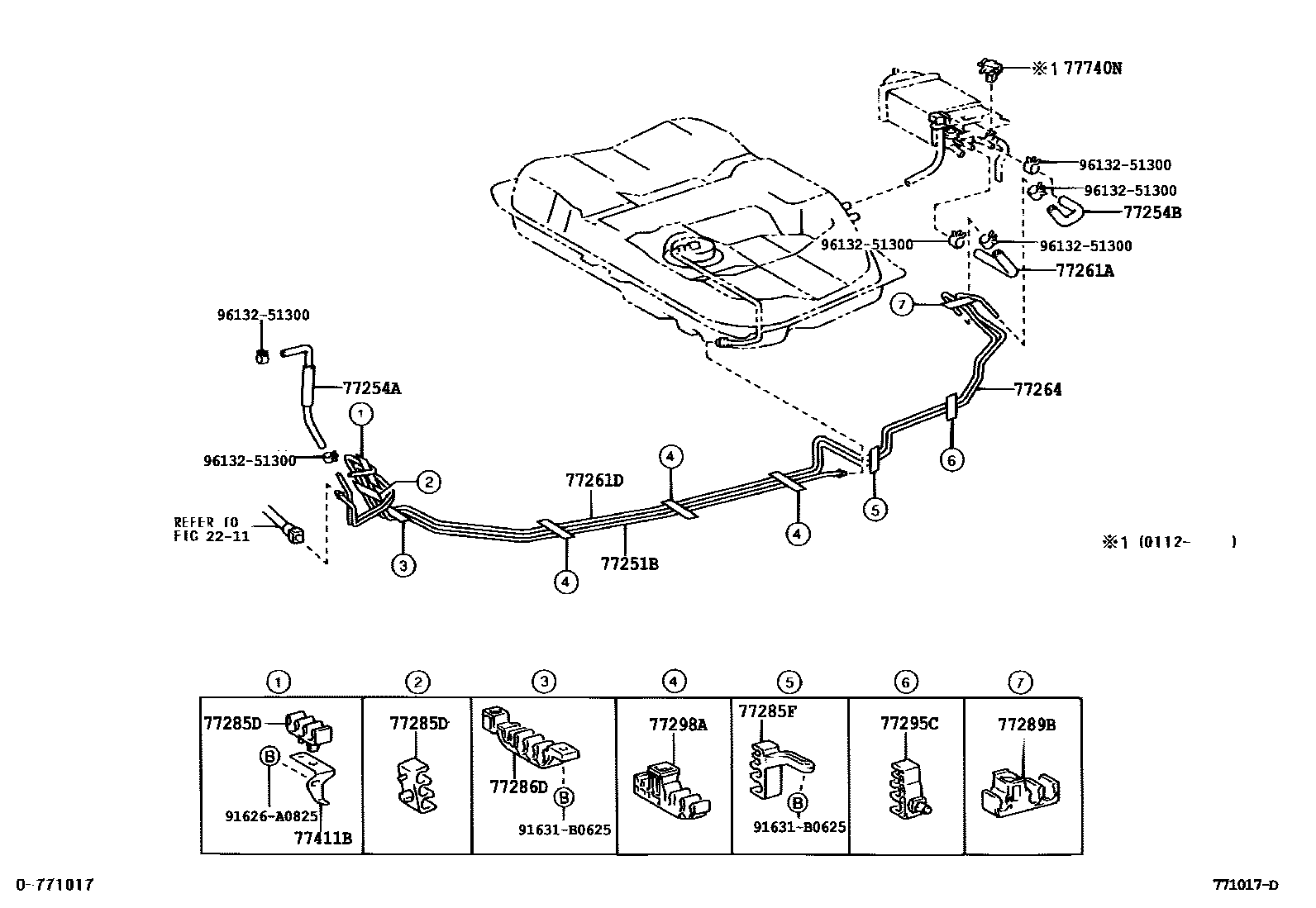

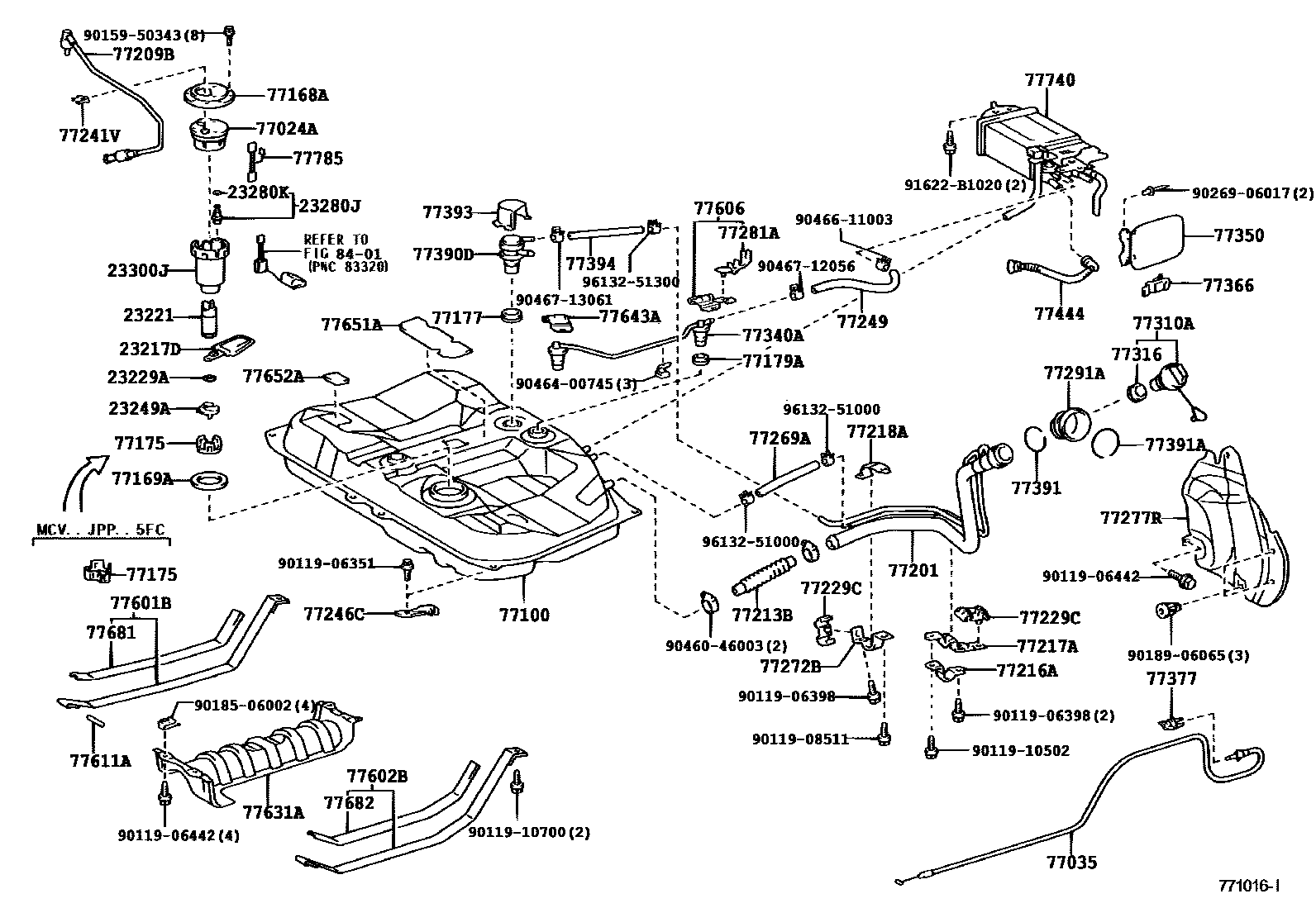

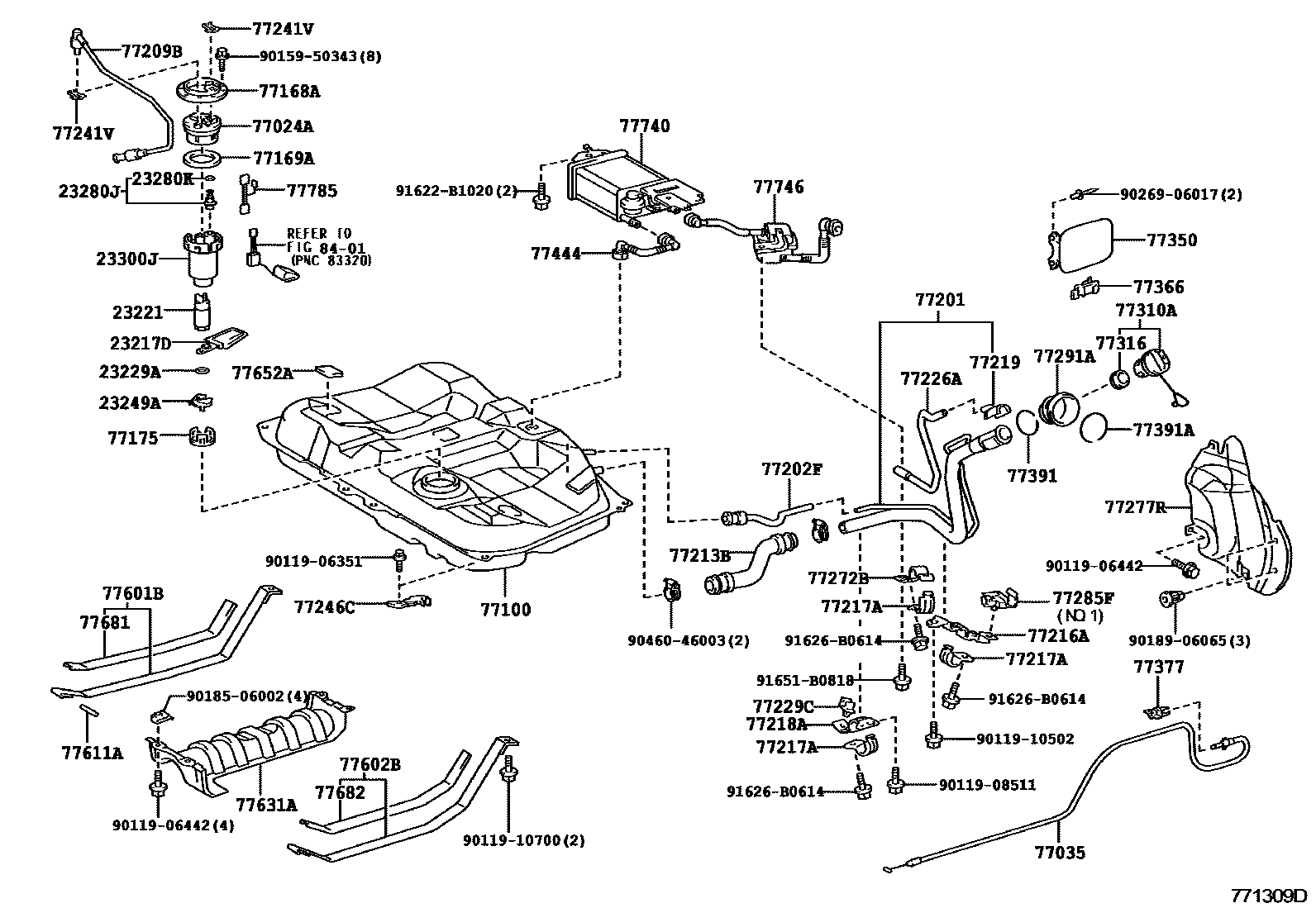

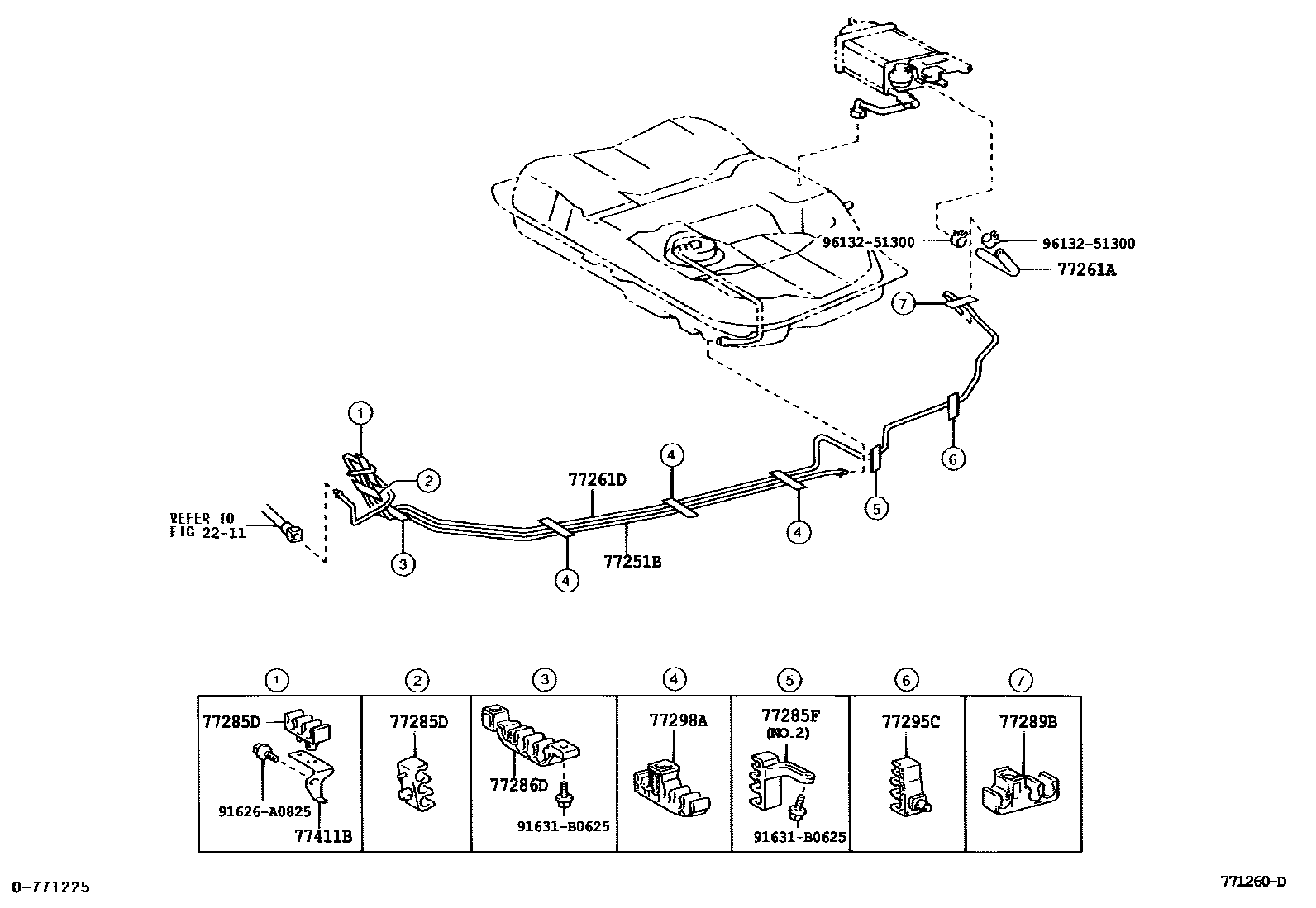

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 6 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0C010 |
| 23221 | fuel pump | 23221-0A030 · 23221-0A040 |
| 23229A | Clip (for fuel pump filter) | 23219-03010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-46180 |
| 23280J | Fuel pressure regulator assembly | 23280-20060 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-21010 |
| 77024A | Fuel absorber sub-assembly | 77024-33030 · 77024-33050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33100 |
| 77100 | fuel tank assembly | 77001-33110 · 77001-33140 · 77001-33160 · 77001-33190 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33050 · 77168-33060 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 · 77169-33050 |
| 77175 | No. 2 oil suction pipe bracket | 77175-33020 |
| 77177 | Check valve gasket | 77177-33010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77196A | Auxiliary fuel tank carrier gasket | 77169-33030 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33191 · 77201-33240 · 77201-33250 |
| 77202F | No. 1 fuel hose (for breather pipe) | 77203-33030 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33040 · 77209-33070 |
| 77213B | Fuel tank to filler pipe hose | 77213-33050 · 77213-33100 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33030 · 77216-41020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33030 · 77217-41010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-33020 · 77218-33050 · 77218-33051 · 77218-33060 |
| 77219 | Fuel tank filler pipe cap | 77219-33030 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33020 |
| 77229C | Snorkel clamp | 77229-33040 · 77229-33060 |
| 77229E | Snorkel clamp | 77229-33050 |
| 77233 | fuel hose connector | 77233-33040 |
| 77234 | fuel line connector seal | 77234-33020 |
| 77235 | No. 1 fuel evaporation vent pipe | 77235-33010 |
| 77241V | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-33020 |
| 77249 | fuel drain hose | 95327-06030 |
| 77251B | main fuel pipe | 77251-33120 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 77249-33060 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 77419-33030 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-33110 |
| 77264 | Carbon canister to front side member pipe | 77264-33060 |
| 77269A | fuel tank breather hose | 77269-33010 |
| 77272B | No. 1 snorkel holder | 77272-33010 · 77272-33020 · 77272-33030 |
| 77277R | Fuel tank filler pipe protection device | 77277-33070 |
| 77281A | Fuel filler pipe clamp | 77281-33010 · 77281-33020 |
| 77285D | No. 1 fuel pipe clamp | 77285-33060 |
| 77285F | No. 1 fuel pipe clamp | 77285-33070 · 77299-33040 |
| 77286D | No. 2 fuel pipe clamp | 77286-33040 |
| 77289B | No. 3 fuel pipe clamp | 77289-33050 |
| 77291A | Fuel tank filler pipe cover | 77291-33040 |
| 77295C | Fuel pipe retaining ring | 77295-33020 |
| 77297 | fuel line connector | 77297-33030 |
| 77298A | No. 4 fuel pipe clamp | 77298-20080 |
| 77310A | Fuel tank cap assembly | 77300-33010 · 77300-33030 · 77300-33050 · 77300-33051 · 77300-33052 · 77300-33070 · 77300-47010 |
| 77316 | fuel tank cap gasket | 77316-33010 · 77316-33020 · 77316-33040 · 77316-33041 · 77316-33042 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-33020 |
| 77350 | Fuel filler cap assembly | 77350-33080 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 · 77360-35010 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77390D | Fuel tank overfill check valve assembly | 77390-33011 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-12040 |
| 77393 | One-way valve protection device | 77393-52010 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77412-33040 |
| 77444 | fuel tank vent hose | 77404-33010 · 77404-33040 · 77404-33060 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33040 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33050 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-33010 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-33021 |
| 77643A | No. 3 fuel tank protective shell | 77643-33010 |
| 77651A | No. 1 fuel tank liner | 77651-33020 · 77652-33020 |
| 77652A | No. 2 fuel tank liner | 77652-33020 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-33070 |
| 77740 | Carbon canister assembly | 77740-33130 · 77740-33131 · 77740-33141 · 77740-33150 |
| 77740N | Vacuum switching valve (for carbon canister) | 90910-12264 |
| 77746 | No.2 carbon canister filter | 77706-33010 · 77706-33020 |
| 77785 | fuel pump wiring harness | 77785-52020 |
