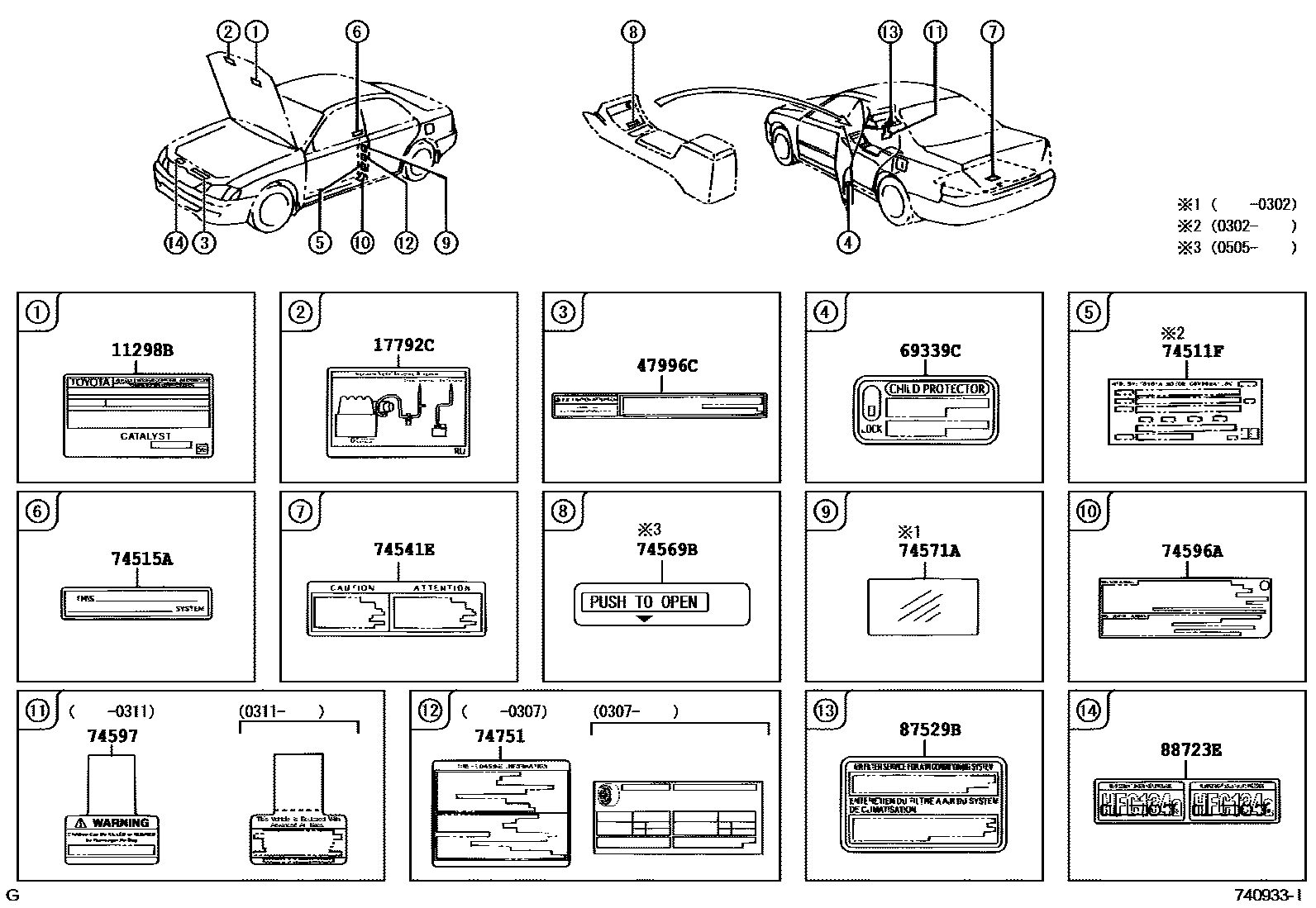

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-50010 |
| 11296D | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-20450 · 11298-20560 · 11298-20620 · 11298-20640 · 11298-20650 · 11298-20700 · 11298-20710 · 11298-20780 · 11298-20800 · 11298-28190 · 11298-28191 · 11298-28230 · 11298-28250 · 11298-28270 · 11298-28290 · 11298-28330 · 11298-28340 · 11298-28380 · 11298-28430 |
| 13564 | ETIQUETTE, INFO REMPLACEMENT COURROIE DISTRIBUTION | 13564-10010 |
| 16793B | Cooling fan information label | 16793-28010 · 16793-50010 |
| 17792C | Engine vacuum hose information label | 17792-20230 · 17792-20240 · 17792-20270 · 17792-20280 · 17792-28150 · 17792-28170 |
| 47996C | Brake Bleed Warning Label | 47996-50050 |
| 69339C | Child Restraint Information Label | 69339-12010 |
| 74511F | Nameplate (laser identification label) | 74514-33010 · 74514-33020 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74541E | Small spare tire warning plate | 42668-14010 |
| 74569B | vehicle information label | 74569-33020 |
| 74571A | Label cover protective film | 74571-32010 |
| 74596A | Side air bag warning label | 74596-12011 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-48010 · 74599-48020 · 74599-50010 |
| 74751 | tire pressure information label | 42661-33560 · 42661-33561 · 42661-33562 · 42661-33563 · 42661-33570 · 42661-33571 · 42661-33572 · 42661-33573 · 42661-33620 · 42661-33621 · 42661-33622 · 42661-33630 · 42661-33631 · 42661-33632 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-33090 |
