Toyota CAMRY 扶手和遮阳板 — Figure 7401

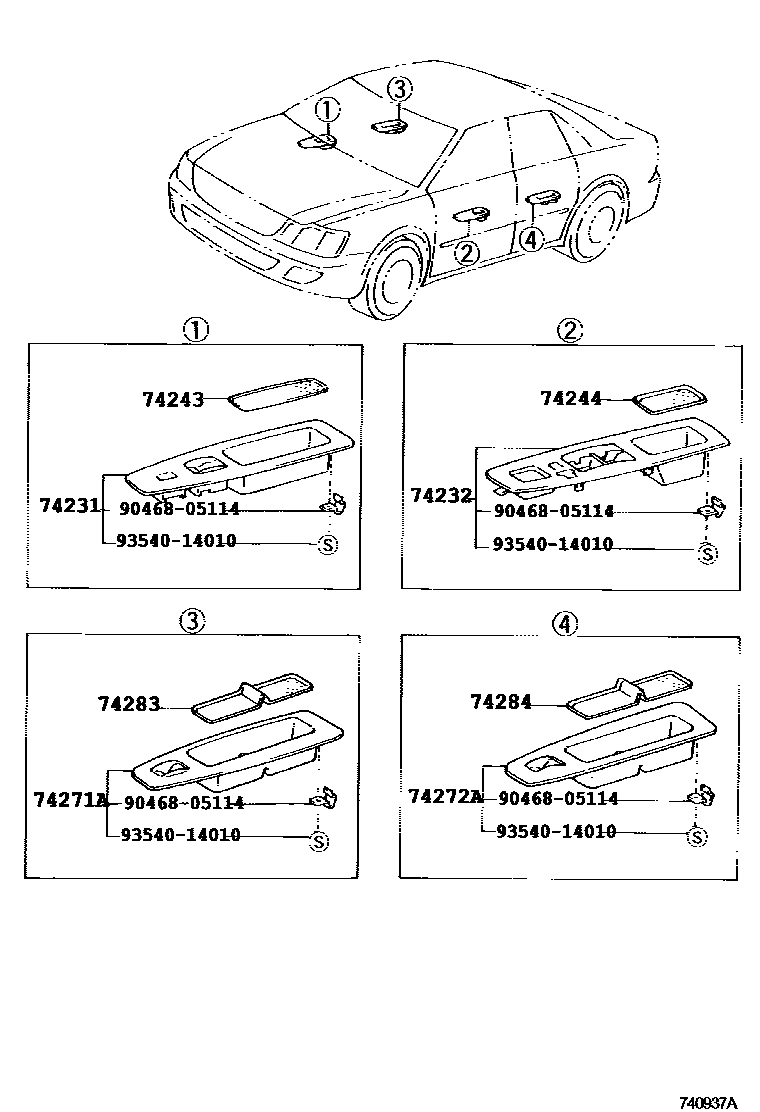

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-33230 · 74231-33270 · 74231-33271 · 74231-33310 · 74231-33340 |
| 74232 | Left front armrest upper panel | 74232-33190 · 74232-33220 · 74232-33221 · 74232-33250 · 74232-33280 |
| 74243 | Right front door armrest lower cover | 74244-33010 |
| 74244 | Left front door armrest lower cover | 74243-33010 |
| 74271A | Right rear door armrest upper panel | 74271-33100 · 74271-33110 · 74271-33111 · 74271-33160 · 74271-33190 |
| 74272A | Left rear door armrest upper panel | 74272-33100 · 74272-33110 · 74272-33111 · 74272-33160 · 74272-33190 |
| 74283 | Right rear door armrest lower seat cover | 74283-33010 |
| 74284 | Left rear door armrest lower seat cover | 74284-33010 |
