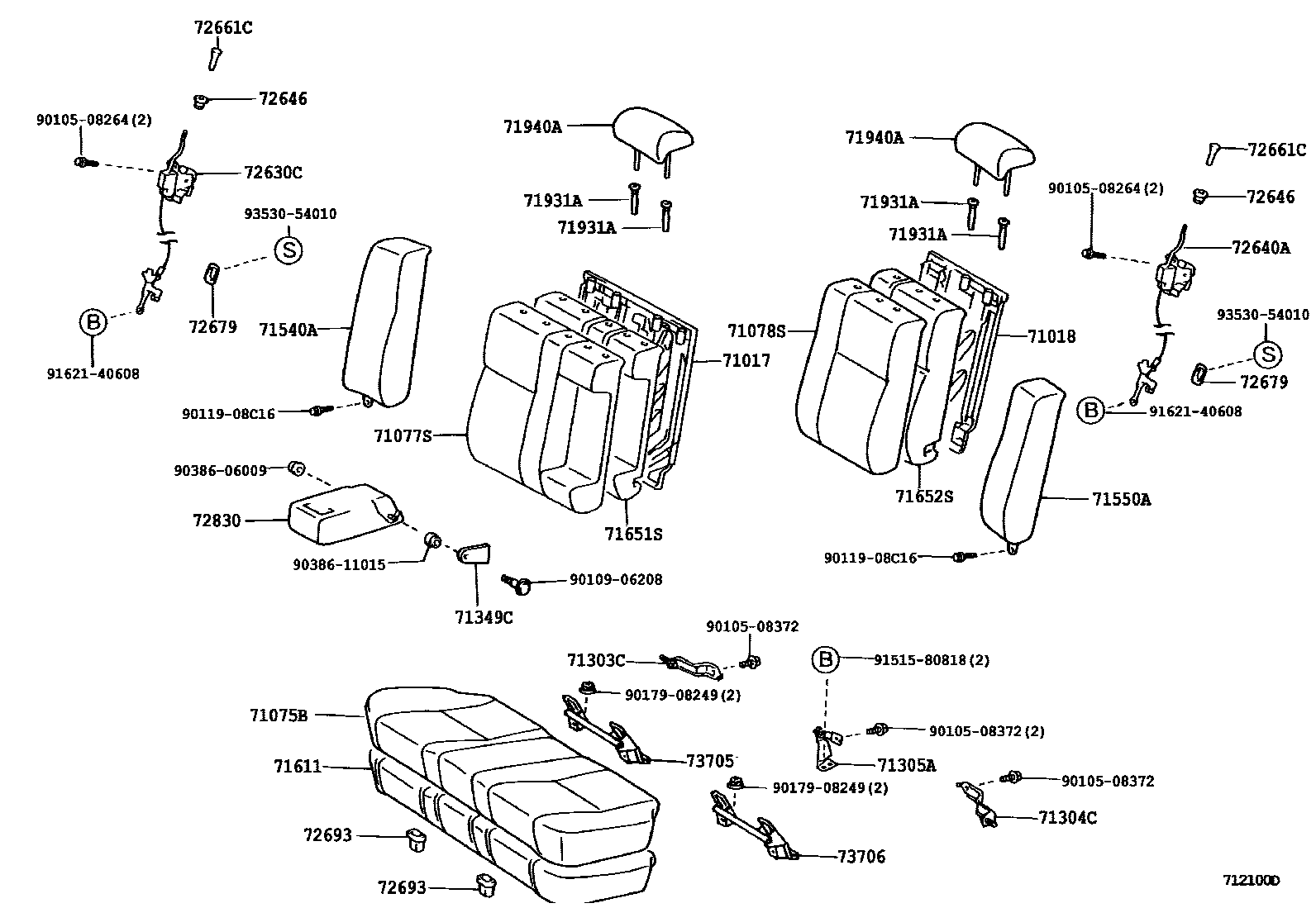

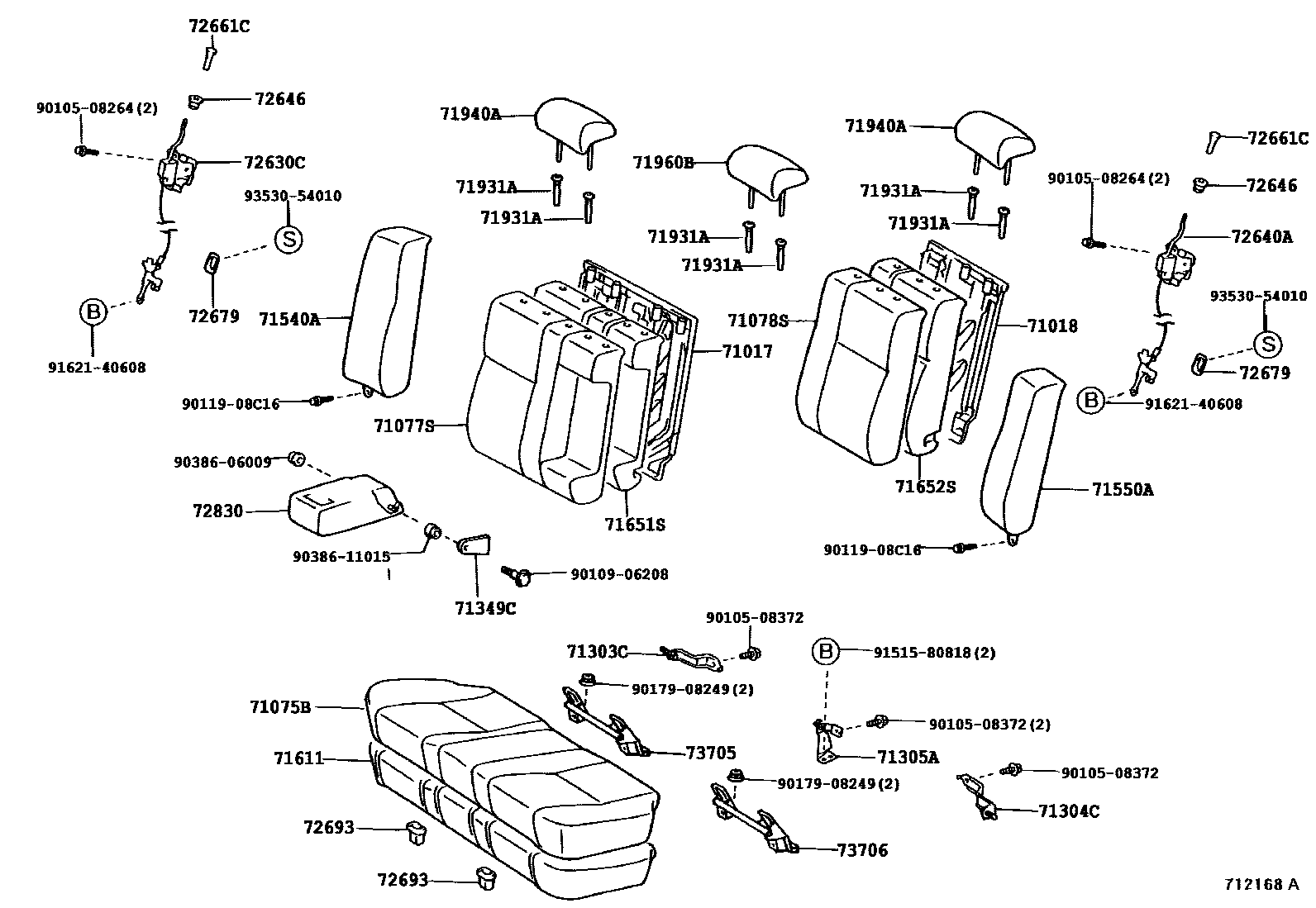

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33140 · 71017-33150 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33080 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33060 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-33070 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33050 |
| 71349C | Rear seat back hinge cover | 71349-33010 |
| 71611 | Rear seat cushion cushion | 71503-33040 · 71503-33070 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33130 · 71651-33140 · 71651-33150 · 71651-33160 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33070 · 71652-33080 |
| 72630C | Rear right seat back lock assembly | 72630-33050 |
| 72640A | Rear left seat back lock assembly | 72640-33050 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-33010 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-33010 |
