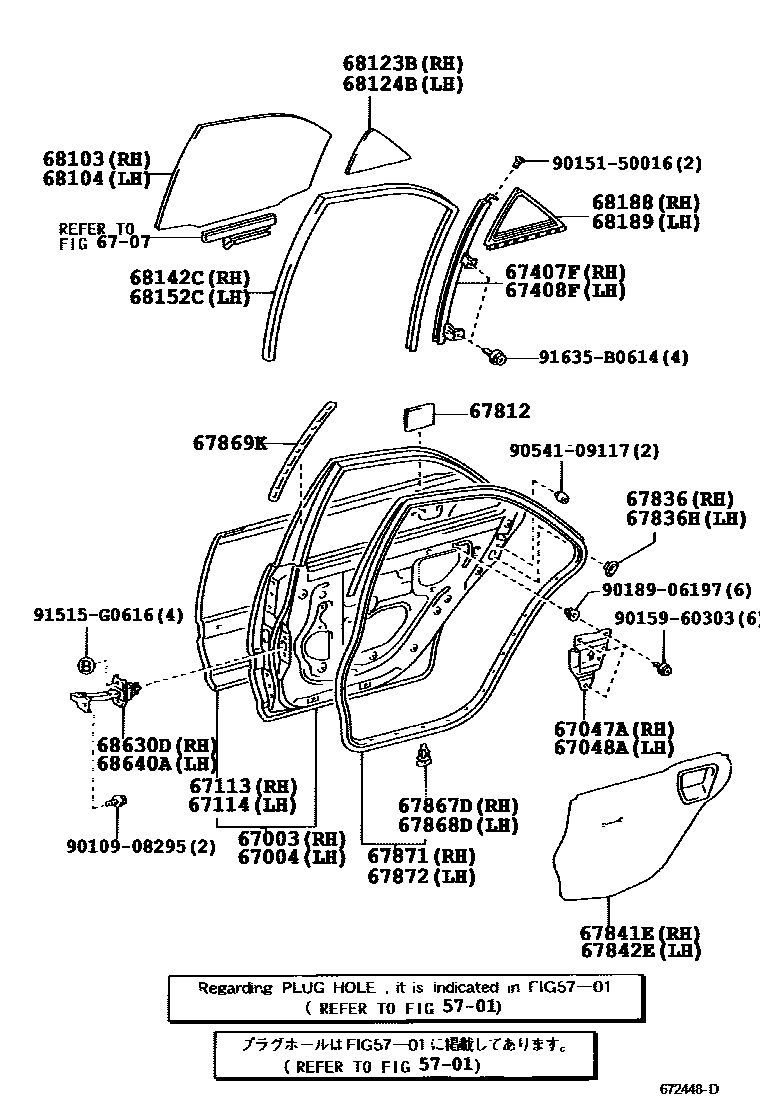

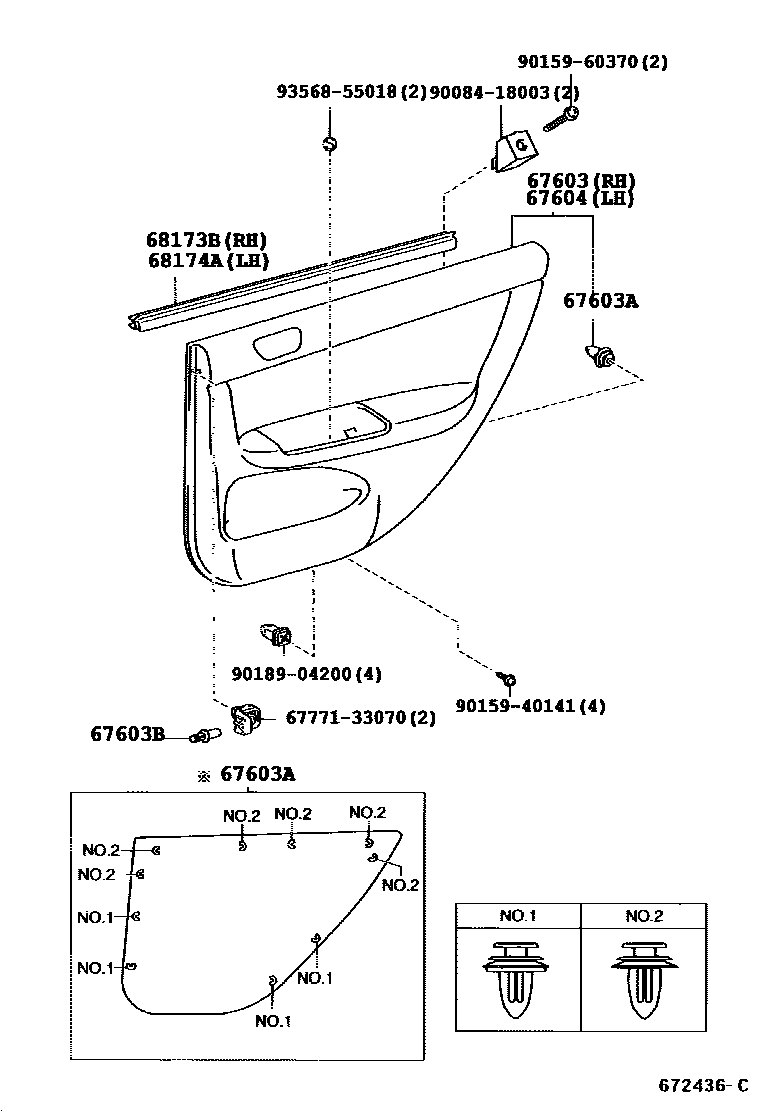

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-33130 · 67003-AA040 |
| 67004 | Left rear door panel sub-assembly | 67004-33130 · 67004-AA040 |
| 67047A | Right rear door lower door frame panel sub-assembly | 67047-33030 |
| 67048A | Left rear door lower door frame panel sub-assembly | 67048-33030 |
| 67113 | Right rear door outer panel | 67113-33060 |
| 67114 | Left rear door outer panel | 67114-33060 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-AA020 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-AA020 |
| 67603A | Fixings (for rear door trim) | 90467-09206 · 90467-10161 |
| 67812 | Rear door silencer pad | 67811-33040 · 67812-33050 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-33060 |
| 67842E | Left rear door access hole cover | 67842-33060 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869K | Left door seal strip clip | 67869-30080 |
| 67871 | Right rear door sealing strip | 67871-33060 |
| 67872 | Left rear door sealing strip | 67872-33060 |
| 68103 | Right rear door glass sub-assembly | 68113-33100 · 68113-33140 |
| 68104 | Left rear door glass sub-assembly | 68114-33100 · 68114-33140 |
| 68123B | Right rear door corner window glass | 68123-33010 · 68123-33050 |
| 68124B | Left rear door corner window glass | 68124-33010 · 68124-33050 |
| 68142C | Right rear door glass lift slot | 68142-33070 · 68142-33071 |
| 68152C | Left rear door glass lift slot | 68152-33070 · 68152-33071 |
| 68173B | Right rear door glass inner sealing strip | 68173-33040 · 68173-33041 |
| 68174A | Left rear door glass inner sealing strip | 68174-33050 · 68174-33051 |
| 68188 | Right rear door corner window seal | 68188-33020 · 68188-33021 |
| 68189 | Left rear door corner window seal | 68189-33020 · 68189-33021 |
| 68630D | Right rear door opening limiter assembly | 68630-33050 |
| 68640A | Left rear door opening limiter assembly | 68640-33050 |
