Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.

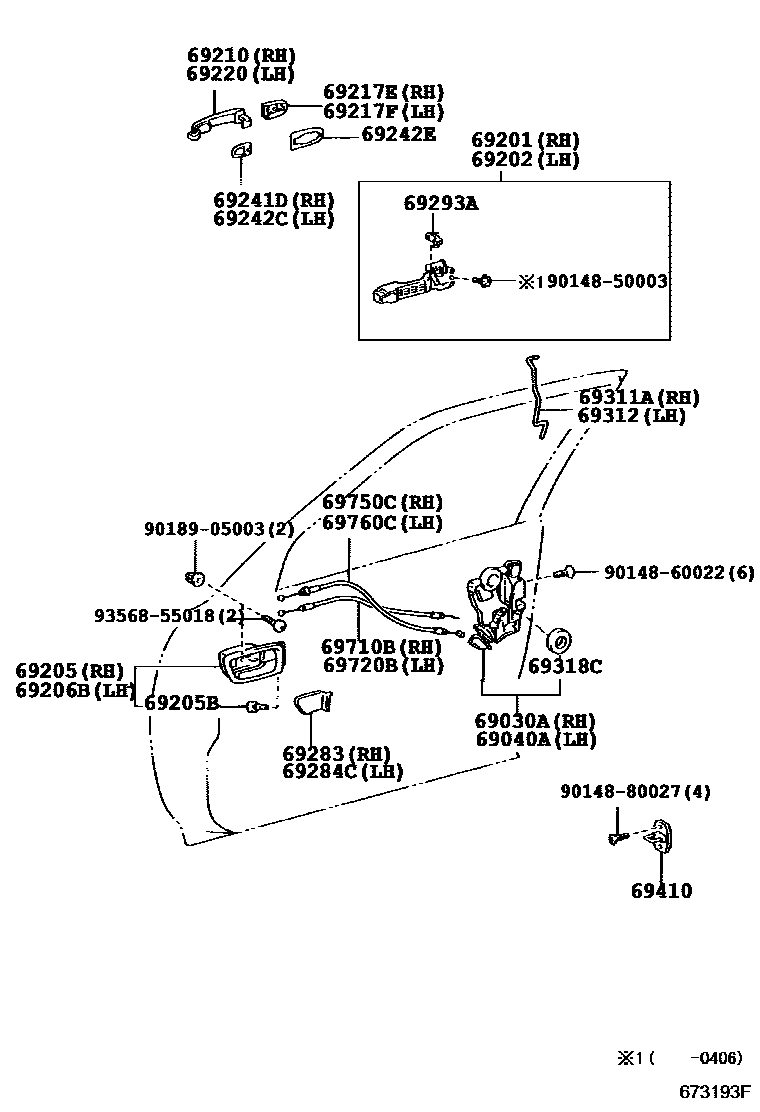

Toyota CAMRY 前门锁和车门把手 EPC diagram — 673193F
前门锁和车门把手 — 673193F (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-33221 · 69030-33261
69040ALeft front door door lock assembly with motor69040-33221
69201Right door outer handle sub-assembly69201-33010
69202Left door outer handle sub-assembly69202-33010
69205BCushion pad (for inner front door handle)90541-04014
69241DRight front door outer handle pad69241-42020
69242CLeft front door outer handle pad69241-42020
69242EFront door rear outer handle pad69242-42010
69293AFront door outer handle buckle69293-33010 · 69293-33020
69311ARight front door lock opening lever69311-33050
69312Left front door lock opening lever69312-33050
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-33010
69710BRight front door lock remote control cable assembly69710-33040
69720BLeft front door lock remote control cable assembly69710-33040
69750CRight front door inner lock cable assembly69750-33010
69760CLeft front door inner lock cable assembly69750-33010
