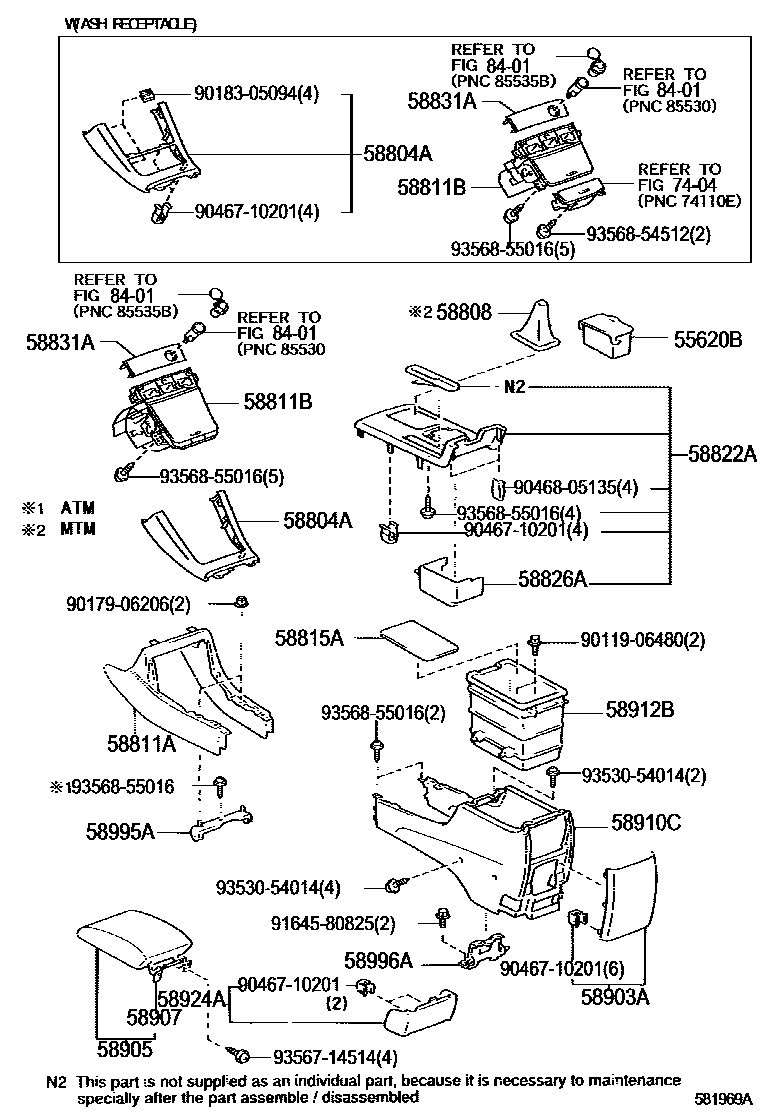

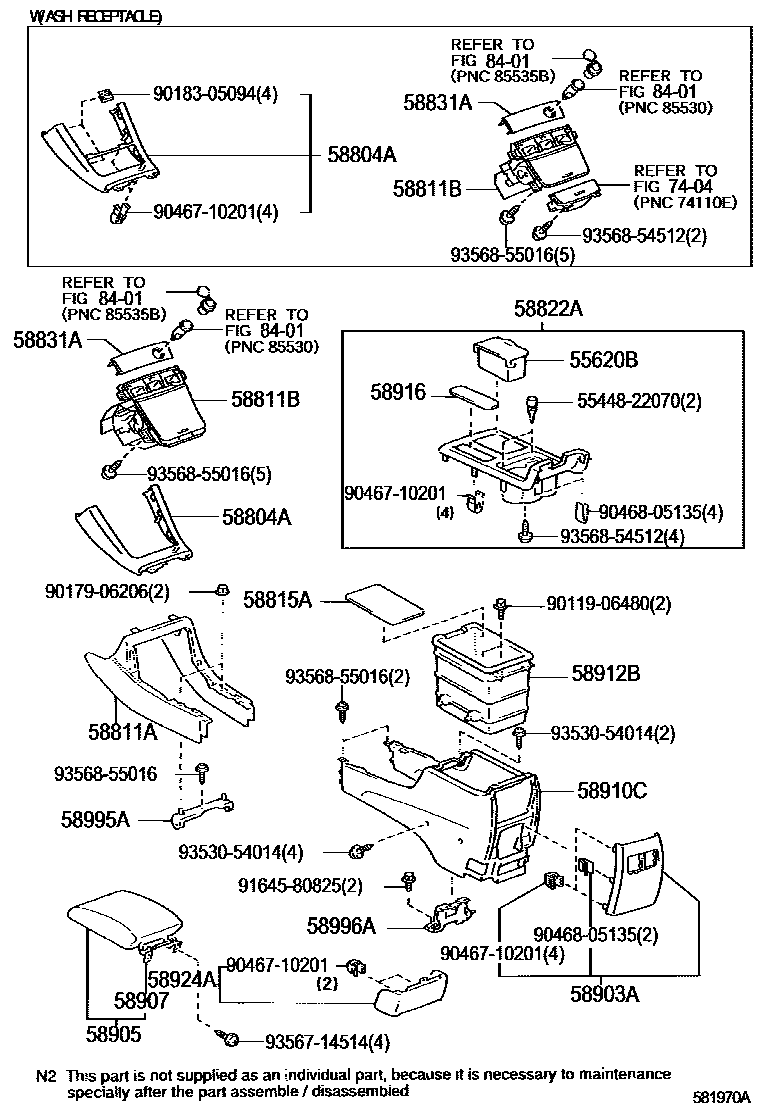

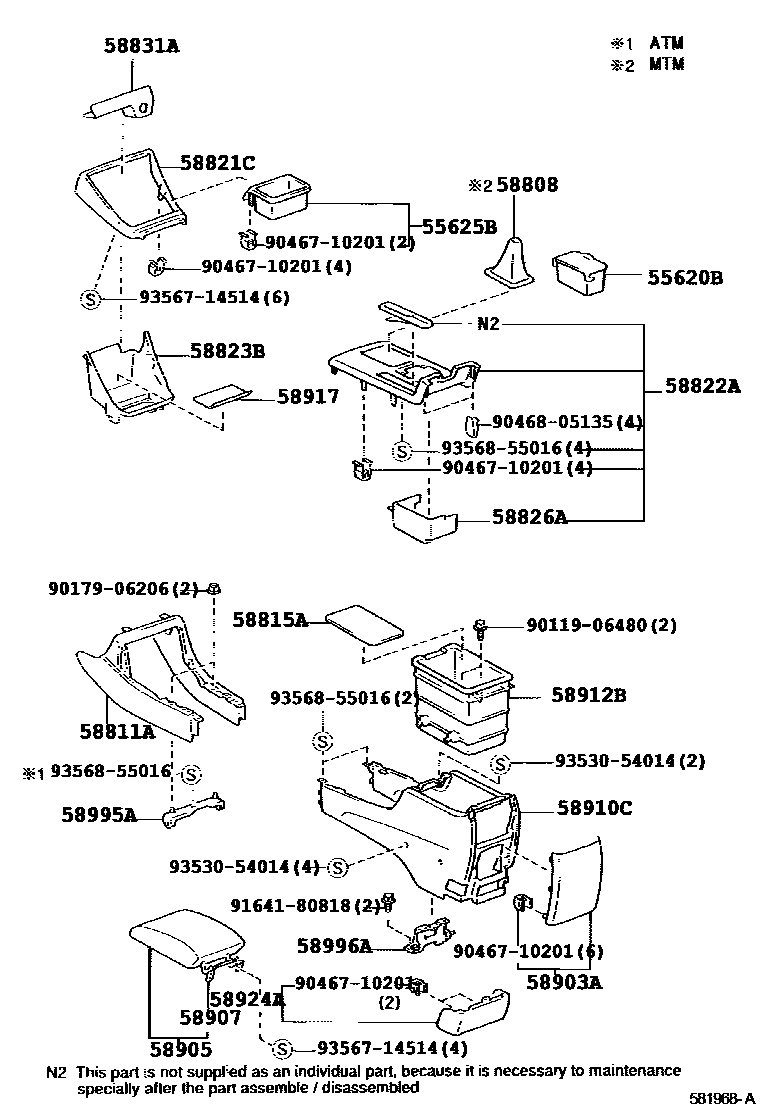

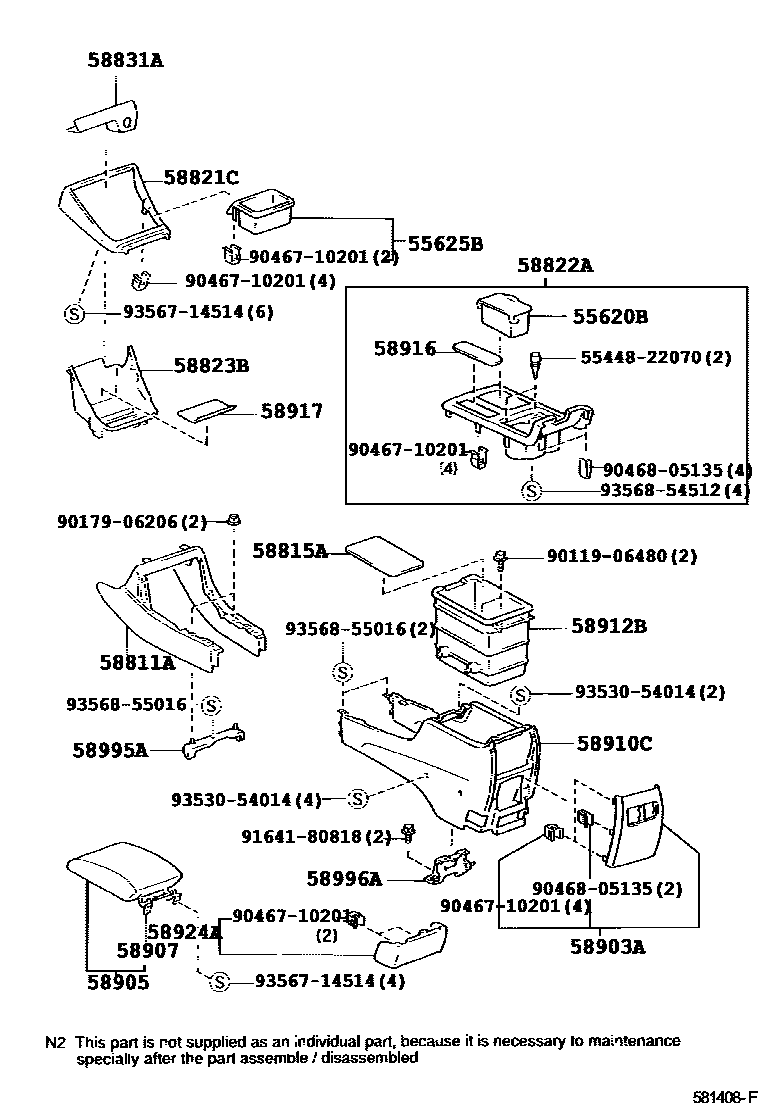

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-33090 · 55620-33120 |
| 55625B | Dashboard cup holder tray | 55625-33020 |
| 58804A | Armrest box upper panel sub-assembly | 58804-33570 · 58804-33580 · 58804-33590 · 58804-33600 |
| 58811B | armrest box | 58802-33010 · 58802-33020 · 58802-33030 · 58802-33031 · 58802-33040 · 58802-33041 |
| 58815A | Armrest box felt pad | 58815-33080 |
| 58821C | Armrest box upper panel | 58821-33330 · 58821-33340 |
| 58822A | Rear armrest box upper panel | 58805-33020 · 58805-33021 · 58805-33050 |
| 58823B | Armrest box cover | 58823-33010 · 58823-33020 |
| 58826A | Groove under armrest box | 58826-33010 |
| 58831A | Front armrest box upper panel decorative parts | 58831-33020 · 58831-33030 · 58831-33060 · 58831-33070 · 58831-33080 · 58831-33090 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-33070 · 58907-33080 |
| 58912B | Rear lower armrest box | 58912-33100 · 58912-33110 |
| 58916 | Armrest box bottom pad | 58916-33040 |
| 58917 | Armrest box bottom pad No. 2 | 58917-33060 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-33030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-33030 |
