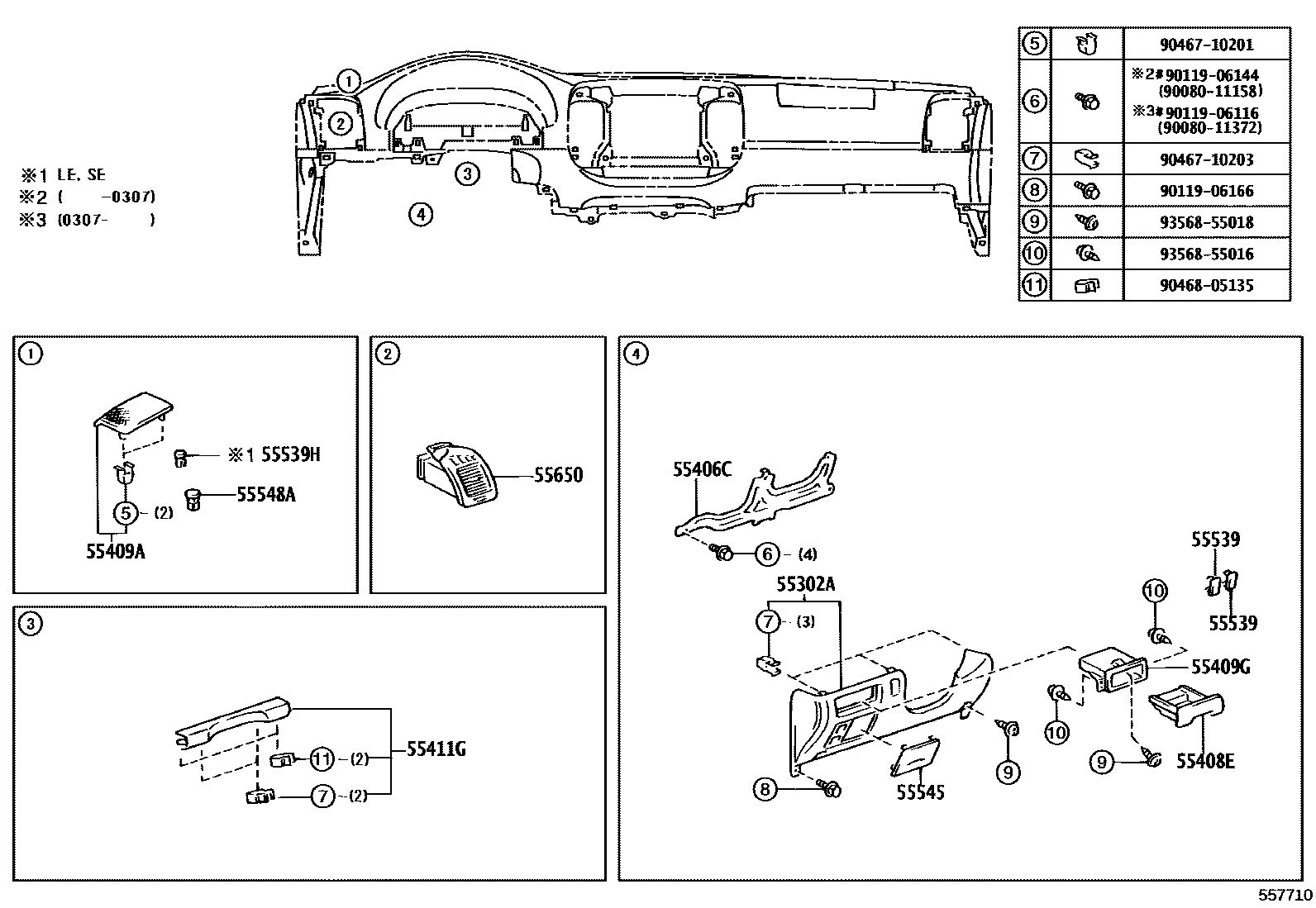

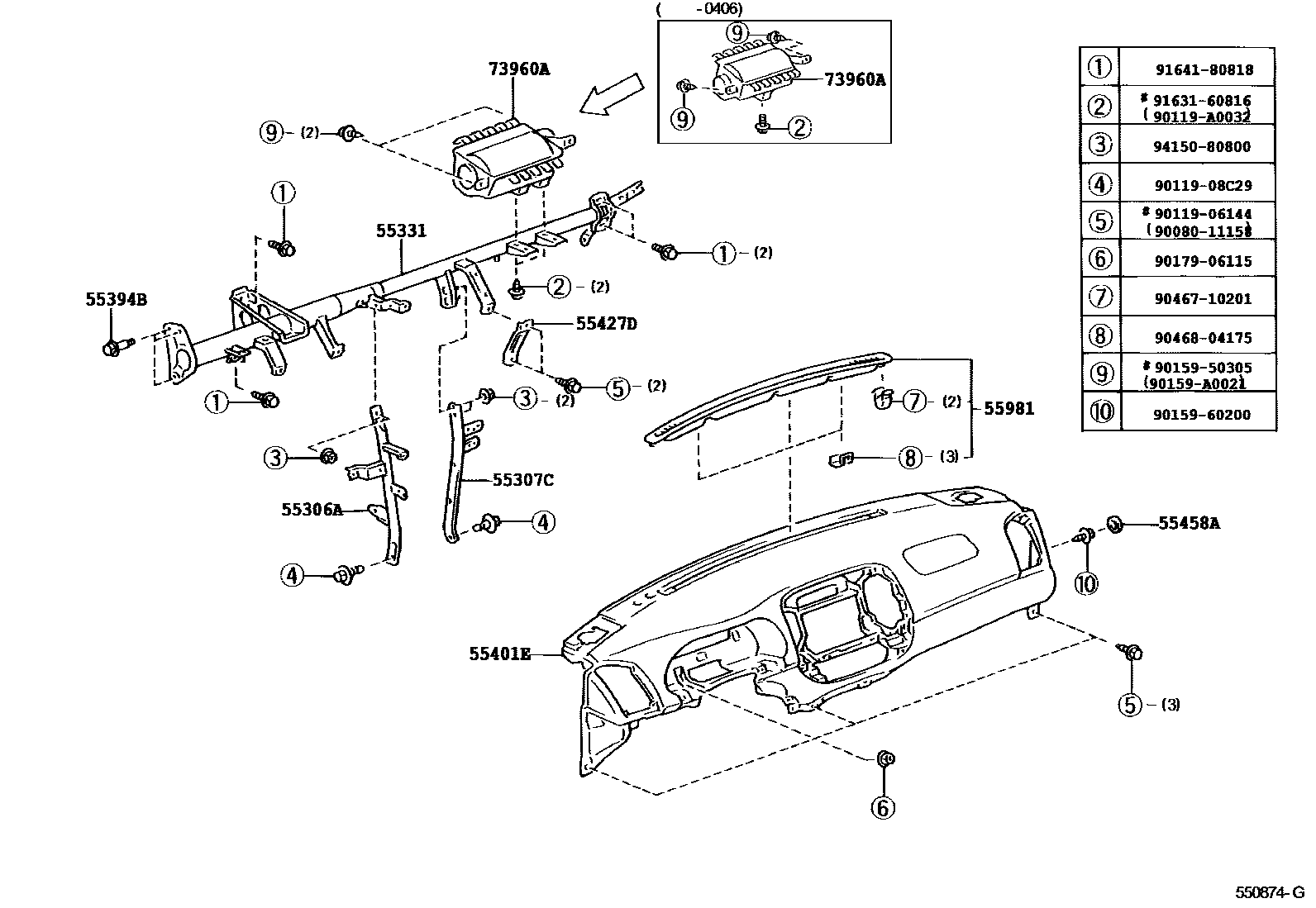

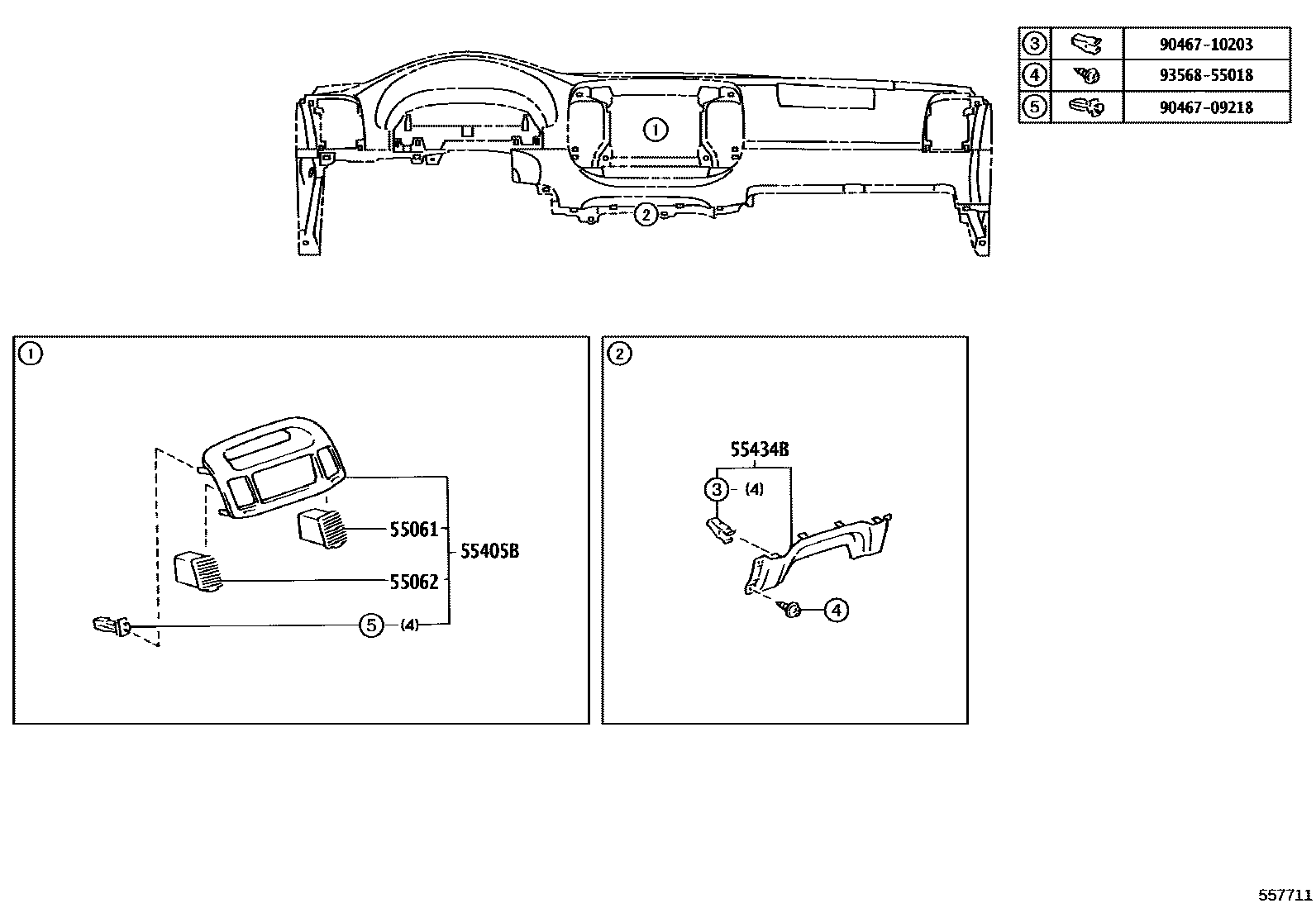

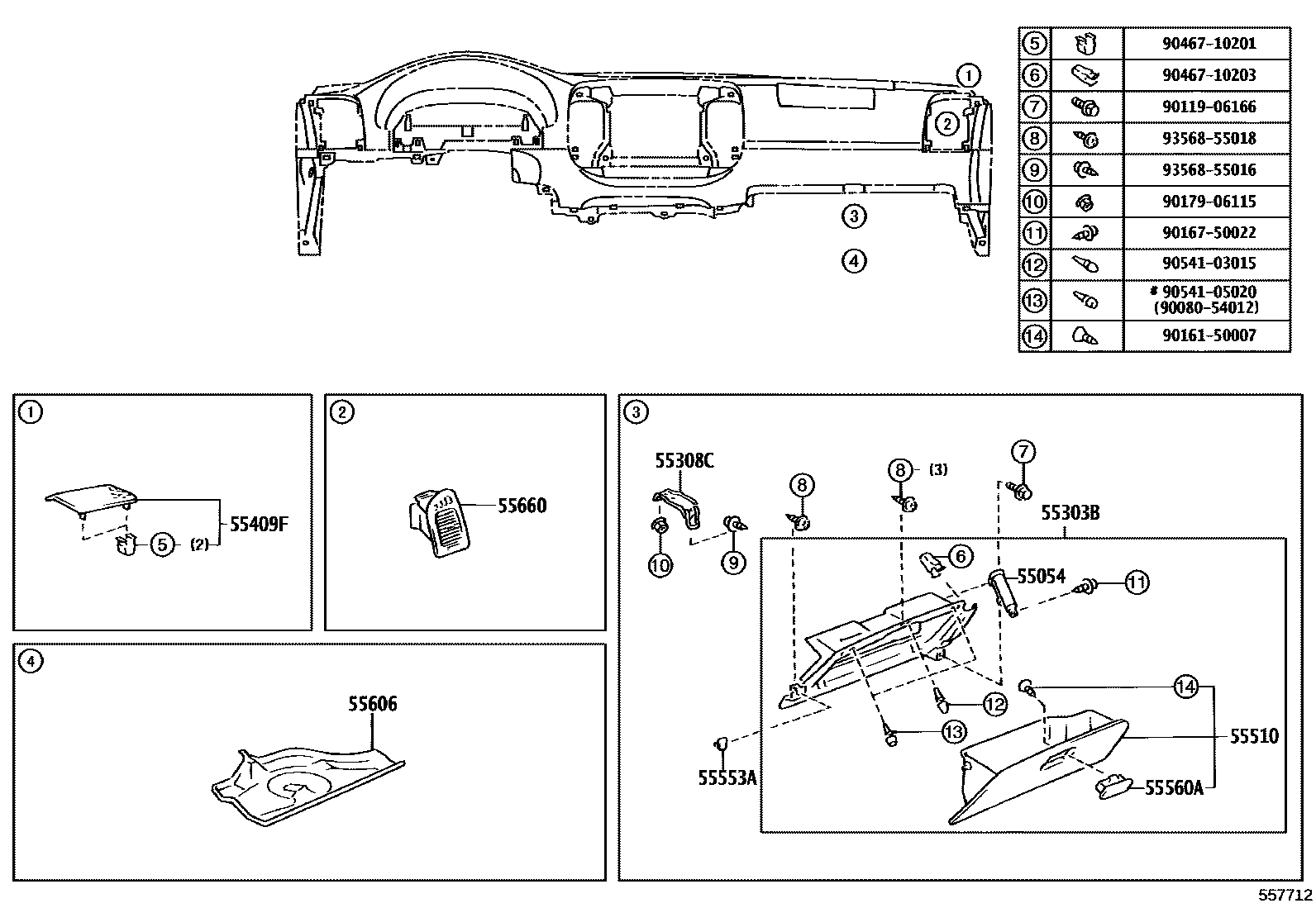

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-33050 · 55306-33100 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33110 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-33090 |
| 55331 | Dashboard reinforcement | 55330-33170 · 55330-33230 · 55330-33250 · 55330-33290 · 55330-33300 |
| 55394B | Dashboard bolts | 55394-33010 |
| 55406C | Instrument panel lower left insert sub-assembly | 55406-33060 · 55406-33070 |
| 55409G | Coin box fixing part sub-assembly | 55409-33020 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55427-33070 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55607-33060 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33100 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33010 · 73960-33050 |
