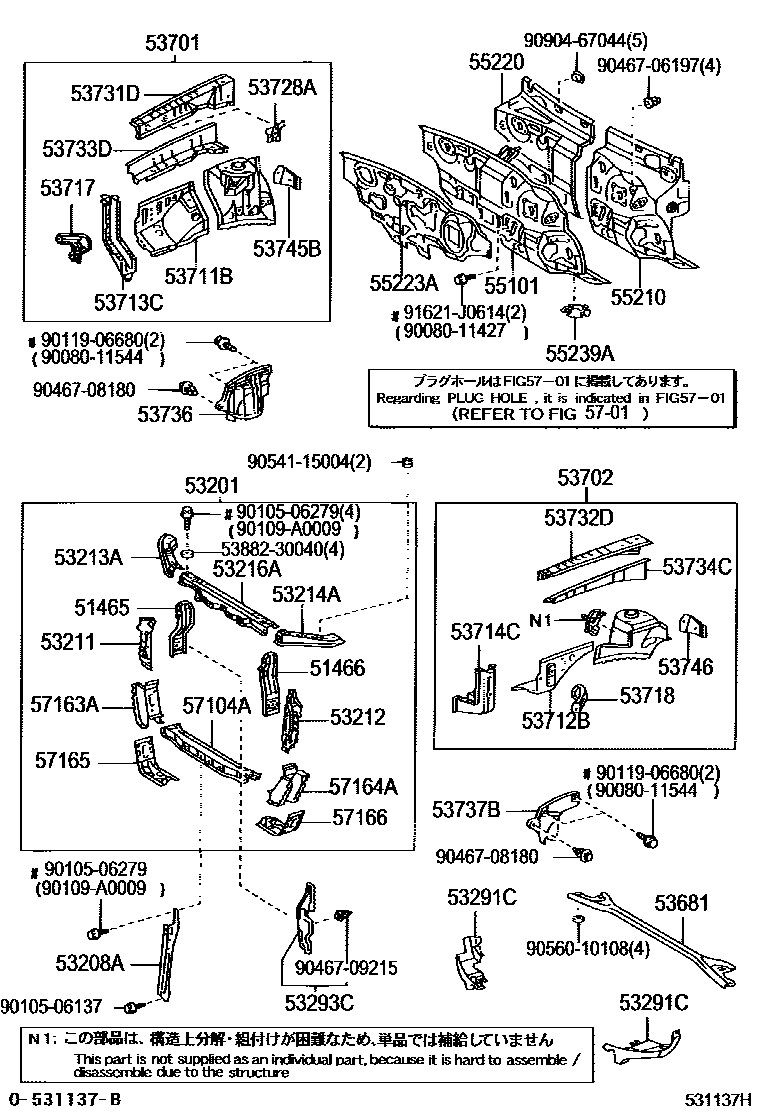

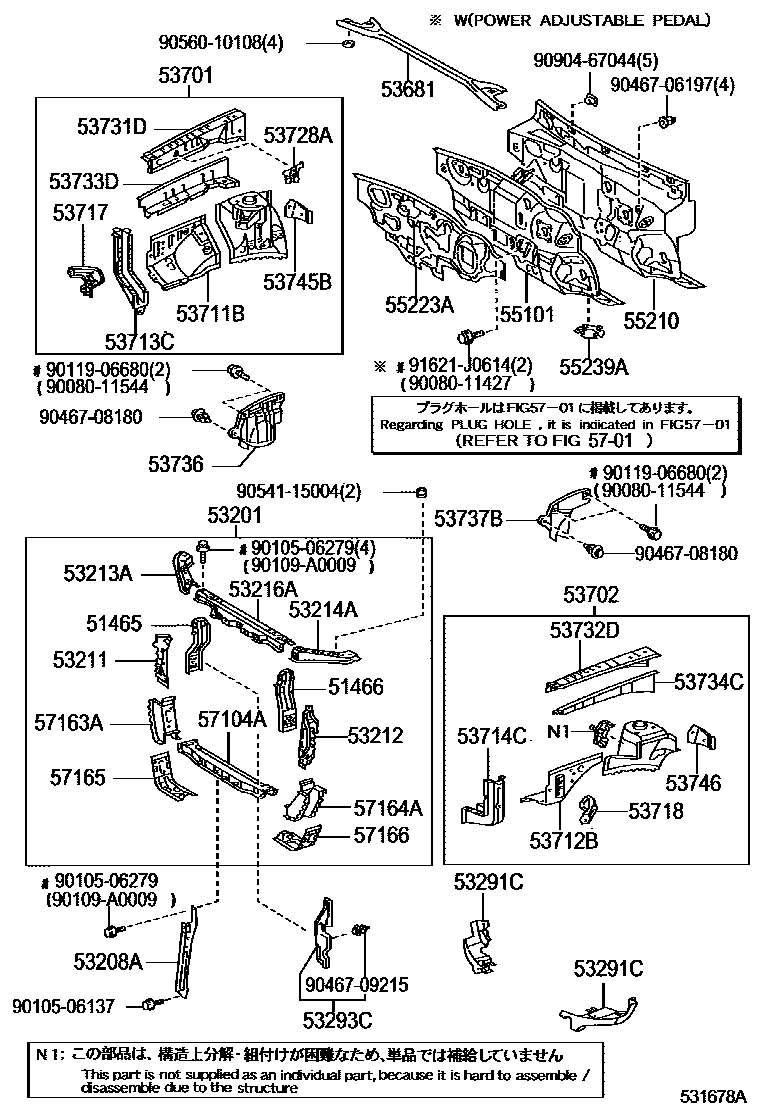

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51465 | Radiator upper right bracket | 51465-33040 |
| 51466 | Radiator upper left bracket | 51466-33040 |
| 53201 | Radiator bracket sub-assembly | 53201-33905 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-33050 |
| 53211 | Radiator right side support | 53211-33070 |
| 53212 | Radiator left support | 53212-33070 |
| 53213A | Radiator upper right bracket | 53213-33010 |
| 53214A | Radiator upper left bracket | 53214-33010 |
| 53216A | Radiator upper bracket | 53216-33120 |
| 53291C | Radiator bracket to frame seal | 53291-33010 · 53292-33120 |
| 53293C | Radiator right baffle | 53293-33020 |
| 53681 | Front suspension center upper bracket | 53681-33020 |
| 53701 | Right front fender fender sub-assembly | 53701-33130 · 53701-33131 |
| 53702 | Left front fender fender sub-assembly | 53702-33090 |
| 53711B | Right front fender front fender | 53711-33060 |
| 53712B | Left front fender front fender | 53712-33030 |
| 53713C | Right front fender fender front extension | 53713-33010 · 53713-33011 |
| 53714C | Left front fender fender front extension | 53714-33010 |
| 53717 | Right fender fender side panel | 53717-33020 |
| 53718 | Left fender fender side panel | 53718-33010 |
| 53728A | Right fender fender bracket | 53729-33020 |
| 53731D | Right front fender to cowl side upper beam | 53731-33050 · 53731-33080 |
| 53732D | Left front fender to cowl side upper beam | 53732-33040 · 53732-33070 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33030 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33030 |
| 53736 | Right front fender fender seal | 53736-33030 |
| 53737B | Left front fender fender seal | 53737-28020 · 53737-33020 |
| 53745B | Right front fender fender rear reinforcement | 53745-33010 |
| 53746 | Left front fender rear reinforcement | 53746-33010 |
| 55101 | Front apron sub-assembly | 55101-33290 · 55101-33320 · 55101-33340 |
| 55210 | Front wall insulation pad assembly | 55210-33090 · 55210-33130 |
| 55220 | No. 2 insulation pad assembly for front wall panel | 55220-33070 |
| 55223A | Front wall outer heat insulation pad | 55223-33080 · 55223-33100 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33010 · 55239-33020 |
| 57104A | Front cross member sub-assembly | 57161-33040 |
| 57163A | No. 1 front cross member right reinforcement | 57163-33030 |
| 57164A | No. 1 front cross member left reinforcement | 57164-33030 |
| 57165 | Front cross member lower right reinforcement | 57165-33010 |
| 57166 | Front cross member lower left reinforcement | 57166-33010 |
