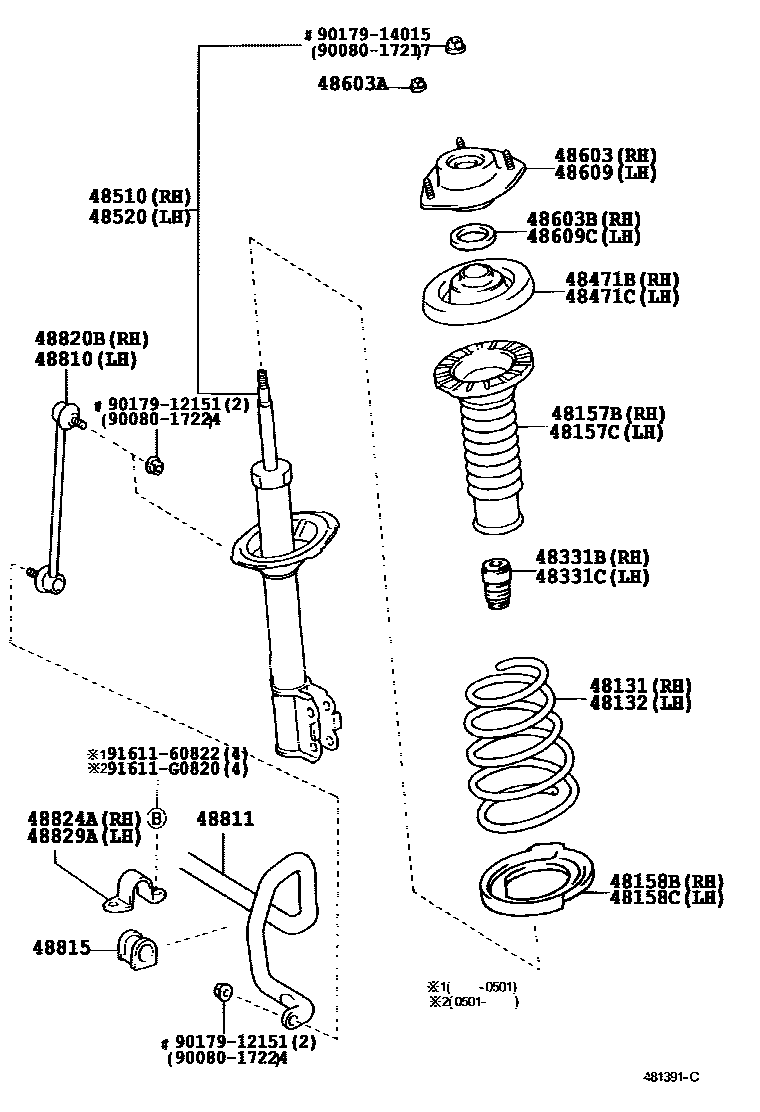

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-33A00 · 48131-33A01 · 48131-33A10 · 48131-33A11 · 48131-3T210 · 48131-3T211 · 48131-3T212 · 48131-3T220 · 48131-3T221 · 48131-3T222 · 48131-3T230 · 48131-3T231 · 48131-3T232 · 48131-3T240 · 48131-3T241 · 48131-3T242 · 48131-3T250 · 48131-3T260 |
| 48132 | Left front coil spring | 48131-33A00 · 48131-33A01 · 48131-33A10 · 48131-33A11 · 48131-3T210 · 48131-3T211 · 48131-3T212 · 48131-3T220 · 48131-3T221 · 48131-3T222 · 48131-3T230 · 48131-3T231 · 48131-3T232 · 48131-3T240 · 48131-3T241 · 48131-3T242 · 48131-3T250 · 48131-3T260 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-33060 · 48157-33061 · 48157-33062 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-33060 · 48157-33061 · 48157-33062 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-33030 · 48158-33031 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-33030 · 48158-33031 |
| 48331B | Right front spring buffer block | 48331-33030 · 48331-33031 · 48331-33032 |
| 48331C | Left front spring buffer block | 48331-33030 · 48331-33031 · 48331-33032 |
| 48471B | Front coil spring upper right seat | 48471-41010 |
| 48471C | Front coil spring upper left seat | 48471-41010 |
| 48510 | Right front shock absorber assembly | 48510-80036 · 48510-80037 · 48510-80038 · 48510-80108 · 48510-80117 · 48510-80118 · 48510-80165 |
| 48520 | Left front shock absorber assembly | 48520-39425 · 48520-39435 · 48520-39445 · 48520-39545 · 48520-39565 · 48520-39595 · 48520-39735 |
| 48603 | Right front suspension bearing sub-assembly | 48609-33150 |
| 48603A | Nut (for front suspension mount) | 90178-10017 · 90178-10018 |
| 48603B | Bearing (for right front suspension mount) | 90903-63014 |
| 48609 | Left front suspension bearing sub-assembly | 48609-33150 |
| 48609C | Bearing (for left front suspension mount) | 90903-63014 |
| 48810 | Left front stabilizer bar link assembly | 48820-28050 |
| 48811 | front stabilizer bar | 48811-33130 · 48811-33140 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-33090 · 48815-33100 |
| 48820B | Right front stabilizer bar link assembly | 48820-28050 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-26210 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-26210 |
