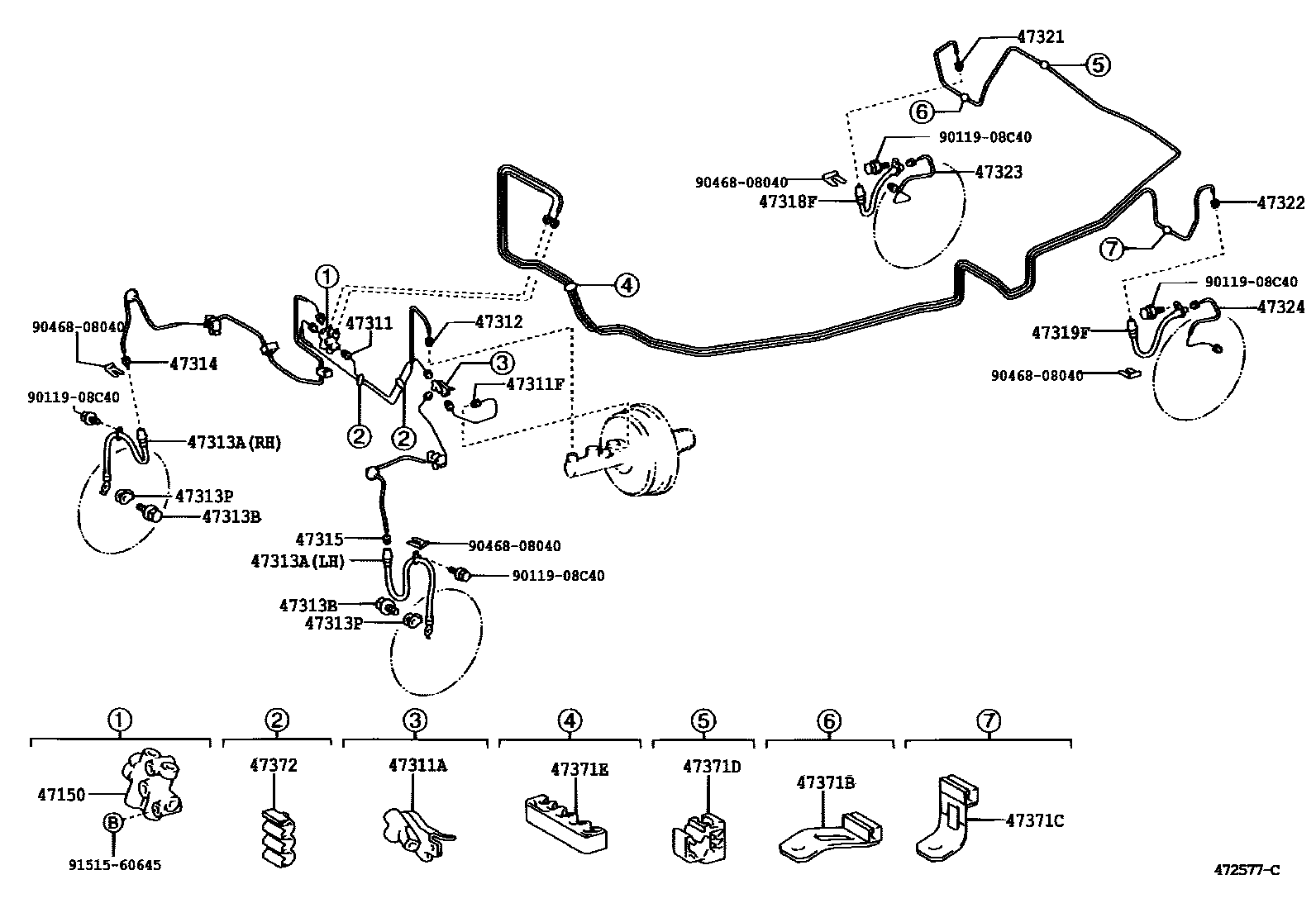

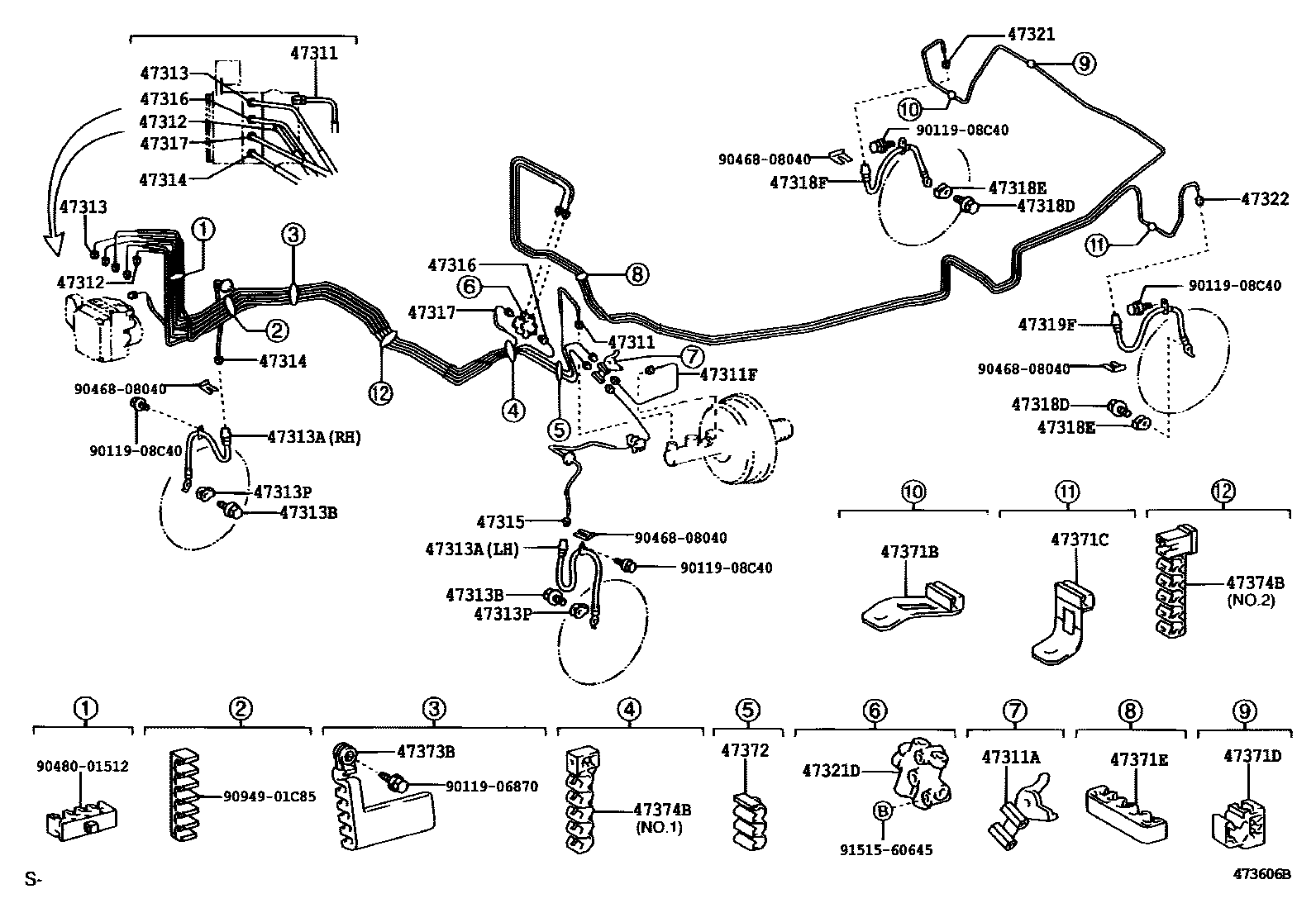

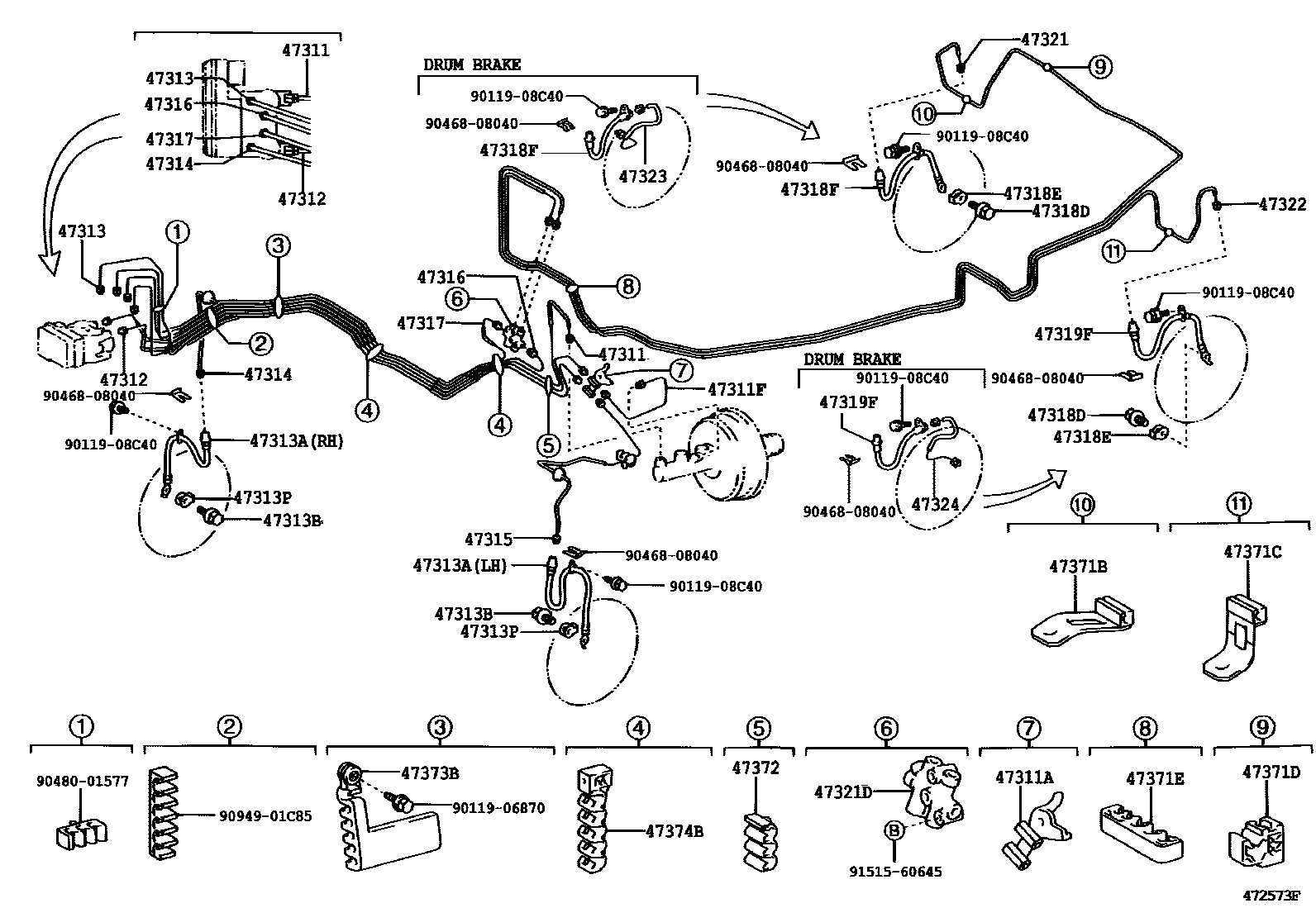

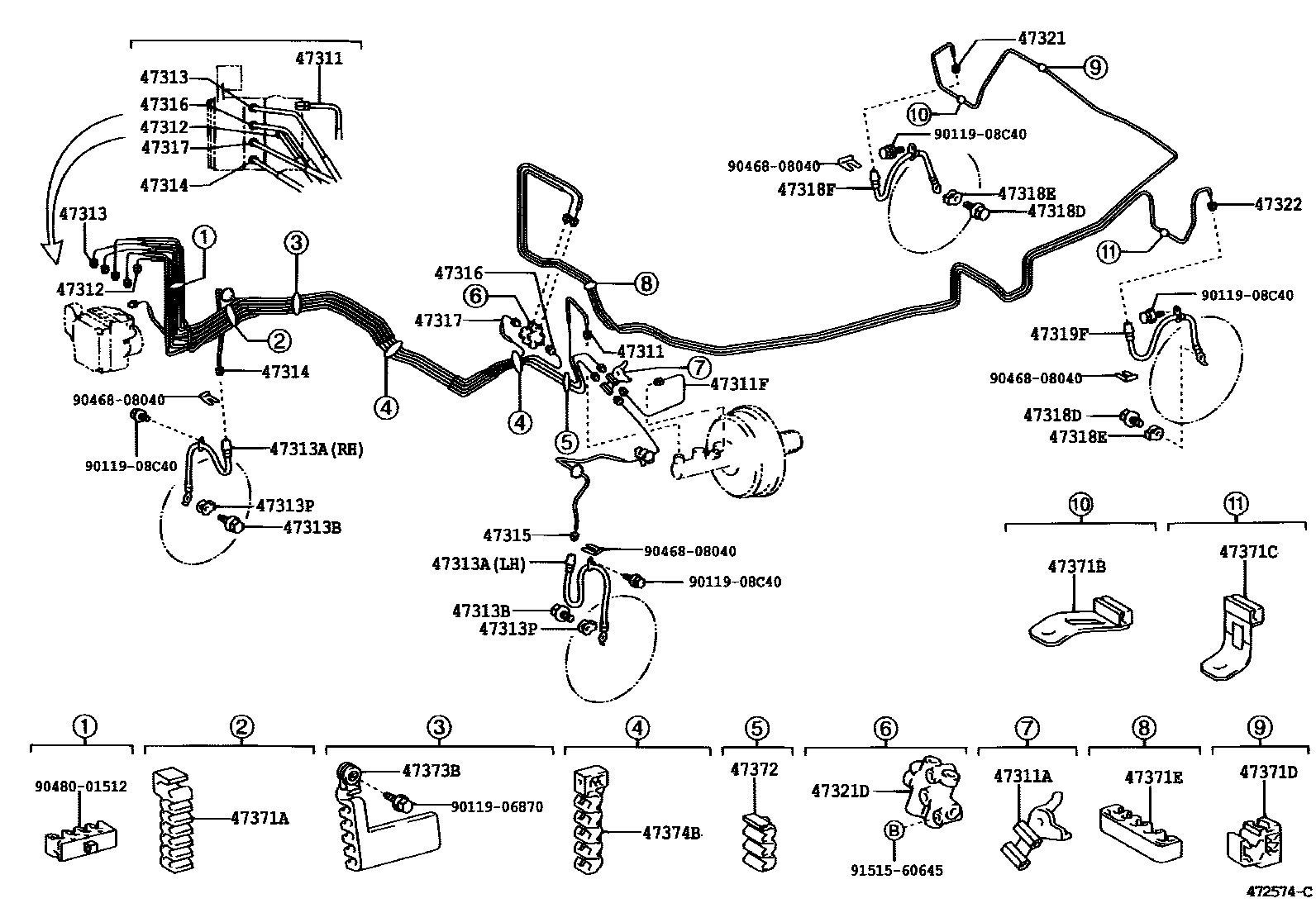

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 7 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

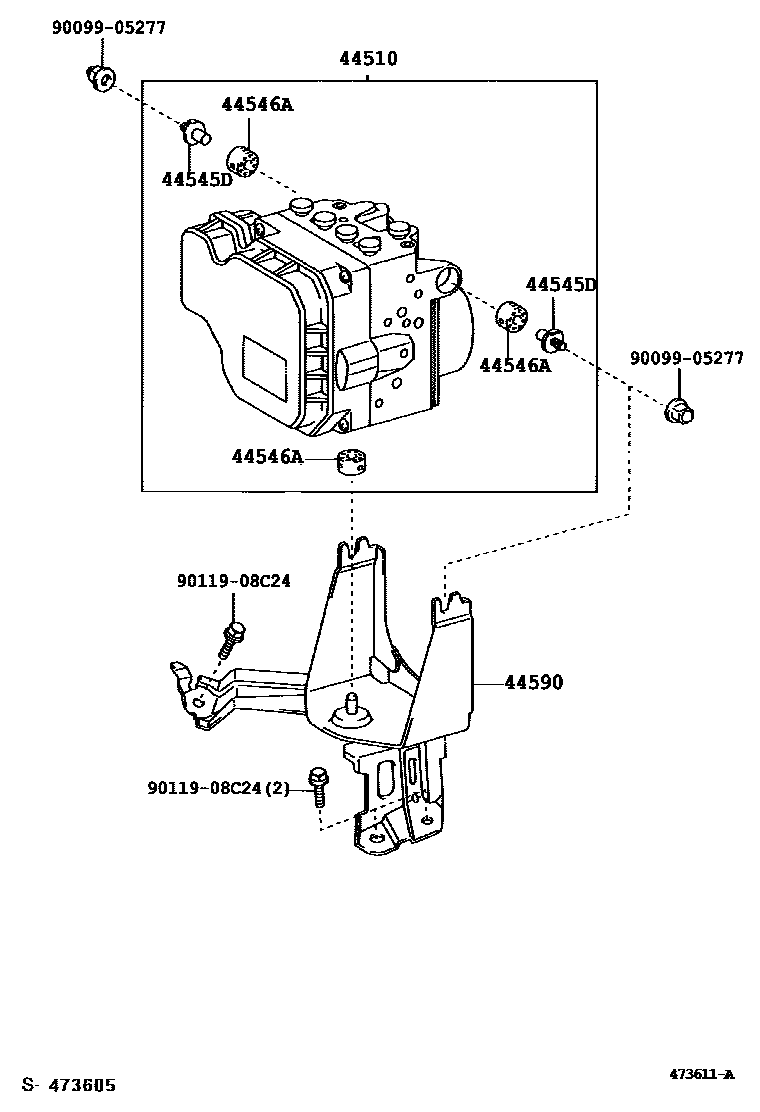

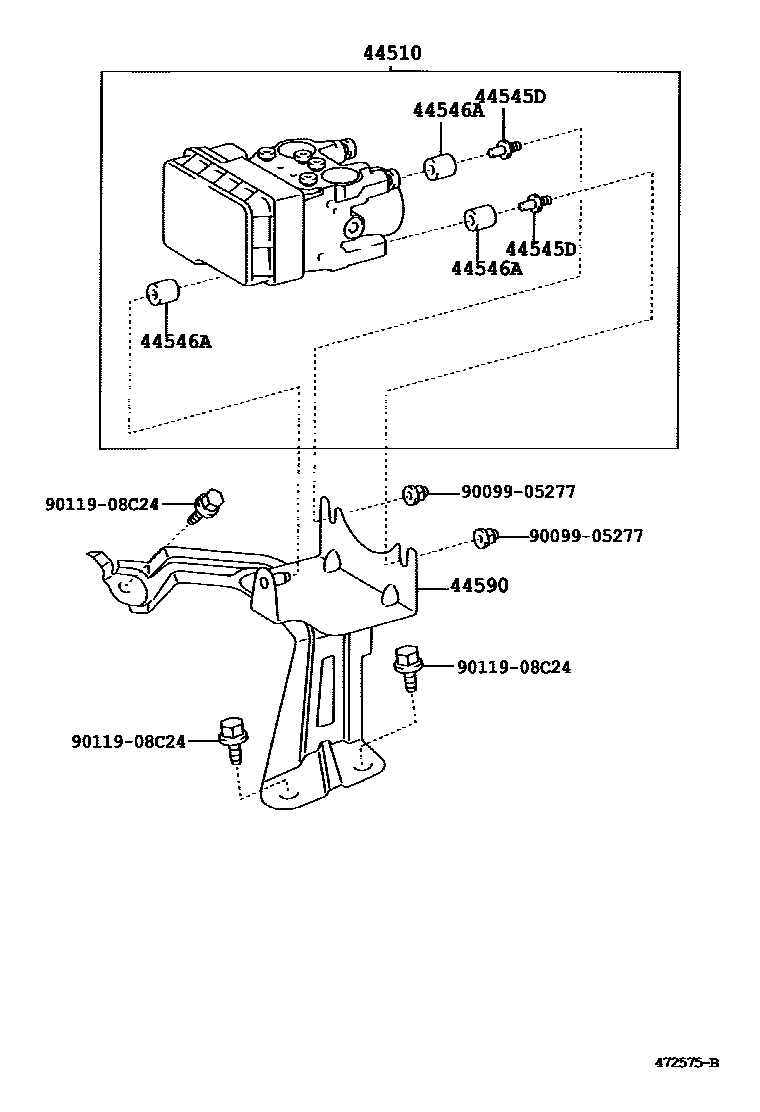

| 44510 | brake actuator assembly | 44050-33080 · 44050-33081 · 44050-33090 · 44050-33091 · 44050-33110 · 44050-33120 · 44050-33130 |
| 44545D | Brake actuator bolt mount | 44545-42070 · 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-42070 · 44546-42090 |

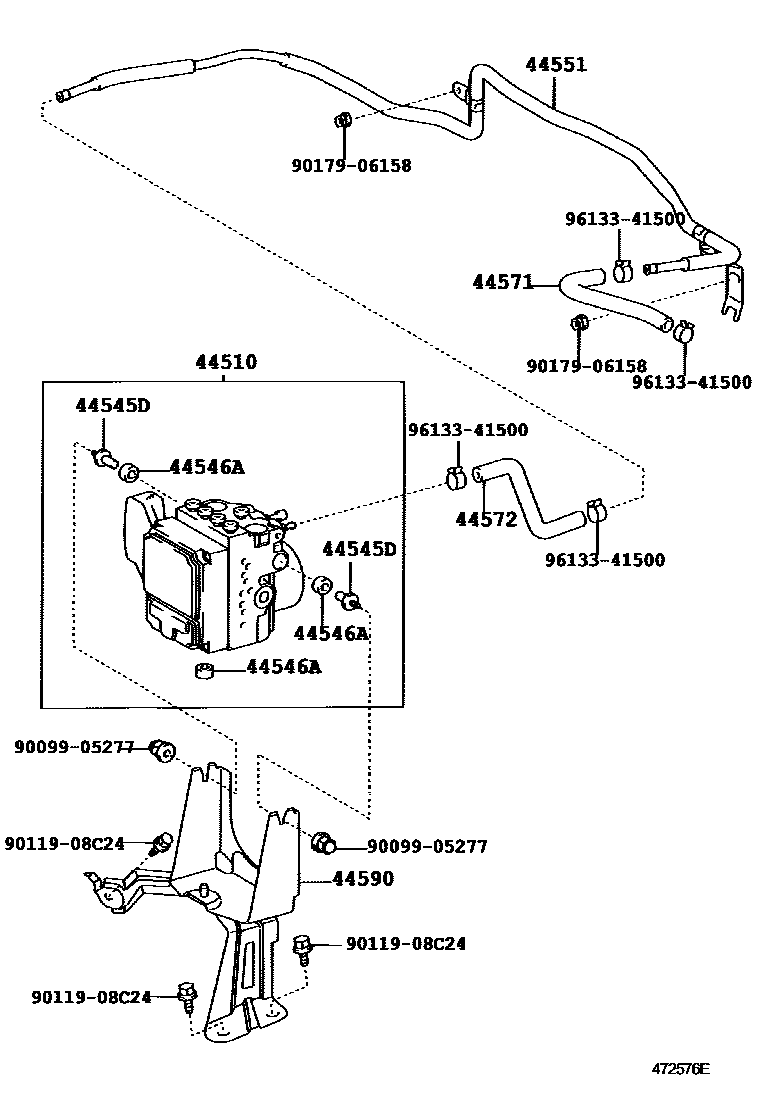

| 44551 | No. 1 brake actuator pipe | 44551-33040 |
| 44571 | brake actuator hose | 44571-33060 |
| 44572 | No. 2 brake actuator hose | 44572-33020 |
| 44590 | Brake actuator bracket assembly | 44590-33060 · 44590-33070 · 44590-33080 |
| 47150 | Proportional valve assembly | 47150-16050 |
| 47311 | No. 1 front brake pipe | 47311-33090 · 47311-33110 · 47311-33120 · 47311-33150 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10238 · 90904-13011 |
| 47311F | No. 1 frame front brake pipe | 47311-33130 · 47311-33140 |
| 47312 | No. 2 front brake pipe | 47312-33110 · 47312-33130 · 47312-33140 · 47312-33150 |
| 47313 | No. 3 front brake pipe | 47313-33110 · 47313-33130 · 47313-33140 |
| 47313A | No. 1 front flexible hose | 90947-02C89 · 90947-02C90 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-33060 · 47314-33100 · 47314-33110 · 47314-33120 |
| 47315 | No. 5 front brake pipe | 47315-33180 · 47315-33190 |
| 47316 | No. 6 front brake pipe | 47316-33210 · 47316-33230 · 47316-33240 |
| 47317 | No. 7 front brake pipe | 47317-33200 · 47317-33220 · 47317-33230 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02C91 · 90947-02C93 |
| 47319F | Left rear flexible hose | 90947-02C92 · 90947-02C94 |
| 47321 | No. 1 rear brake pipe | 47321-33130 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-33100 |
| 47323 | No. 3 rear brake pipe | 47323-33220 · 47323-33221 |
| 47324 | No. 4 rear brake pipe | 47324-33220 · 47324-33221 |
| 47371A | No. 1 brake pipe clamp | 47372-33010 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 90949-01B45 |
| 47371E | No. 9 brake pipe clamp | 90949-01C53 |
| 47372 | No. 2 brake pipe clamp | 90464-00778 |
| 47373B | No. 3 brake pipe clamp | 90949-01C55 |
| 47374B | No. 4 brake pipe clamp | 90949-01C56 · 90949-01D06 |
