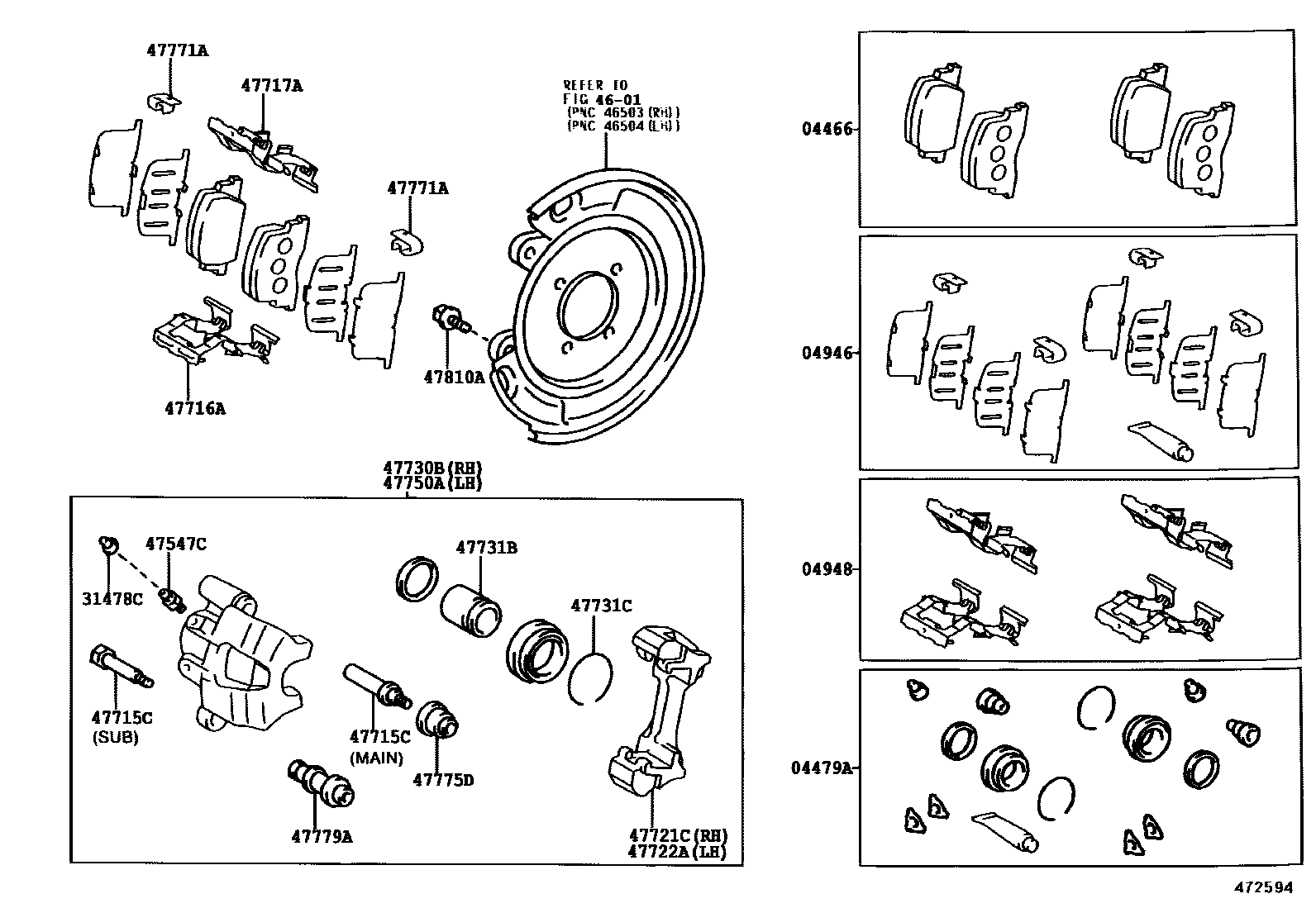

Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-33090 · 04466-33140 |
| 04479A | Rear disc brake cylinder assembly | 04479-48030 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-33020 |
| 04948 | Rear disc brake mounting assembly | 04948-33020 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 · 47547-22020 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-32020 · 47715-32030 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-33120 |
| 47717A | Pad support plate No. 2 (for rear disc brake) | 47717-33090 |
| 47721C | Right rear disc brake cylinder retainer | 47721-33150 |
| 47722A | Left rear disc brake cylinder retainer | 47721-33150 |
| 47730B | Right rear disc brake cylinder assembly | 47730-33210 |
| 47731B | rear disc brake piston | 47731-48020 |
| 47731C | retaining ring (for rear disc brake piston) | 90520-52006 |
| 47750A | Left rear disc brake cylinder assembly | 47750-33210 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47771-32030 |
| 47775D | Bushing boot (for rear disc brake) | 47775-32050 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-32030 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10379 |
