Toyota CAMRY 后鼓式制动器分泵和底板 — Figure 4706

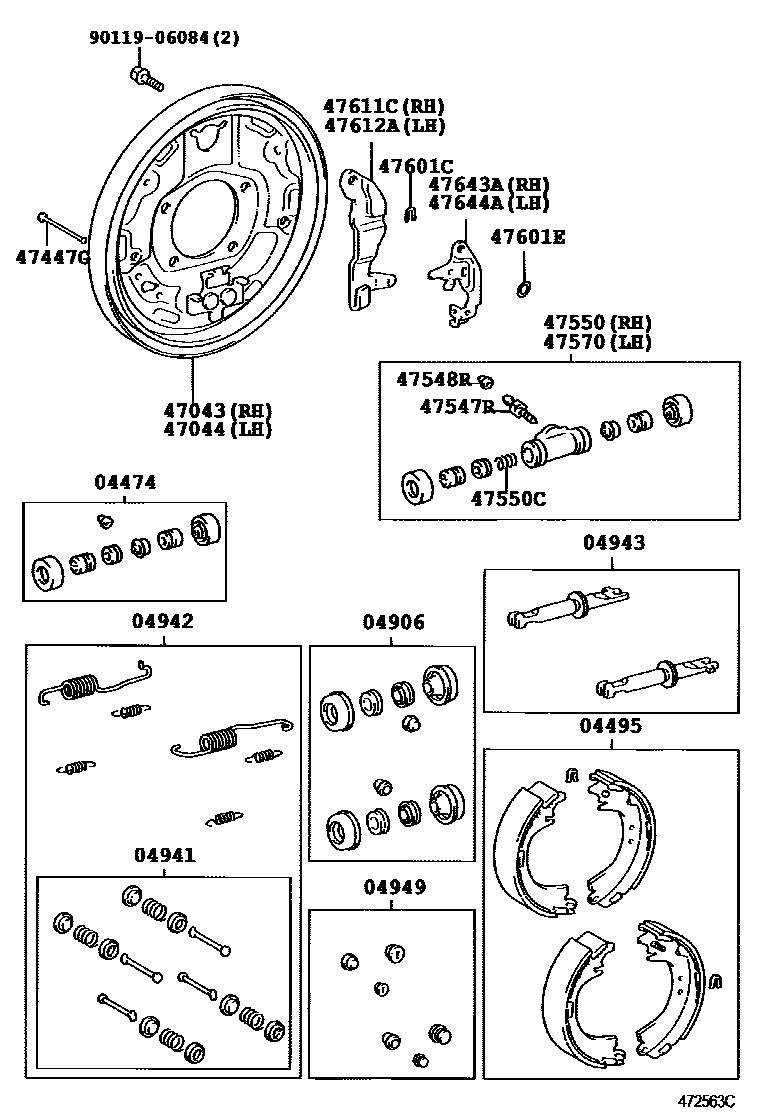

Toyota CAMRY EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-22040 · 04474-33030 |
| 04495 | Rear brake shoe assembly | 04495-33010 · 04495-33030 · 04495-33070 |
| 04906 | Rear wheel pump cup assembly | 04906-33020 · 04906-33030 · 04906-42020 |
| 04941 | Rear brake shoe limit spring assembly | 04941-28010 · 04941-44010 |
| 04942 | Rear brake spring assembly | 04942-33010 · 04942-33020 |
| 04943 | Right rear brake bracket assembly | 04943-44010 |
| 04949 | Rear brake plug assembly | 04949-44010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-33020 · 47043-33050 |
| 47044 | Left rear brake base plate sub-assembly | 47044-33020 · 47044-33050 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-20030 |
| 47547R | Bleed plug (for rear drum brake) | 47547-22020 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-33020 · 47550-33021 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-33020 · 47570-33021 |
| 47601C | C-shaped washer (for rear brake) | 90213-06013 |
| 47601E | E-ring (for rear brake) | 96160-00500 |
| 47611C | Right parking brake shoe lever | 47611-33010 |
| 47612A | Left parking brake shoe lever | 47612-33010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-33010 · 47643-42010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-33010 · 47644-42010 |
