Toyota CAMRY Brake Pedal & Bracket — Figure 4701

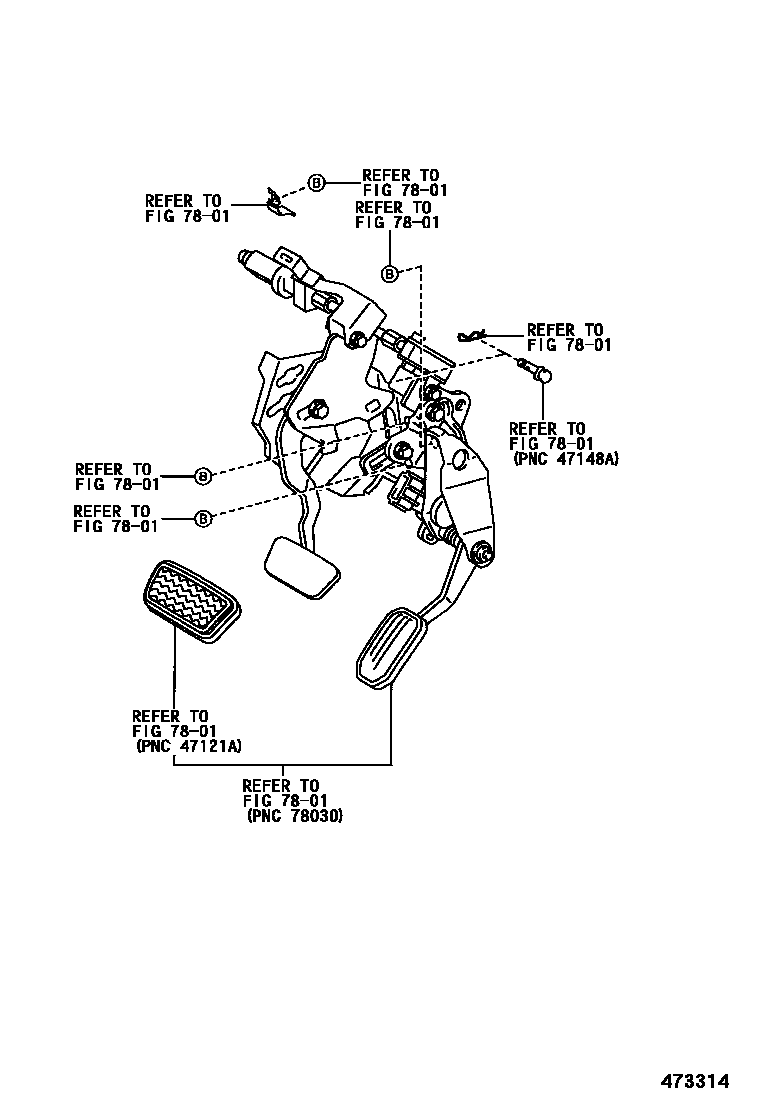

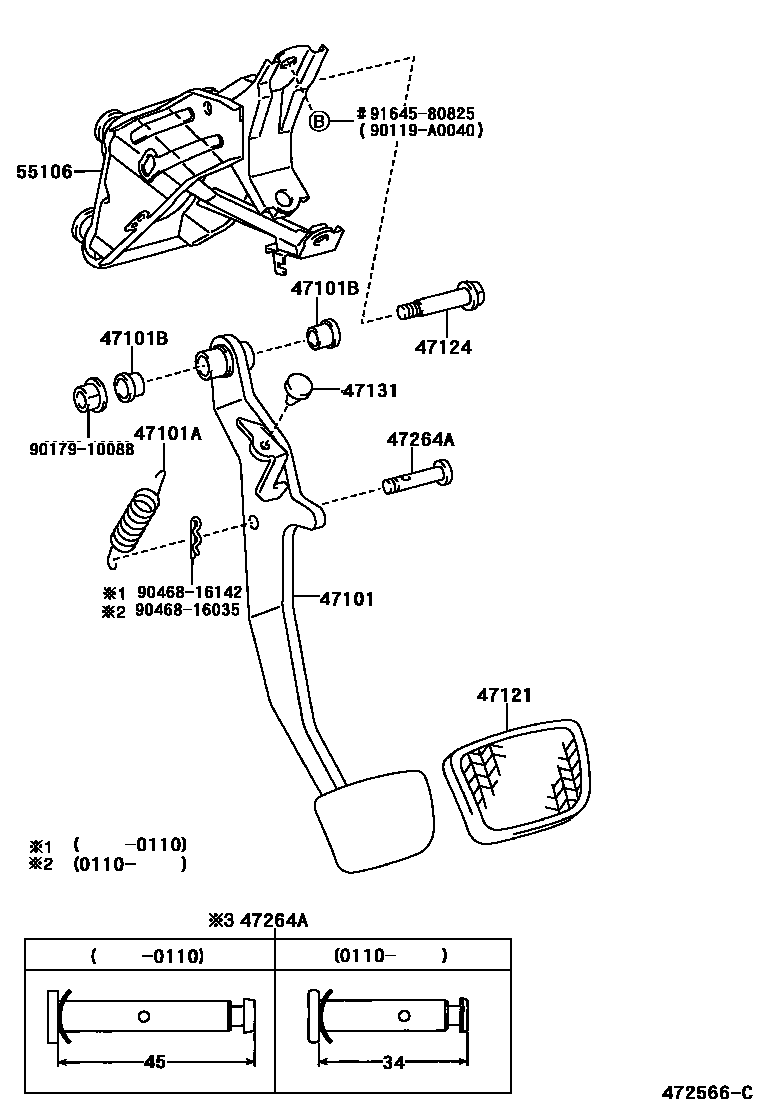

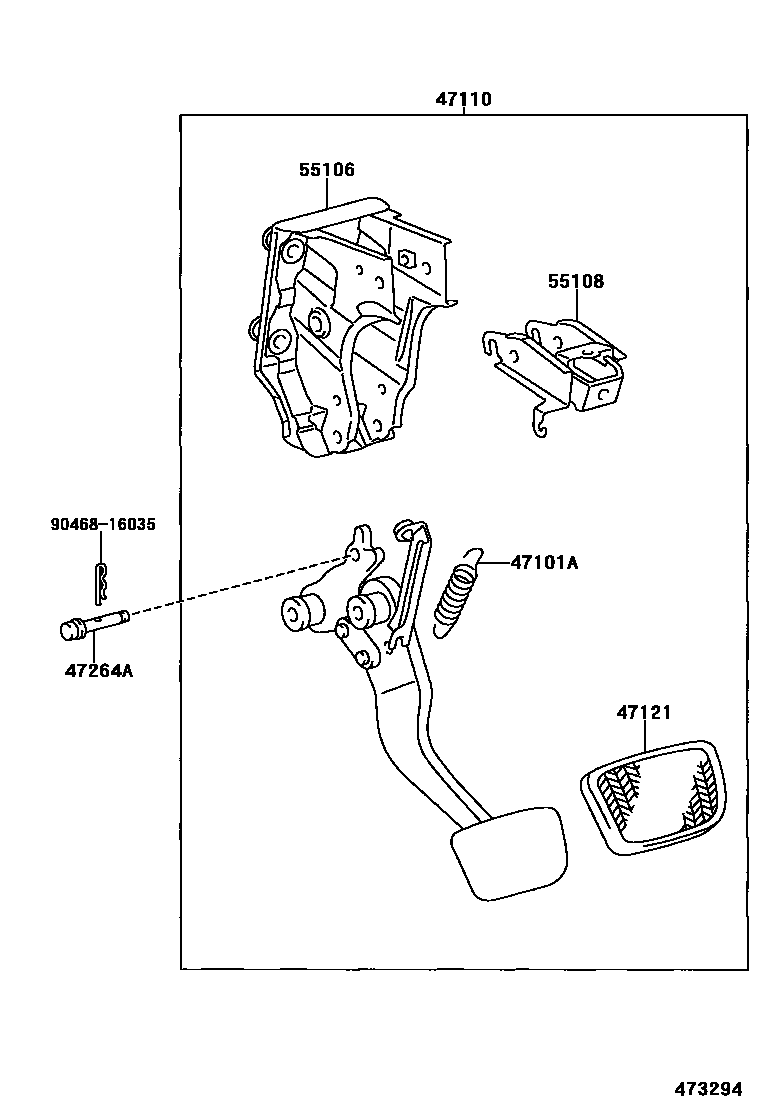

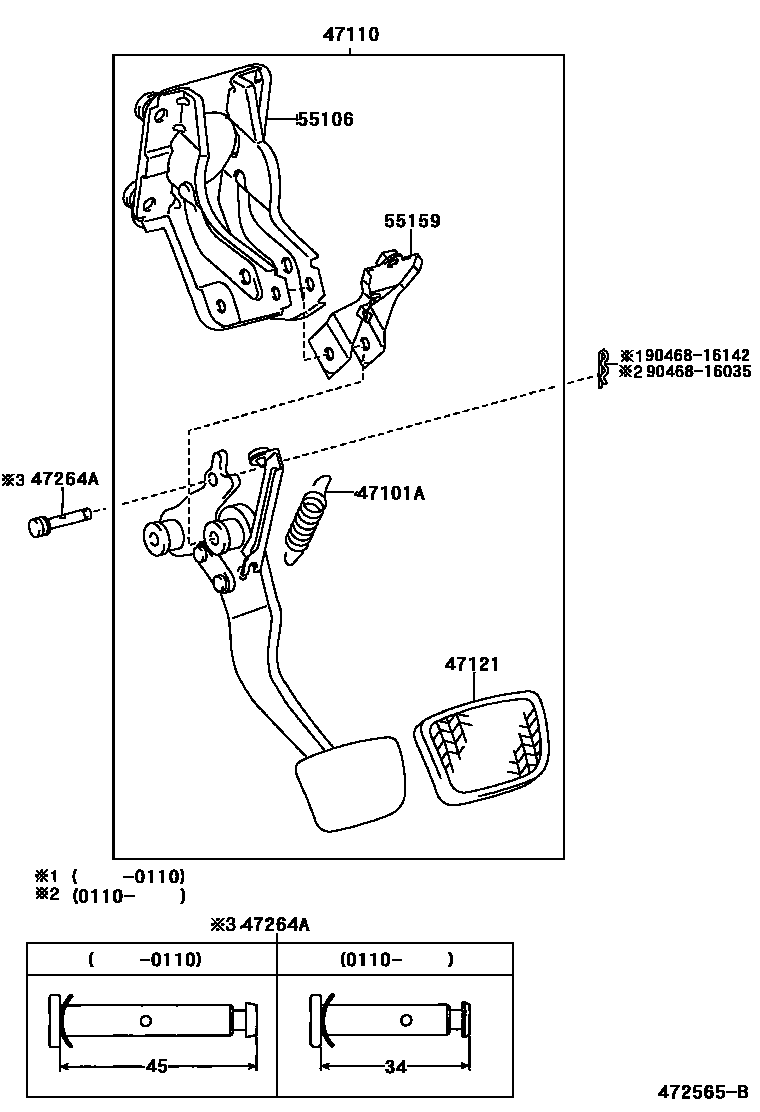

Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-33070 |
| 47101A | Spring (for brake pedal return) | 47146-33010 · 90507-14051 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-33180 · 47110-33181 · 47110-33230 · 47110-33231 |
| 47121 | brake pedal pad | 31321-52010 · 47121-50020 |
| 47124 | brake pedal shaft | 90109-10167 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-33011 · 47148-33020 |
| 55106 | Brake pedal bracket sub-assembly | 55106-33080 · 55106-33100 · 55106-33101 |
| 55108 | Brake pedal No. 3 bracket sub-assembly | 55108-33030 |
| 55159 | pedal support bracket | 55159-33010 |
