Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 5 images and 4 PNC and OE references.

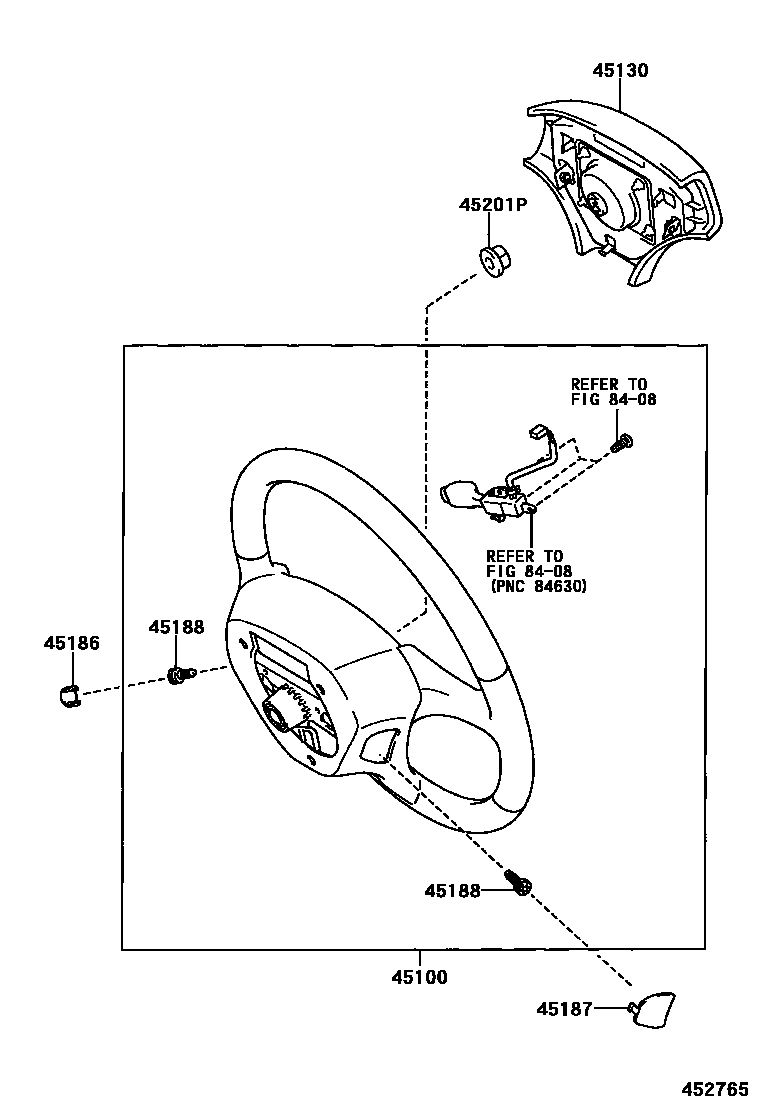

Toyota CAMRY Steering Wheel EPC diagram — 452765
Steering Wheel — 452765 (200107 – 200406)

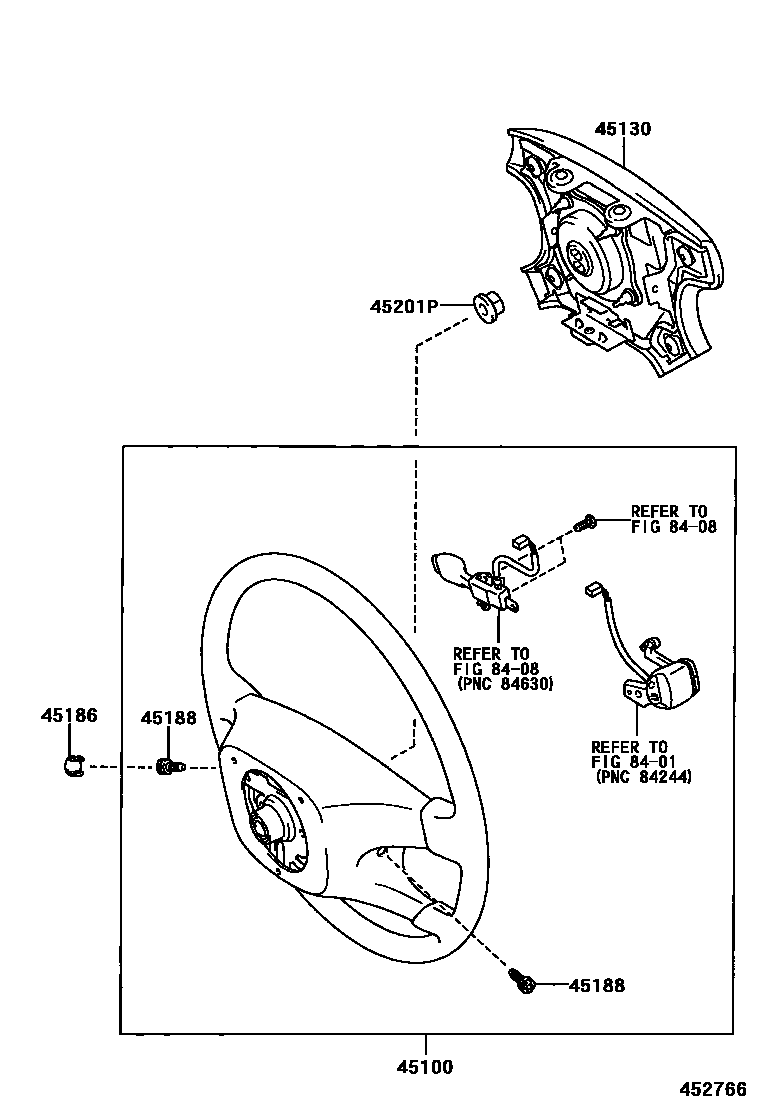

Toyota CAMRY Steering Wheel EPC diagram — 452766
Steering Wheel — 452766 (200107 – 200406)

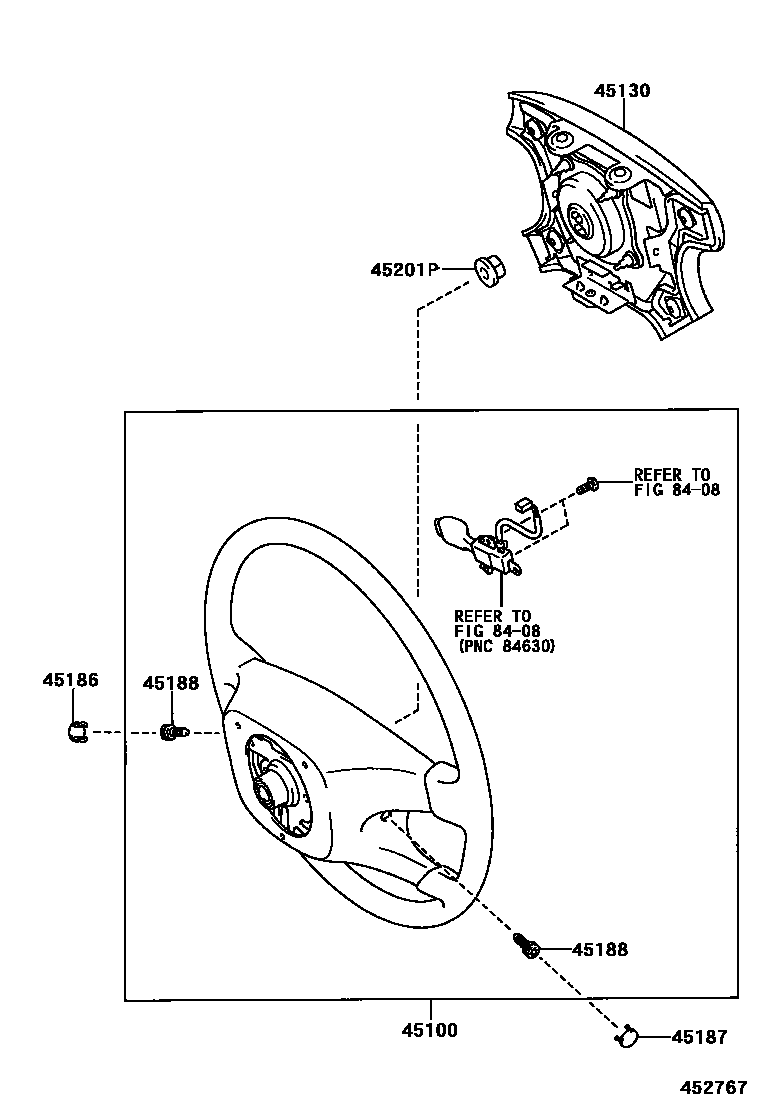

Toyota CAMRY Steering Wheel EPC diagram — 452767
Steering Wheel — 452767 (200107 – 200406)

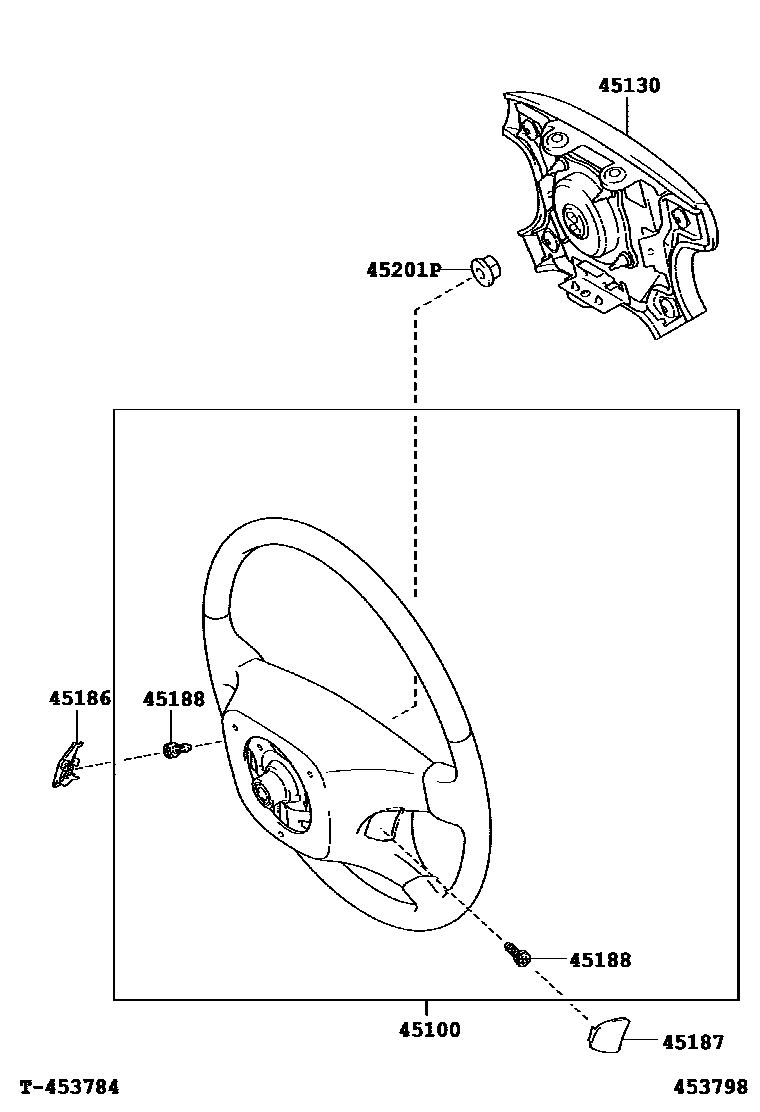

Toyota CAMRY Steering Wheel EPC diagram — 453798
Steering Wheel — 453798 (200406 – 999999)

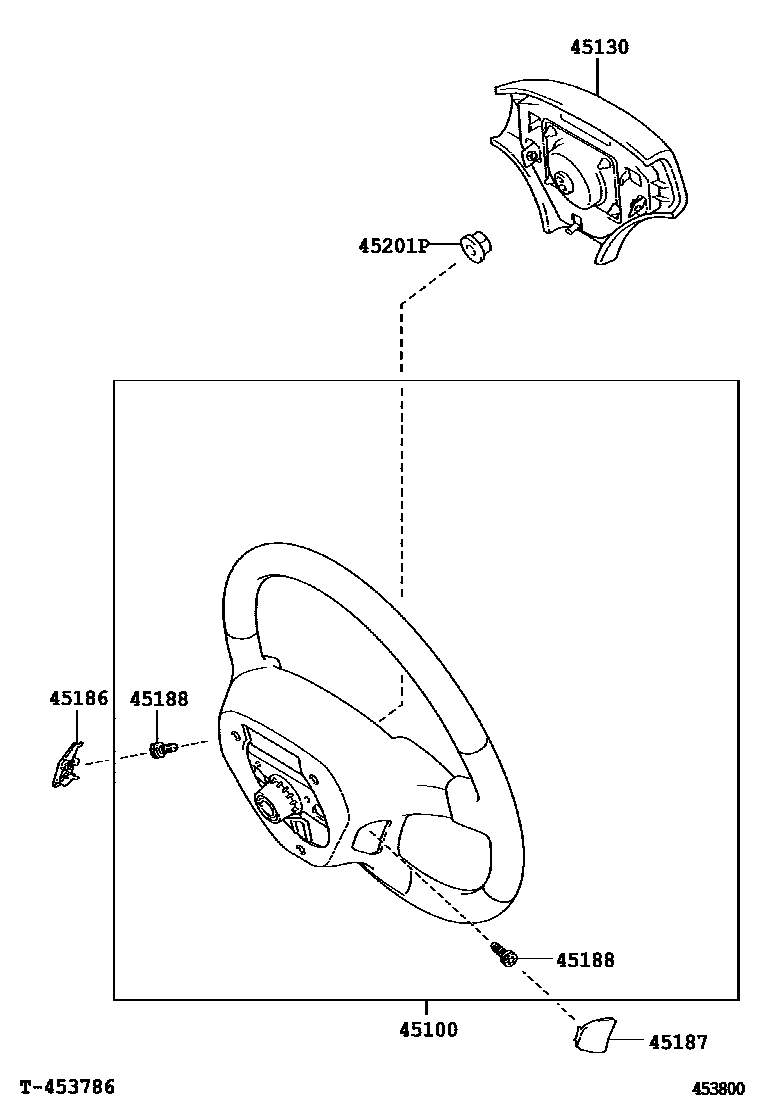

Toyota CAMRY Steering Wheel EPC diagram — 453800
Steering Wheel — 453800 (200406 – 999999)

PNC and OE references

PNCPart nameOE numbers
45100Steering wheel assembly45100-06451 · 45100-06611
45130Speaker button assembly45130-33323
45188Steering wheel trim cover fixing screws45188-07010 · 45188-60010 · 90080-14042
45201PSteering wheel fixing nut90179-12071
