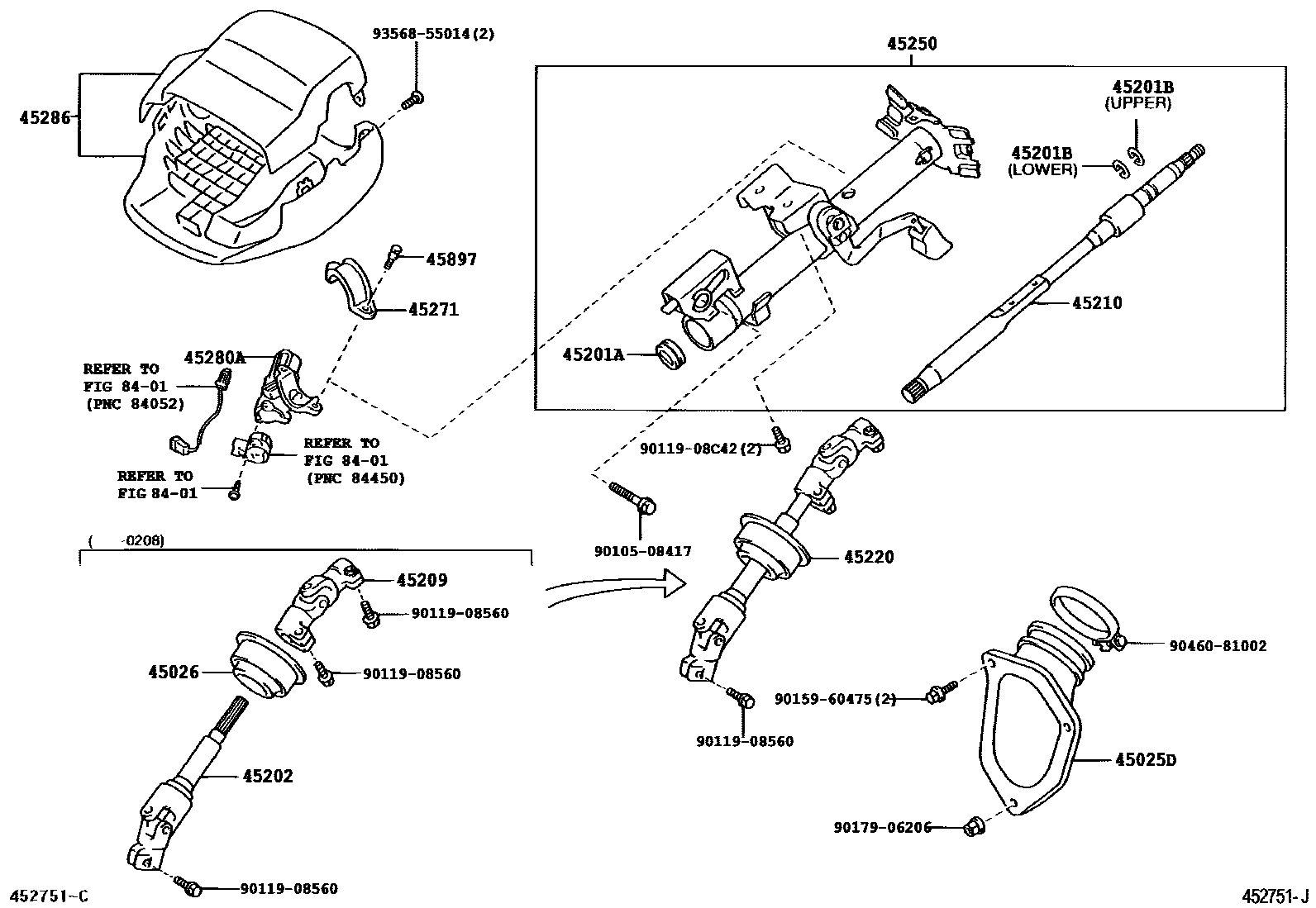

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33060 · 45025-33090 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-33050 |
| 45201A | Bearings (for steering spindle) | 45274-42010 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45202 | Steering intermediate shaft sub-assembly | 45202-33060 |
| 45209 | Steering slip fork sub-assembly | 45209-33010 |
| 45210 | Steering spindle assembly | 45210-33070 |
| 45220 | Steering intermediate shaft assembly | 45220-33200 · 45220-33270 |
| 45250 | Steering column assembly | 45250-33510 · 45250-33570 |
| 45271 | Clamp on steering column | 45271-16020 · 45271-33040 |
| 45280A | Steering column upper bracket assembly | 45280-33090 · 45280-33100 · 45280-33140 · 45280-33150 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
