Toyota CAMRY Front Drive Shaft — Figure 4302

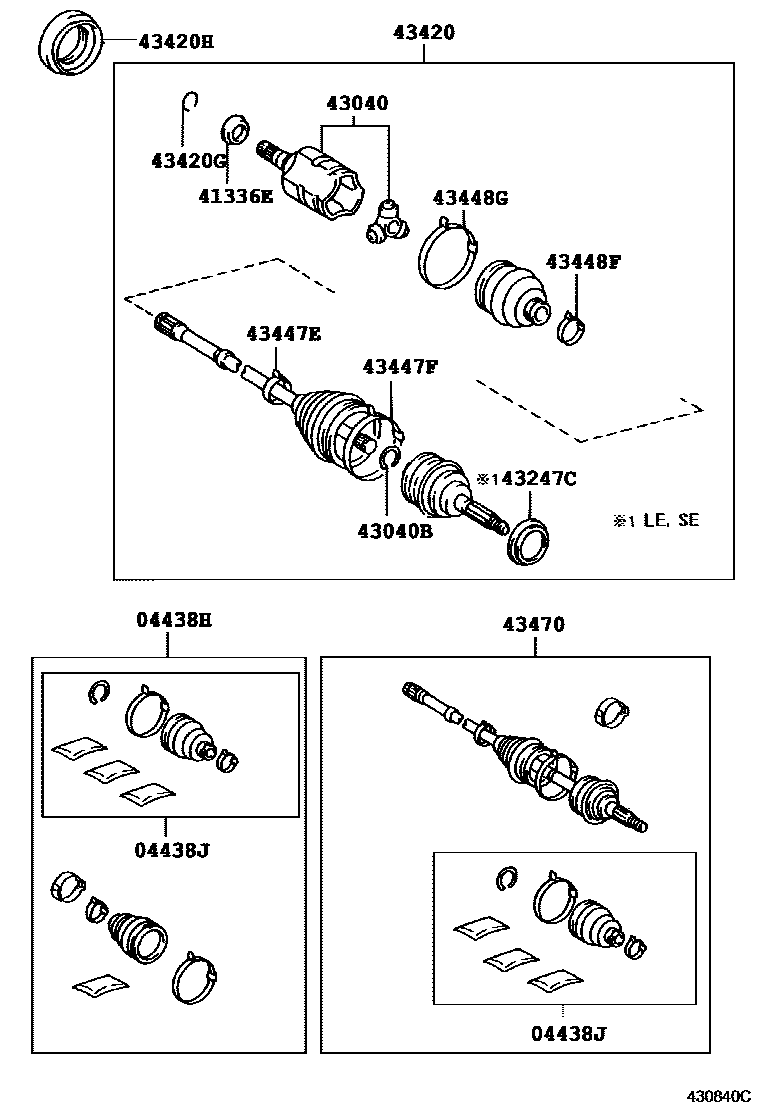

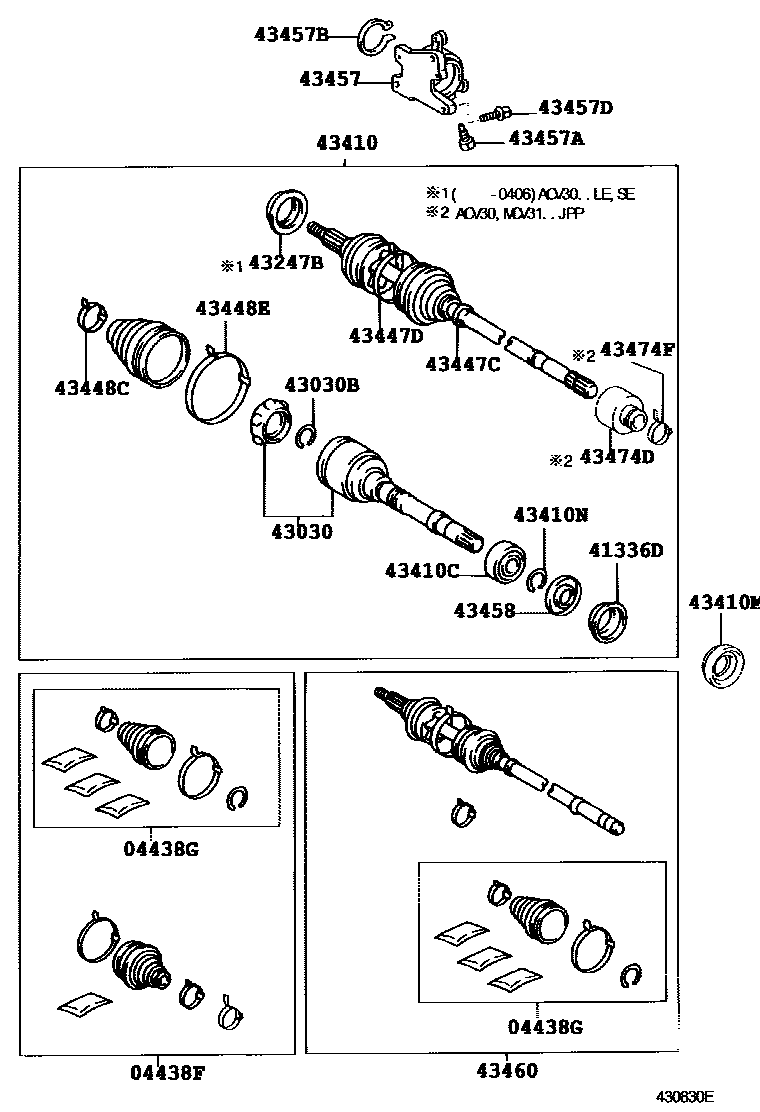

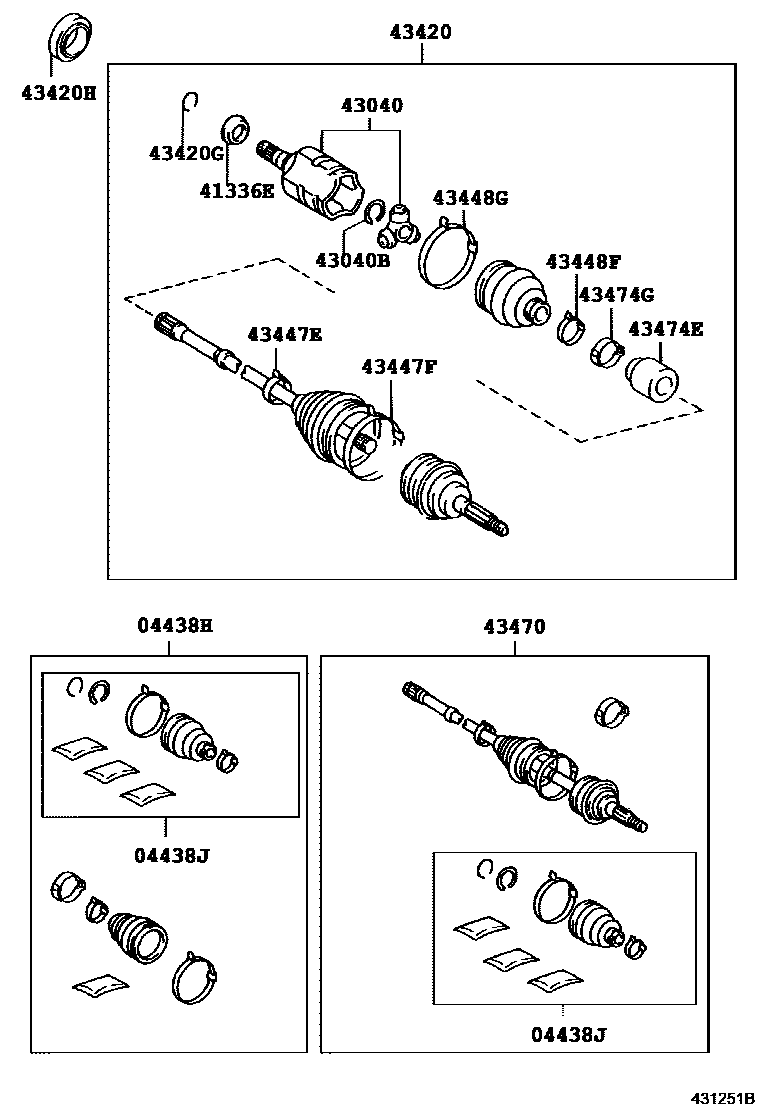

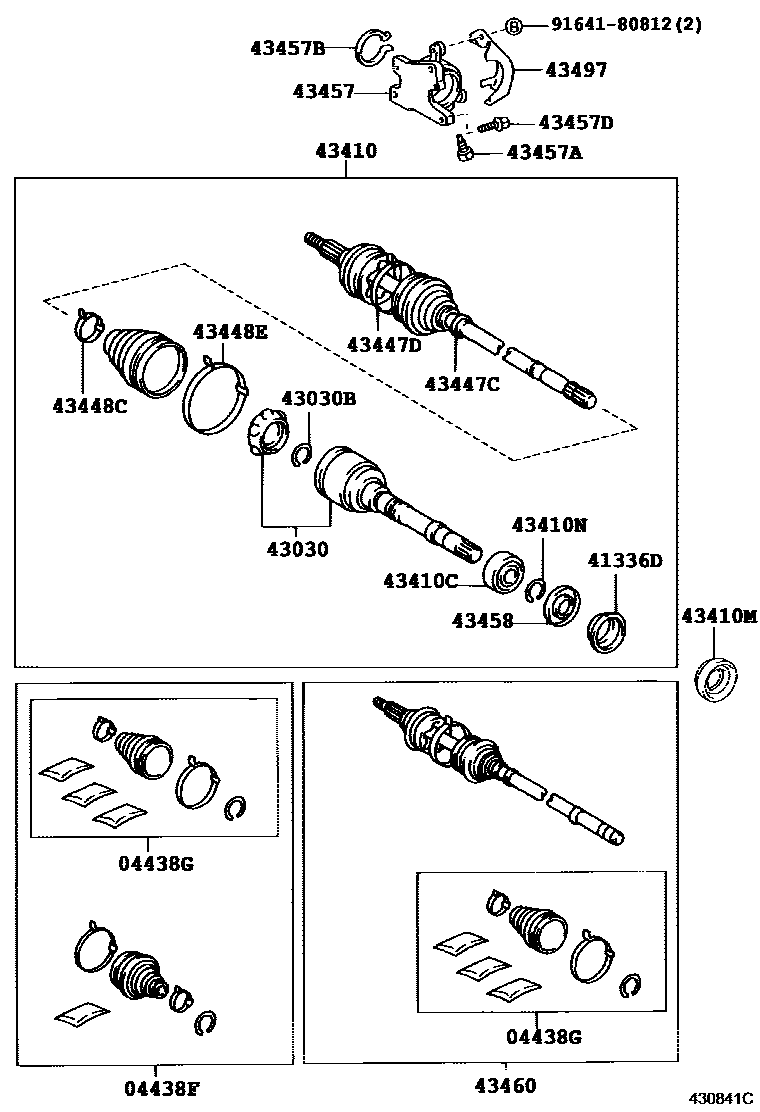

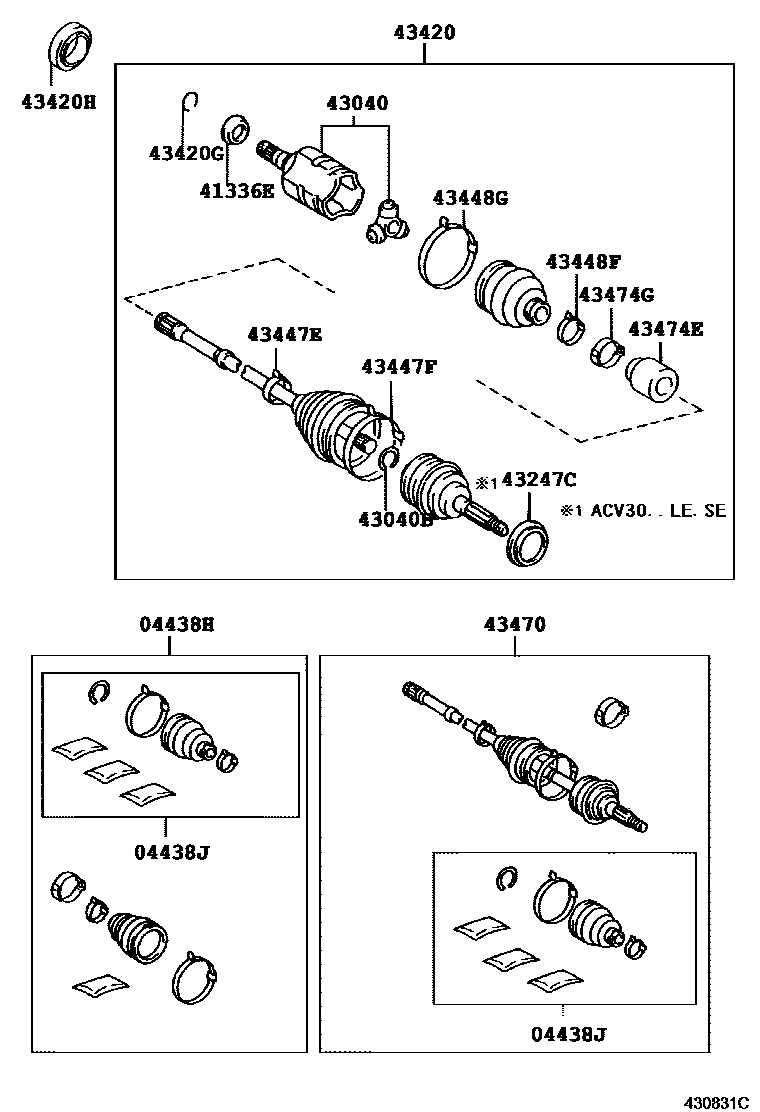

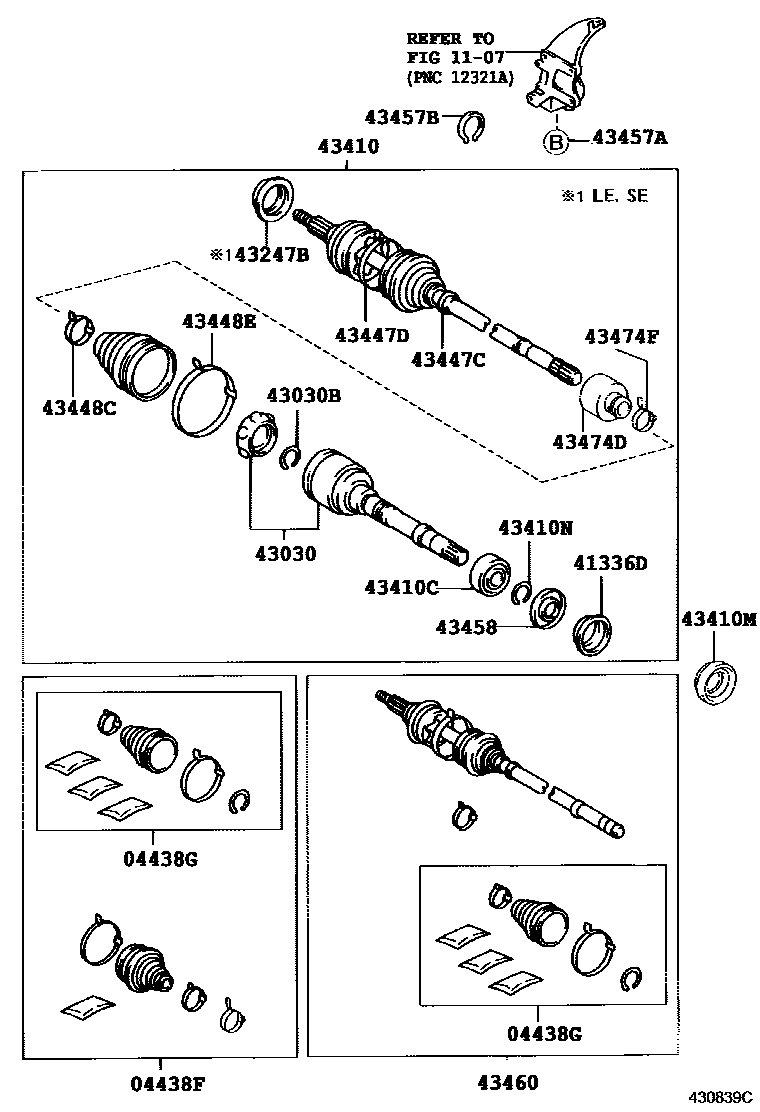

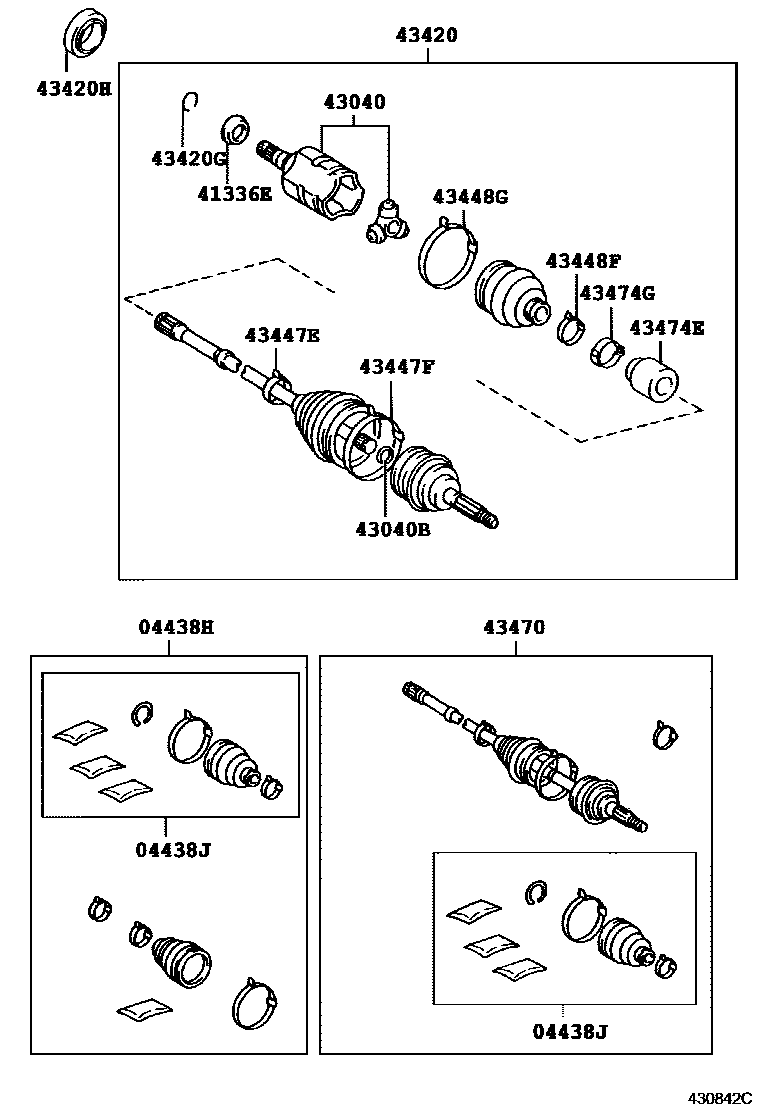

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 7 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-06120 · 04438-06130 · 04438-06140 · 04438-08080 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-06110 · 04438-07010 · 04438-08010 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-06120 · 04438-06130 · 04438-06140 · 04438-07050 · 04438-0E010 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06110 · 04438-07010 · 04438-08020 |
| 41336D | Right front driveshaft dust cover | 41336-06020 |
| 41336E | Left front driveshaft dust cover | 41336-06060 · 41336-07010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-07010 · 43030-0W010 · 43030-0W020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-08040 · 90080-52118 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-07010 · 43040-0E020 · 43040-0W010 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 43425-08040 · 90080-52118 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-06040 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-06040 |
| 43410 | Right front driveshaft assembly | 43410-0W061 · 43410-0W071 · 43410-0W081 · 43410-0W091 · 43410-0W100 · 43410-0W110 · 43410-0W140 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40010 · 90311-40025 · 90311-40026 · 90311-40028 · 90311-40029 · 90311-40030 · 90311-40031 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 |
| 43420 | Left front drive shaft assembly | 43420-0W061 · 43420-0W071 · 43420-0W080 · 43420-0W090 · 43420-0W101 · 43420-0W110 · 43420-0W140 · 43420-0W150 · 43420-0W160 · 43420-0W170 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90080-31069 · 90311-50011 · 90311-50023 · 90311-50024 · 90311-50028 · 90311-50029 · 90311-50031 · 90311-50033 · 90311-50035 · 90311-50037 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-04030 · 42345-06090 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-04040 · 42345-06040 · 42345-06080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-04030 · 42345-06090 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-04040 · 42345-06040 · 42345-06080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-07020 · 42345-08070 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-07010 · 42345-08060 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-07020 · 42345-08070 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-07010 · 42345-08060 |
| 43457 | drive shaft bearing bracket | 43457-33010 · 43457-33020 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06020 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09130 · 43460-09A70 · 43470-09A01 · 43470-09A02 · 43470-09A04 · 43470-09A05 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09A01 · 43470-09A02 · 43470-09A03 · 43470-09A04 · 43470-09A05 · 43470-09B80 |
| 43474D | Right front driveshaft shock absorber | 43474-06011 |
| 43474E | Left front driveshaft shock absorber | 43474-06011 · 43474-06020 · 43474-06050 · 43474-06060 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06100 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06100 |
| 43497 | Bearing bracket heat insulation pad | 43497-33010 |
