Toyota CAMRY 车轮和车轮盖 — Figure 4103

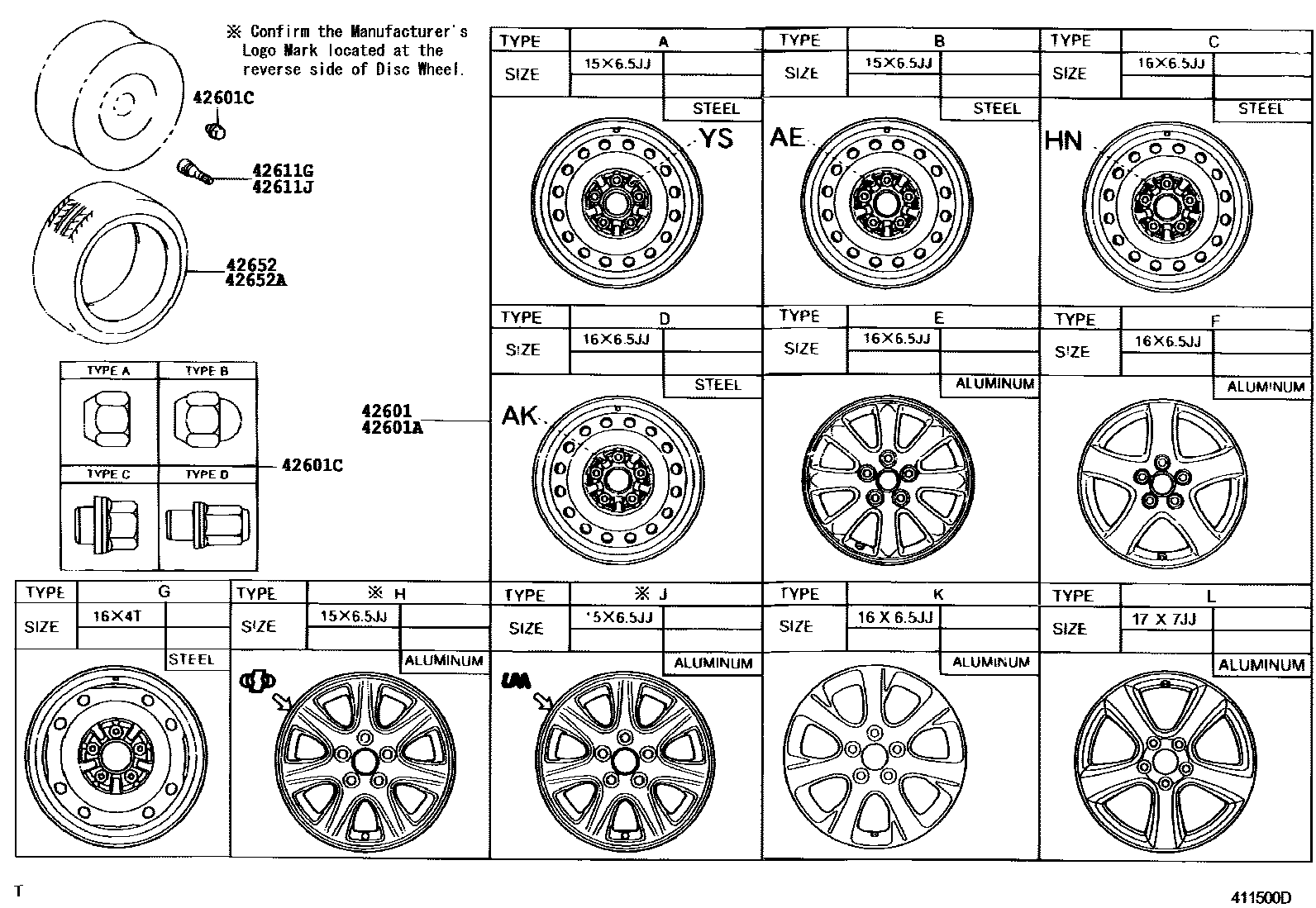

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-28420 · 42611-28430 · 42611-2A080 · 42611-33310 · 42611-33320 · 42611-33330 · 42611-33340 · 42611-33350 · 42611-33360 · 42611-33410 |
| 42601A | Spoke wheel (for spare tire) | 42611-28250 · 42611-28420 · 42611-28430 · 42611-33310 · 42611-33320 · 42611-33410 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01058 |

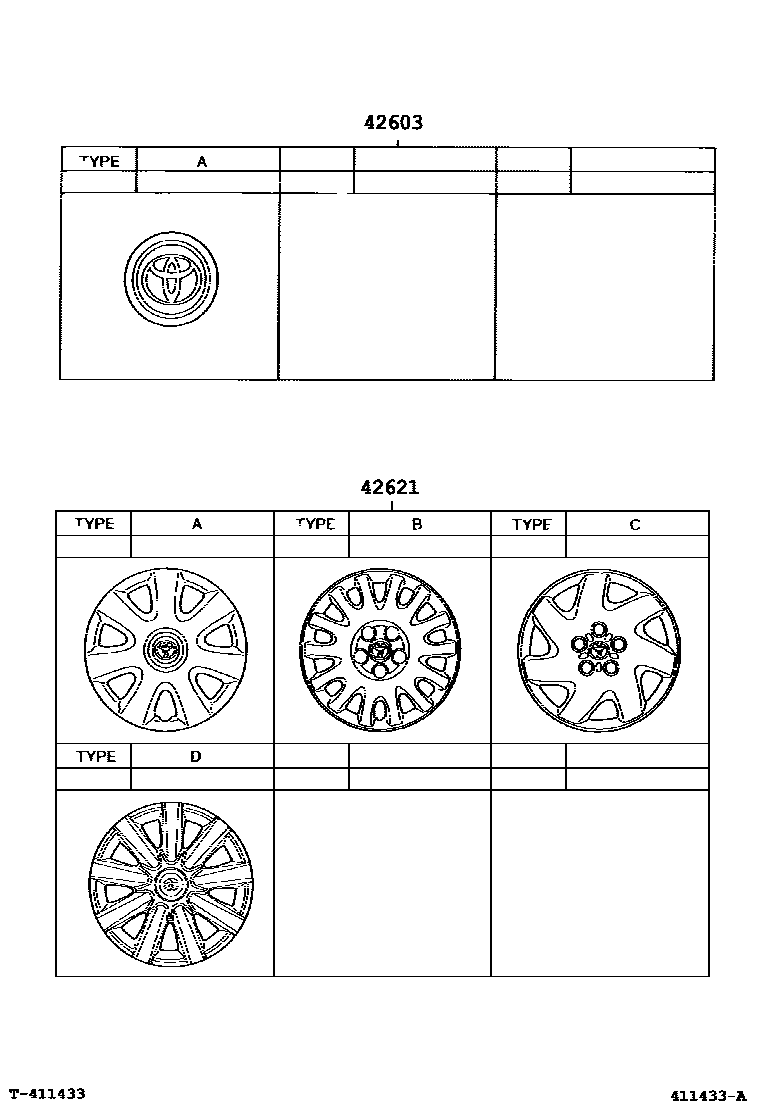

| 42603 | Wheel hub decorative parts sub-assembly | 42603-33090 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-33050 · 42602-33060 · 42602-33070 · 42602-33090 |
| 42652 | tires | 42652-07050 · 42652-33411 · 42652-33431 · 42652-33570 |
| 42652A | Tire (for Spare Wheel) | 42652-33411 · 42652-33431 · 42652-33570 |
