Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

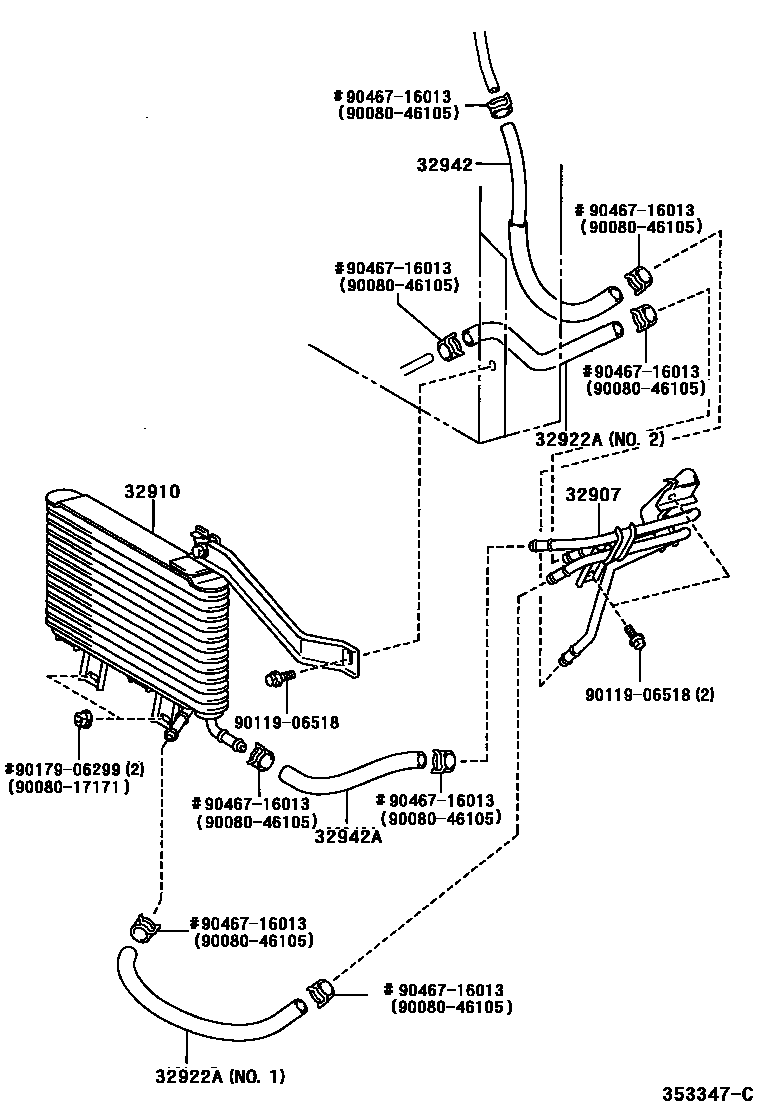

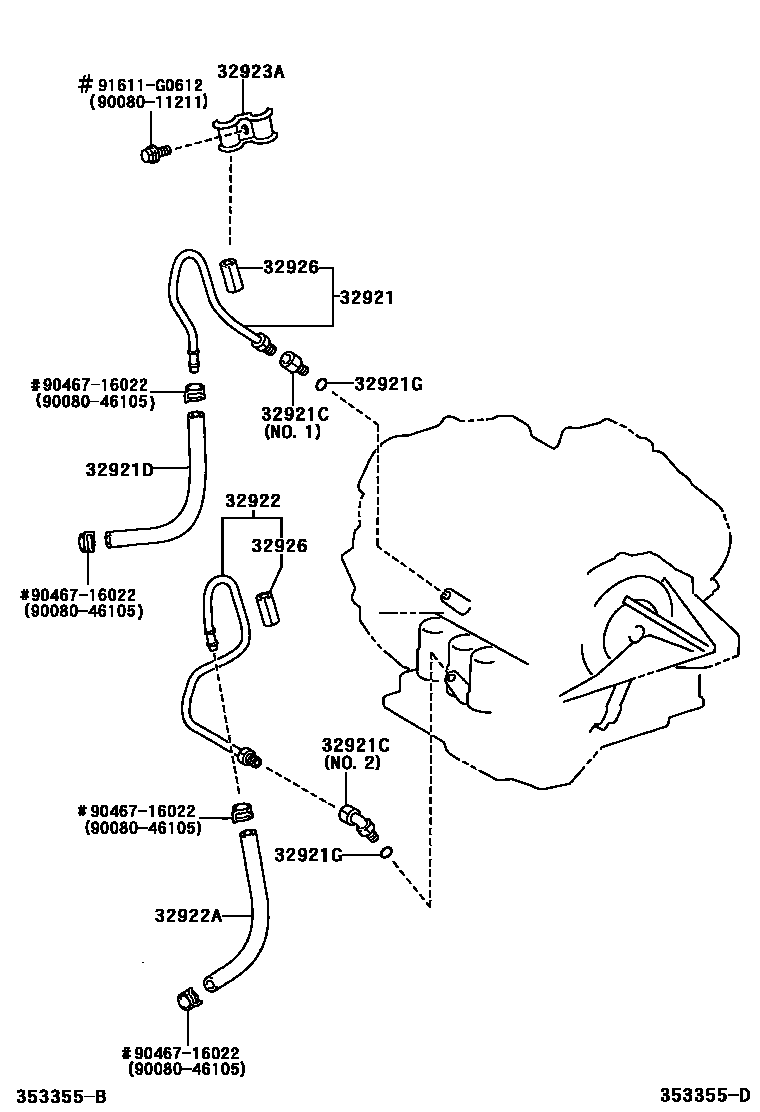

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907 | No. 2 transmission oil cooler oil outlet pipe sub-assembly | 32907-33130 |
| 32910 | Oil cooler assembly | 32910-33070 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-33100 · 32921-33110 · 32921-33120 · 32921-33140 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16031 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-33050 · 90445-17124 · 90445-17155 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-33080 · 32922-33090 · 32922-33130 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32942-33030 · 32943-33090 · 90445-17115 · 90445-17124 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-33020 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-17110 |
