Toyota CAMRY Alternator — Figure 1903

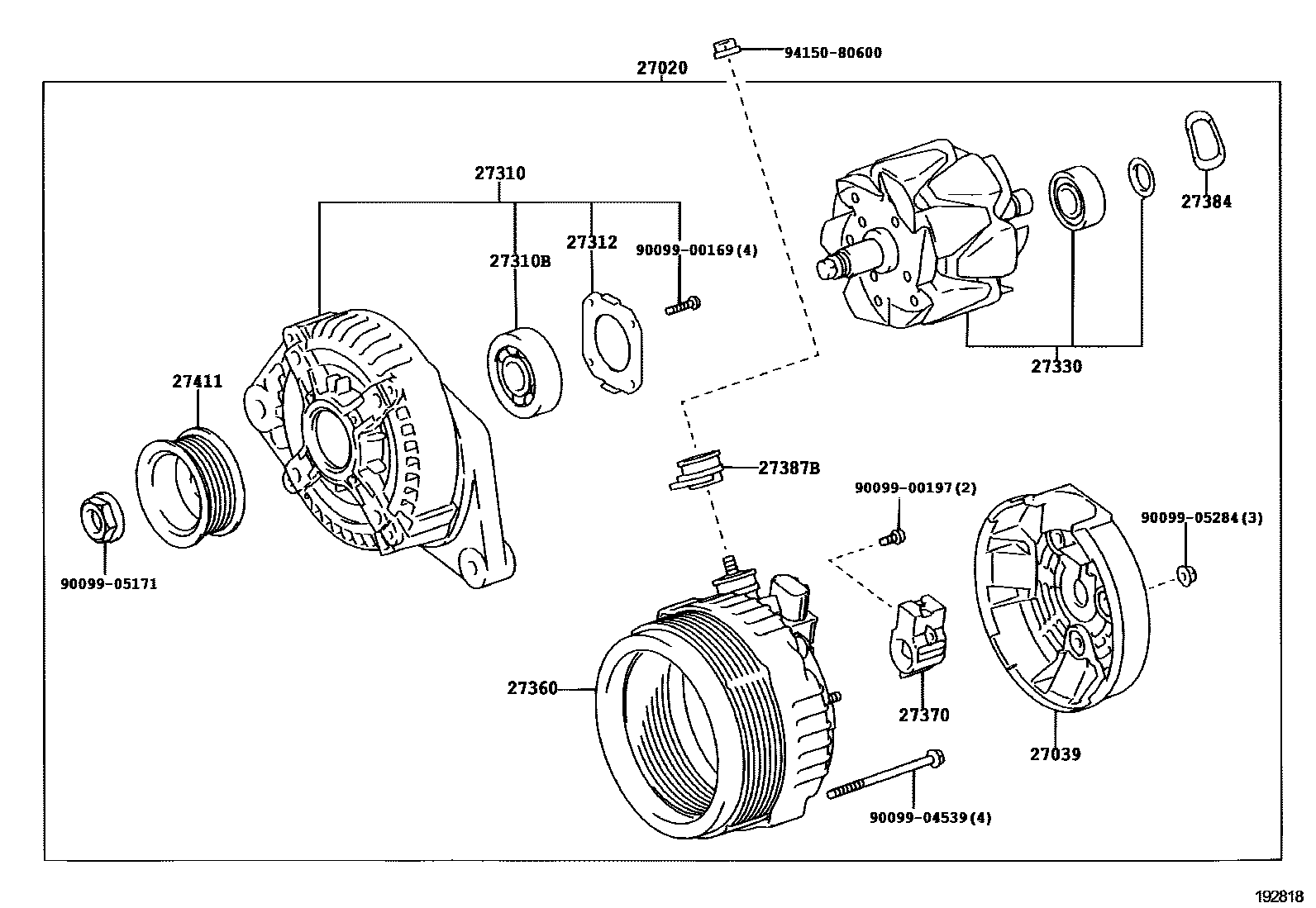

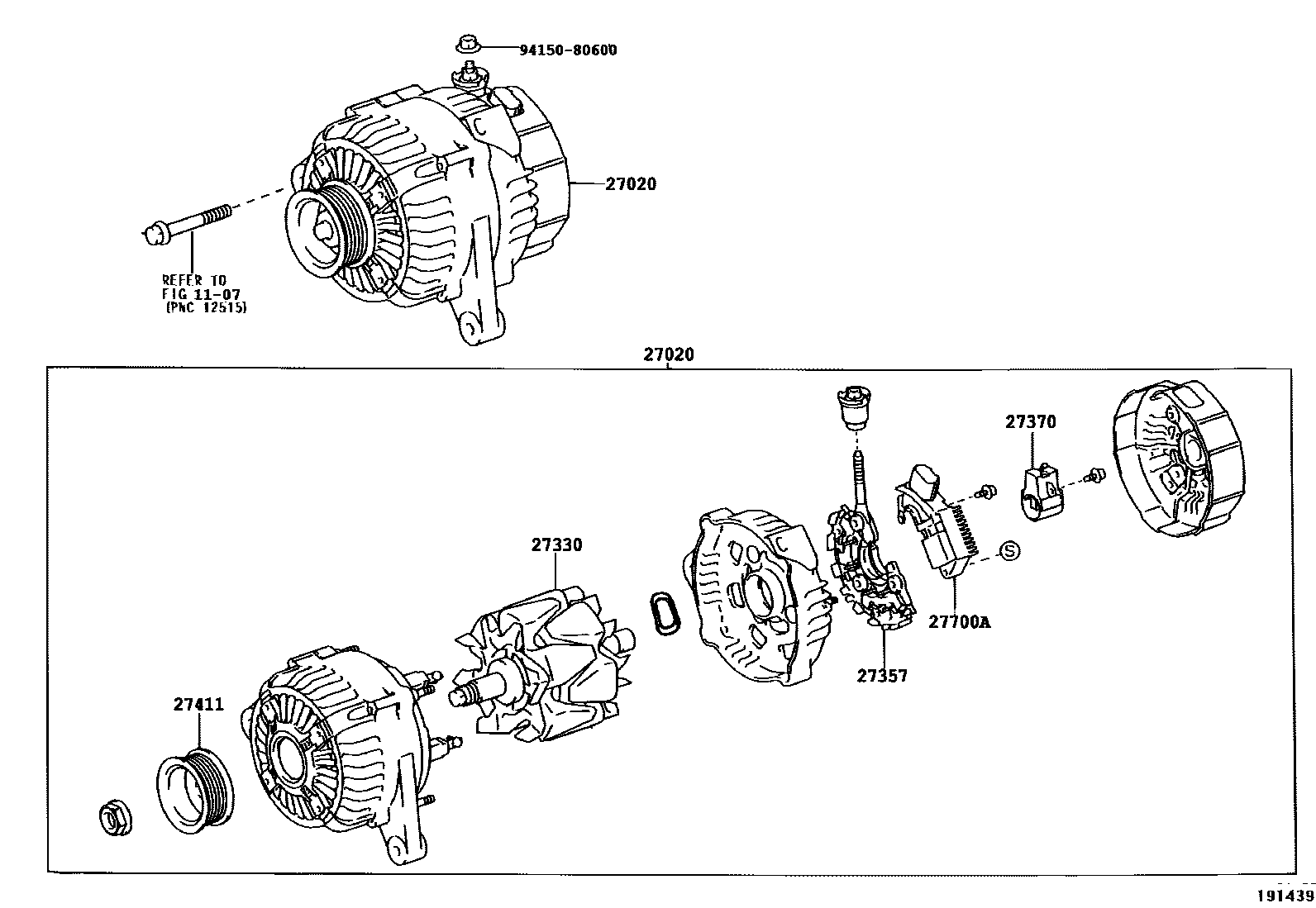

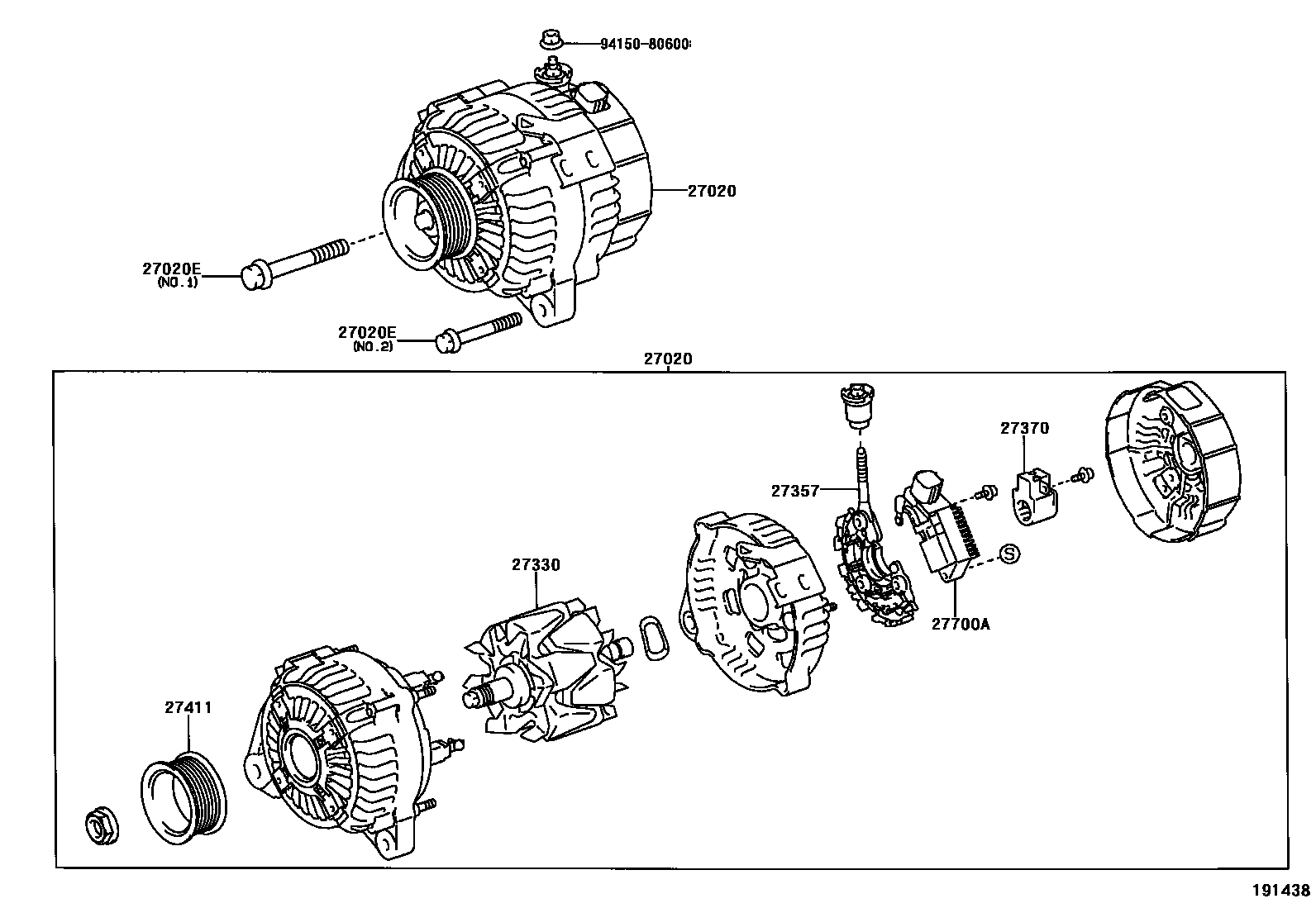

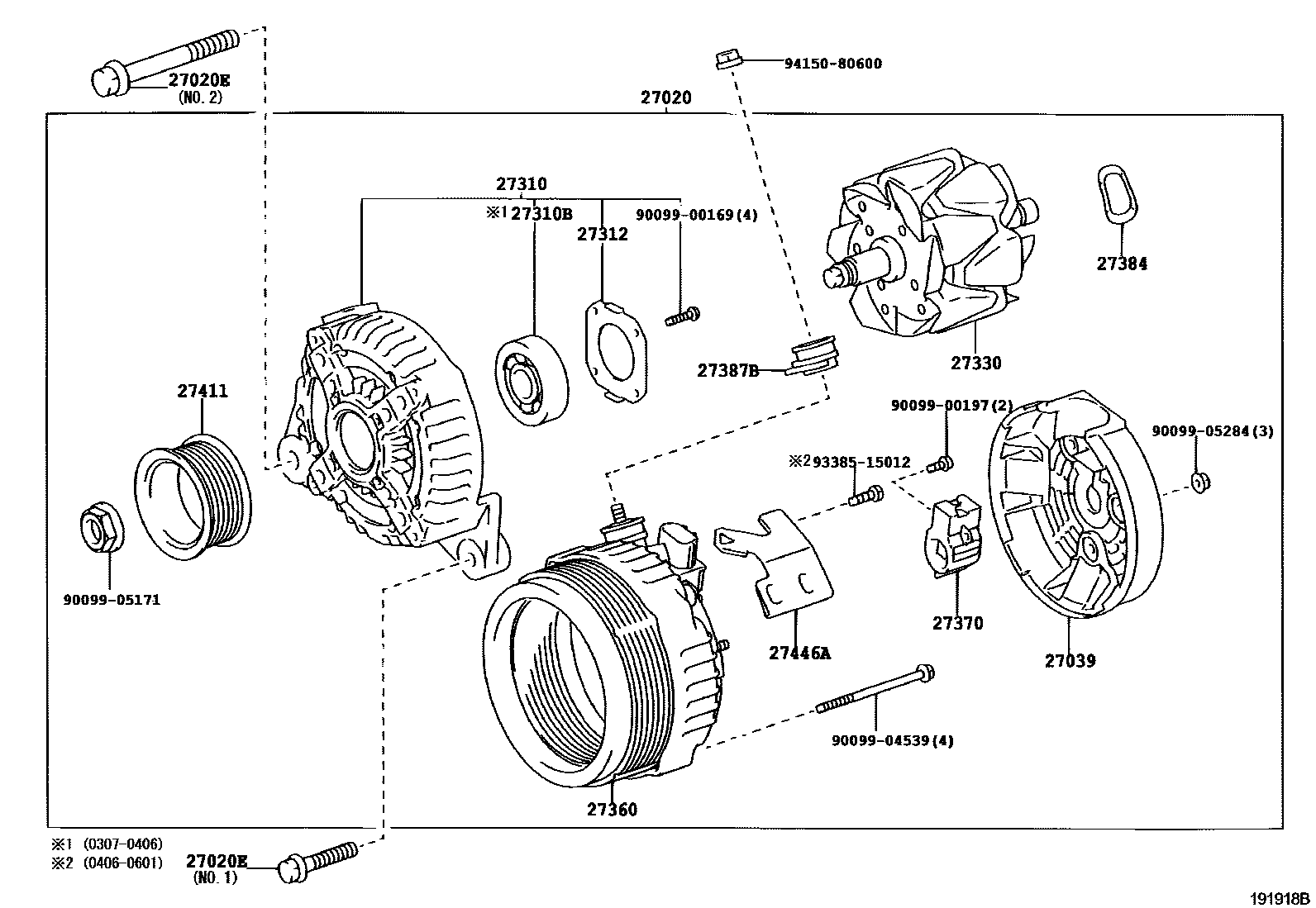

Toyota CAMRY EPC diagram 1903, Alternator, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-20230 · 27060-20270 · 27060-20310 · 27060-28170 · 27060-28270 |
| 27020E | Bolts (for generator) | 91511-J0840 · 91512-81085 |
| 27039 | Alternator Rear End Cover | 27039-27060 |
| 27310 | Alternator Drive End Frame Assembly | 27310-20130 · 27310-28120 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-23130 · 27330-28050 · 27330-30070 · 27330-74550 |
| 27357 | Generator rectifier frame | 27357-22050 · 27357-70450 |
| 27360 | Alternator Stator Coil Assembly | 27360-20270 · 27360-28210 |
| 27370 | Alternator Brush Holder Assembly | 27370-58460 · 27370-75060 |
| 27384 | Washer | 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27411 | Alternator Pulley | 27411-28060 · 27411-28090 · 27411-46080 |
| 27446A | card holder | 27446-28120 |
| 27700A | Generator voltage regulator assembly | 27700-20050 |
