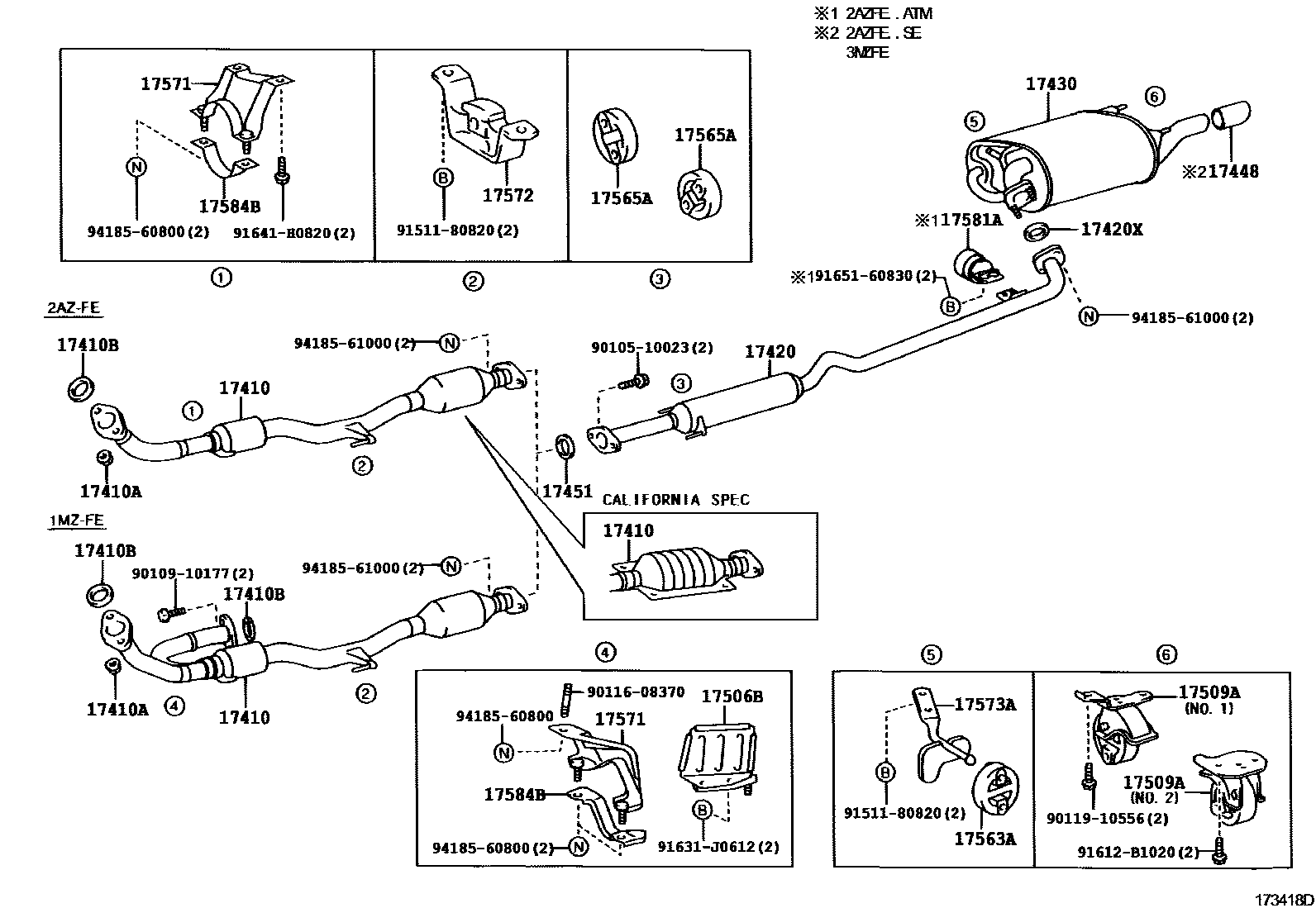

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0A420 · 17410-0H150 · 17410-20420 · 17410-20460 · 17410-28290 · 17410-28291 · 17410-28320 · 17410-28450 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06089 · 90917-06090 |
| 17420 | Central exhaust pipe assembly | 17420-20300 · 17420-20380 · 17420-28120 · 17420-28220 · 17420-28320 |
| 17420X | Center exhaust pipe liner | 90917-06078 |
| 17430 | Exhaust tailpipe assembly | 17430-20140 · 17430-28230 · 17430-28240 · 17430-28360 · 17430-28410 · 17430-28500 · 17430-28510 · 17440-20190 · 17440-20200 |
| 17448 | Exhaust pipe tail throat | 17408-46020 · 17408-74080 |
| 17451 | Exhaust pipe gasket | 90917-06057 · 90917-06076 |
| 17506B | Exhaust pipe bracket sub-assembly | 17506-20061 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-20060 · 17509-20070 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-20060 · 17565-46010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-11160 |
| 17571 | No. 1 exhaust pipe bracket | 17571-20150 · 17571-28080 |
| 17572 | No. 1 exhaust pipe bracket | 17572-28020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-28010 |
| 17581A | Exhaust pipe damper | 17581-74070 |
| 17584B | No. 1 exhaust pipe bracket | 17584-20010 · 17584-28020 |
