Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 2 PNC and OE references.

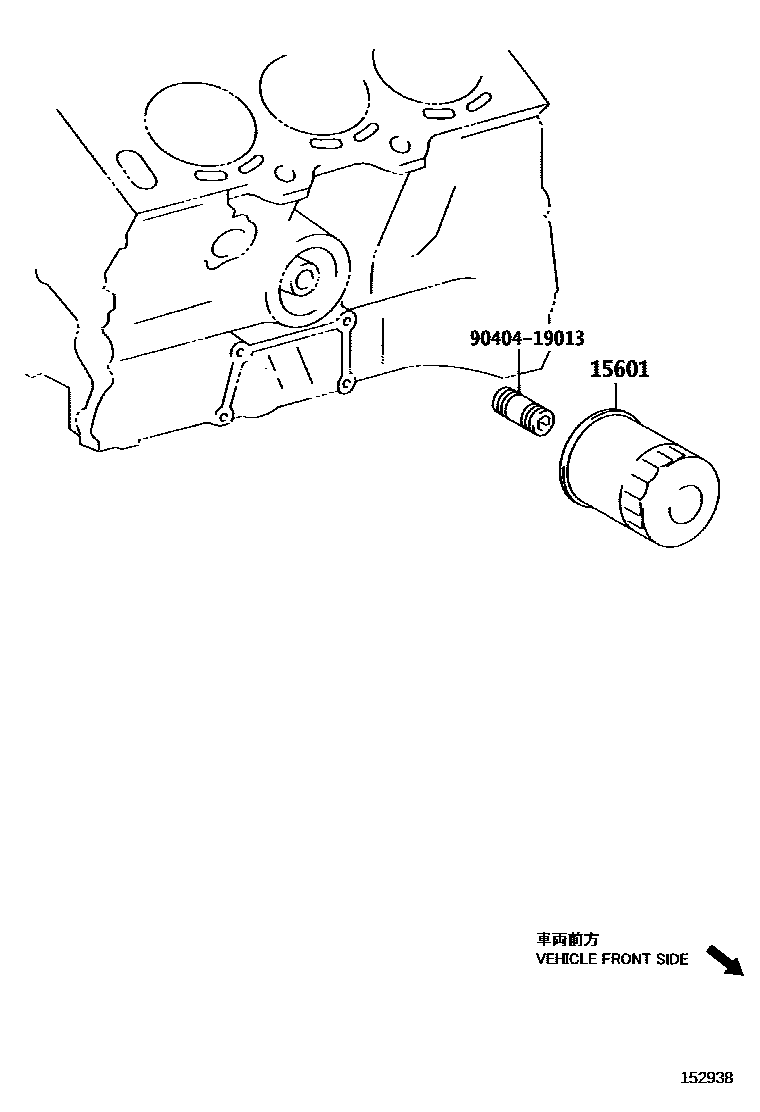

Toyota CAMRY Oil Filter EPC diagram — 152938
Oil Filter — 152938 (200107 – 999999)
Toyota CAMRY Oil Filter EPC diagram — 152949
Oil Filter — 152949 (200107 – 999999)

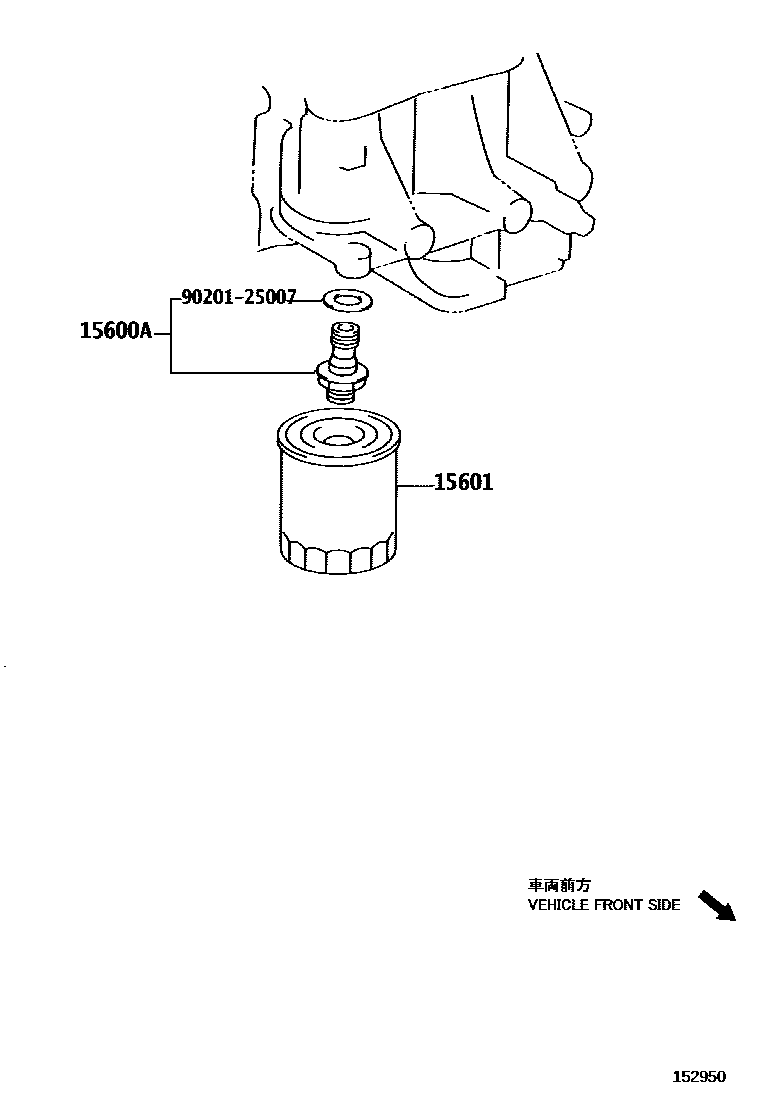

Toyota CAMRY Oil Filter EPC diagram — 152950
Oil Filter — 152950 (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)15695-28010 · 90904-04006
15601Oil filter sub-assembly90080-91210 · 90915-10004 · 90915-20003 · 90915-TA002
