Toyota CAMRY Cylinder Head — Figure 1104

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 4 images and 47 PNC and OE references.

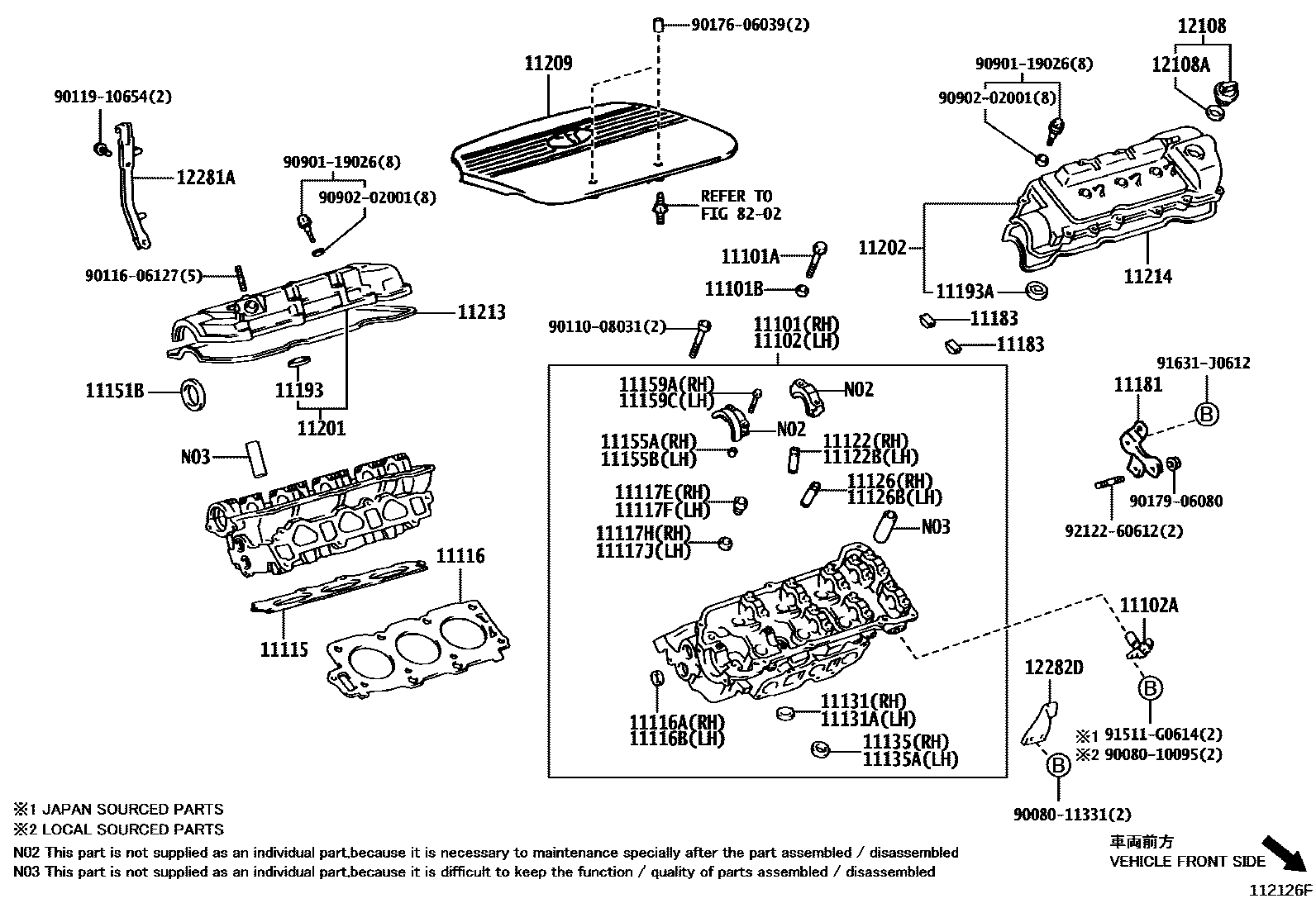

Toyota CAMRY Cylinder Head EPC diagram — 112126F
Cylinder Head — 112126F (200107 – 200301)

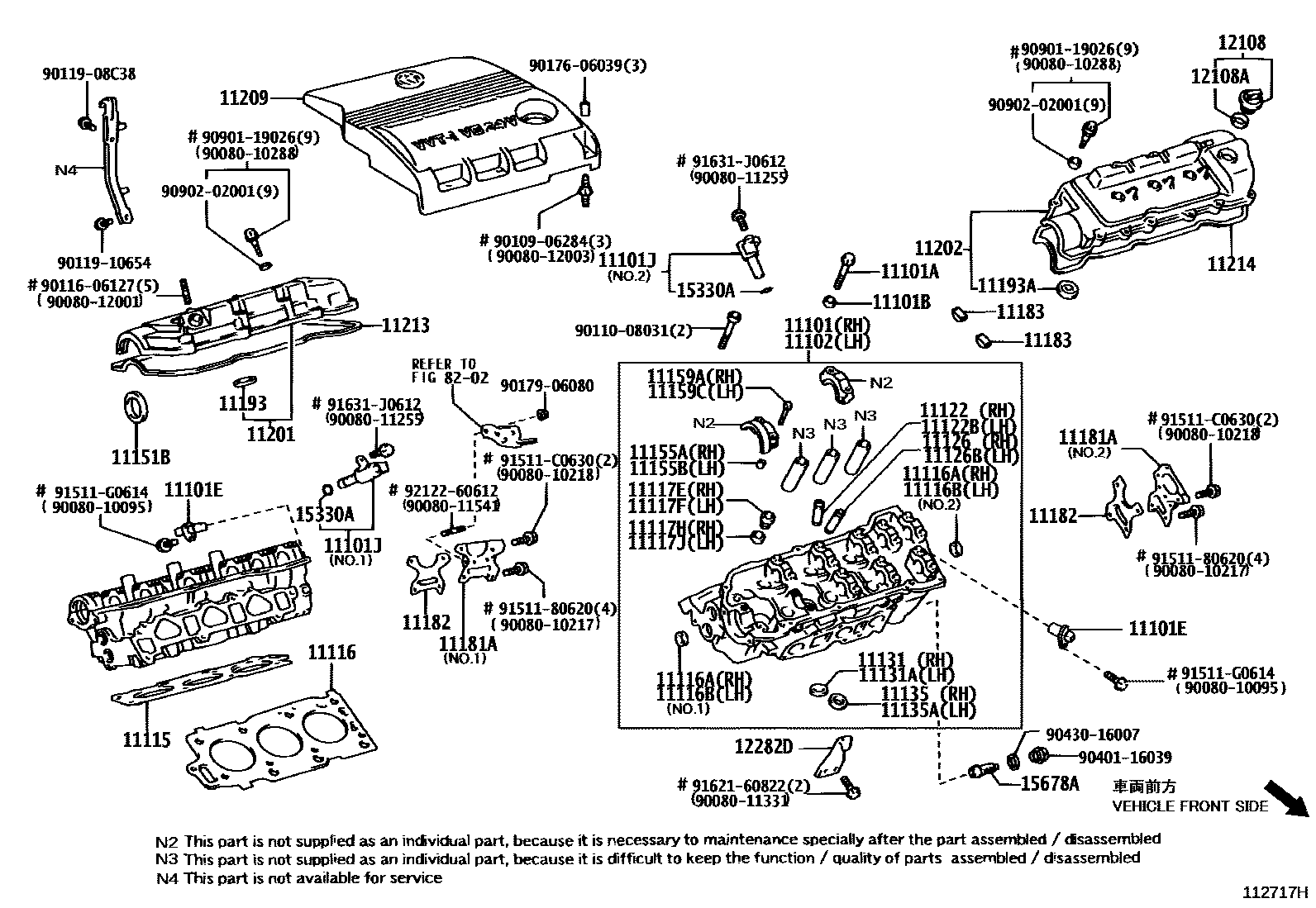

Toyota CAMRY Cylinder Head EPC diagram — 112717H
Cylinder Head — 112717H (200301 – 200406)

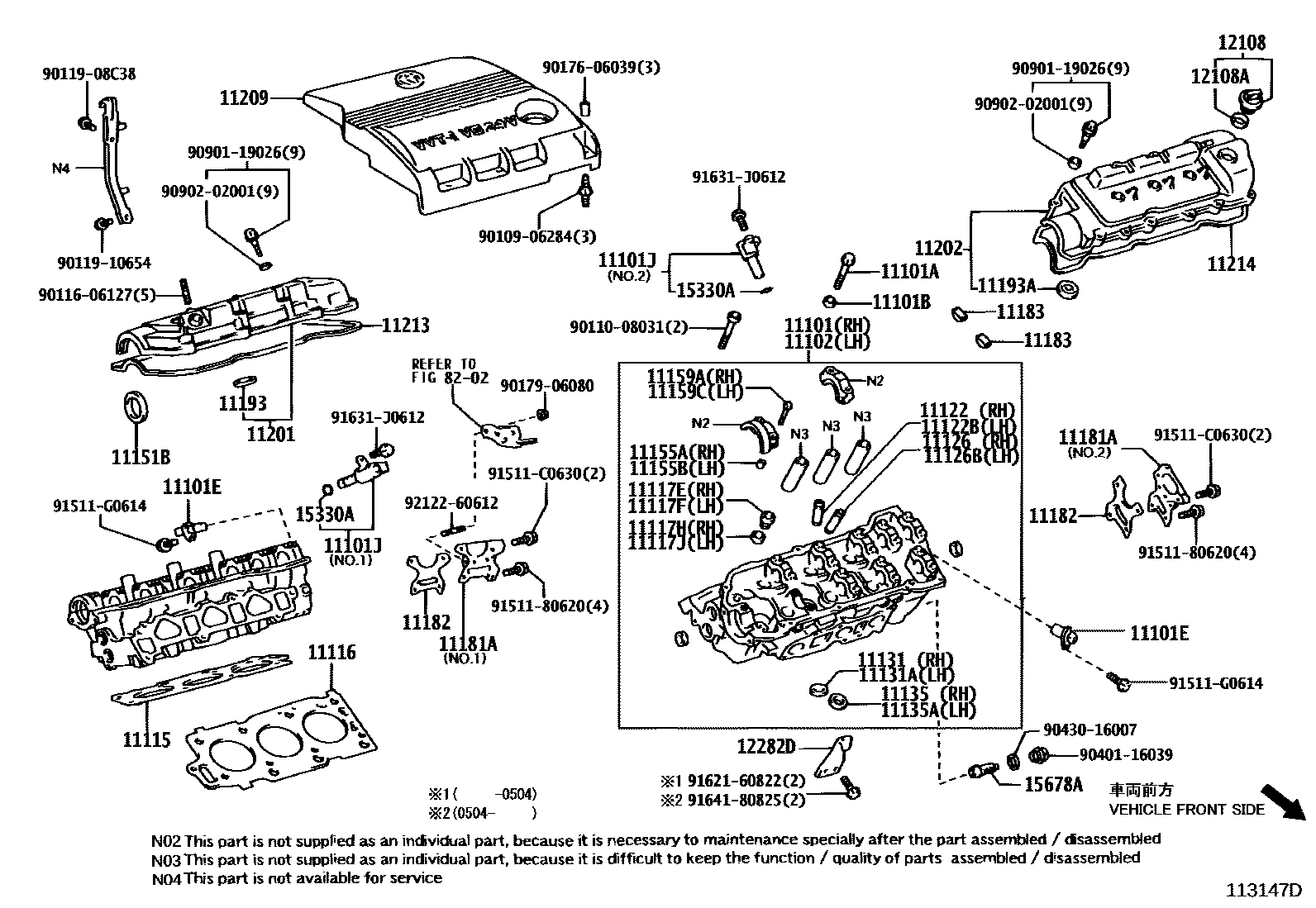

Toyota CAMRY Cylinder Head EPC diagram — 113147D
Cylinder Head — 113147D (200406 – 999999)

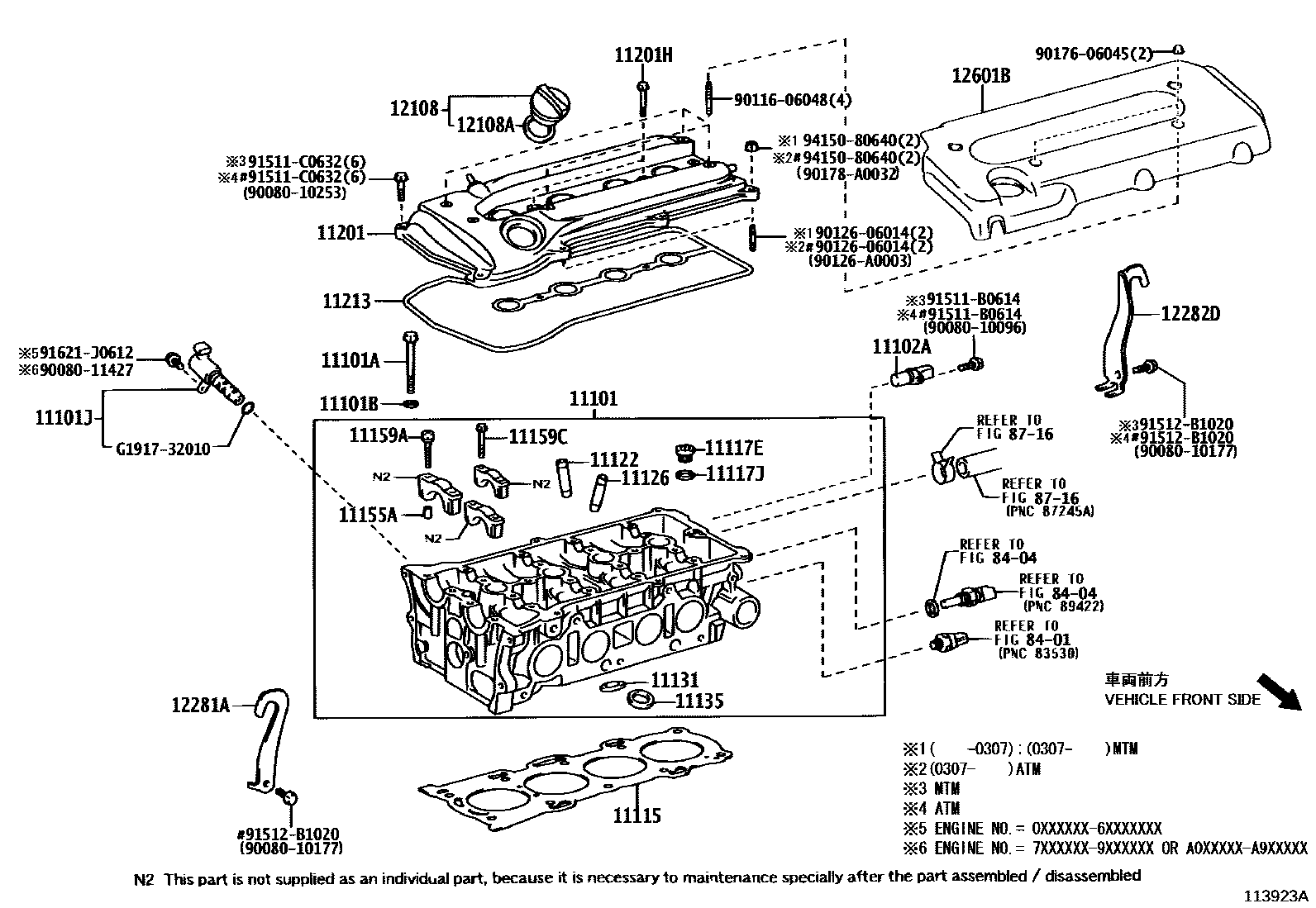

Toyota CAMRY Cylinder Head EPC diagram — 113923A
Cylinder Head — 113923A (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-09074 · 11101-09132 · 11101-0H010 · 11101-0H011 · 11101-28011 · 11101-28012 · 11101-29409 · 11101-29438 · 11101-29485
11101ABOLT (FOR CYLINDER HEAD)90910-02117 · 90910-02141
11101BFlat Washer (for cylinder head assembly)90201-11031 · 90201-11033 · 90201-11034
11101ECam position sensor90080-19014 · 90919-05026
11101JCamshaft timing oil control valve assembly15330-20010 · 15330-20011 · 15330-28020 · 15340-20010 · 15340-20011
11102left cylinder head11102-09013 · 11102-09032 · 11102-29039 · 11102-29058 · 11102-29075
11102ACamshaft position sensor90080-19014 · 90919-05013 · 90919-05026
11115GASKET, CYLINDER HEAD11115-20030 · 11115-20032 · 11115-20041 · 11115-20050 · 11115-20051 · 11115-28011 · 11115-28012 · 11115-28013 · 11115-28040
11116No. 2 cylinder head gasket11116-20030 · 11116-20032 · 11116-20041 · 11116-20050 · 11116-20051
11116ANo. 1 sealing plug96411-63000
11116BNo. 2 sealing plug96411-63000
11117EPLUG, STRAIGHT SCREW W/HEAD, NO.190341-24013 · 90341-27006
11117FNo. 2 headed straight thread plug90341-24013
11117HGasket (for coolant hole)90430-24246
11117JGasket (for cylinder head thread plug)90430-24246 · 90430-27005
11122BUSH, INTAKE VALVE GUIDE11122-20020 · 11122-28010 · 11123-20020 · 11123-28010
11122BNo. 2 intake valve guide bushing11122-20020 · 11123-20020
11126BUSH, EXHAUST VALVE GUIDE11126-20020 · 11127-20020
11126BNo. 2 exhaust valve guide bushing11126-20020 · 11127-20020
11131intake valve seat11131-0H020 · 11131-28021 · 11131-62030 · 11131-62050 · 11132-0H020 · 11132-28021 · 11132-62030 · 11132-62050
11131ANo. 2 intake valve seat11131-62030 · 11131-62050 · 11132-62030 · 11132-62050
11135Exhaust valve seat11135-0H020 · 11135-20040 · 11135-28030 · 11135-28040 · 11136-0H020 · 11136-20040 · 11136-28030 · 11136-28040
11135ANo. 2 exhaust valve seat11135-20040 · 11136-20040
11151BOIL SEAL (FOR CAMSHAFT SETTING)90080-31035 · 90311-38034
11155APIN, RING W/HEAD90253-10004 · 90253-11021
11155BPIN, RING90253-10004
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-10210 · 90105-08353 · 90119-07009
11159CBOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90080-11292 · 90119-06902 · 90119-07009
11181cylinder head rear plate11181-20030
11181Acylinder head rear cover11108-20010 · 11109-20010
11182Rear cylinder head gasket11182-20020
11183PLUG, SEMICIRCULAR11183-0A010 · 11183-20010
11193spark plug bushing gasket11193-0A010 · 11193-70010
11193ALeft spark plug bushing gasket11193-0A010 · 11193-70010
11201CYLINDER HEAD COVER SUB-ASSY11201-0A011 · 11201-0A030 · 11201-0A050 · 11201-0H011 · 11201-20080 · 11201-20100 · 11201-28013 · 11201-28014 · 11201-28031
11201HBolts (for cylinder head cover)90080-11295 · 90119-06903
11202Left cylinder head cover sub-assembly11202-0A021 · 11202-0A050 · 11202-20051
11209V-shaped cylinder head sub-assembly11209-20011 · 11209-20100 · 11209-20140
11213GASKET, CYLINDER HEAD COVER11213-0A010 · 11213-0H010 · 11213-20020 · 11213-20030 · 11213-28021
11214No. 2 cylinder head cover gasket11214-0A010 · 11214-20010 · 11214-20030
12108OIL FILLER CAP SUB-ASSY12180-0H010 · 12180-0H030 · 12180-28020 · 12180-28021 · 12180-46030 · 12180-46031
12108AGASKET (FOR OIL FILLER CAP)12195-20020 · 90080-43025 · 90430-37004
12281AEngine No. 1 hanger12281-0A021 · 12281-28010
12282DENGINE HANGER, NO.212282-20020 · 12282-28010
12601BNo. 1 engine hood sub-assembly12601-28040
15330AO-ring (for camshaft timing oil control valve)90068-14030 · 90099-14137
15678AOil control valve filter15678-20010
