Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 16 images and 2 PNC and OE references.

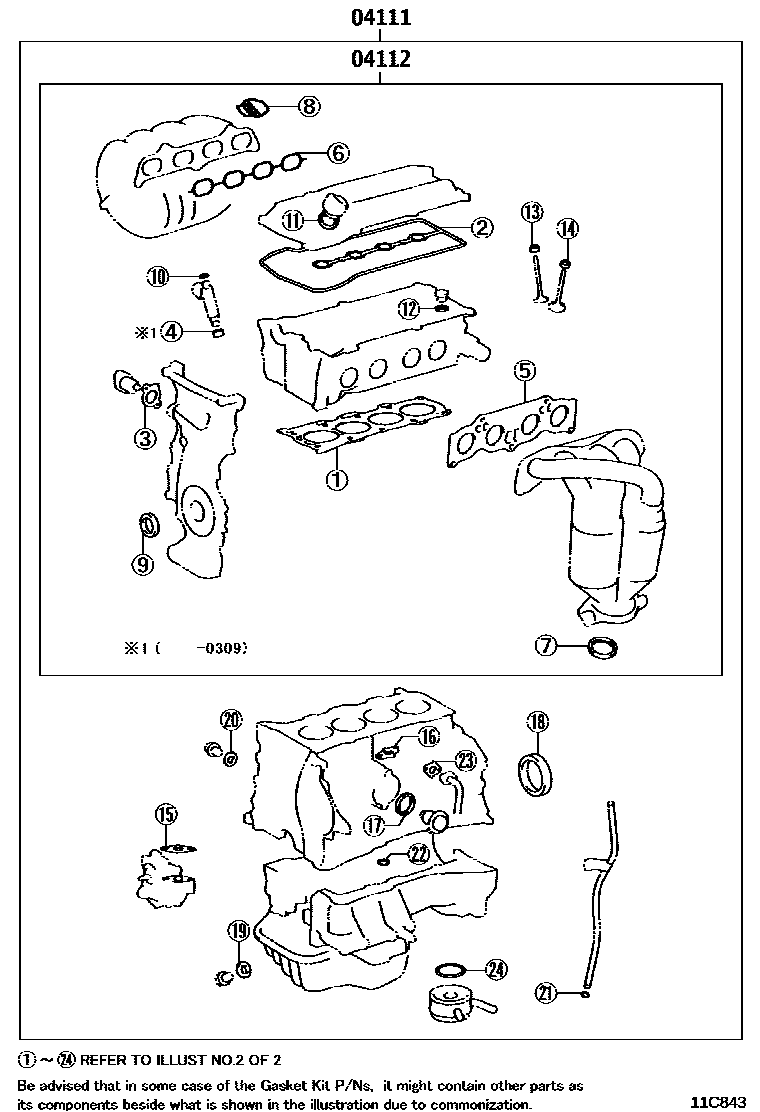

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C843
Engine Overhaul Gasket Kit — 11C843 (200107 – 200601)

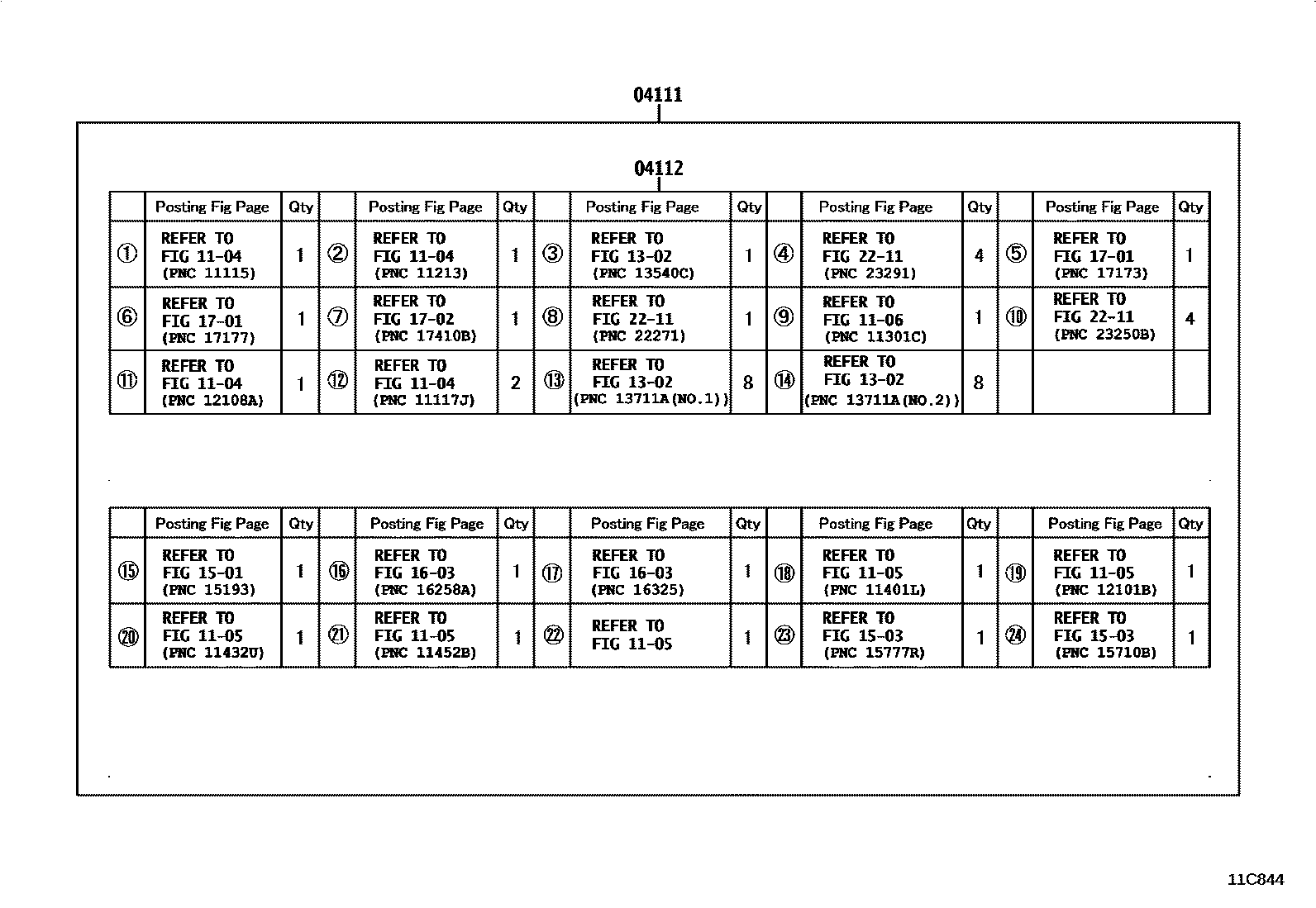

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C844
Engine Overhaul Gasket Kit — 11C844 (200107 – 200601)

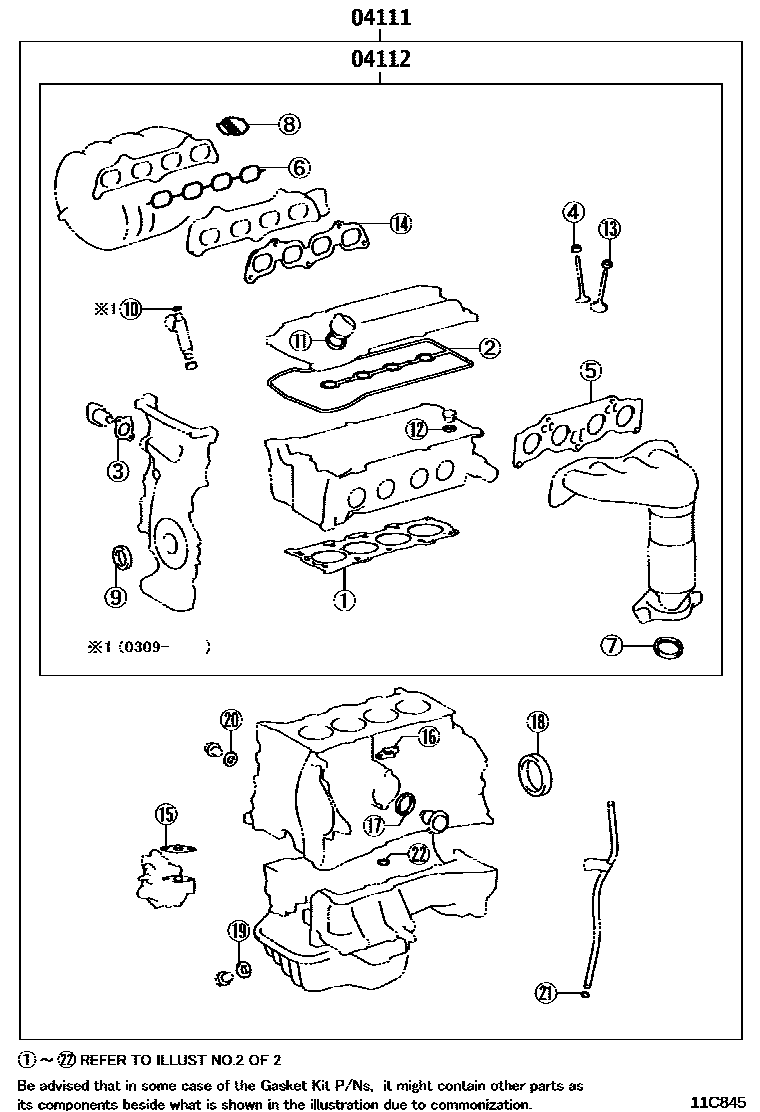

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C845
Engine Overhaul Gasket Kit — 11C845 (200212 – 200601)

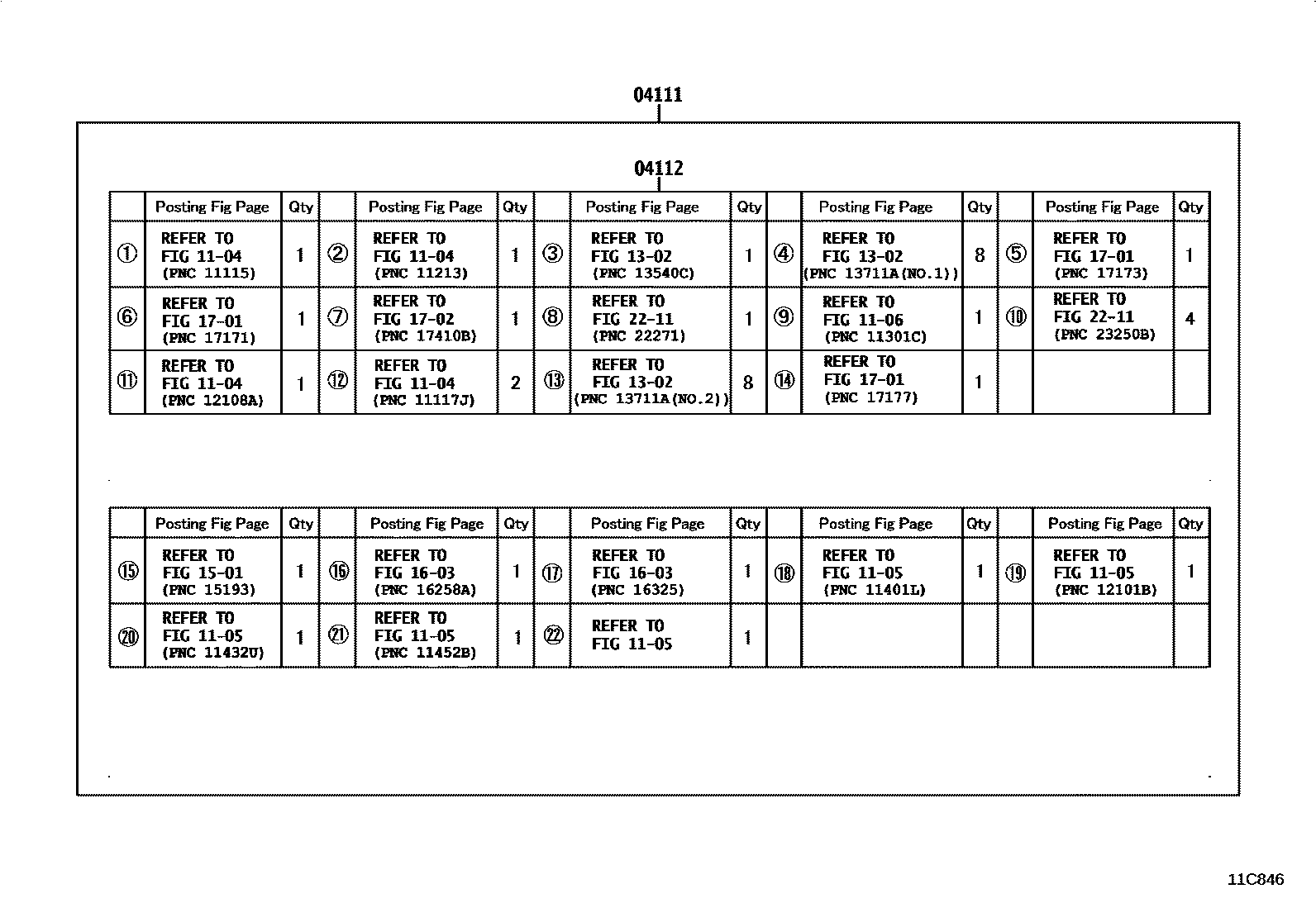

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11C846
Engine Overhaul Gasket Kit — 11C846 (200212 – 200601)

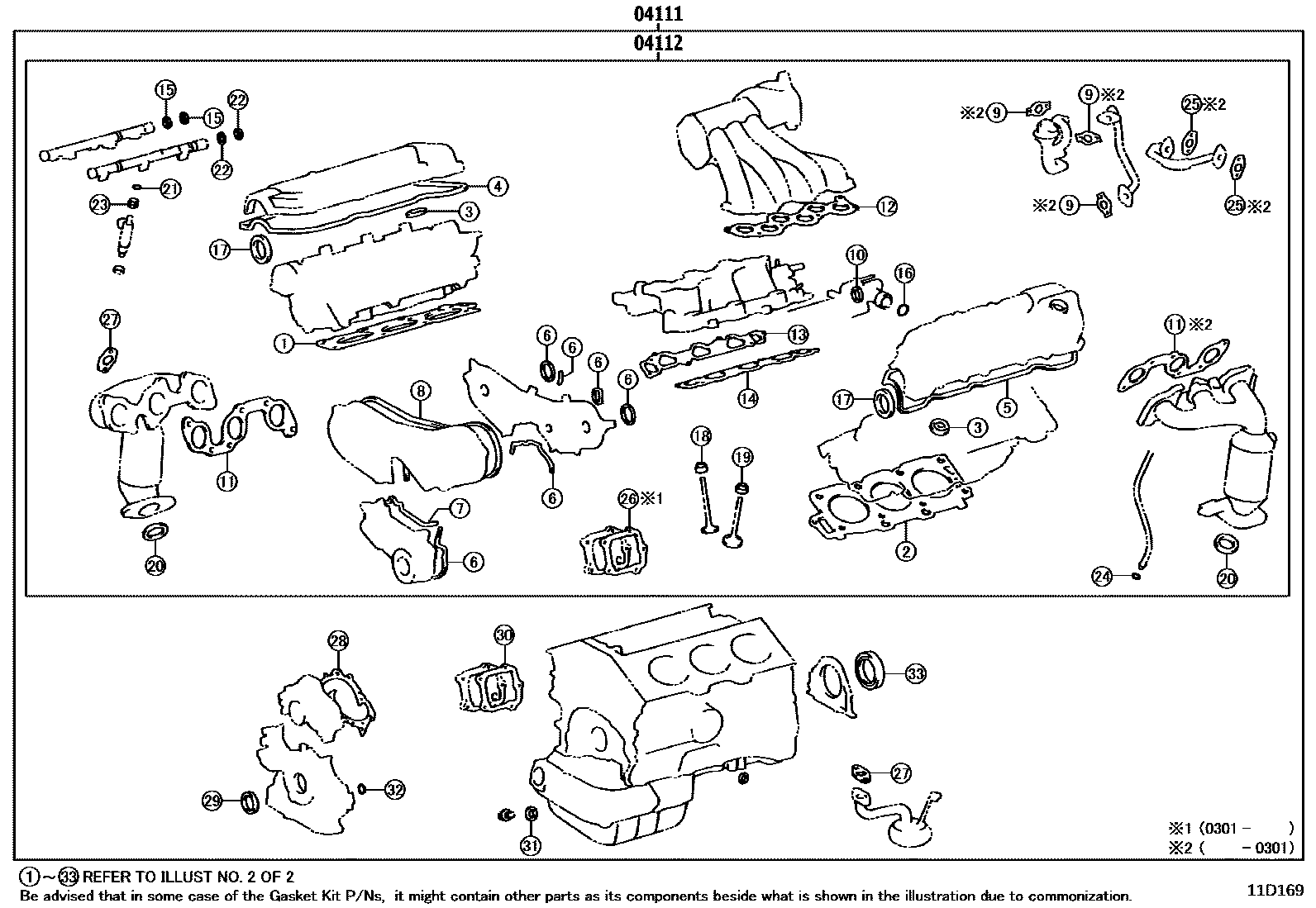

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D169
Engine Overhaul Gasket Kit — 11D169 (200107 – 200309)

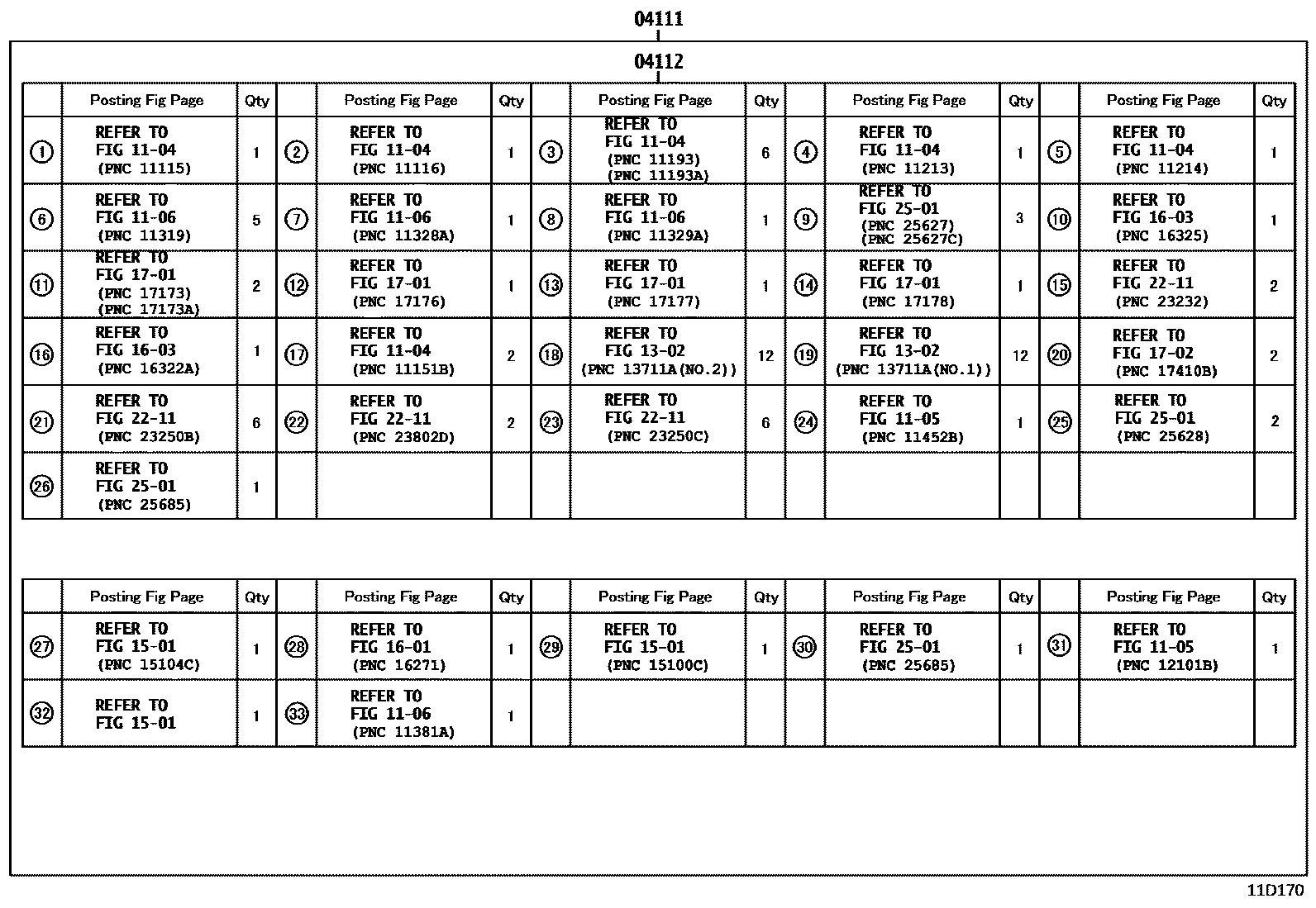

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D170
Engine Overhaul Gasket Kit — 11D170 (200107 – 200309)

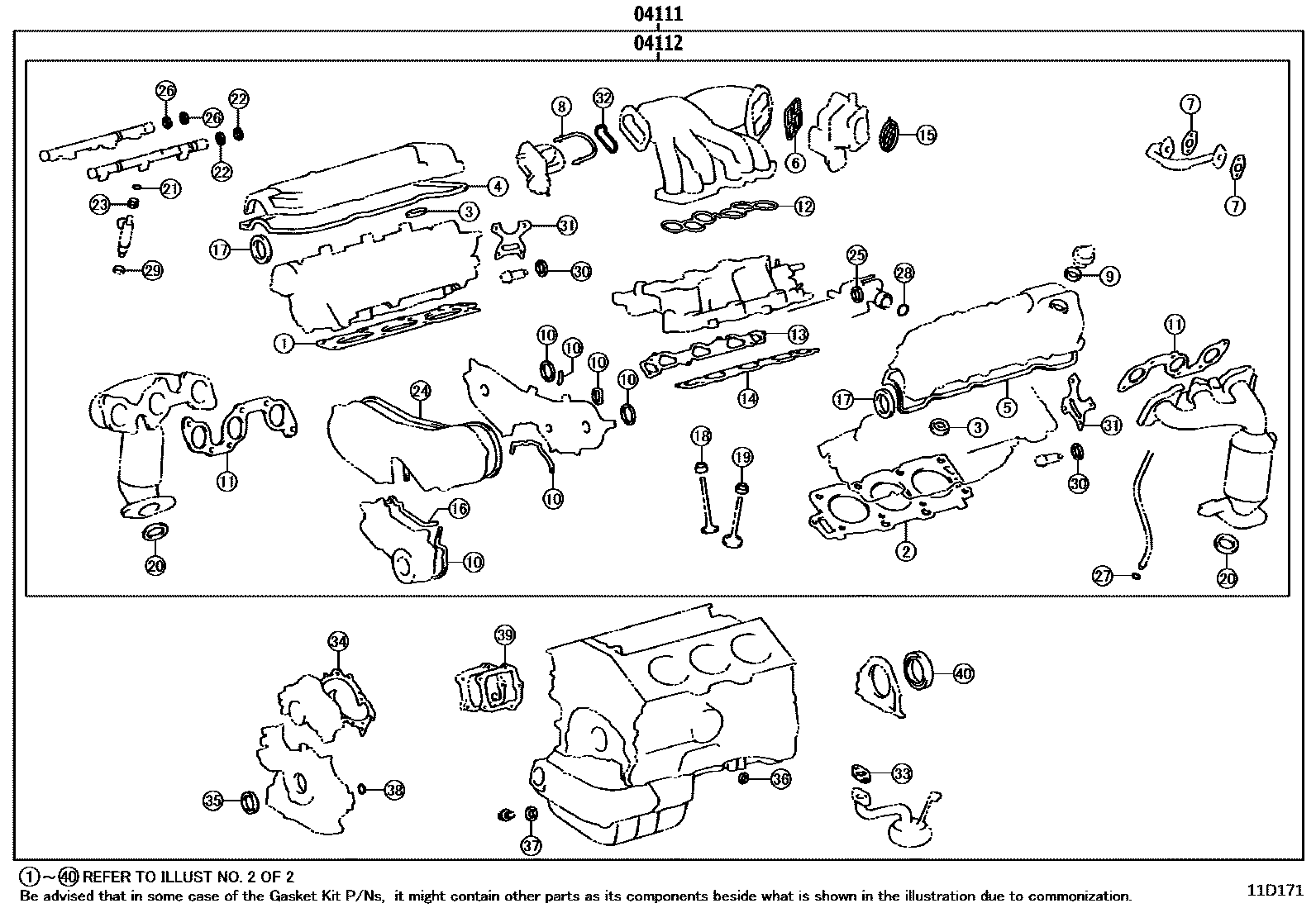

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D171
Engine Overhaul Gasket Kit — 11D171 (200309 – 200406)

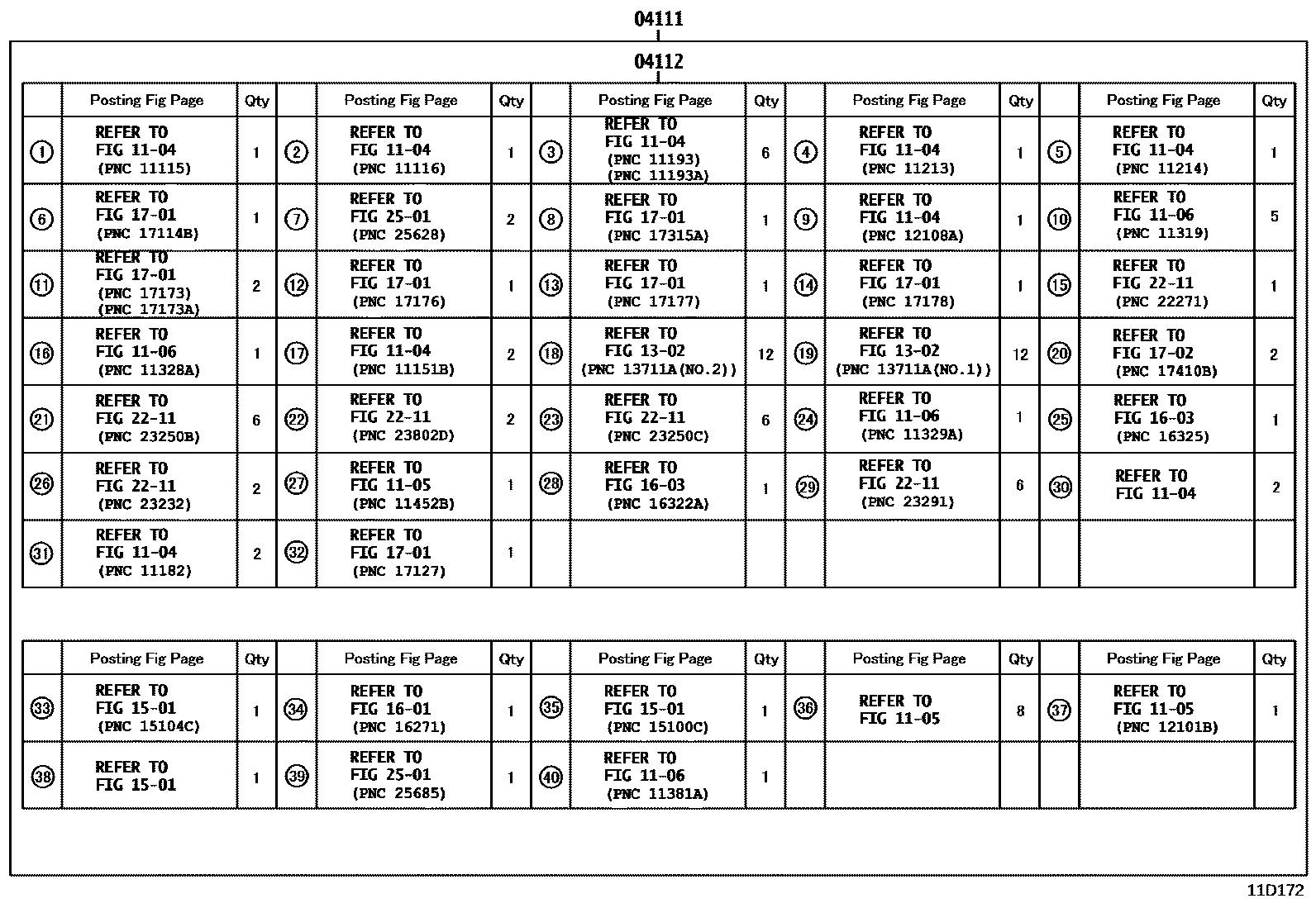

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D172
Engine Overhaul Gasket Kit — 11D172 (200309 – 200406)

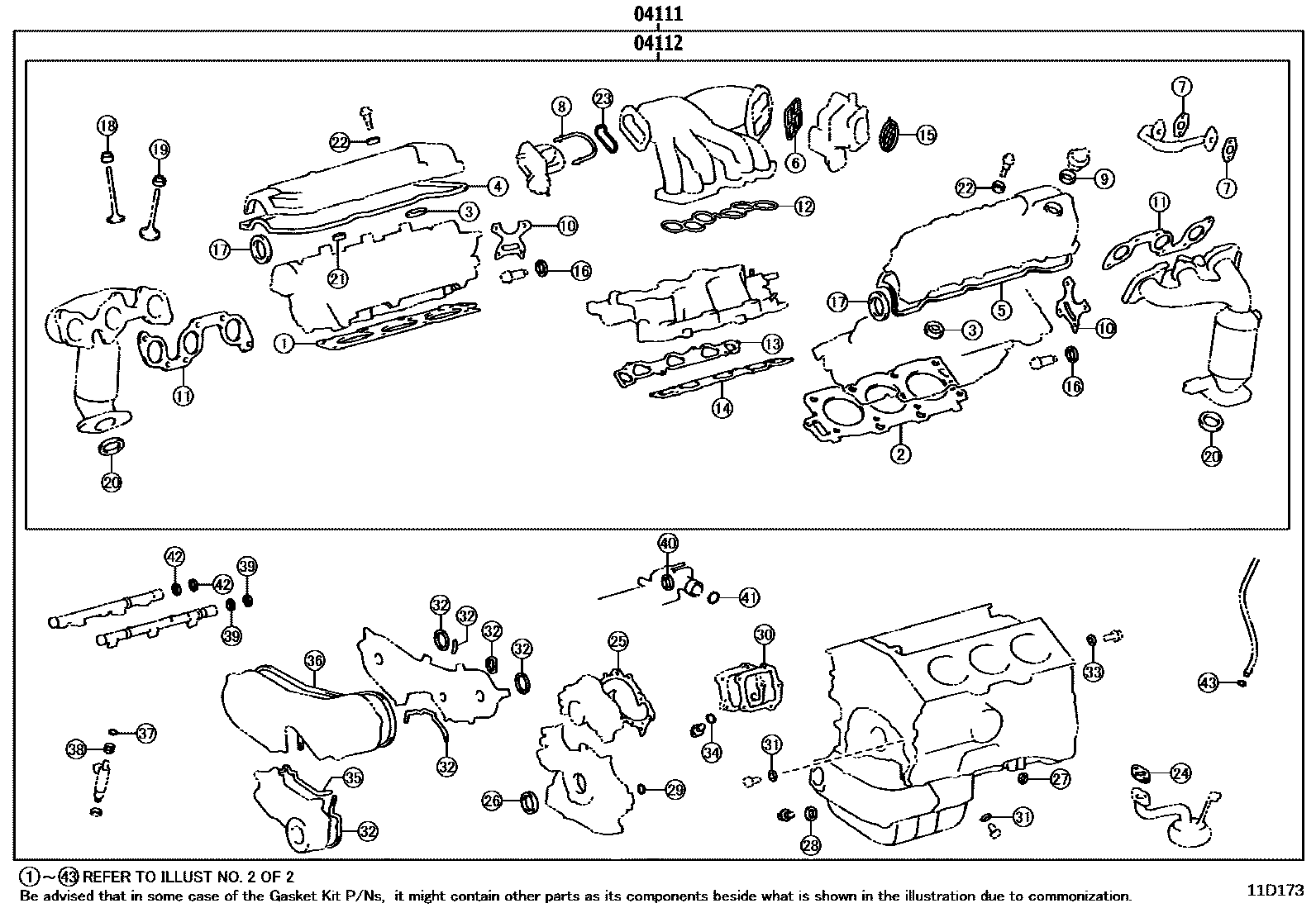

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D173
Engine Overhaul Gasket Kit — 11D173 (200406 – 200408)

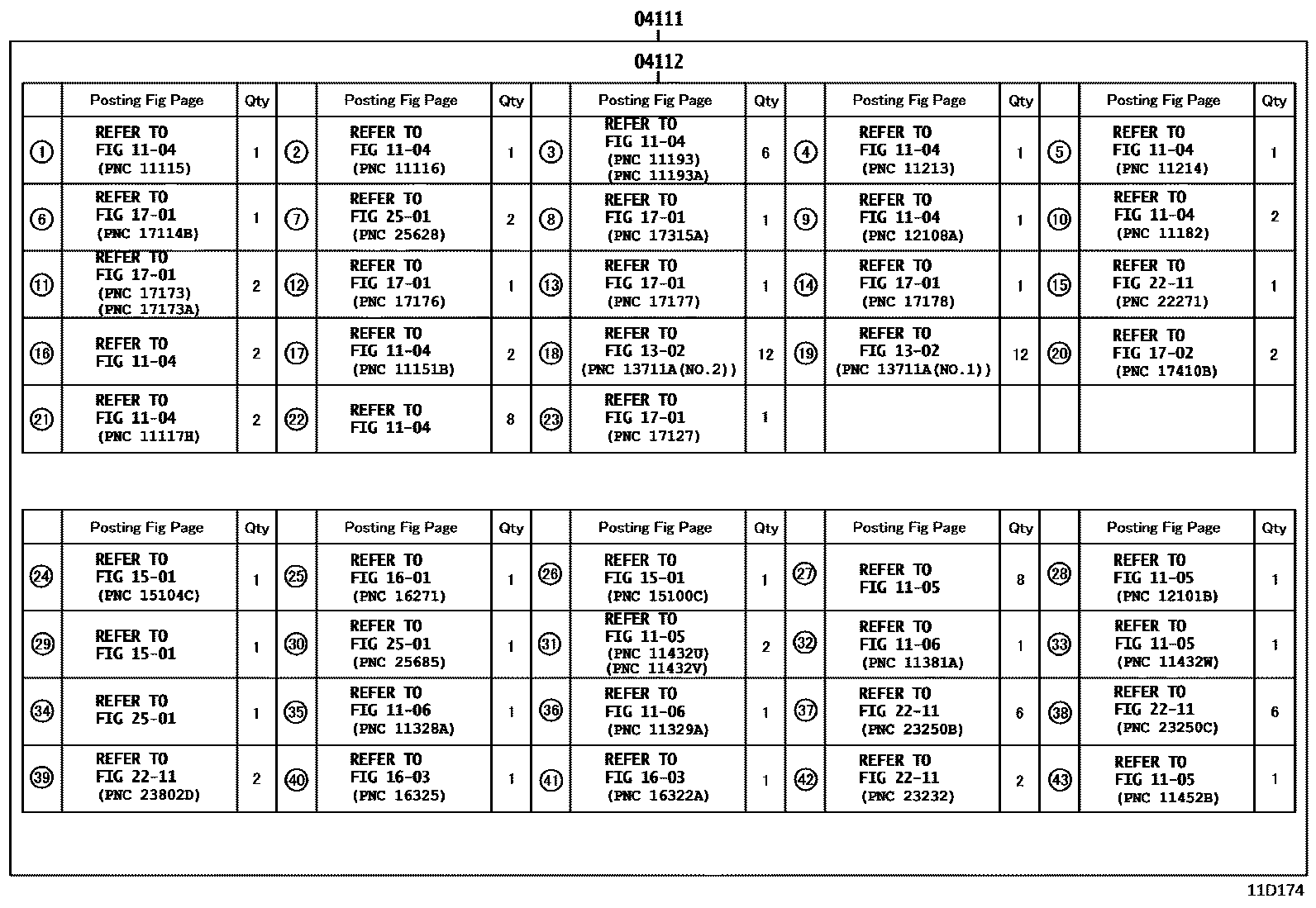

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D174
Engine Overhaul Gasket Kit — 11D174 (200406 – 200408)

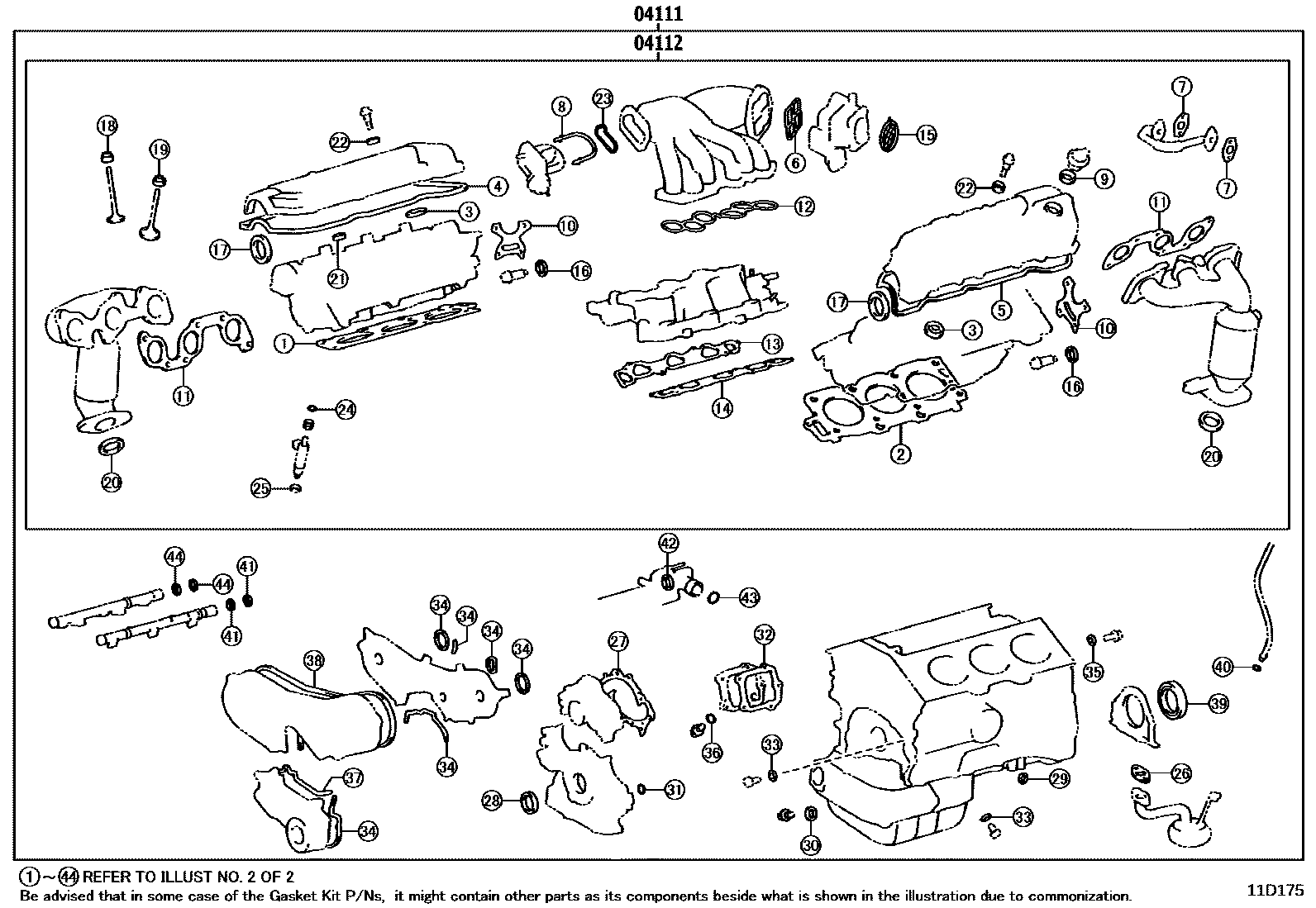

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D175
Engine Overhaul Gasket Kit — 11D175 (200408 – 200601)

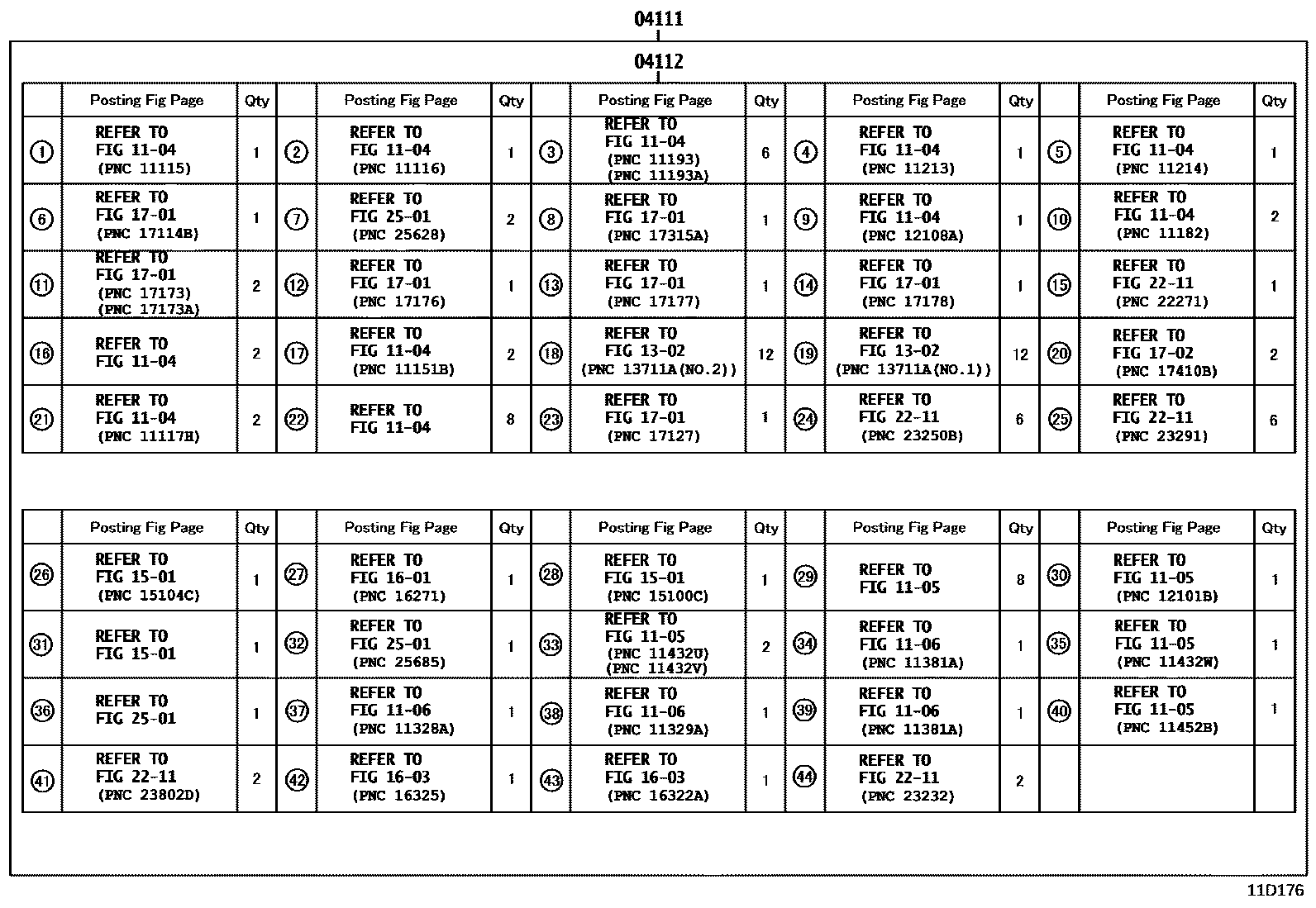

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D176
Engine Overhaul Gasket Kit — 11D176 (200408 – 200601)

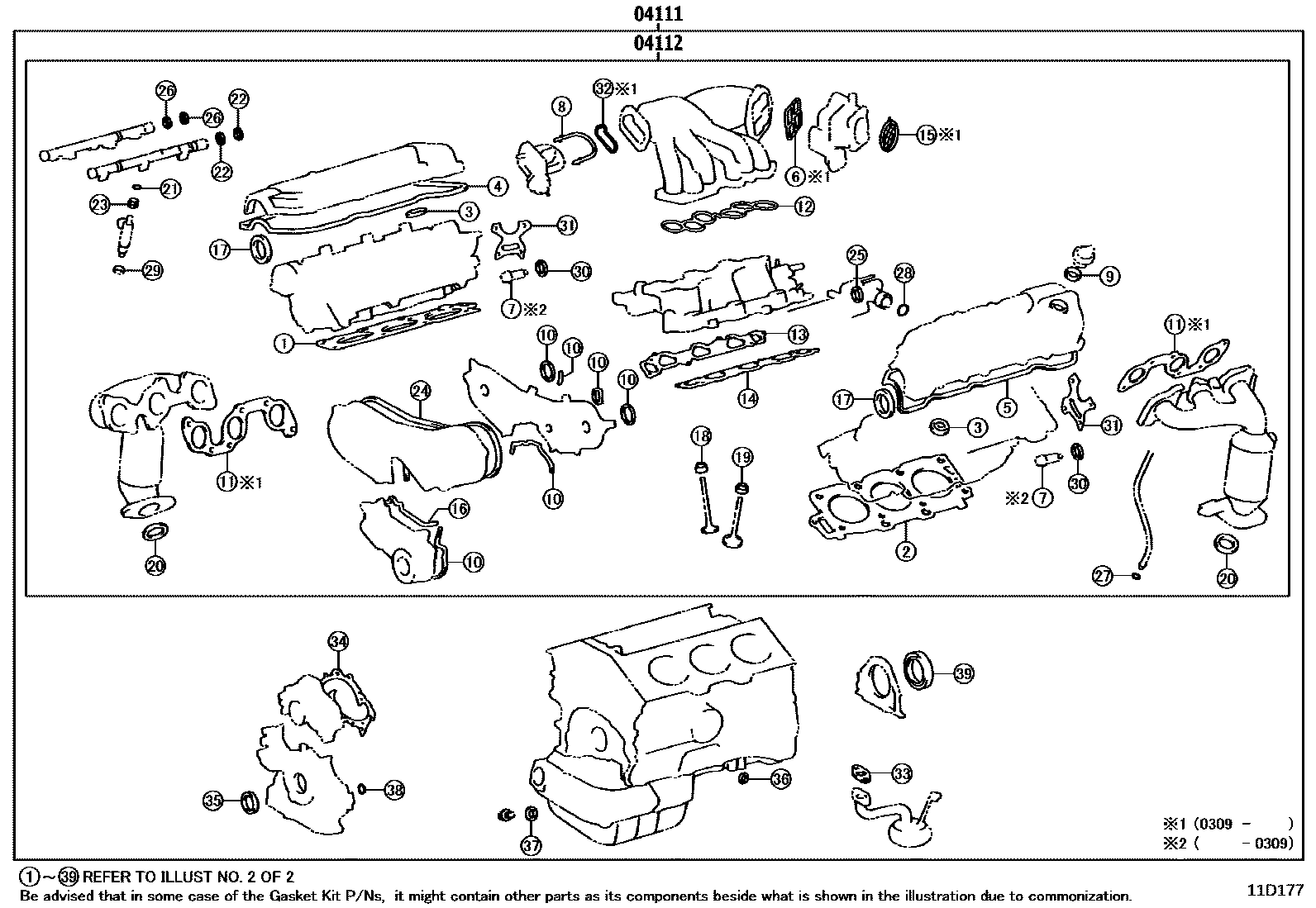

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D177
Engine Overhaul Gasket Kit — 11D177 (200307 – 200406)

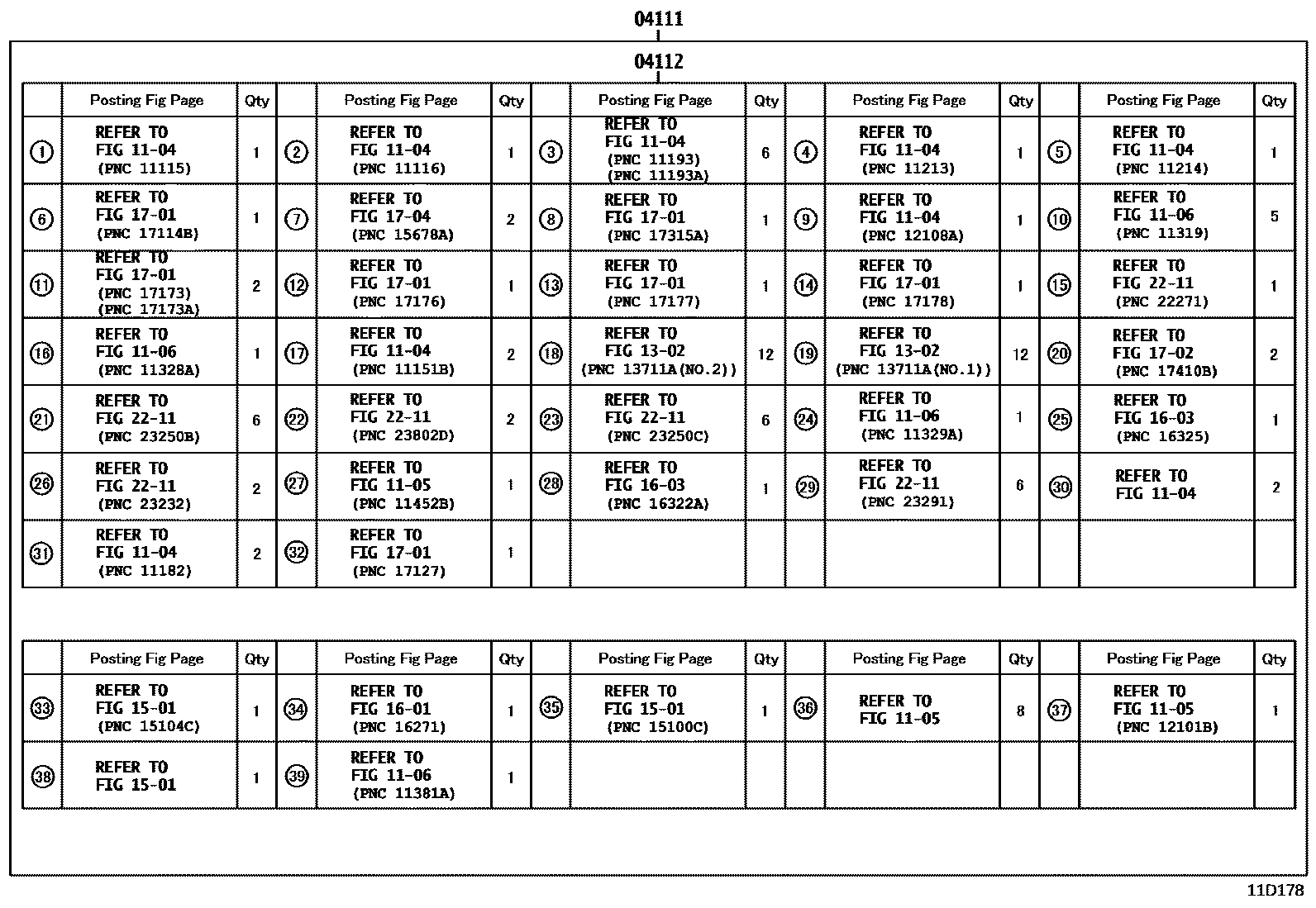

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D178
Engine Overhaul Gasket Kit — 11D178 (200307 – 200406)

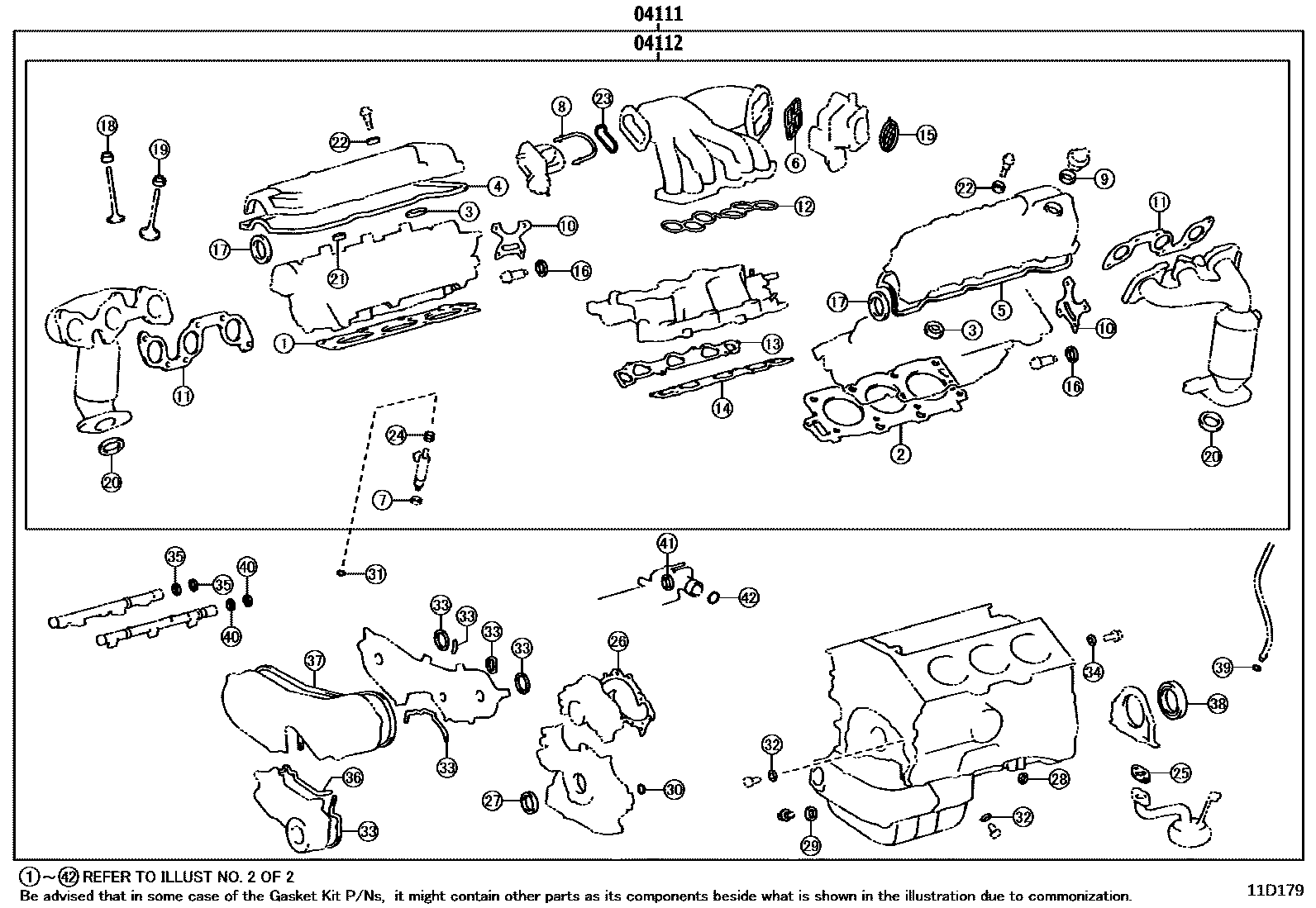

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D179
Engine Overhaul Gasket Kit — 11D179 (200406 – 200601)

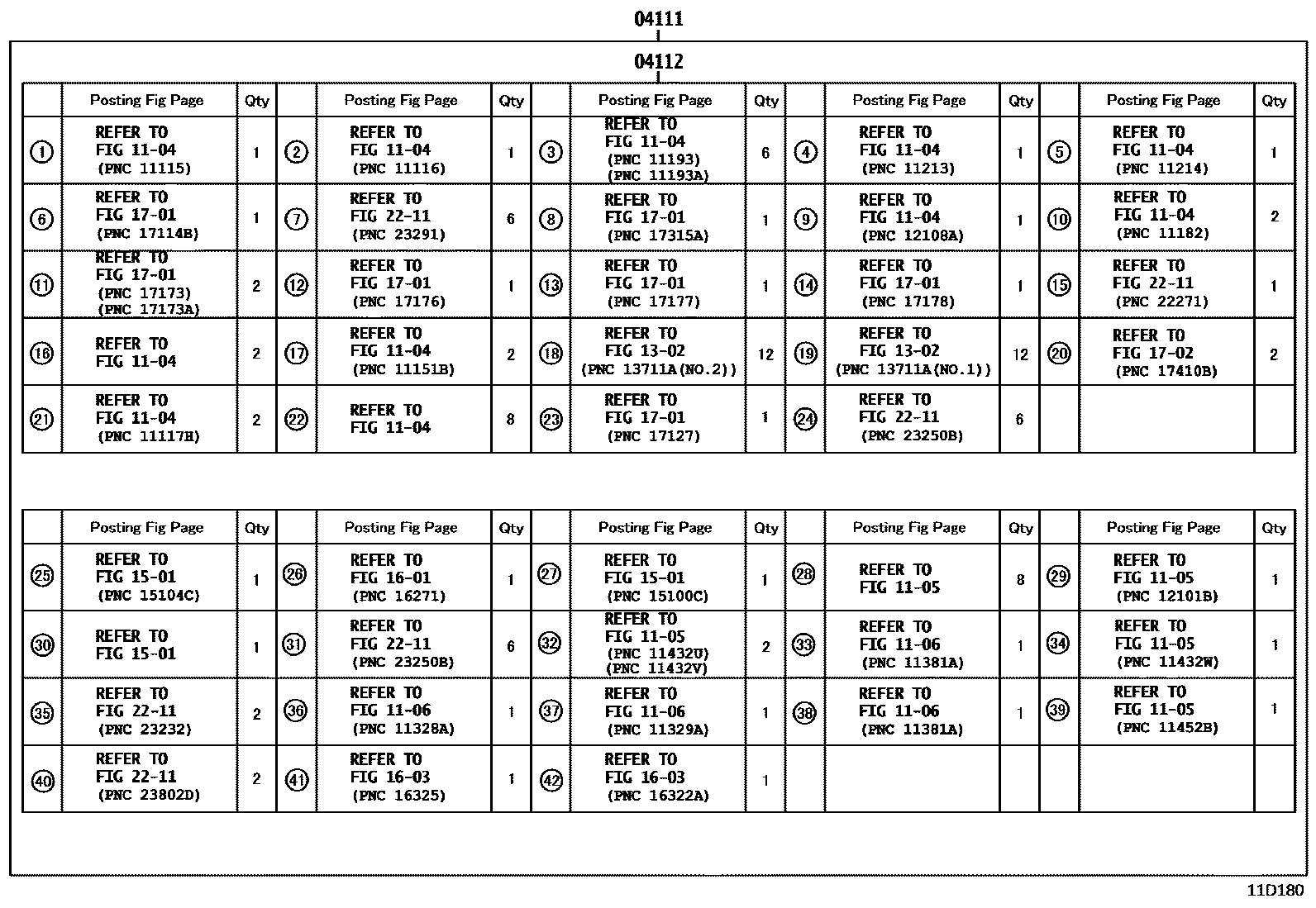

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11D180
Engine Overhaul Gasket Kit — 11D180 (200406 – 200601)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0H070 · 04111-0H071 · 04111-20170 · 04111-20200 · 04111-20201 · 04111-20210 · 04111-20270 · 04111-20271 · 04111-20280 · 04111-20281 · 04111-20310 · 04111-20311 · 04111-20331 · 04111-28130 · 04111-28131 · 04111-28132 · 04111-28133 · 04111-28260 · 04111-28261 · 04111-28262 · 04111-28270 · 04111-28271 · 04111-28272
04112Engine valve grinding pad assembly04112-0H070 · 04112-0H071 · 04112-20160 · 04112-20200 · 04112-20210 · 04112-20211 · 04112-20260 · 04112-20270 · 04112-20300 · 04112-20301 · 04112-20311 · 04112-28130 · 04112-28131 · 04112-28132 · 04112-28133 · 04112-28260 · 04112-28261 · 04112-28262 · 04112-28270 · 04112-28271 · 04112-28272
