Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

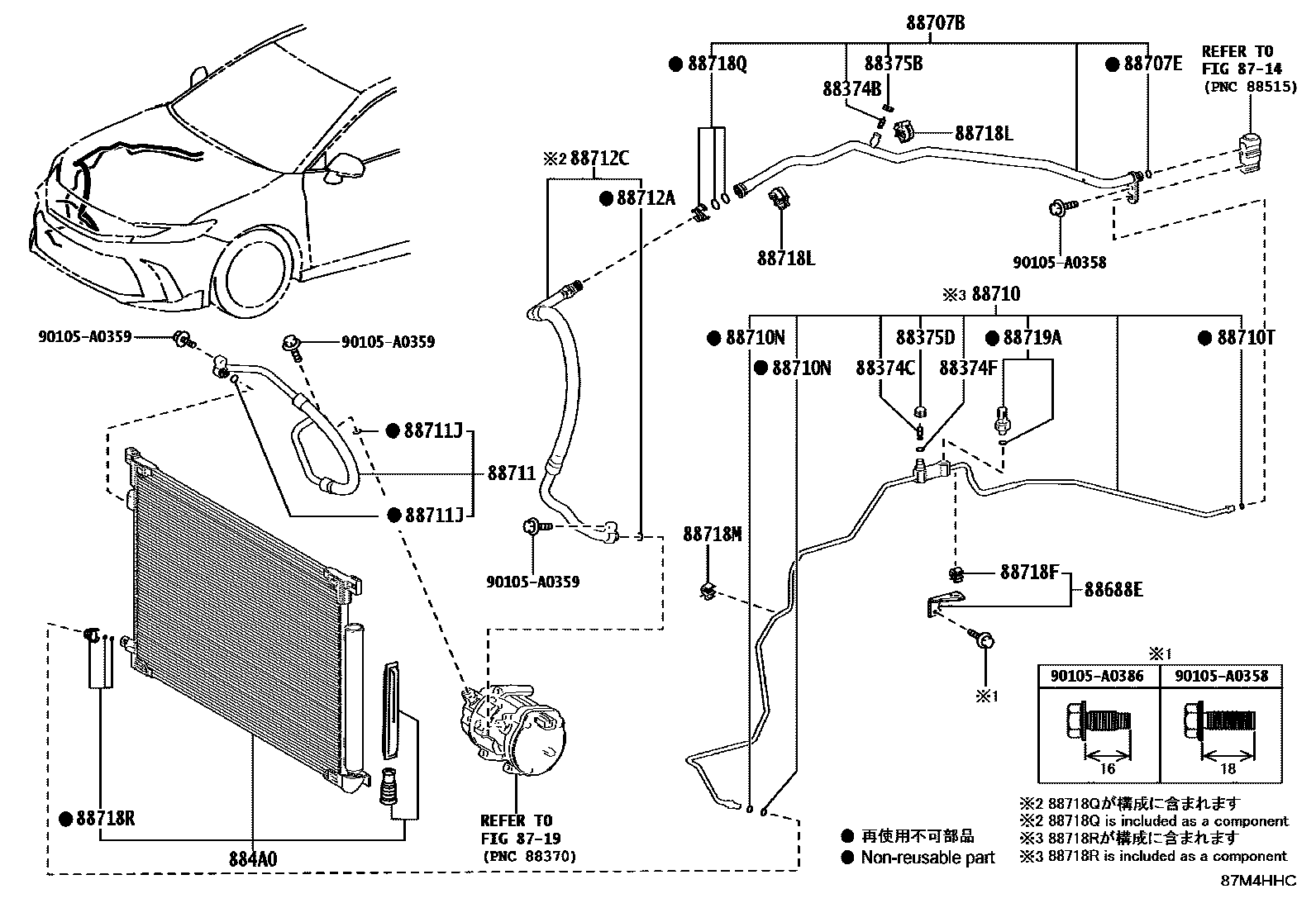

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374F | JOINT, TORIQUE, NO.1 (POUR ROBINET DE SERVICE) | 90099-14122 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-0R040 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-06360 |
| 88707B | Suction pipe B sub-assembly | 88707-06360 |
| 88707E | JOINT, TORIQUE(POUR TUYAU ASPIRATION) NO.2 | 90069-08009 |
| 88710 | Air conditioning pipe assembly | 88710-06720 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14158 |
| 88710T | JOINT, TORIQUE, NO.3(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90069-08011 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06610 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90069-08007 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90069-08009 |
| 88712C | Oil suction hose | 88704-06270 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-58050 |
| 88718L | Pipe clamp | 88718-06520 |
| 88718M | FIXATION, TUYAUTERIE | 88718-06530 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-52280 |
| 88718R | COLLIER, CONDUITE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
