Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

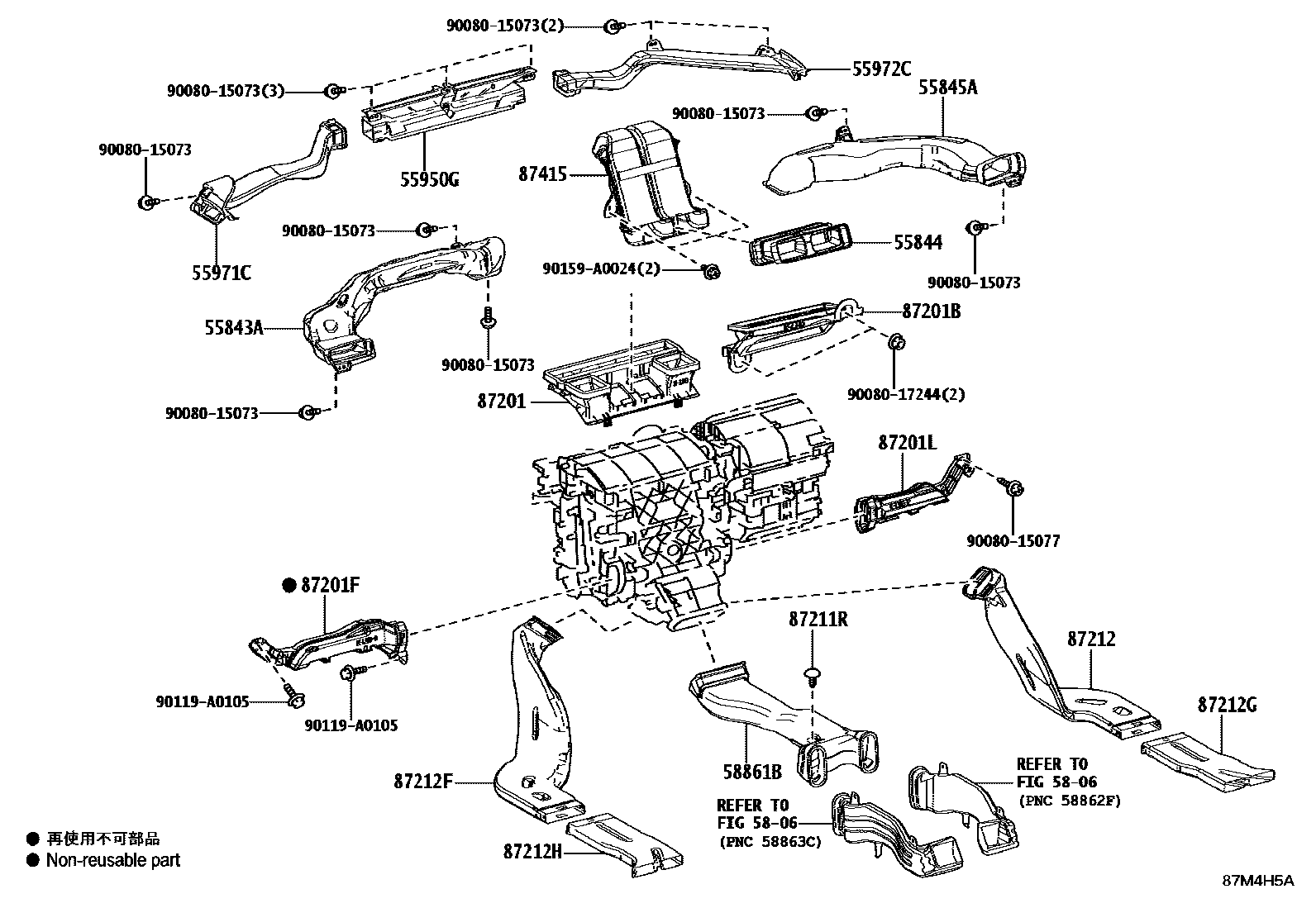

| 55843A | Air duct No. 1 from heater to air register | 55843-AQ010 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-AQ010 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-AQ010 |

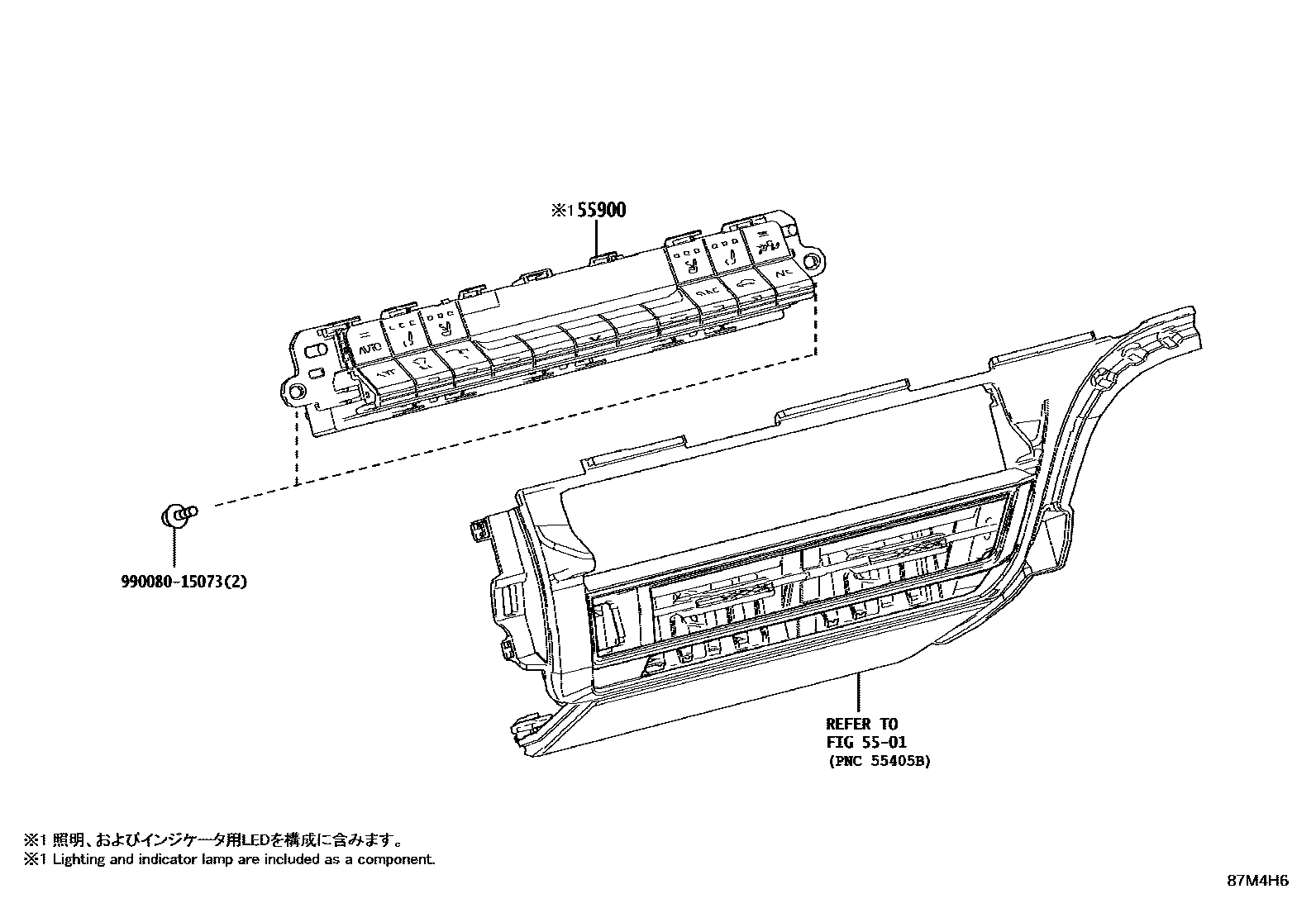

| 55900 | Air conditioning control assembly | 55900-AQ010 · 55900-AQ020 · 55900-AQ030 · 55900-AQ040 · 55900-AQ050 |
| 55950G | Defroster nozzle assembly | 55950-06160 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06150 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06150 |
| 58861B | Air duct No. 1 for armrest box | 58861-06200 |
| 87201 | No. 1 air duct sub-assembly | 87201-06C00 |
| 87201B | No. 2 air duct sub-assembly | 87201-06760 |
| 87201F | No. 3 air duct sub-assembly | 87201-06740 |
| 87201L | No. 4 air duct sub-assembly | 87201-06750 |
| 87212 | No. 1 rear air duct | 87212-06090 |
| 87212F | No. 2 rear air duct | 87213-06091 |
| 87212G | No. 3 rear air duct | 87215-06050 |
| 87212H | No. 4 rear air duct | 87216-06050 |
| 87415 | air duct | 87415-06010 |

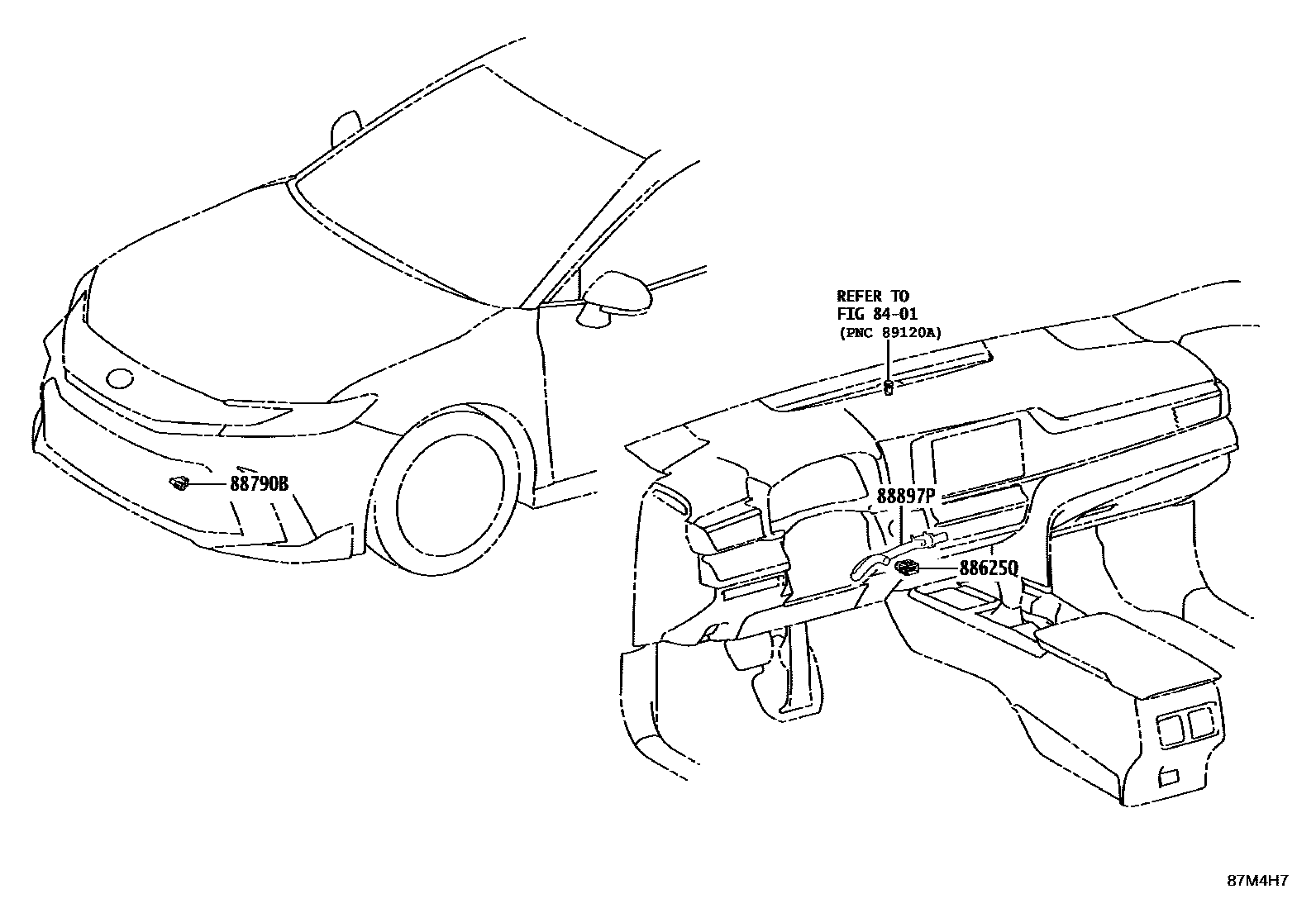

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88790B | Thermistor assembly | 88790-06020 |
| 88897P | aspirator | 87201-06770 |
