Toyota CAMRY 后视镜 — Figure 8701
Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

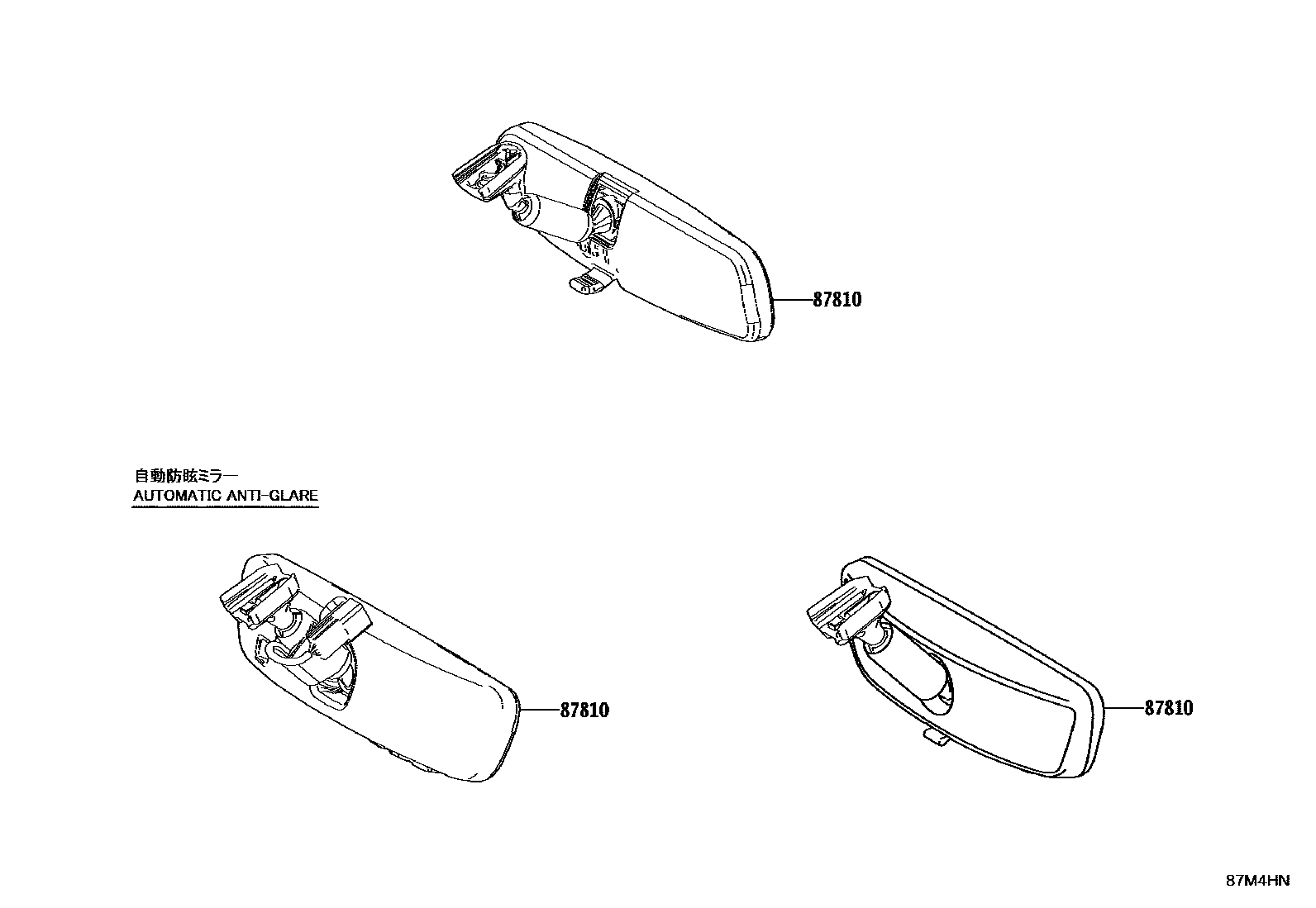

| 87810 | Interior rearview mirror assembly | 87810-06190 · 87810-YY040 · 87840-0W400 |

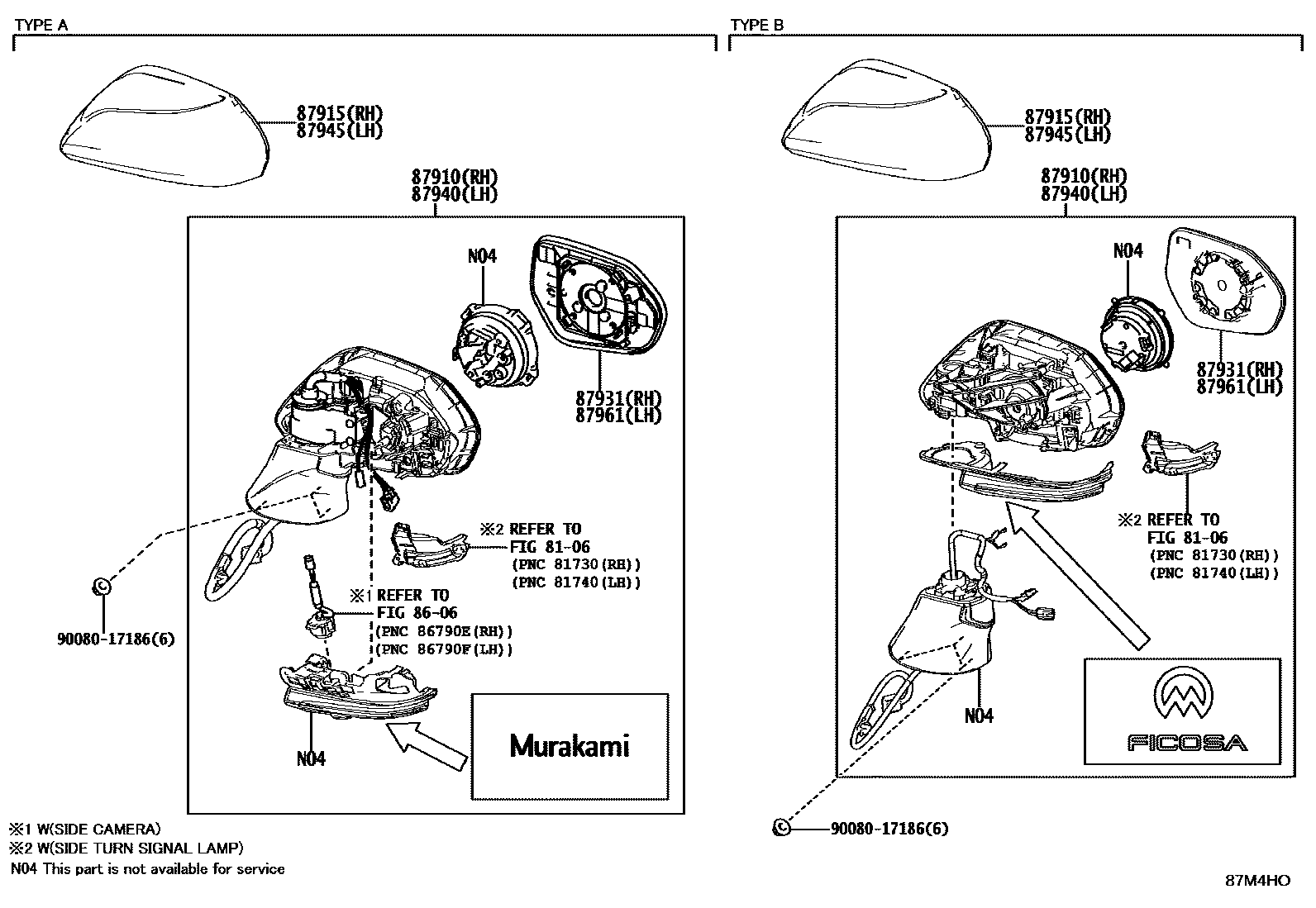

| 87910 | Right exterior rearview mirror assembly | 87910-06800 · 87910-06810 · 87910-06840 · 87910-06A20 · 87910-AQ010 · 87910-AQ020 · 87910-AQ030 |
| 87931 | Right exterior rearview mirror | 87902-06060 · 87902-06160 · 87902-06180 · 87902-06190 · 87902-AQ010 |
| 87940 | Left exterior rearview mirror assembly | 87940-06800 · 87940-06810 · 87940-06840 · 87940-06A20 · 87940-AQ010 · 87940-AQ020 · 87940-AQ030 |
| 87961 | Left exterior rearview mirror | 87907-06140 · 87907-06160 · 87907-06170 · 87907-06260 · 87907-AQ010 |
